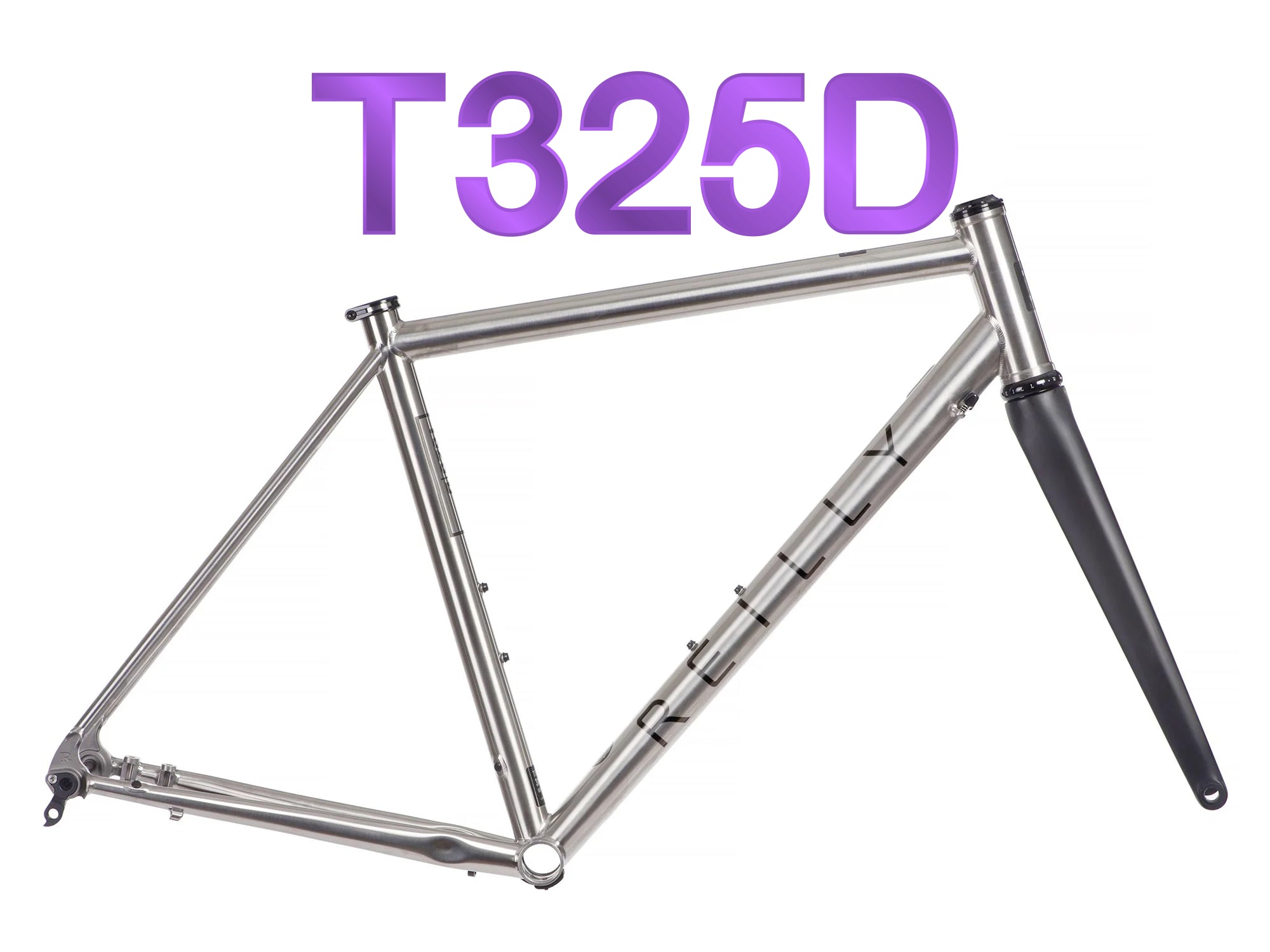

Reilly T325D brushed titanium road bike frameset with black decals

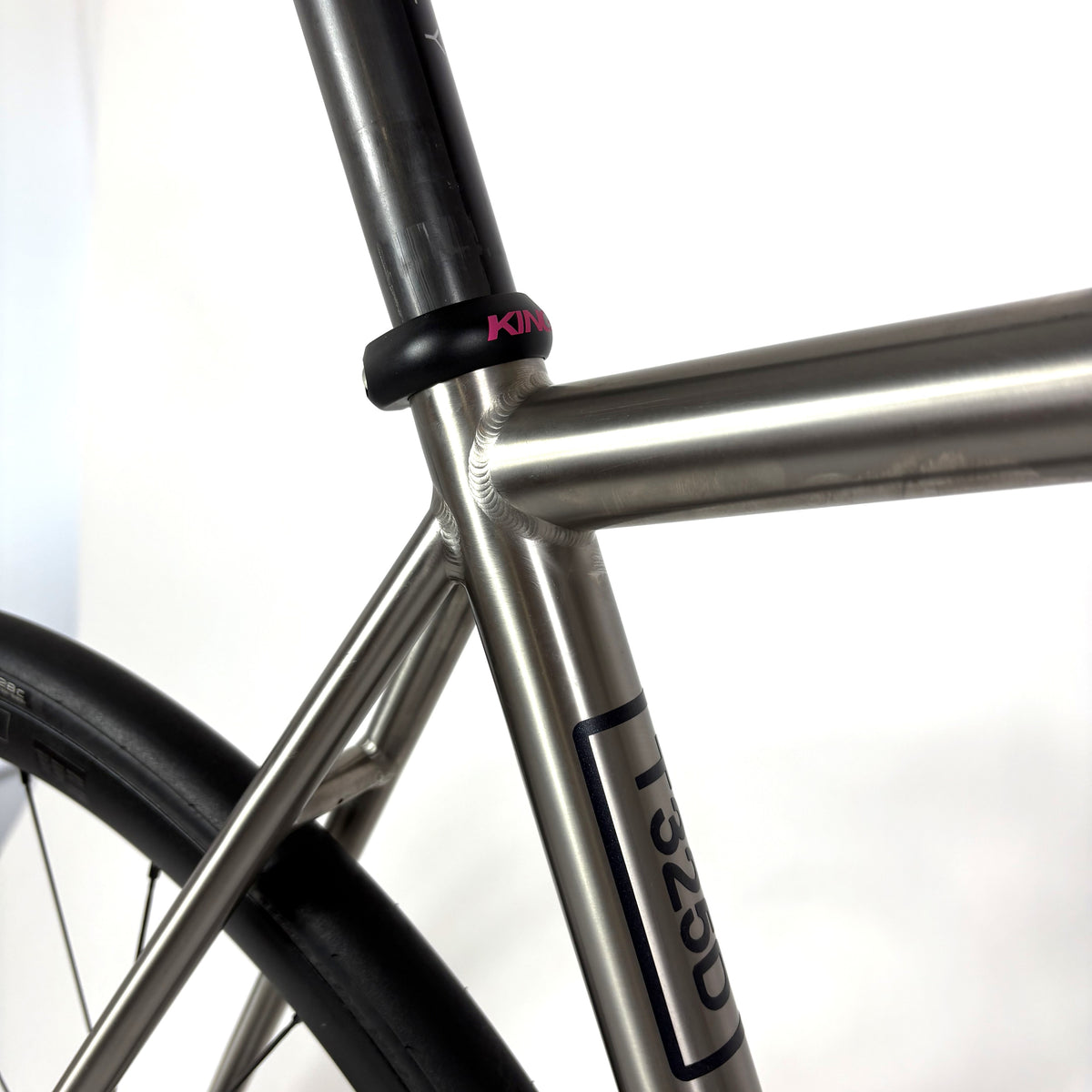

Close-up of a bicycle frame featuring a titanium frame and a black seat clamp

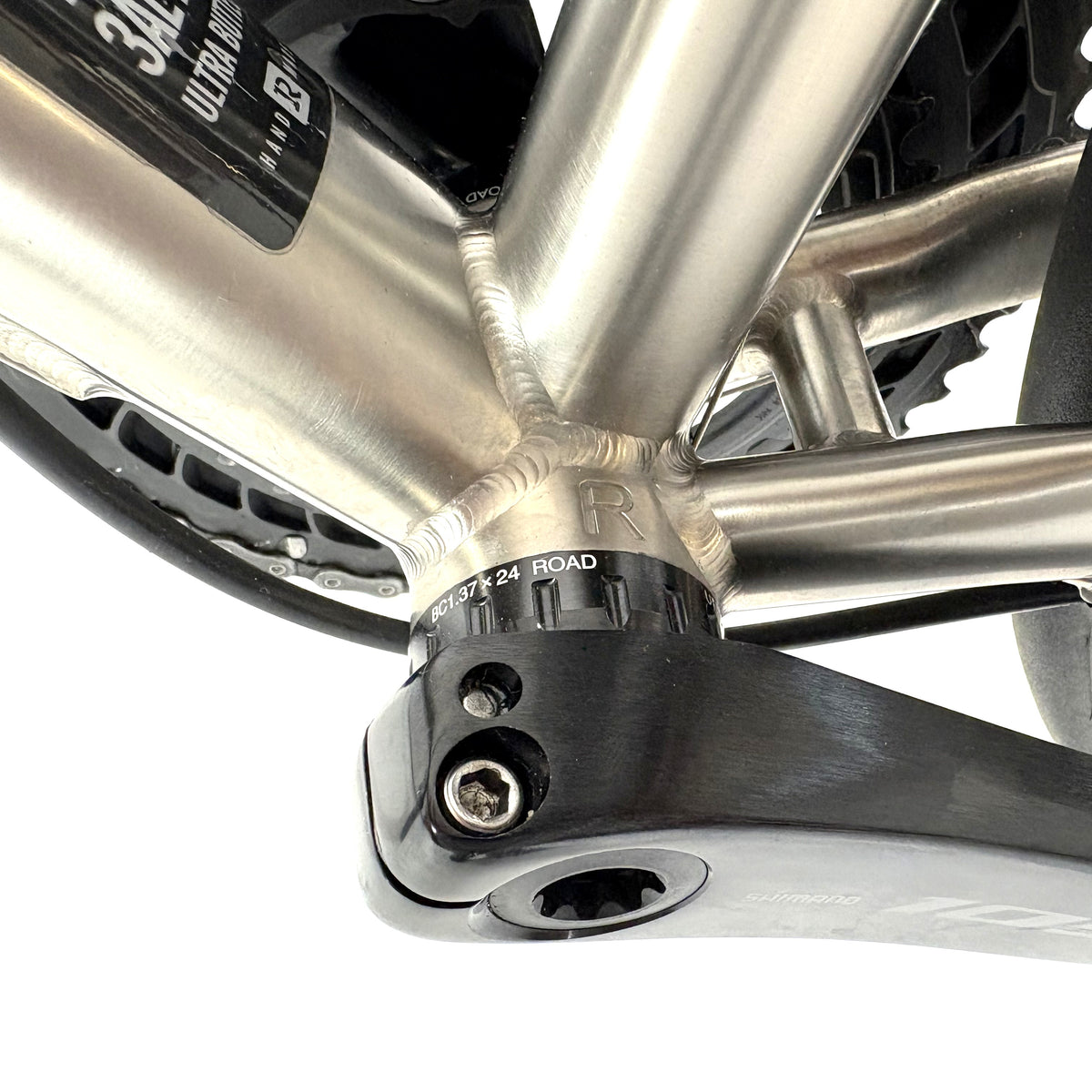

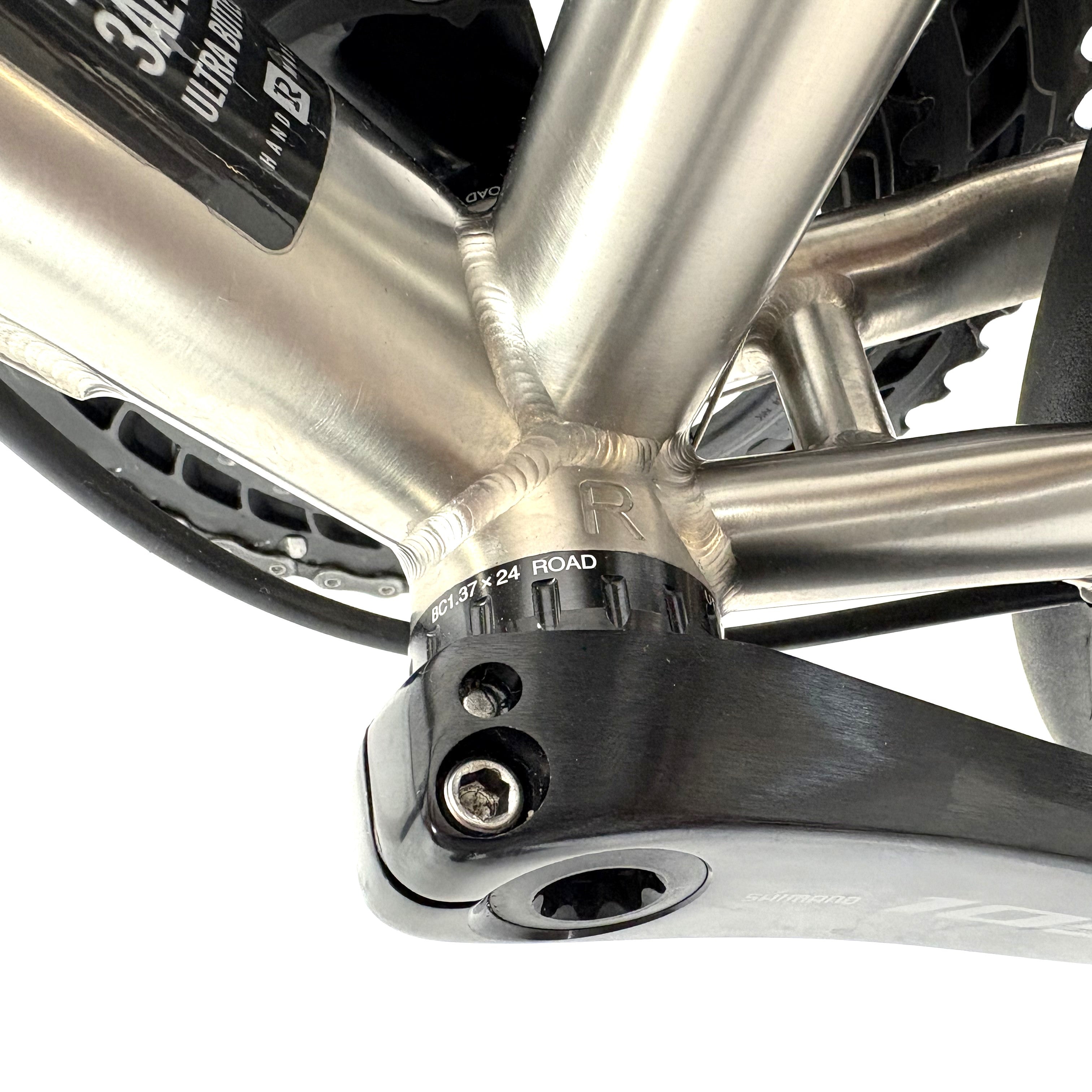

Welded bottom bracket.

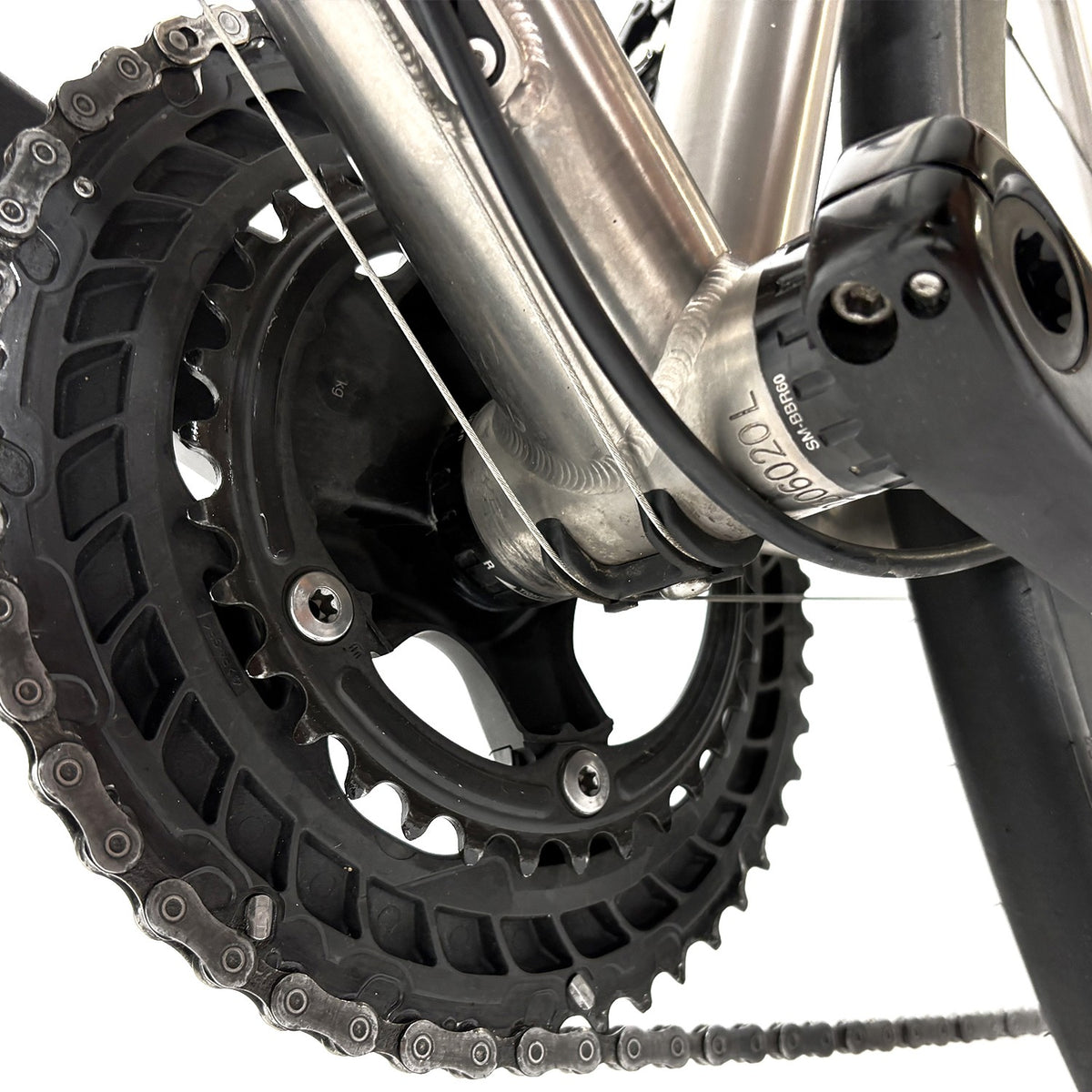

Close-up of a bicycle crankset and chainring, showing a black chainring with a silver chain, part of a silver frame, and a black bottom bracket on a white background.

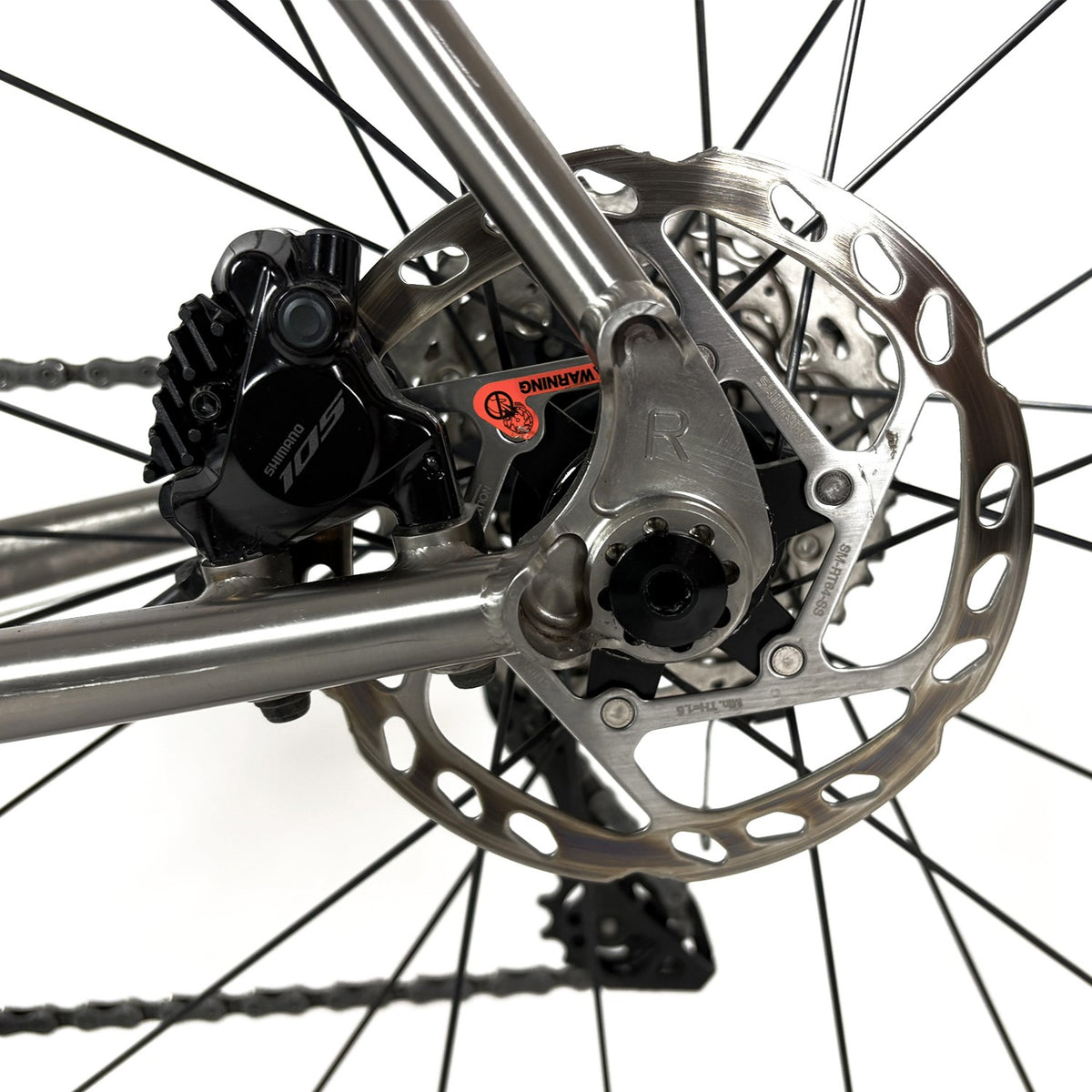

Close-up of a bicycle's rear disc brake assembly, featuring a silver metallic rotor, black brake caliper and Reilly branding.
Reilly T325D brushed titanium road bike frameset with black decals
Close-up of a bicycle frame featuring a titanium frame and a black seat clamp
Welded bottom bracket.
Close-up of a bicycle crankset and chainring, showing a black chainring with a silver chain, part of a silver frame, and a black bottom bracket on a white background.
Close-up of a bicycle's rear disc brake assembly, featuring a silver metallic rotor, black brake caliper and Reilly branding.

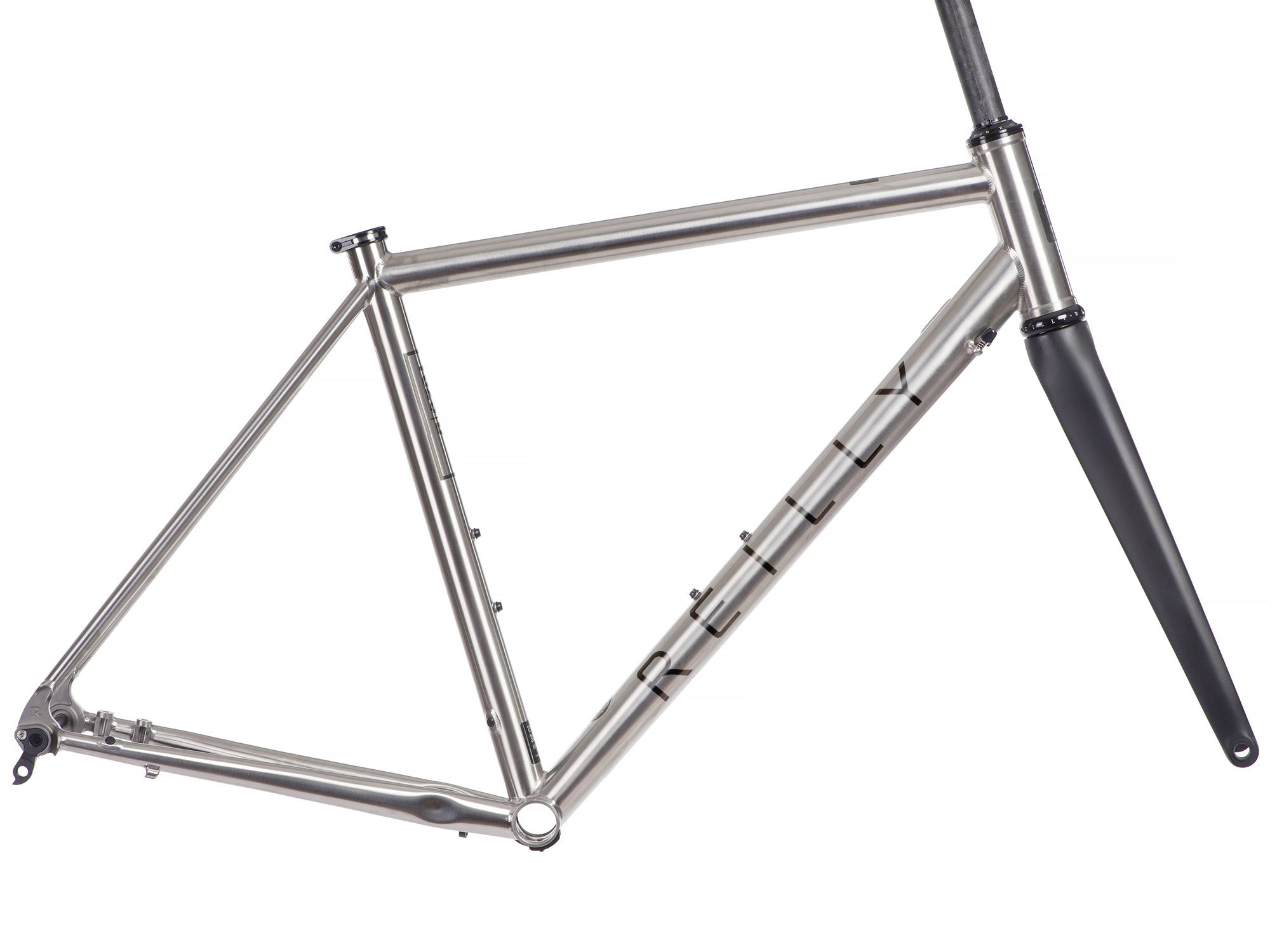

T325D // ROAD DISC FRAMESET

CLASSIC ROUND TUBE ROAD PERFECT FOR ROAD RACING SPORTIVE RIDING AND ENDURANCE CHALLENGES
FAST, RESPONSIVE AND LIGHTWEIGHT DUE TO 3AL 2.5V AEROSPACE-GRADE TITANIUM
'FLEX AND FLOW' TITANIUM DELIVERING COMFORT AND DURABILITY FOR LONG-DISTANCE RIDING.
£2,399.00 For international orders, UK VAT has been removed.
Size
A promotional banner featuring a black custom-painted finish sample bottle with blue and white text, alongside the text 'CONTACT US FOR A QUOTE ON A BESOPO FINISH' on a dark blue background.
FOR INTERNATIONAL ORDERS - UK VAT HAS ALREADY BEEN REMOVED.
FOR INTERNATIONAL ORDERS - VIEW CART FOR TAX AND DUTIESCALCULATOR

BOOK A DEMO RIDE

Chat Email 01959 528 253
FOR INTERNATIONAL ORDERS - UK VAT HAS ALREADY BEEN REMOVED.
VIEW CART FOR TAX AND DUTIES CALCULATOR
The following spec applies to a base build. All of the options can be customised to suit your requirements.
Specification Details
Titanium Grade 3AL-2.5V
Bottom Bracket Shell BSA English Threaded
Cable Routing External gear cable routing; internal downtube brake hose routing
Headset Reilly Aluminium Headset (Black, Red, Blue) for 44mm head tubes, 1.1/8"–1.5" steerer
Fork UDM Carbon Fork
Frame Features 2 Bottle Cage Mounts
Finish Vinyl decal in black, blue or red as standard
Warranty Lifetime Frame Warranty (Original Owner Only, Non-Transferable) T&Cs Apply
All measurements are in milimeters. For mobile users, please use the horizontal scroll bar to view all sizes.


Frame Geometry

SIZE EXTRA SMALL
 SMALL MEDIUM LARGE EXTRA LARGE
SEAT TUBE C/TOP 470mm 490mm 510mm 530mm 540mm
TOP TUBE EFFECTIVE 510mm 530mm 550mm 570mm 590mm
BB DROP 72mm 72mm 72mm 72mm 72mm
CHAINSTAY LENGTH 405mm 407mm 408mm 410mm 410mm
FORK RAKE 43mm 43mm 43mm 43mm 43mm
TRAIL 66mm 63mm 56mm 56mm 56mm
FRONT CENTRE 576mm 578mm 584mm 599mm 619mm
WHEELBASE 970mm 974mm 981mm 996mm 1016mm
STANDOVER 736mm 753mm 774mm 792mm 804mm
HEAD TUBE 110mm 130mm 150mm 170mm 185mm
STACK 524mm 541mm 564mm 583mm 597mm
REACH 372mm 374mm 382mm 392mm 407mm

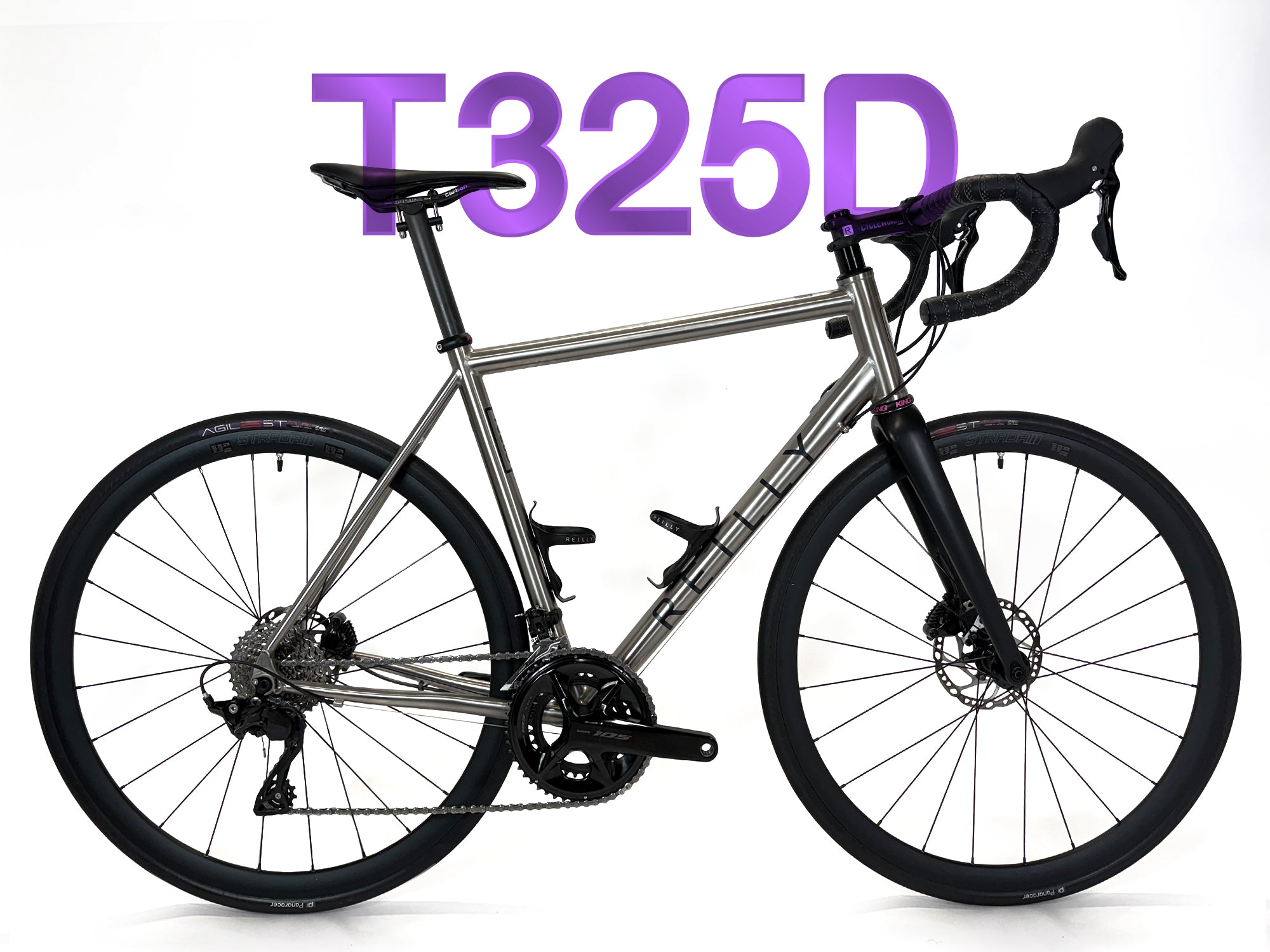

The Reilly T325D combines titanium's stiffness, comfort, and durability to deliver a smooth, fast and thrilling road riding experience. Featuring an ultra-butted 3AL-2.5V tubeset, the T325D blends classic round-tubing style with all-day comfort for exceptional performance.
32 MM

TYRE CLEARANCE

2

BOTTLE CAGE MOUNTS

1.6 KG

FRAME WEIGHT (M)

31.6

SEATPOST SIZE

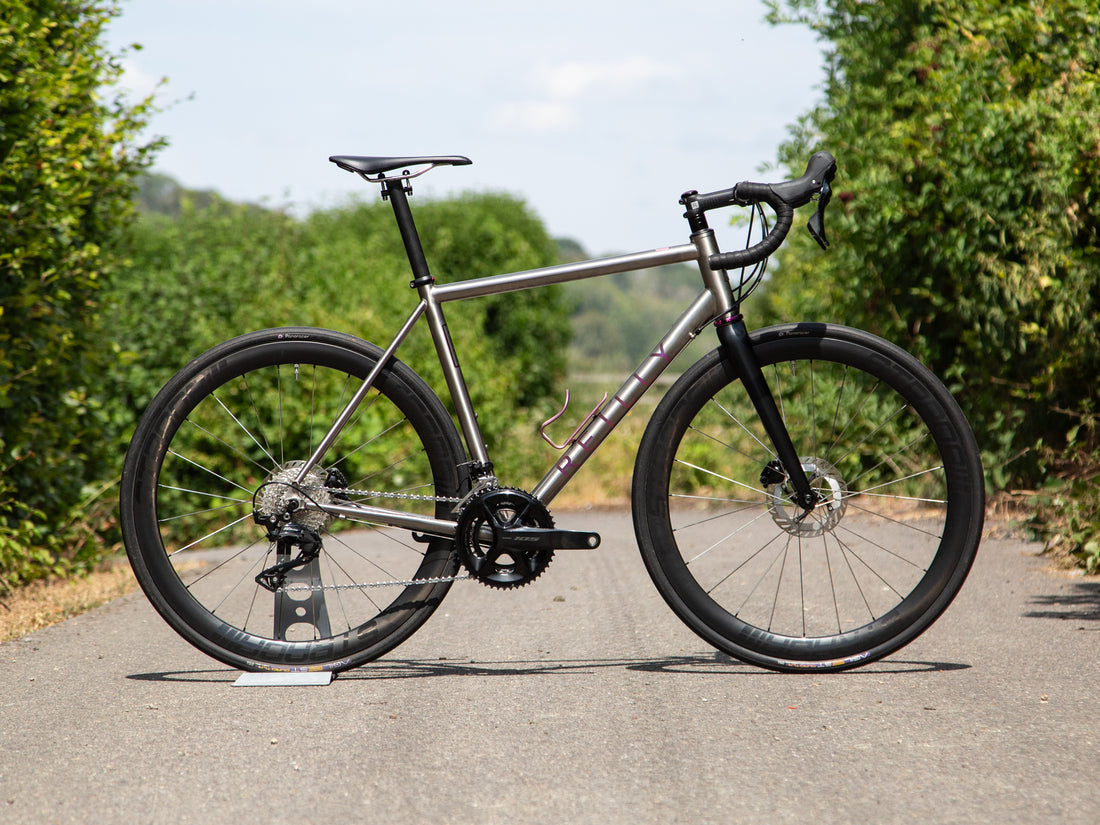

  • A titanium road bike on tarmac with green either side.

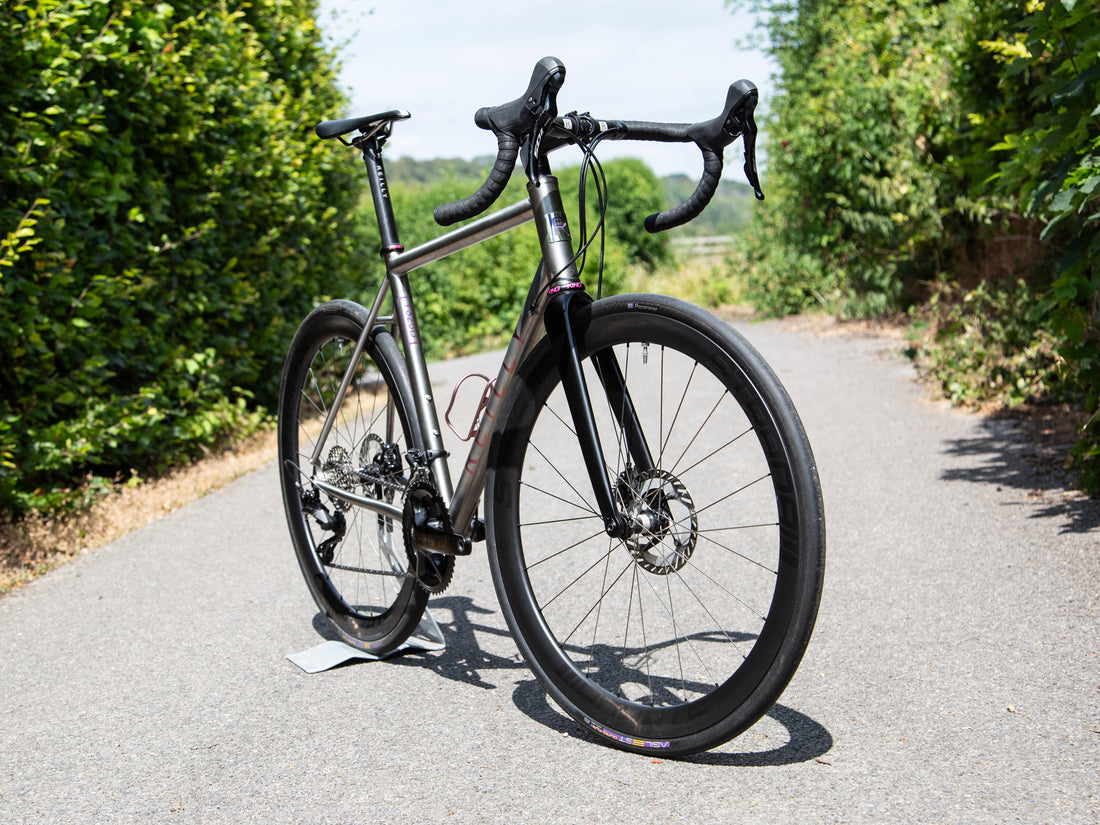

  • A titanium bicycle with black components and drop handlebars, parked on an asphalt path outdoors with green hedges on both sides.

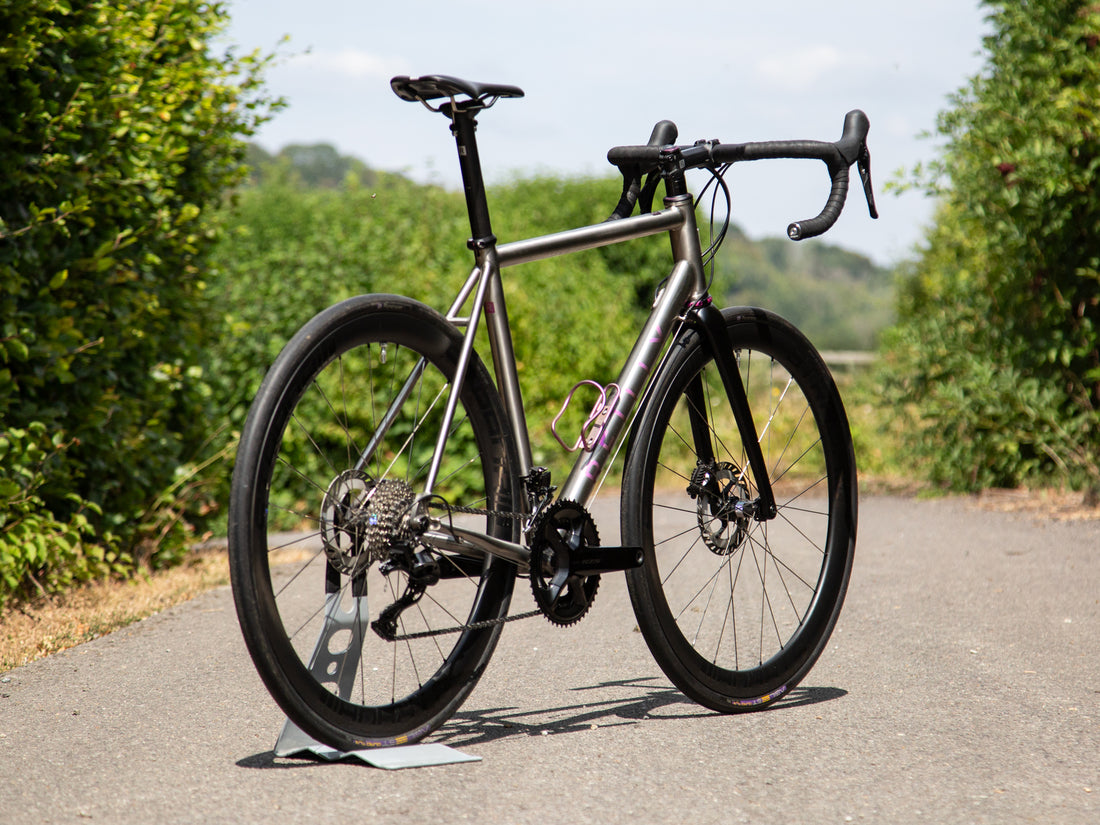

  • A road bicycle with a metallic silver-gray frame, black components, and black wheels, parked on a paved path outdoors with green hedges and trees in the background.

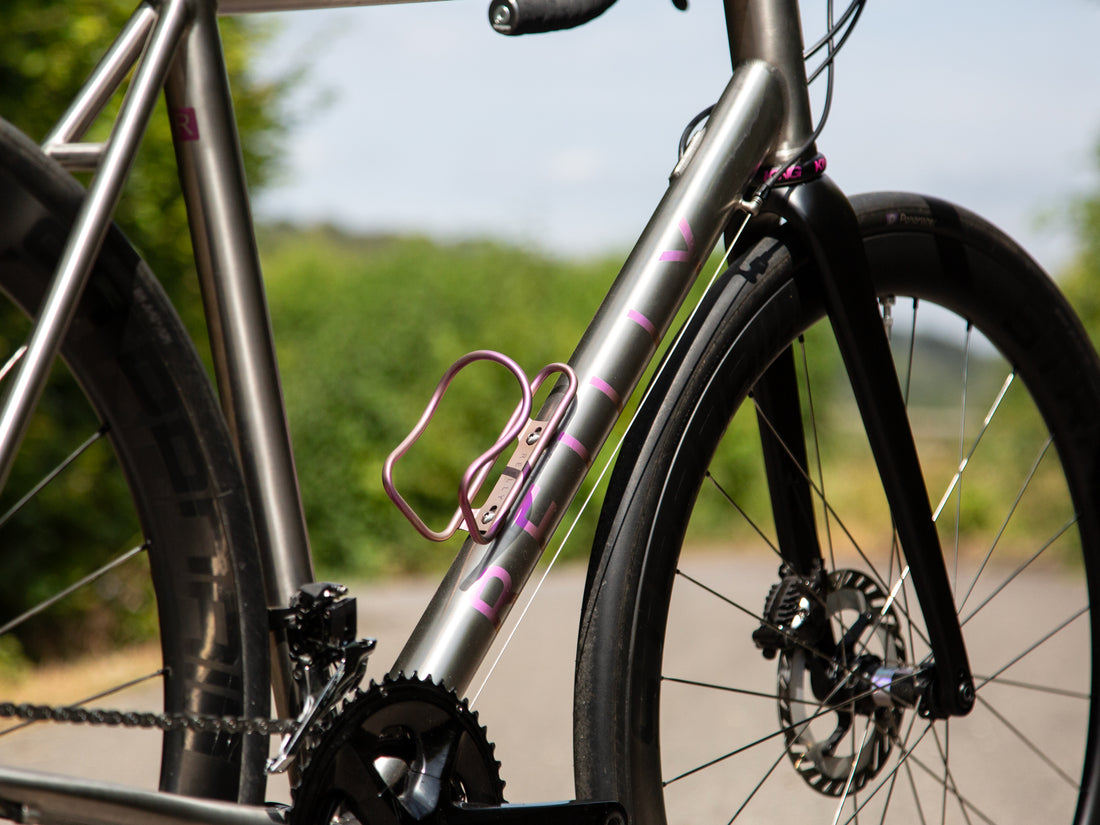

  • Close-up of a titanium bicycle frame with pink accents, a pink water bottle cage, and black wheels, photographed outdoors on a blurred road and greenery background.

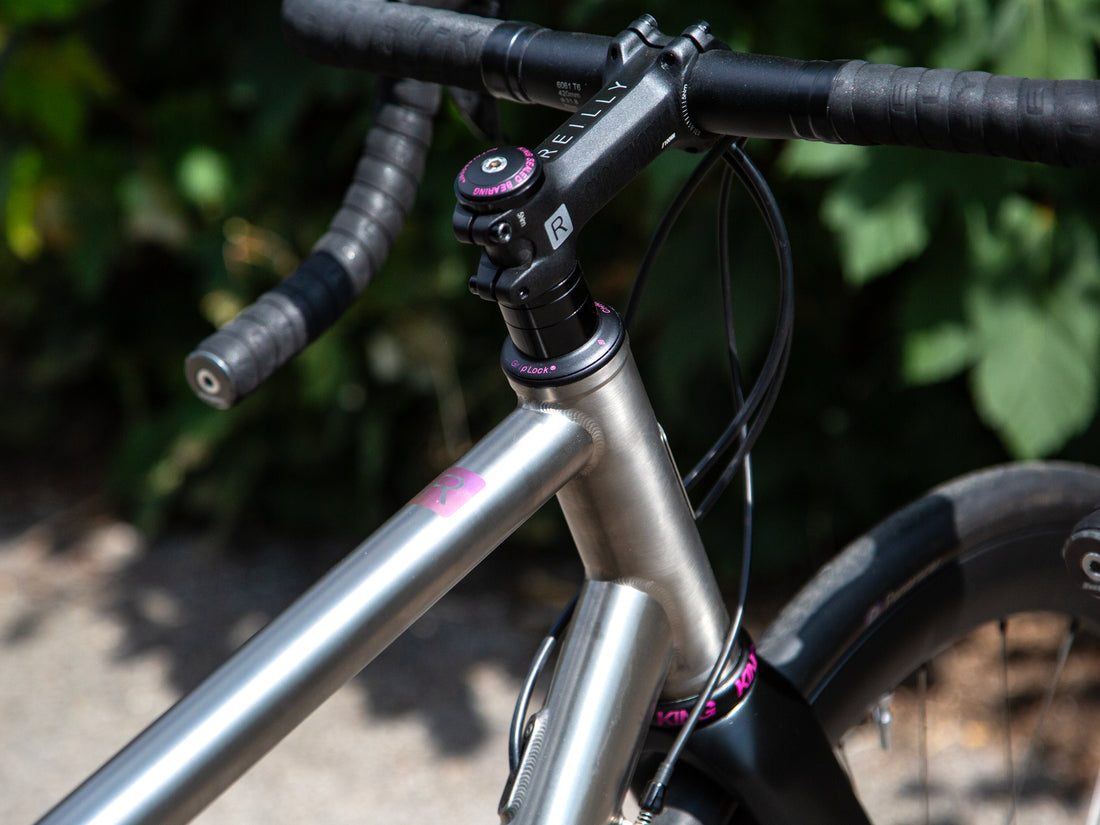

  • Close-up of a bicycle handlebar and frame area, showing a matte black stem, black handlebar tape, black fork, and a titanium frame with small pink accents, photographed outdoors with blurred green foliage in the background.

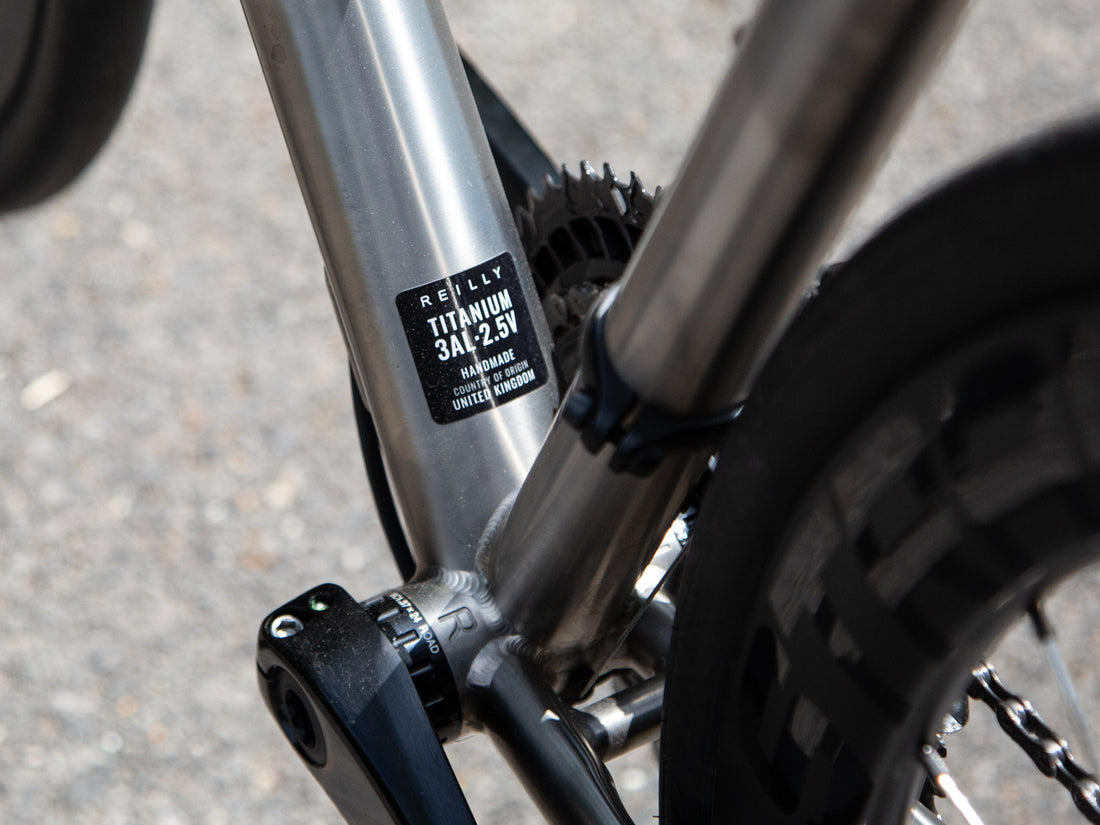

  • Close-up of a bicycle frame showing a silver titanium down tube with a black label that reads 'REILLY TITANIUM 3A+2.5V'

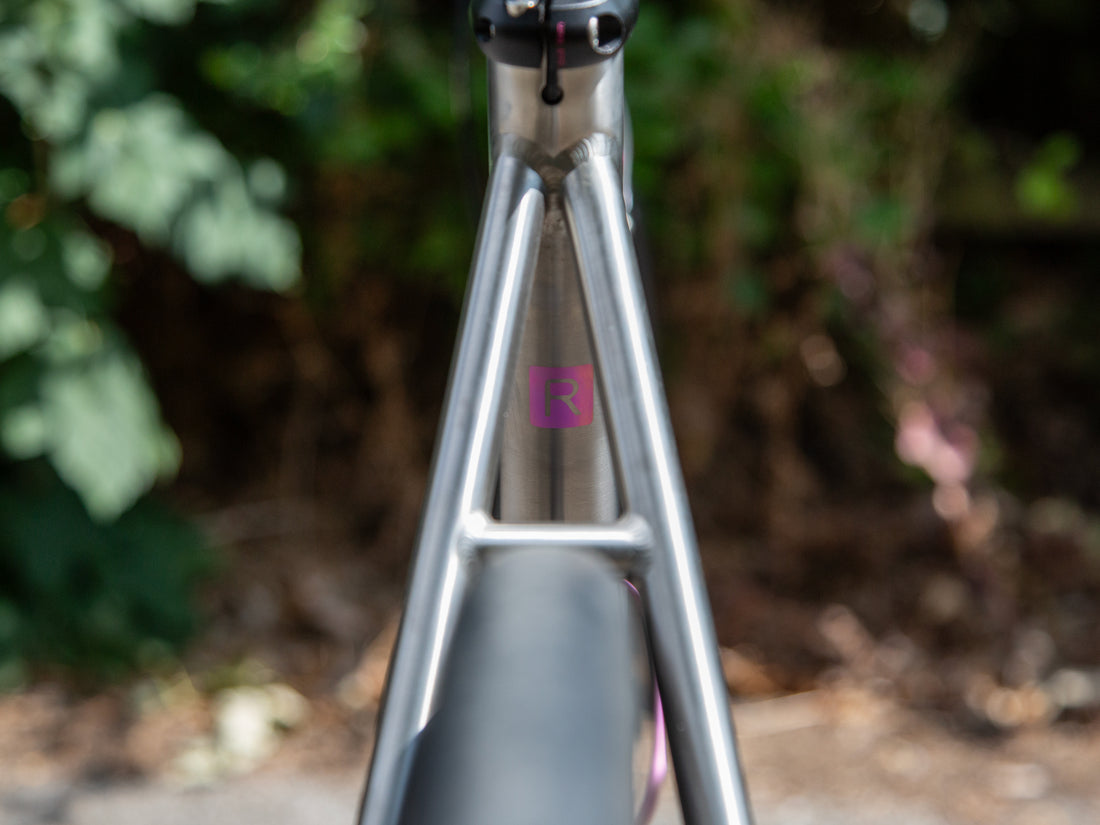

  • Close-up of a metallic bicycle frame tube with a small pink square logo featuring a stylized letter 'R', set against a blurred outdoor background of green foliage.

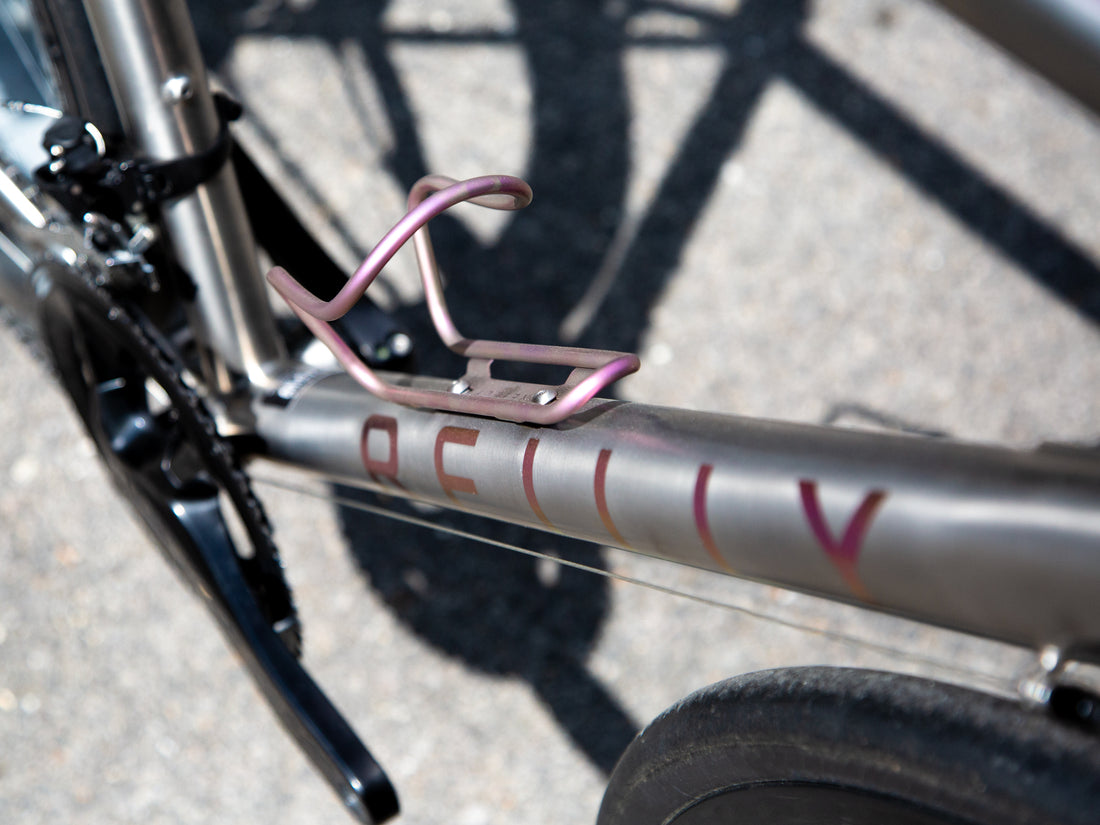

  • Close-up of a bicycle frame with a metallic rose gold water bottle cage mounted on the down tube. The frame has 'REILLY' printed on it in rose gold lettering, and the background shows asphalt with bicycle wheel shadows.

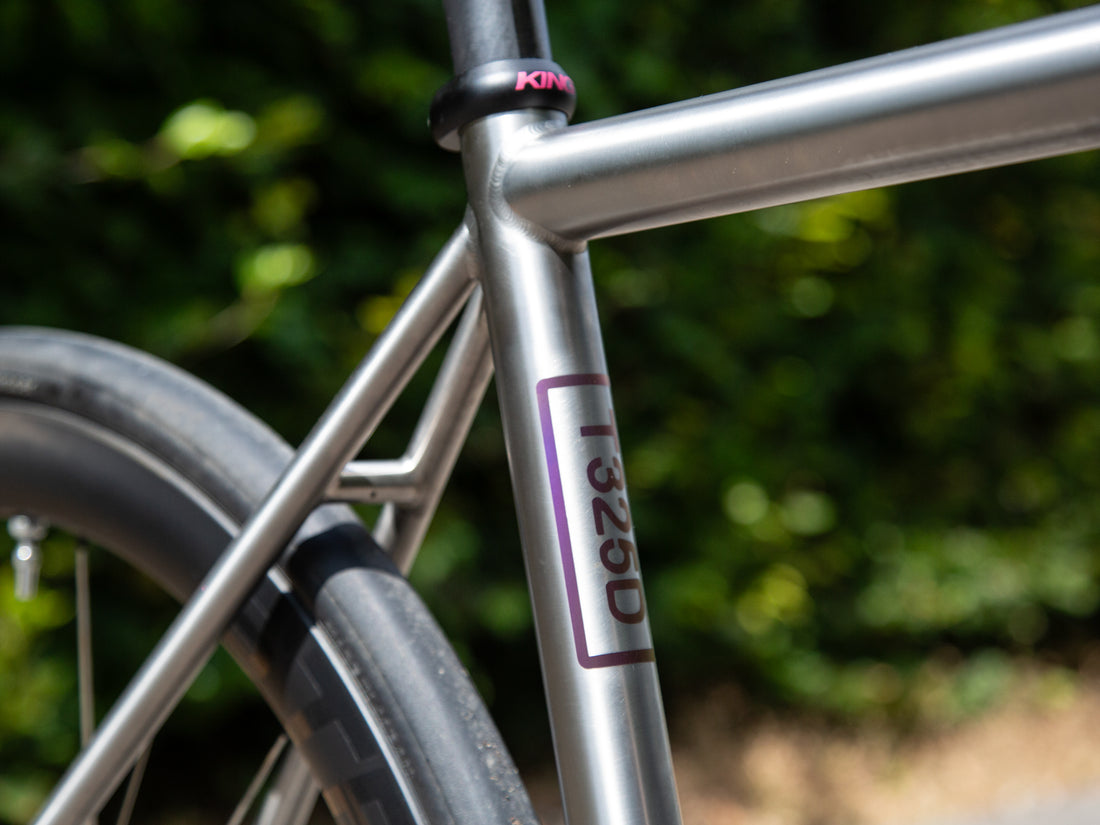

  • Close up of a titanium frameset with blurred background.

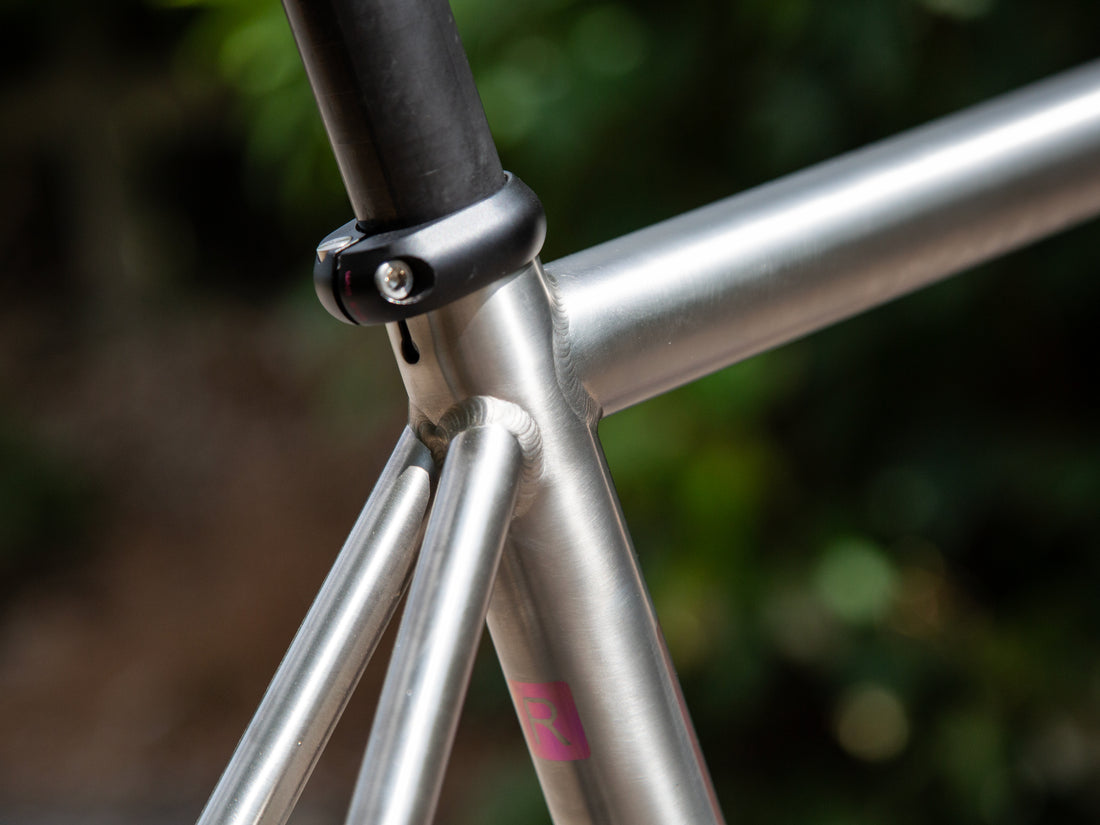

  • Close-up of a silver metallic bicycle frame with a black seat post clamp and a small pink logo near the bottom tube, set against a blurred green outdoor background.
