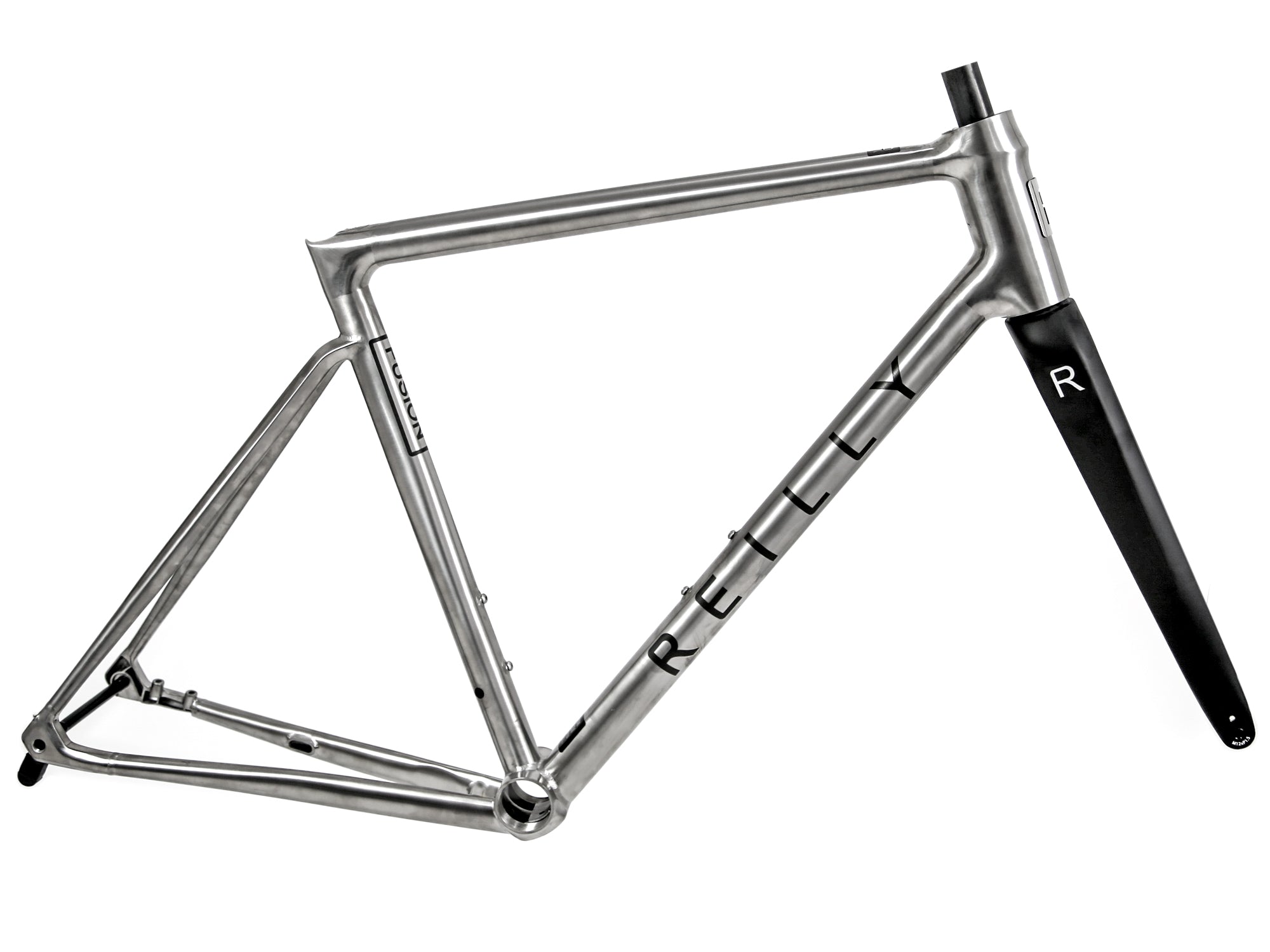

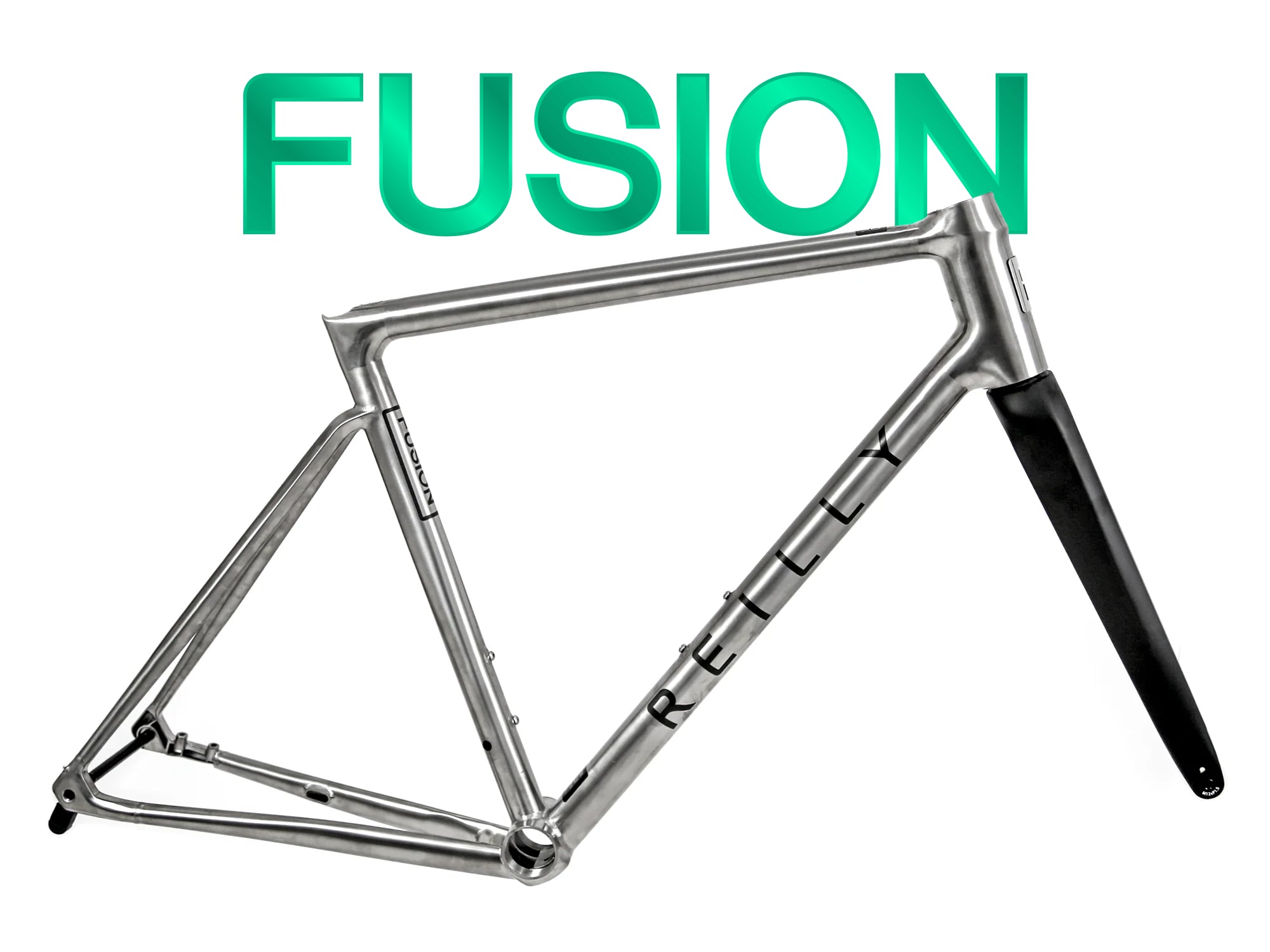

Reilly Fusion road bike frameset with carbon forks and black decals

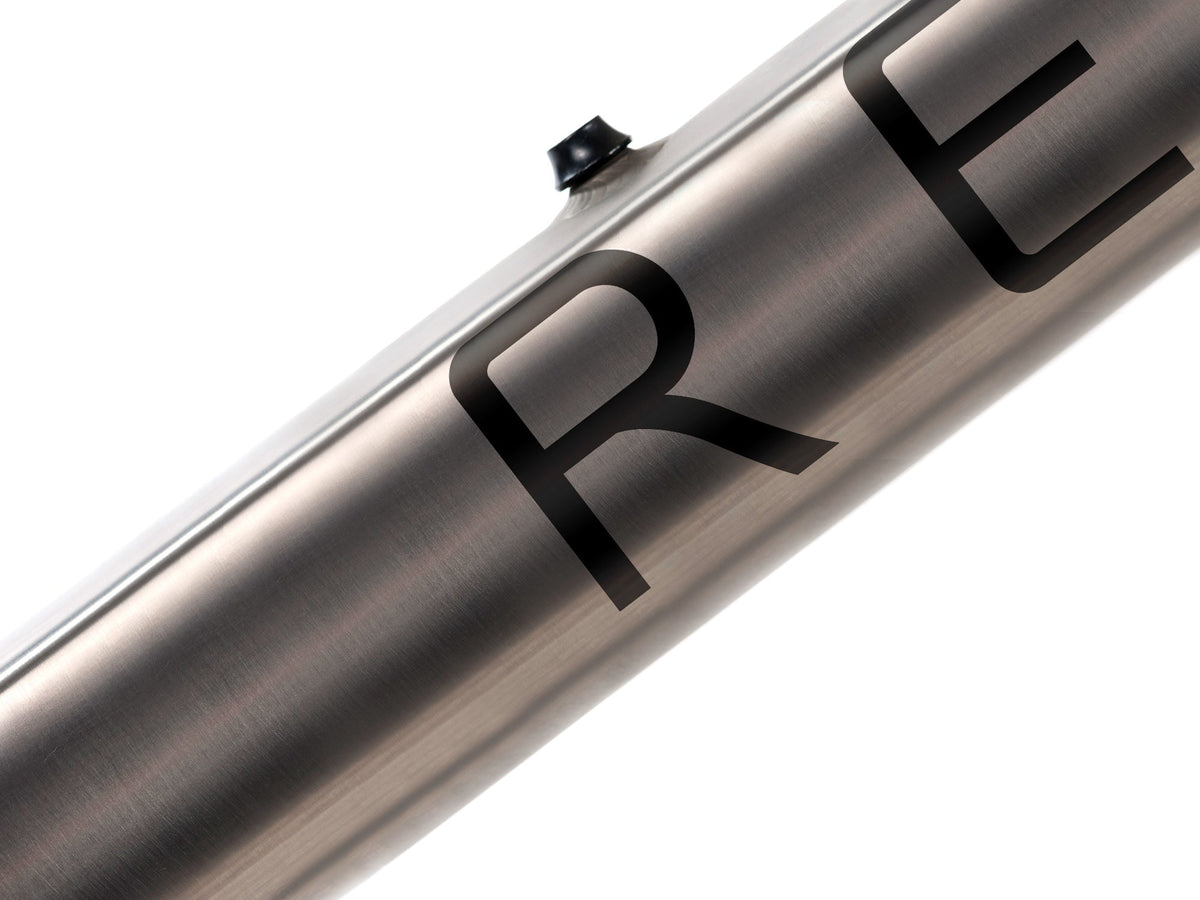

Close-up of a bicycle frame in a matte metallic gray finish, showing the junction with the fork and part of the black wheel against a white background.
Reilly Fusion road bike frameset with carbon forks and black decals

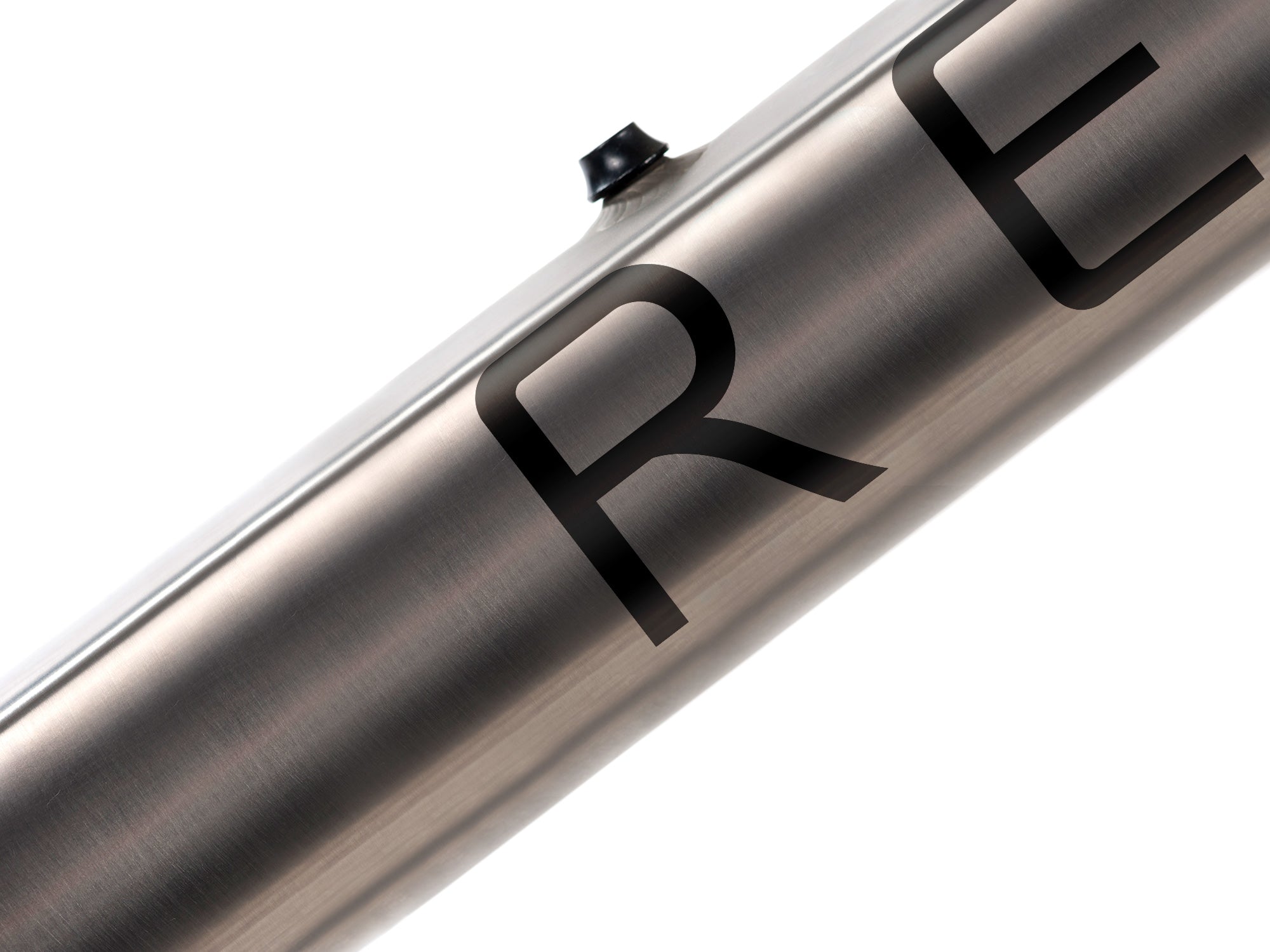

Close-up of a bicycle frame in a matte metallic gray finish, showing the junction with the fork and part of the black wheel against a white background.

FUSION // AERO ROAD DISC FRAMESET

CLASSIC RACE GEOMETRY COMBINED WITH HYDRO FORMED TITANIUM TUBES.
FAST AND SLEEK WITH FULLY INTEGRATED COCKPIT, SEAMLESS WELDS AND ULTRA WIDE TYRE CLEARANCE.
AEROSPACE-GRADE TITANIUM
£3,999.00 For international orders, UK VAT has been removed.
Size
A promotional banner featuring a black custom-painted finish sample bottle with blue and white text, alongside the text 'CONTACT US FOR A QUOTE ON A BESOPO FINISH' on a dark blue background.

BOOK A DEMO RIDE

Chat Email 01959 528 253
FOR INTERNATIONAL ORDERS - UK VAT HAS ALREADY BEEN REMOVED.
FOR INTERNATIONAL ORDERS - TAX AND DUTY CALCULATOR HAS BEEN ADDED TO CART
The following spec applies to a base build. All of the options can be customised to suit your requirements.
Specification Details
Titanium Grade 6AL-4V with 3AL-2.5 V
Bottom Bracket Shell Threaded T47
Cable Rouring Fully Integrated
Headset Semi Integrated / Reilly alloy bars or choice of FSA ACR, Deda SDCR, Deda DCR, other available on request
Fork Carbon race fork with internal front brake hose routing
Frame Features 2 Bottle cage mounts
Finish Vinyl decal in black, blue or red as standard
Warranty Lifetime Frame Warranty (Original Owner Only, Non-Transferable) T&Cs Apply
All measurements are in milimeters. For mobile users, please use the horizontal scroll bar to view all sizes.


Frame Geometry

SIZE XS SMALL MEDIUM LARGE XL XXL
SEAT TUBE C/TOP 470mm 490mm 510mm 530mm 540mm 575mm
TOP TUBE EFFECTIVE 510mm 530mm 547mm 570mm 590mm 610mm
BB DROP 72mm 72mm 72mm 72mm 72mm 72mm
CHAINSTAY LENGTH 414mm 414mm 414mm 414mm 414mm 414mm
SEAT TUBE ANGLE 75.5° 74° 73.5° 73° 73° 72.5°
HEAD TUBE ANGLE 71.5° 72° 73° 73° 73° 74°
FORK RAKE 43mm 43mm 43mm 43mm 43mm 43mm
FRONT CENTRE 577mm 577mm 579mm 597mm 617mm 621mm
WHEELBASE 980mm 980mm 982mm 1000mm 1021mm 1024mm
HEAD TUBE 110mm 130mm 150mm 170mm 185mm 215mm
STACK 512mm 533mm 555mm 574mm 589mm 621mm
REACH 378mm 377mm 382mm 394mm 410mm 414mm

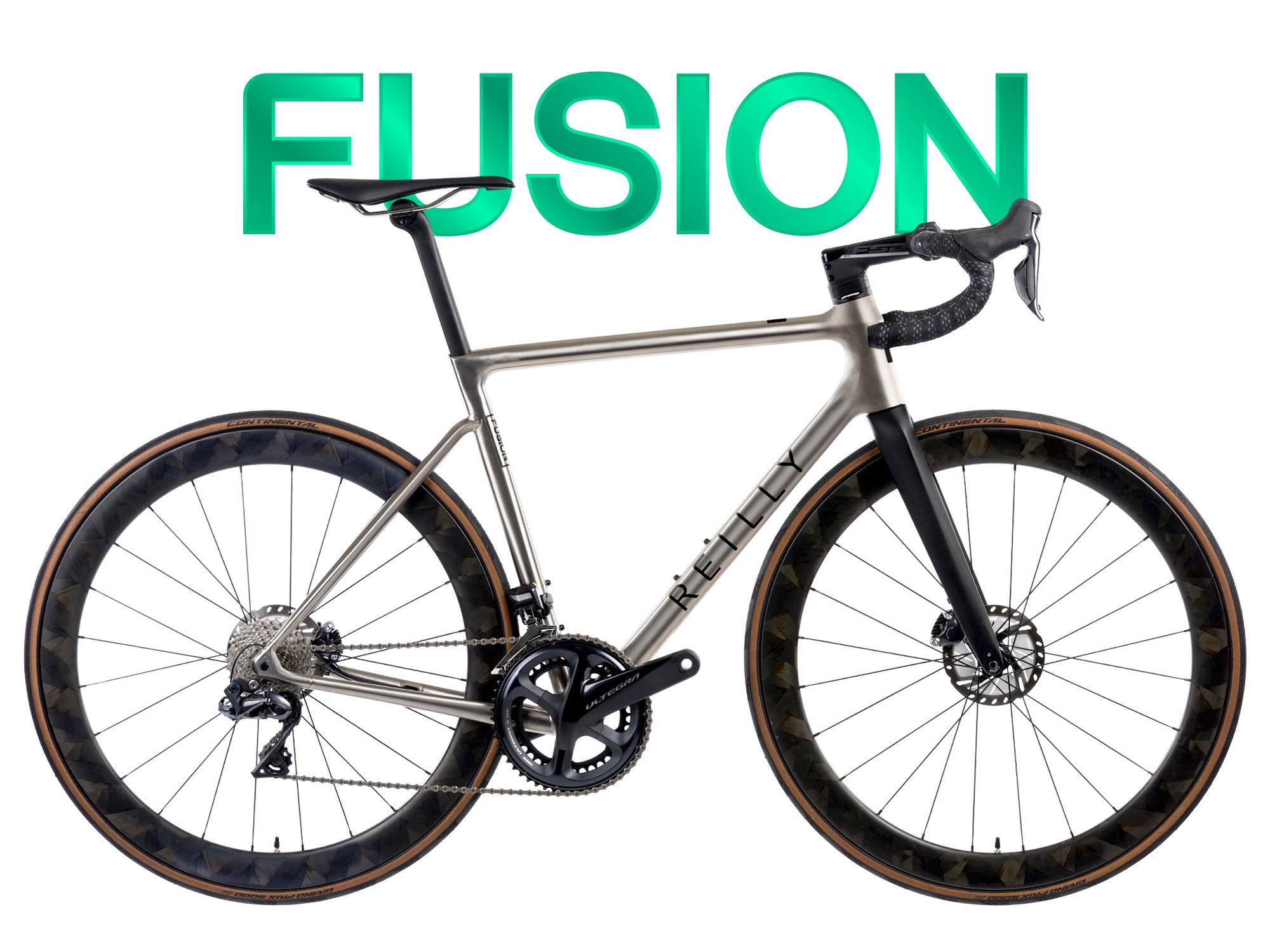

The Reilly Fusion is a premium titanium road bike combining classic race geometry with aerodynamic hydroformed titanium tubes. The Fusion is lightweight and fast, crafted with investment-cast details such as the "kamm fin" shaped tubes. It offers a unique titanium alternative to carbon road bikes while delivering exceptional performance and ride quality.
32 MM

TYRE CLEARANCE

2

BOTTLE CAGE MOUNTS

1.8 KG

FRAME WEIGHT (M)

T 47

BOTTOM BRACKET
