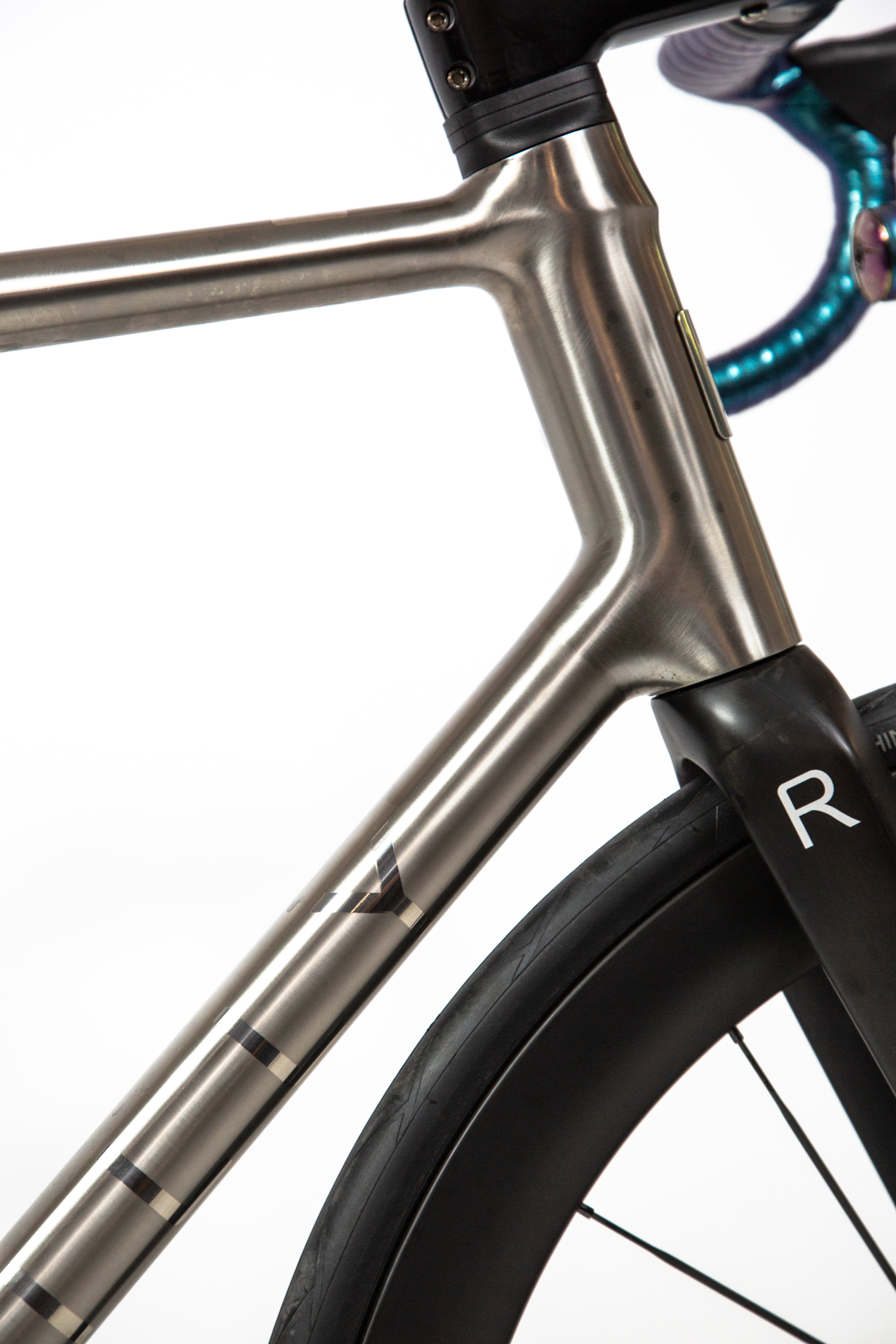

Close-up of a bicycle frame in a matte metallic gray finish, showing the junction with the fork and part of the black wheel against a white background.
Reilly fusion titanium bike
Close-up of a bicycle frame in a matte metallic gray finish, showing the junction with the fork and part of the black wheel against a white background.

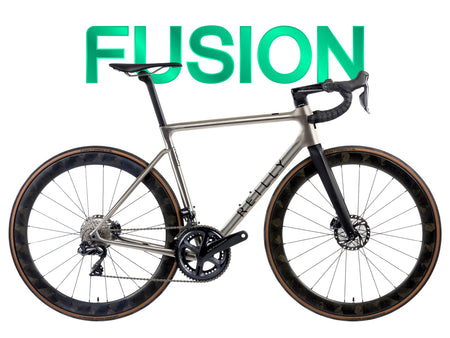

FUSION // AERO ROAD DISC

CLASSIC RACE GEOMETRY COMBINED WITH HYDRO FORMED TITANIUM TUBES.
FAST AND SLEEK WITH FULLY INTEGRATED COCKPIT, SEAMLESS WELDS AND ULTRA WIDE TYRE CLEARANCE.
AEROSPACE-GRADE TITANIUM
£5,999.00 For international orders, UK VAT has been removed.
Size
Groupset
Wheelset
A promotional banner with the text 'CONTACT US FOR A QUOTE ON A FULL BESOPE BUILD' in dark blue on a light gray background, alongside a close-up of a bicycle frame in metallic blue, silver, and white.

BOOK A DEMO RIDE

Chat Email 01959 528 253
FOR INTERNATIONAL ORDERS - UK VAT HAS ALREADY BEEN REMOVED.
FOR INTERNATIONAL ORDERS - TAX AND DUTY CALCULATOR HAS BEEN ADDED TO CART
The following spec applies to a base build. All of the options can be customised to suit your requirements.
Specification Details
Titanium Grade6AL-4V with 3AL-2.5 V

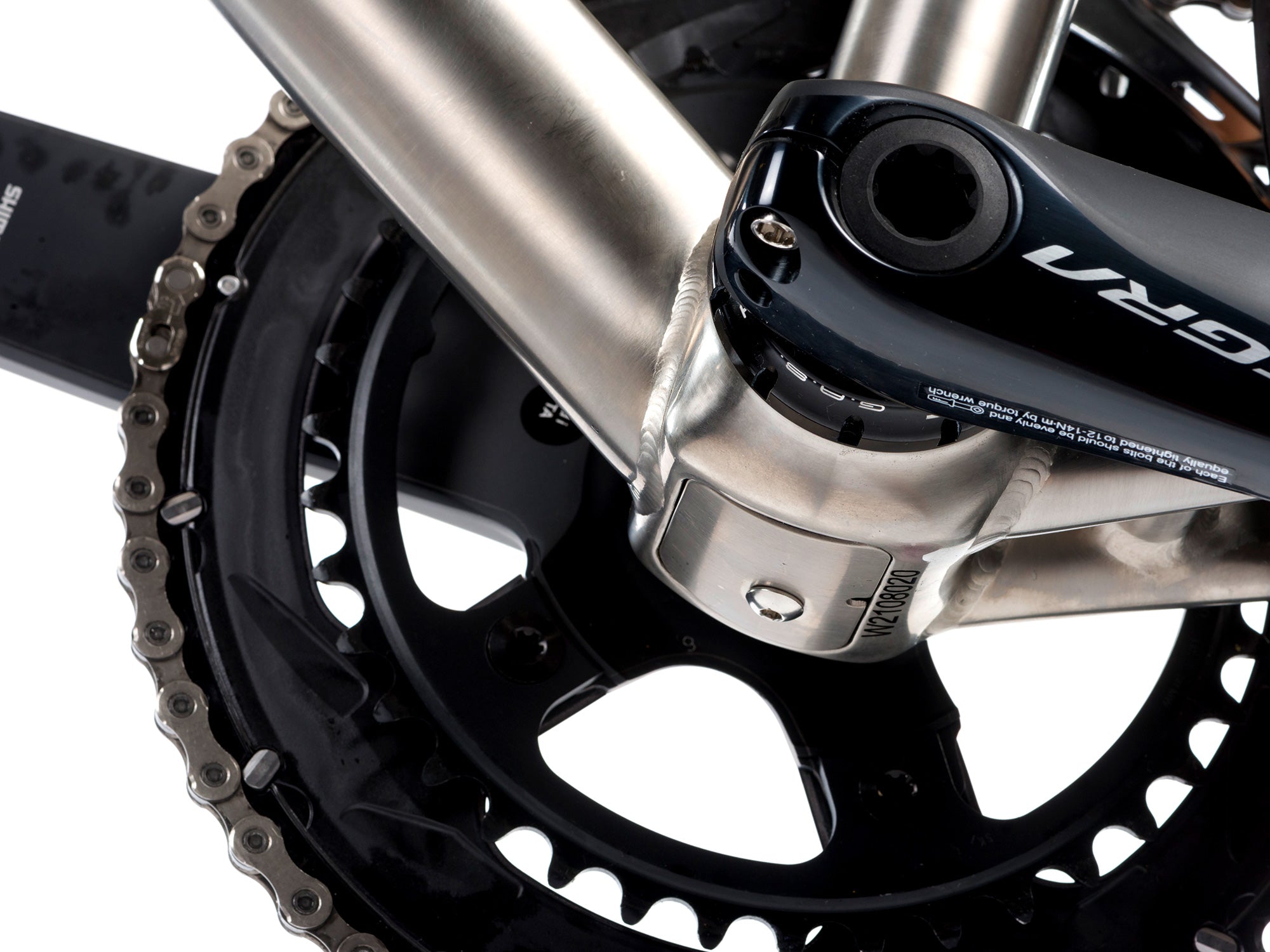

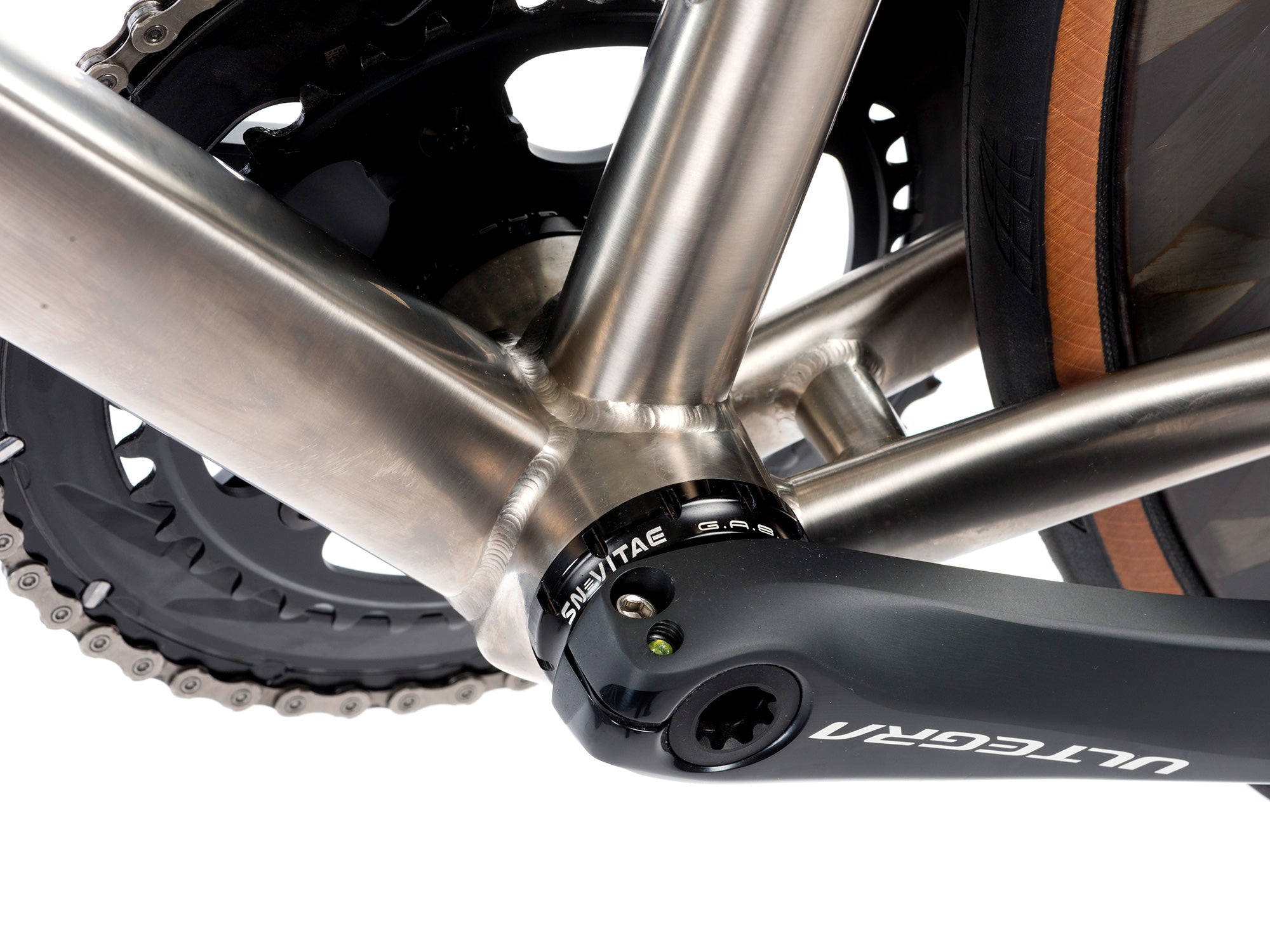

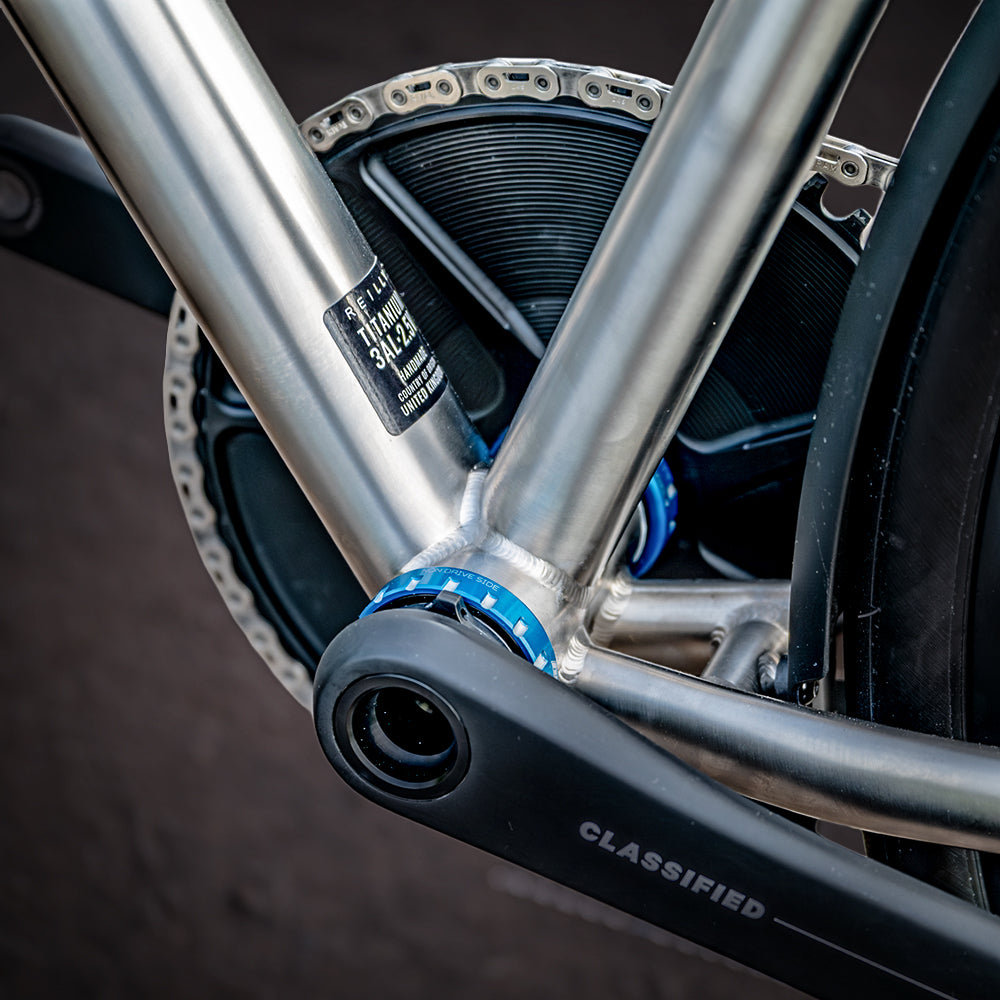

Bottom Bracket ShellThreaded T47
Bottom BracketAs per groupset manufacturer or suitable alternative

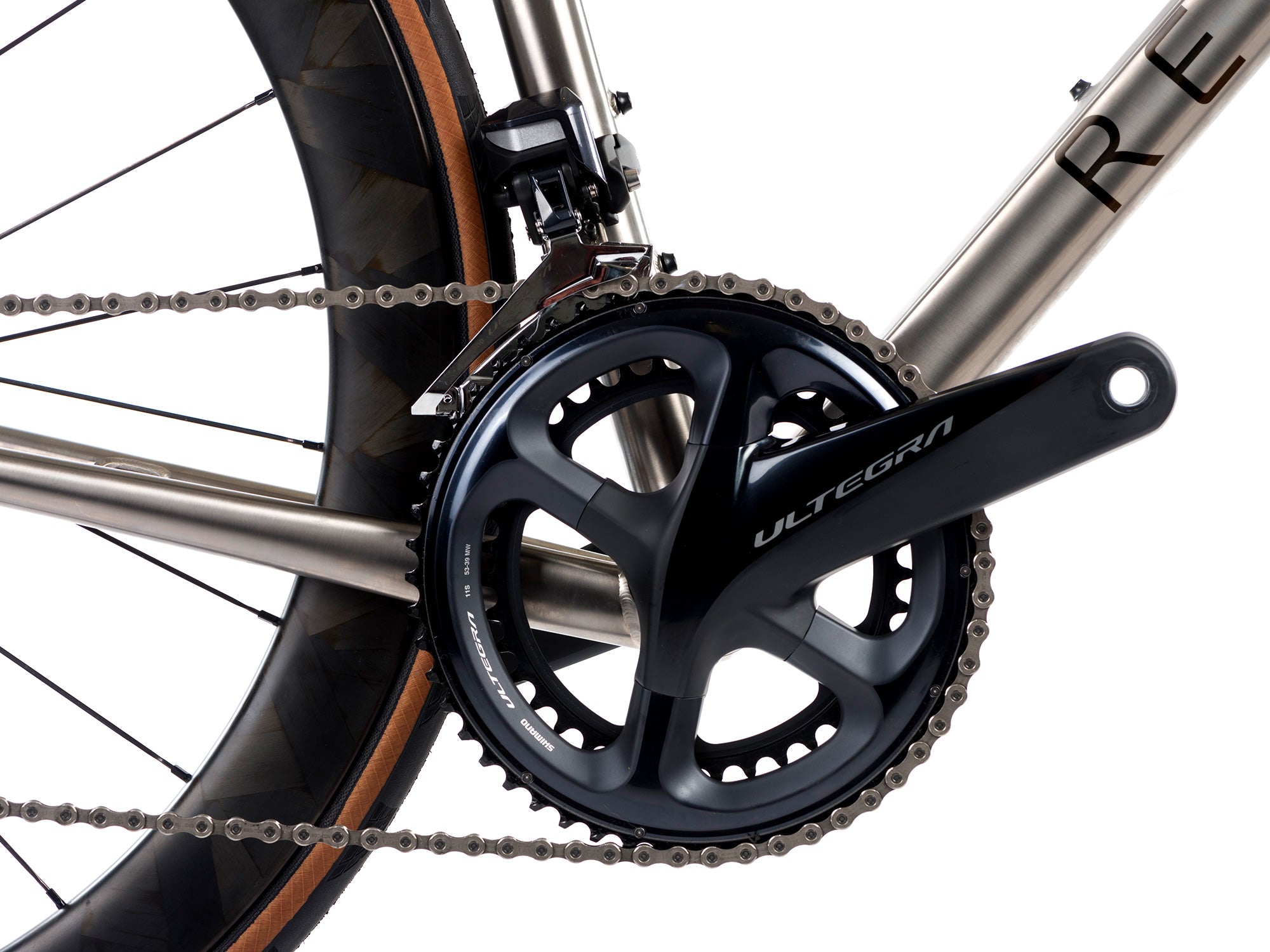

GroupsetShimano 105 12sp mechanical

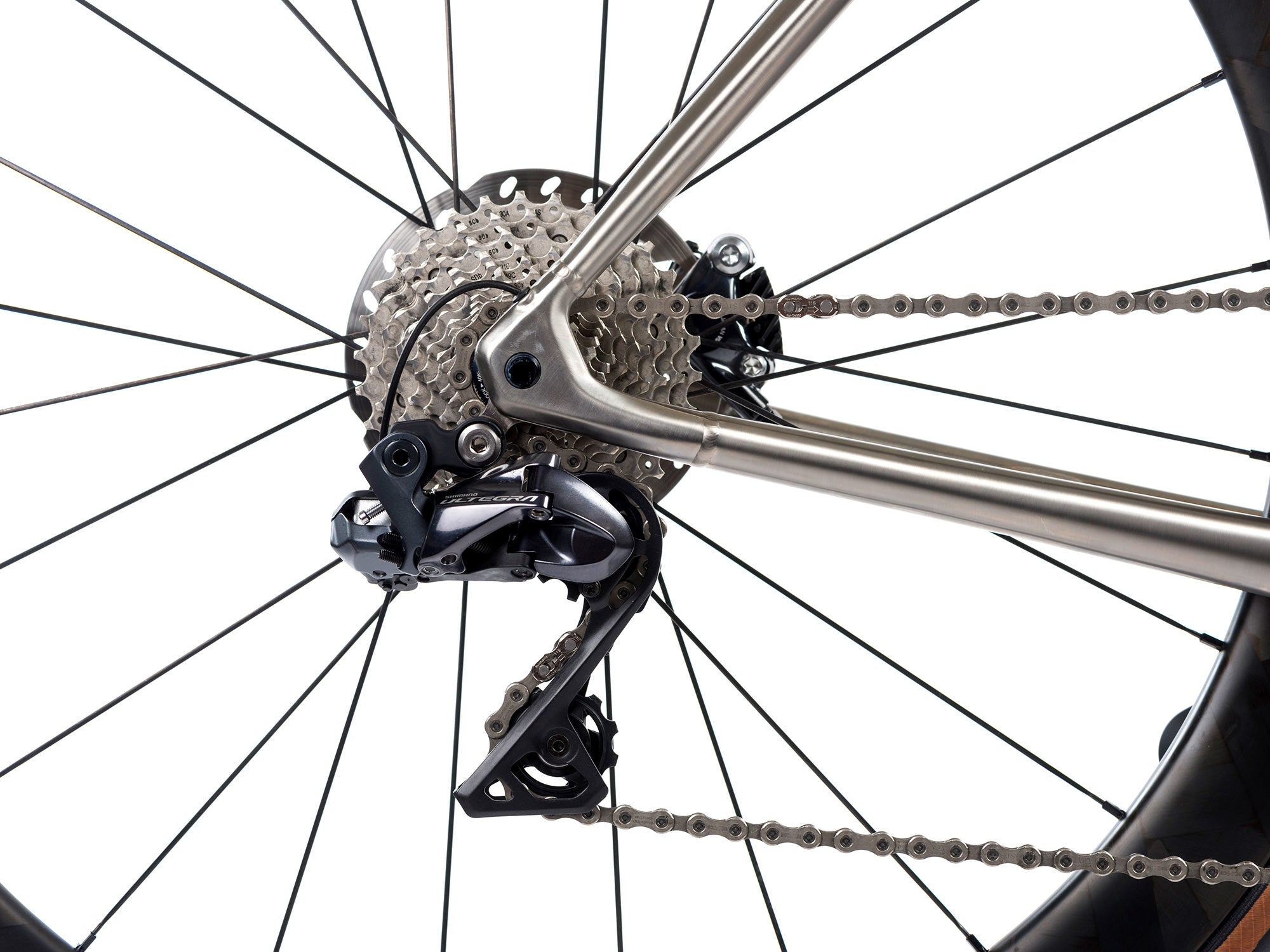

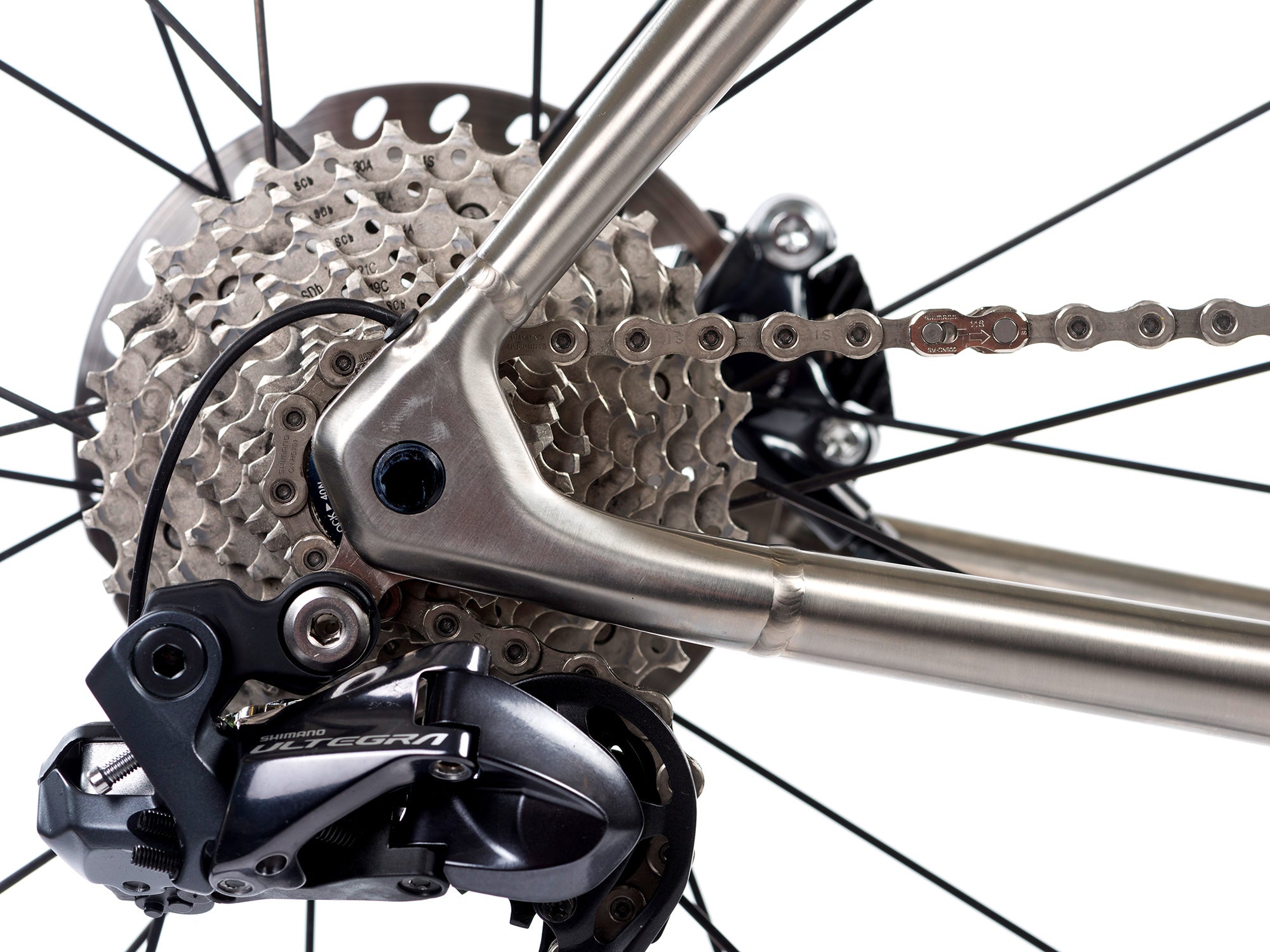

Rear Derailleur MountStandard
Rear Derailleur Mount (Updated)UDH
Cable RoutingFully integrated

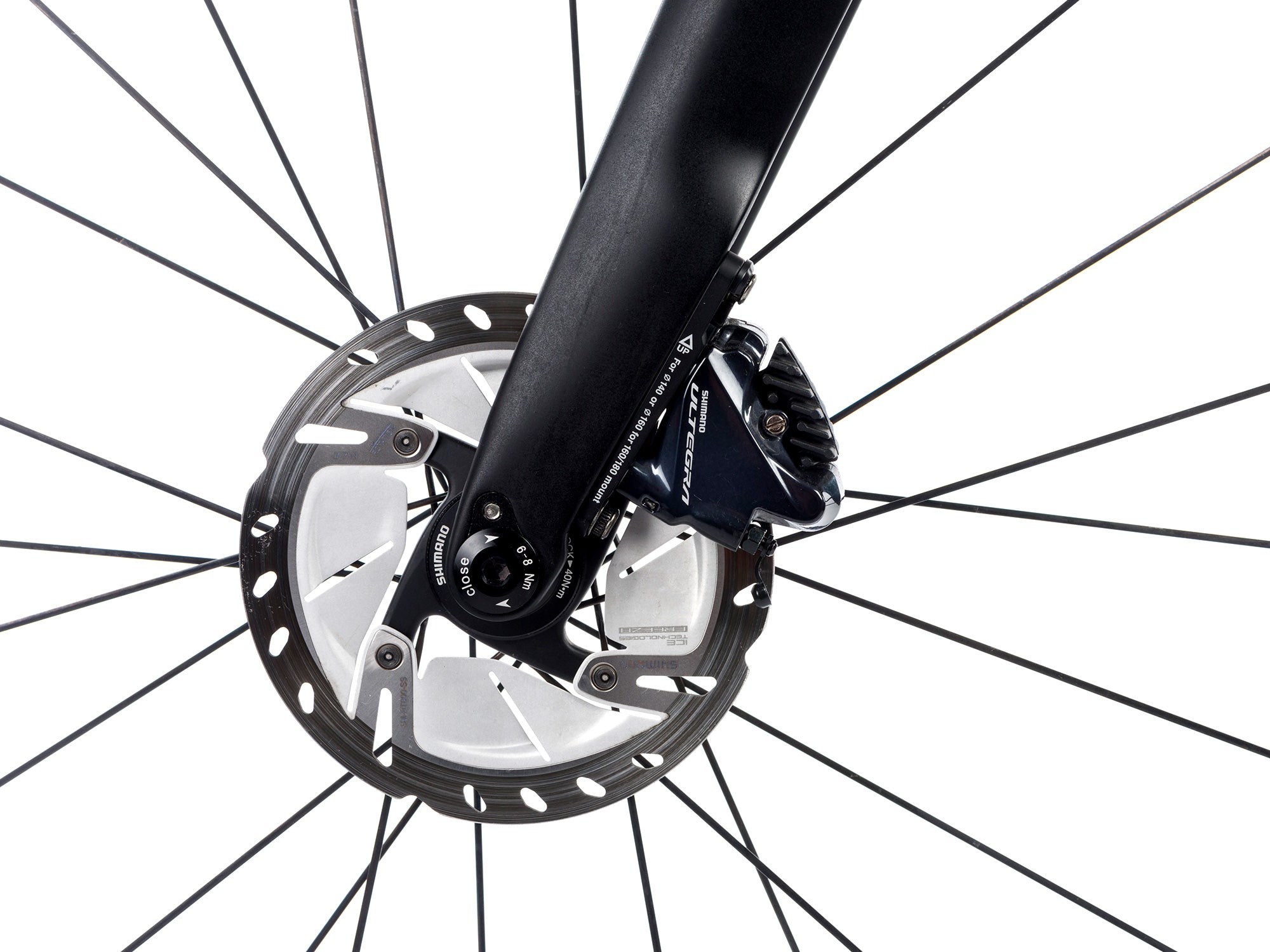

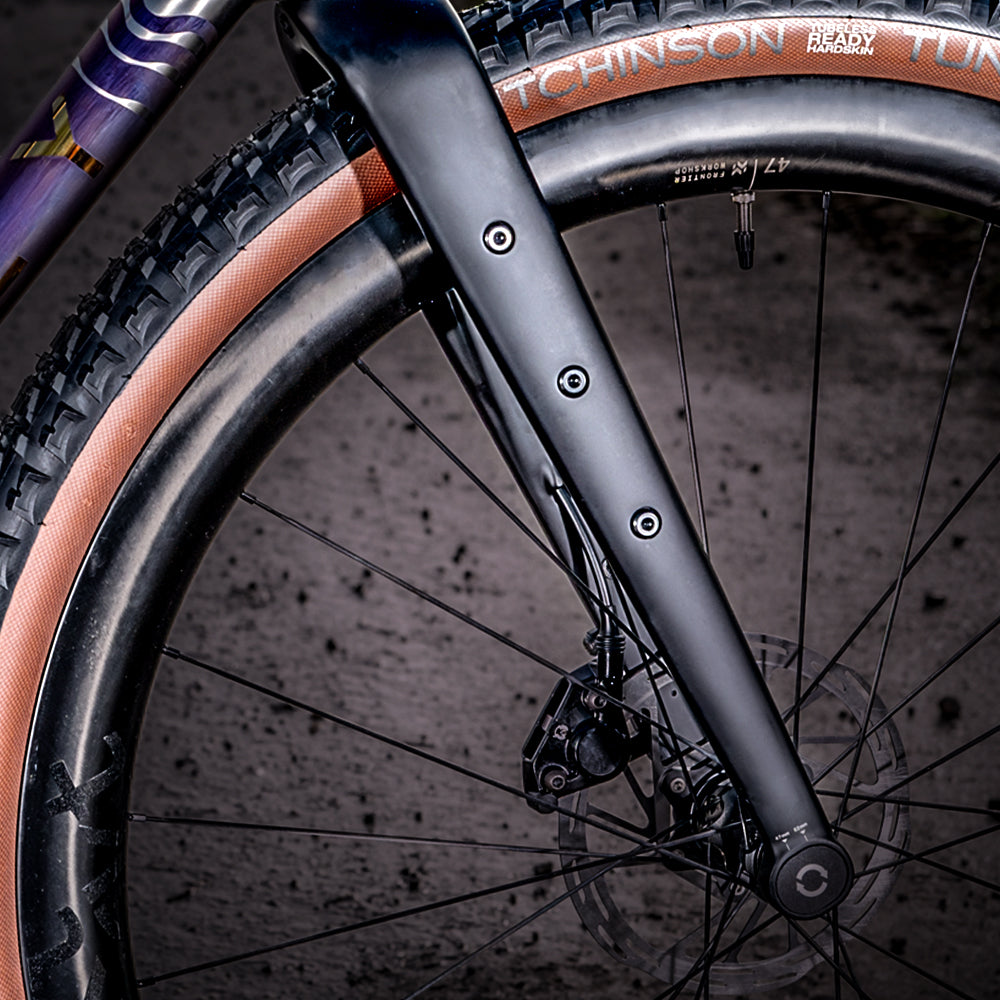

ForkCarbon race fork with internal front brake hose routing

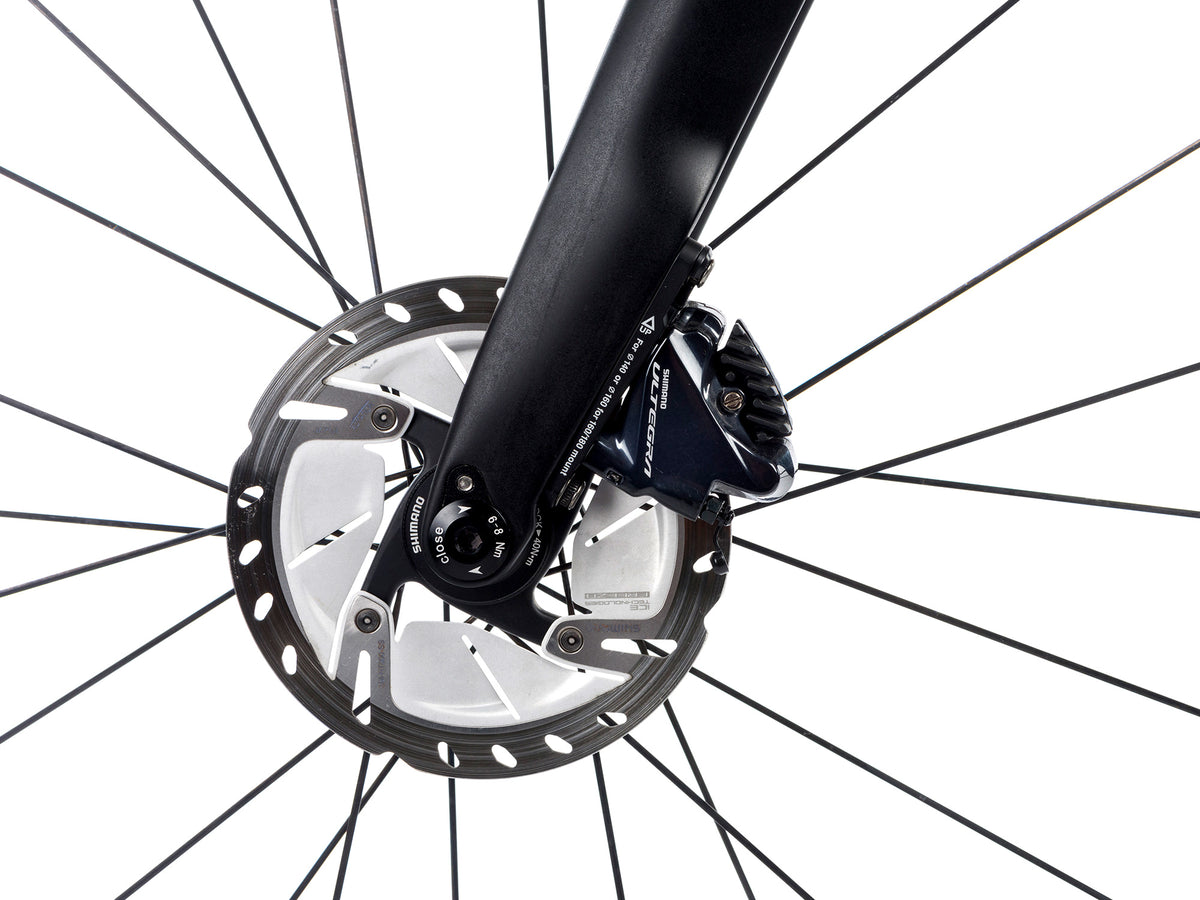

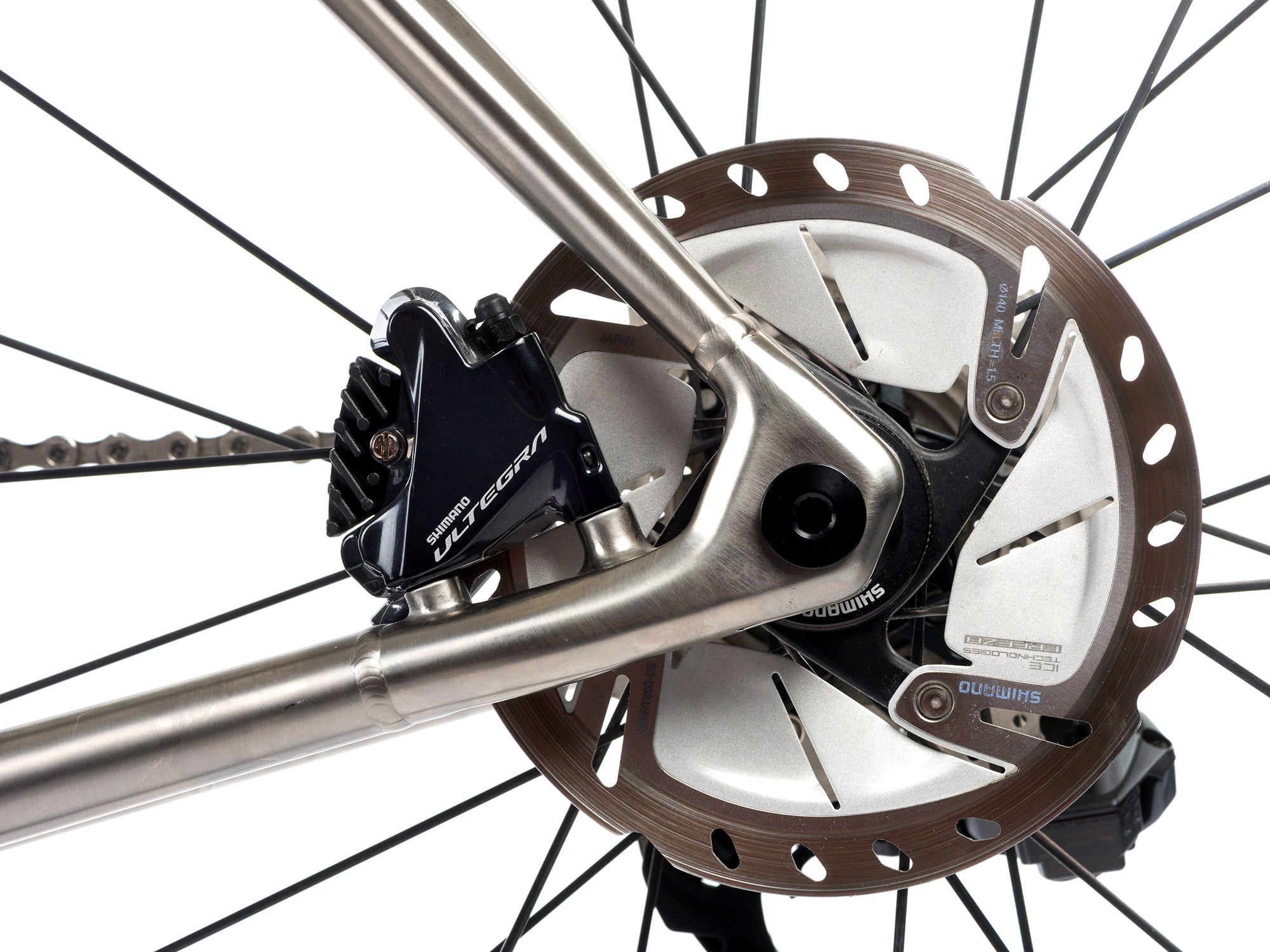

BrakesHydraulic Disc with Flat-Mount Calipers
Rotors160F/140R
Thru Axles100mm x 12mm F; 142mm x 12mm R
WheelsAll-road, alloy tubeless ready
TyresPanaracer Agilest
Max Clearance32mm

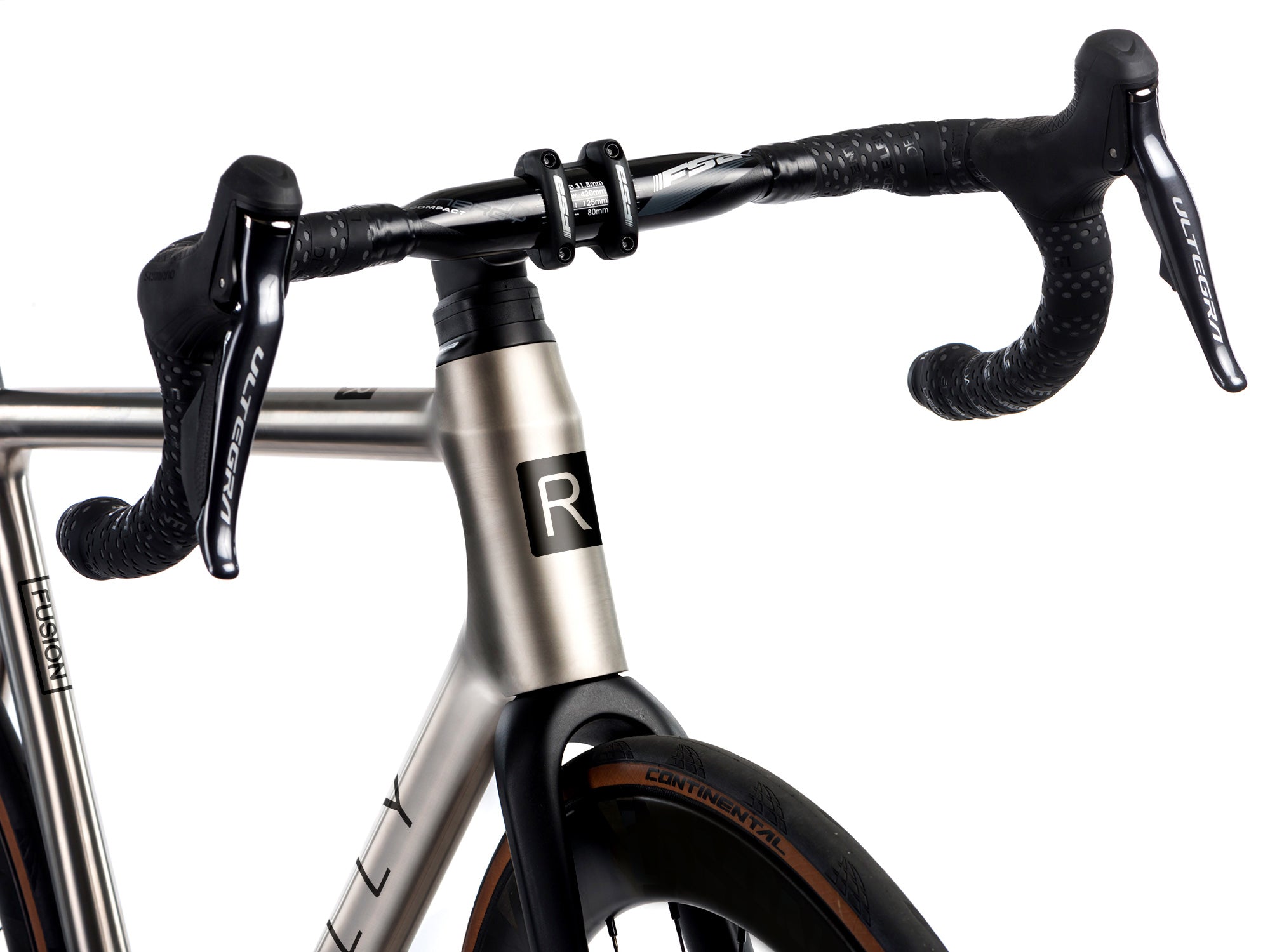

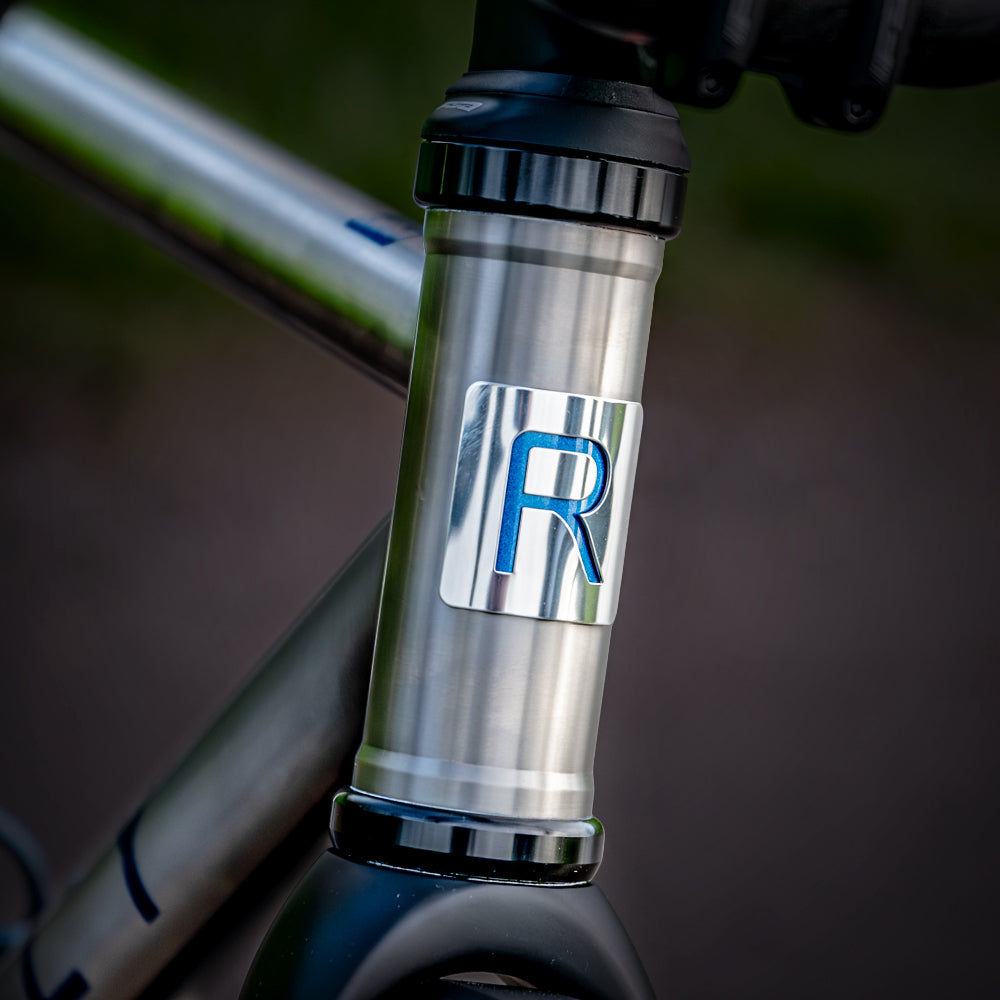

Headset / BarsSemi integrated / Reilly alloy bars / Reilly alloy stem
StemReilly alloy stem
Bar TapeBlack EVA Bar Tape
SeatpostD-shaped carbon seatpost, zero offset (25mm offset available on request)
Seat ClampInternal titanium seat clamp

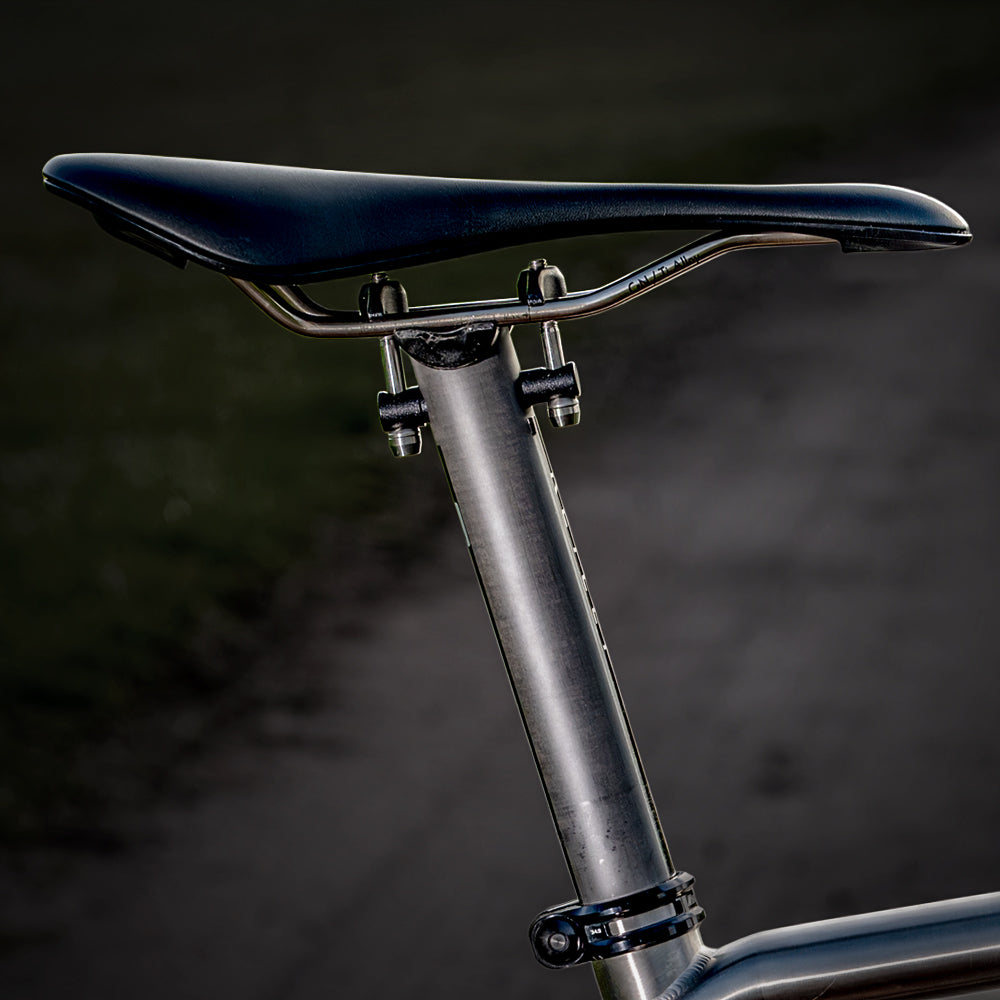

SaddleReilly Titanium Alloy ‘Airform’ Saddle
Frame Features2 Bottle cage mounts
Set-UpBritish Standard (right lever = front brake, left lever = rear brake)

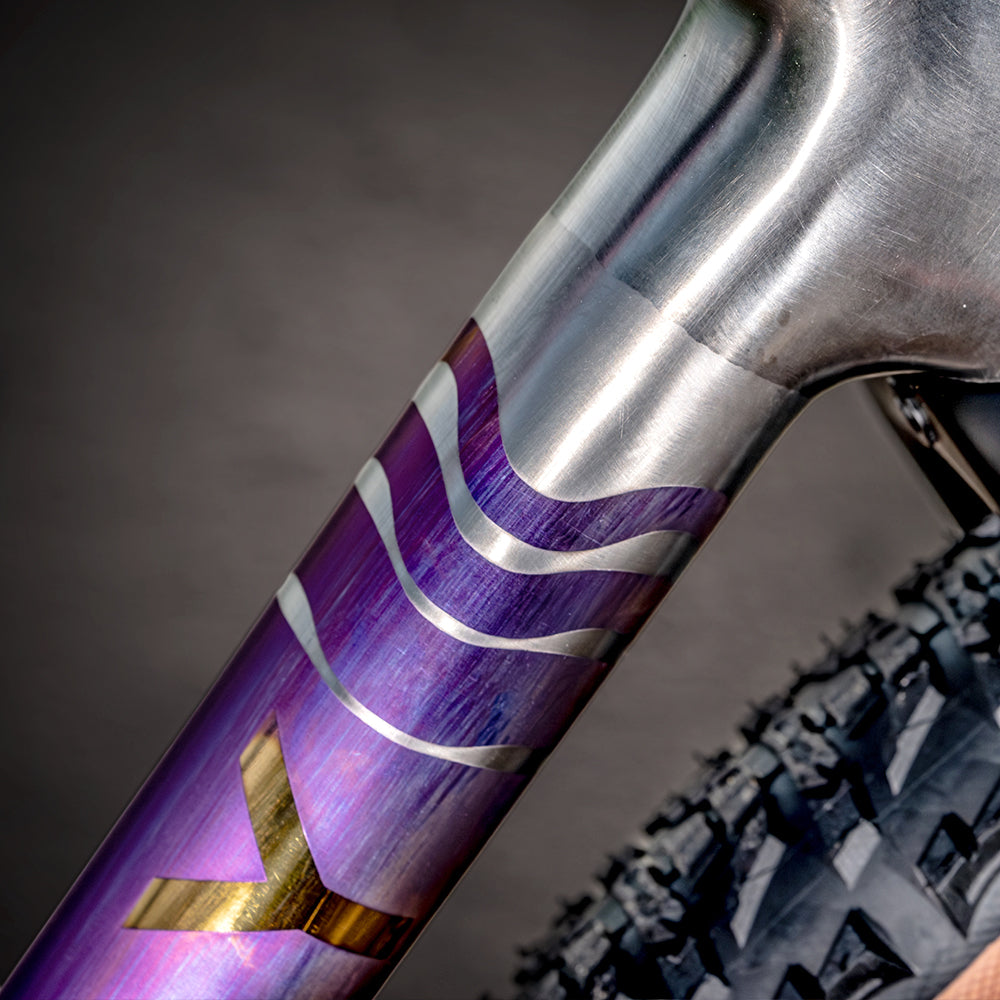

FinishVinyl decal in black, blue or red as standard
WarrantyLifetime Frame Warranty (Original Owner Only, Non-Transferable) T&Cs Apply
All measurements are in milimeters. For mobile users, please use the horizontal scroll bar to view all sizes.
SIZE XS S M L XL XXL
SEAT TUBE C/TOP 470mm 490mm 510mm 530mm 540mm 575mm
TOP TUBE EFFECTIVE 510mm 530mm 547mm 570mm 590mm 610mm
BB DROP 72mm 72mm 72mm 72mm 72mm 72mm
CHAINSTAY LENGTH 414mm 414mm 414mm 414mm 414mm 414mm
SEAT TUBE ANGLE 75.5° 74° 73.5° 73° 73° 72.5°
HEAD TUBE ANGLE 71.5° 72° 73° 73° 73° 74°
FORK RAKE 43mm 43mm 43mm 43mm 43mm 43mm
FRONT CENTRE 577mm 577mm 579mm 597mm 617mm 621mm
WHEELBASE 980mm 980mm 982mm 1000mm 1021mm 1024mm
HEAD TUBE 110mm 130mm 150mm 170mm 185mm 215mm
STACK 512mm 533mm 555mm 574mm 589mm 621mm
REACH 378mm 377mm 382mm 394mm 410mm 414mm

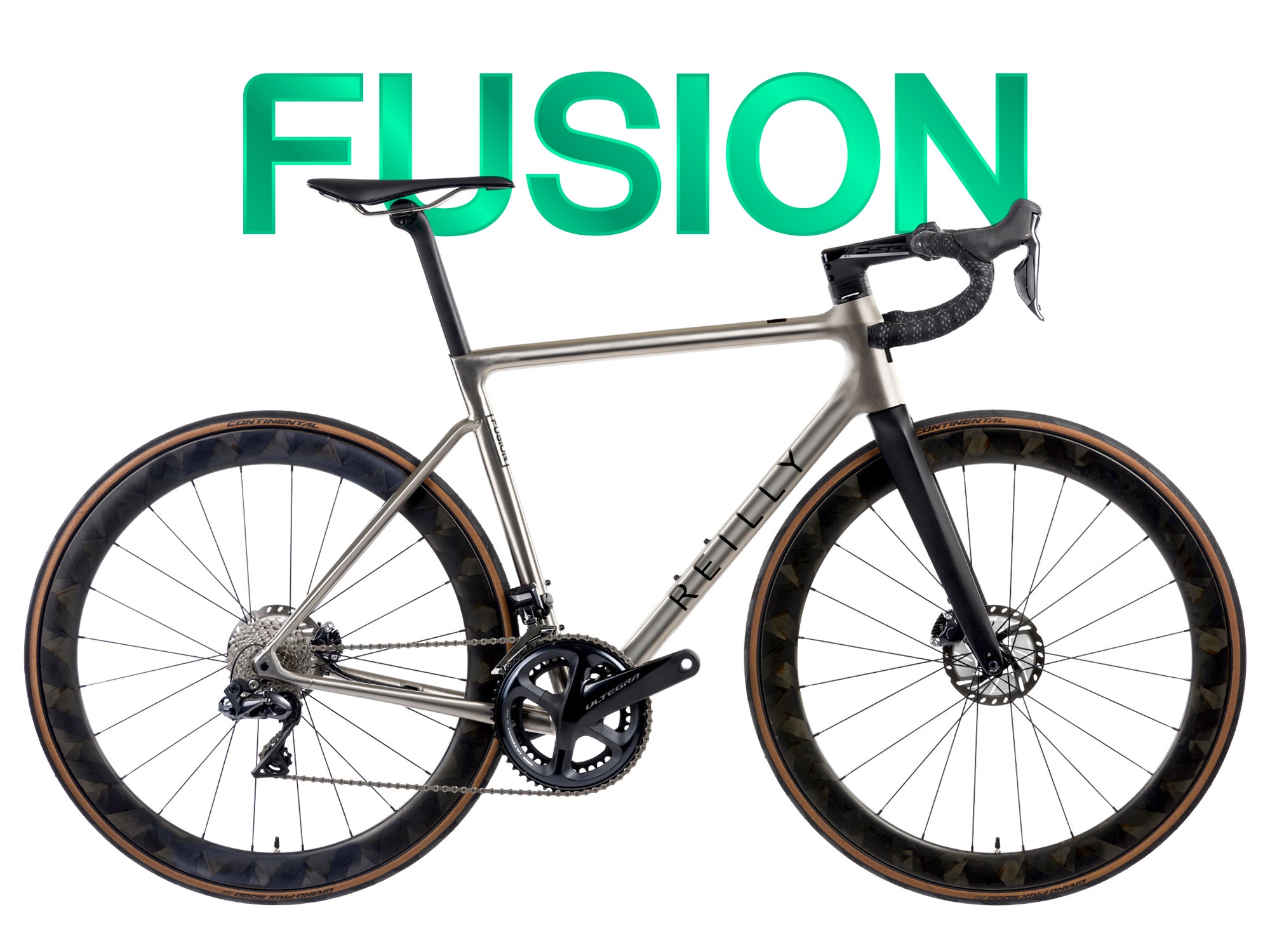

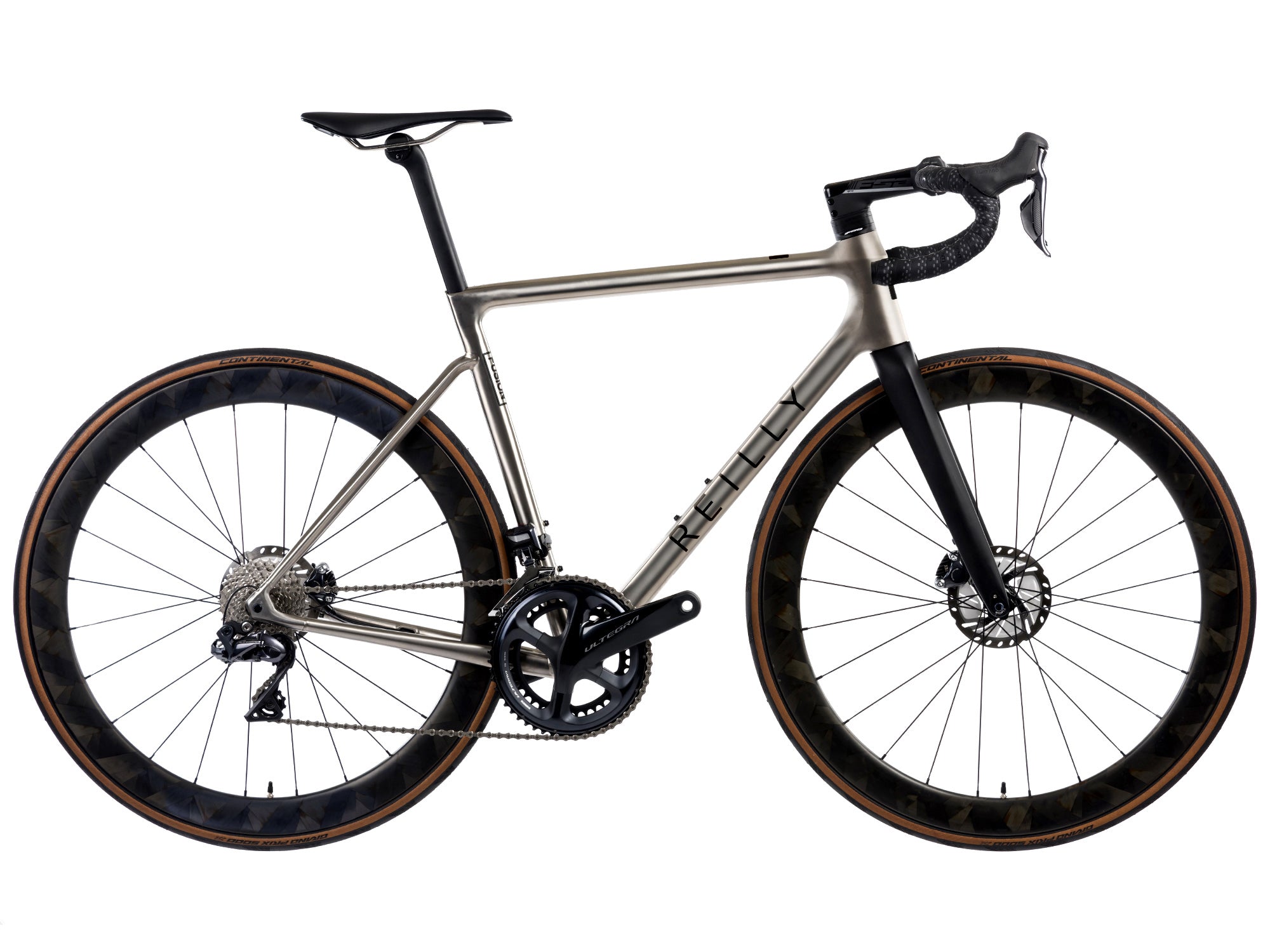

The Reilly Fusion is a premium titanium road bike combining classic race geometry with aerodynamic hydroformed titanium tubes. The Fusion is lightweight and fast, crafted with investment-cast details such as the "kamm fin" shaped tubes. It offers a unique titanium alternative to carbon road bikes while delivering exceptional performance and ride quality.

Neil FitzGerald, Reilly Co-founder, says of the launch: “Reilly’s Fusion is spearheading the titanium road revolution. It symbolises an exciting time for us, marking a new chapter as we build on our framebuilding heritage, while continuing to innovate to offer all customers their dream ride. We have raised the bar again for road adventurers to create a truly cutting edge bicycle frame to enjoy the great outdoors, whether that’s planning an ultra endurance road trip or sleekly navigating the daily commute.”
32 MM

TYRE CLEARANCE

2

BOTTLE CAGE MOUNTS

1.8 KG

FRAME WEIGHT (M)

T 47

BOTTOM BRACKET

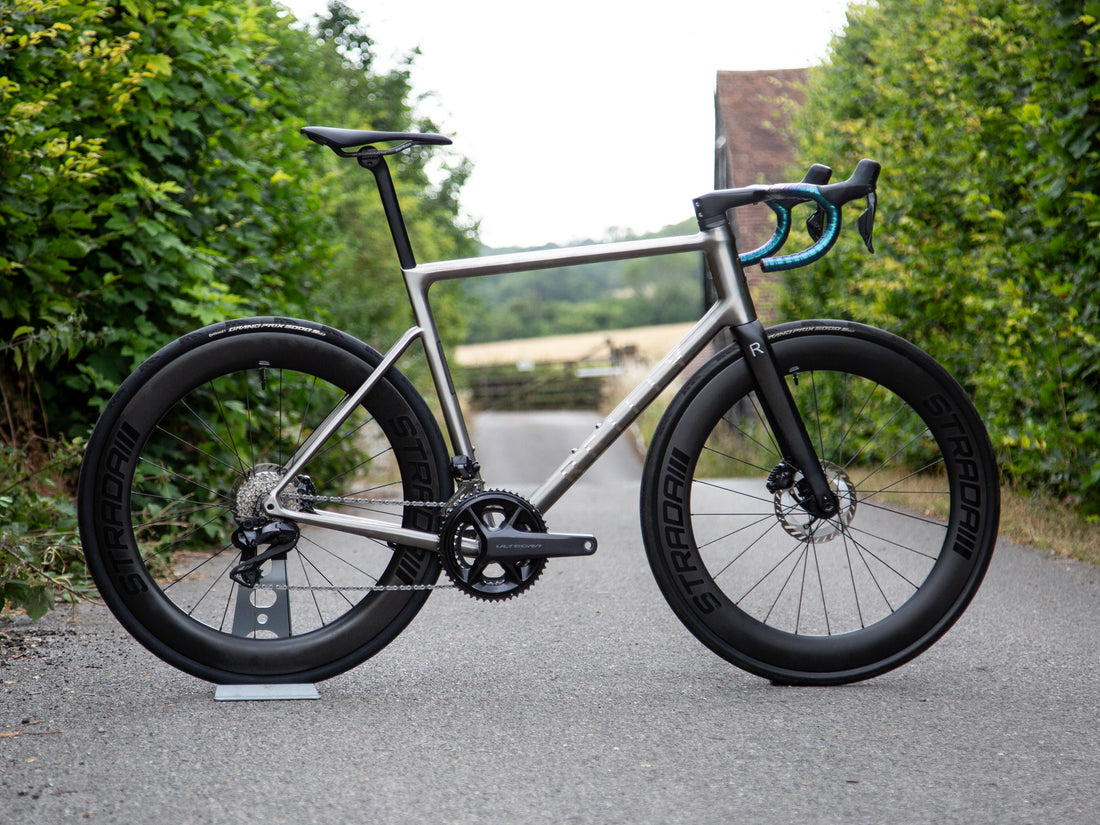

  • A carbon fiber road/gravel bicycle with black wheels, a black saddle, and blue handlebar tape, photographed outdoors on a paved path with green hedges in the background.

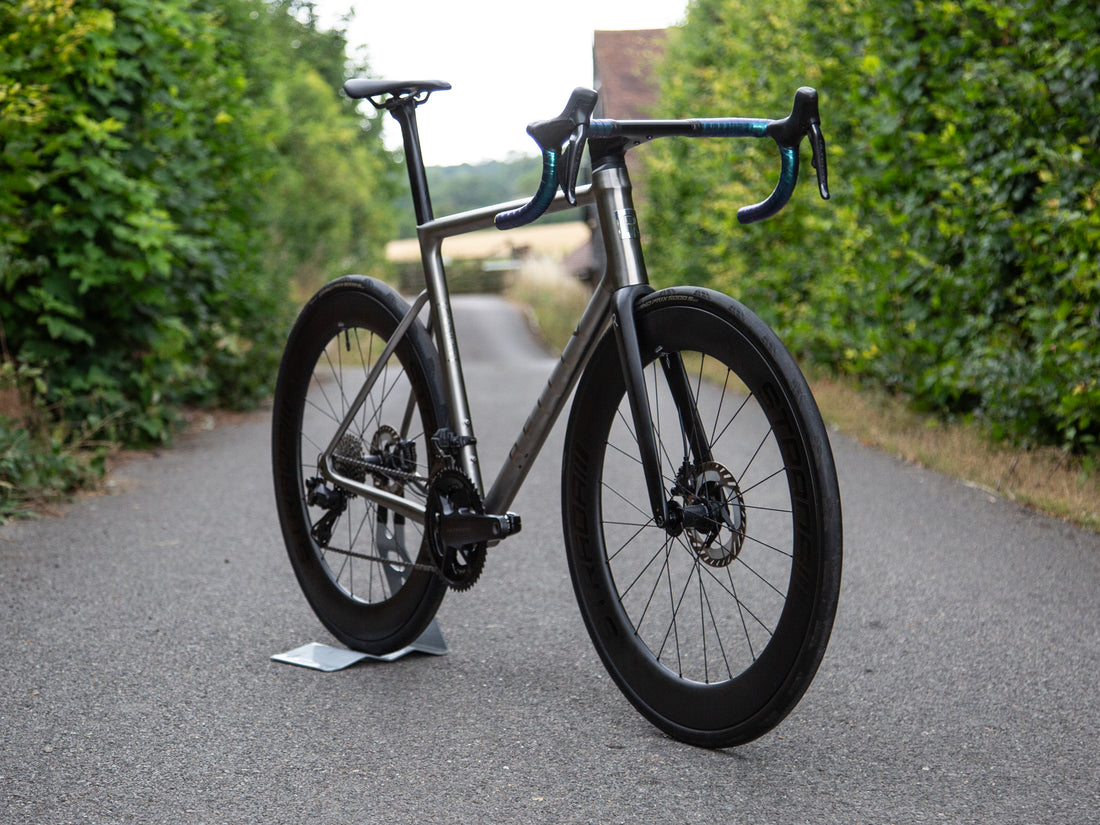

  • A dark gray road bicycle with black wheels and handlebar tape, parked on an asphalt path with green hedges on both sides.

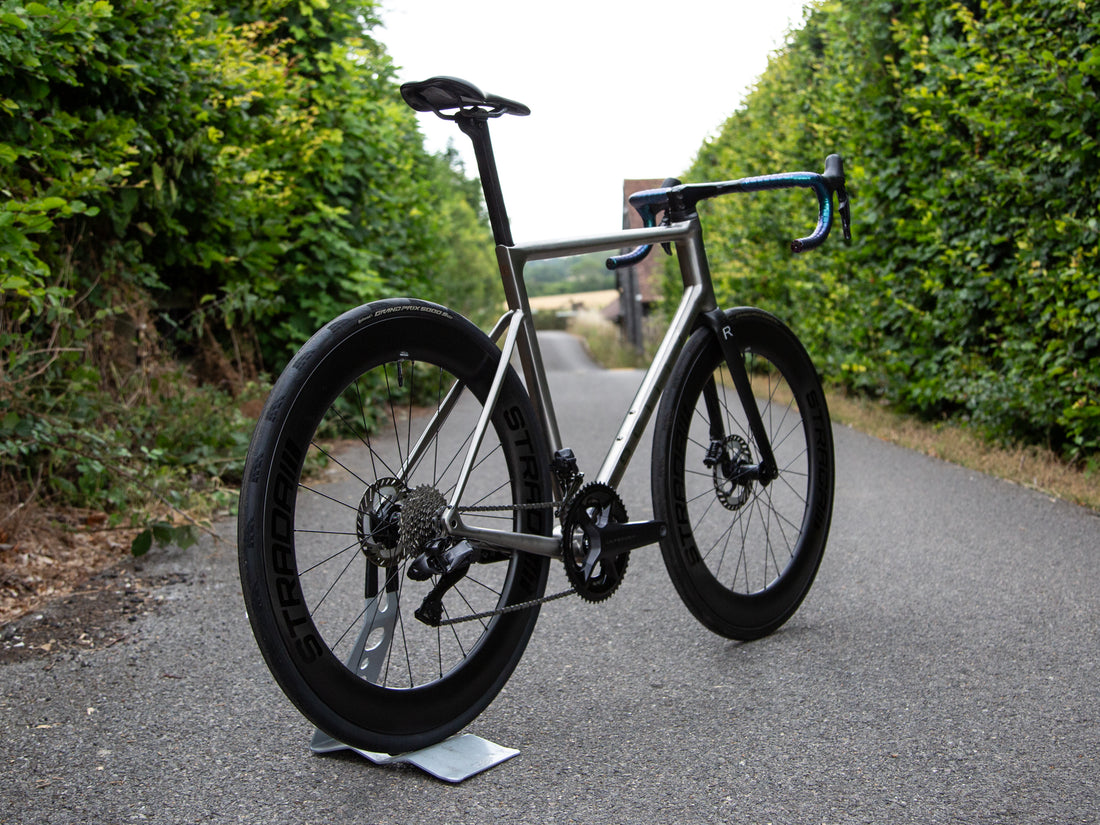

  • A carbon fiber road bicycle with black wheels and blue handlebar tape, photographed outdoors on a paved path between green hedges.

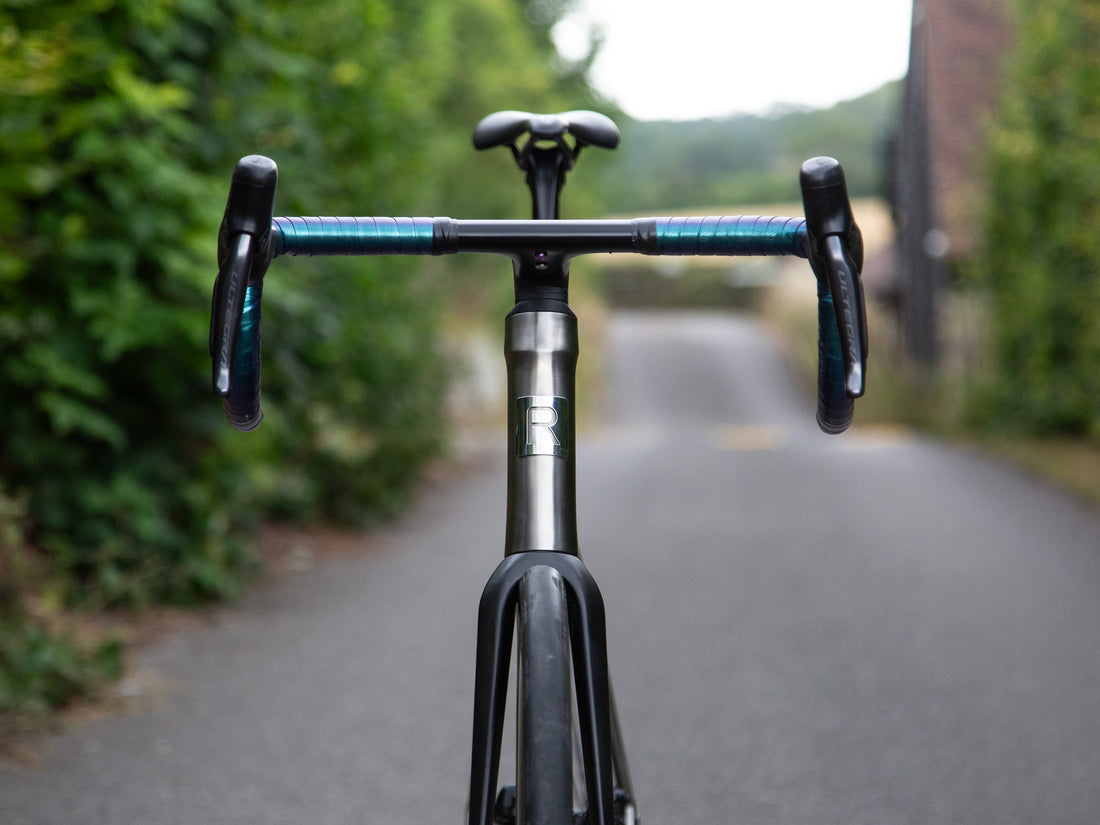

  • Close-up front view of a drop-bar bicycle handlebar and frame on a blurred country road with green foliage on both sides.

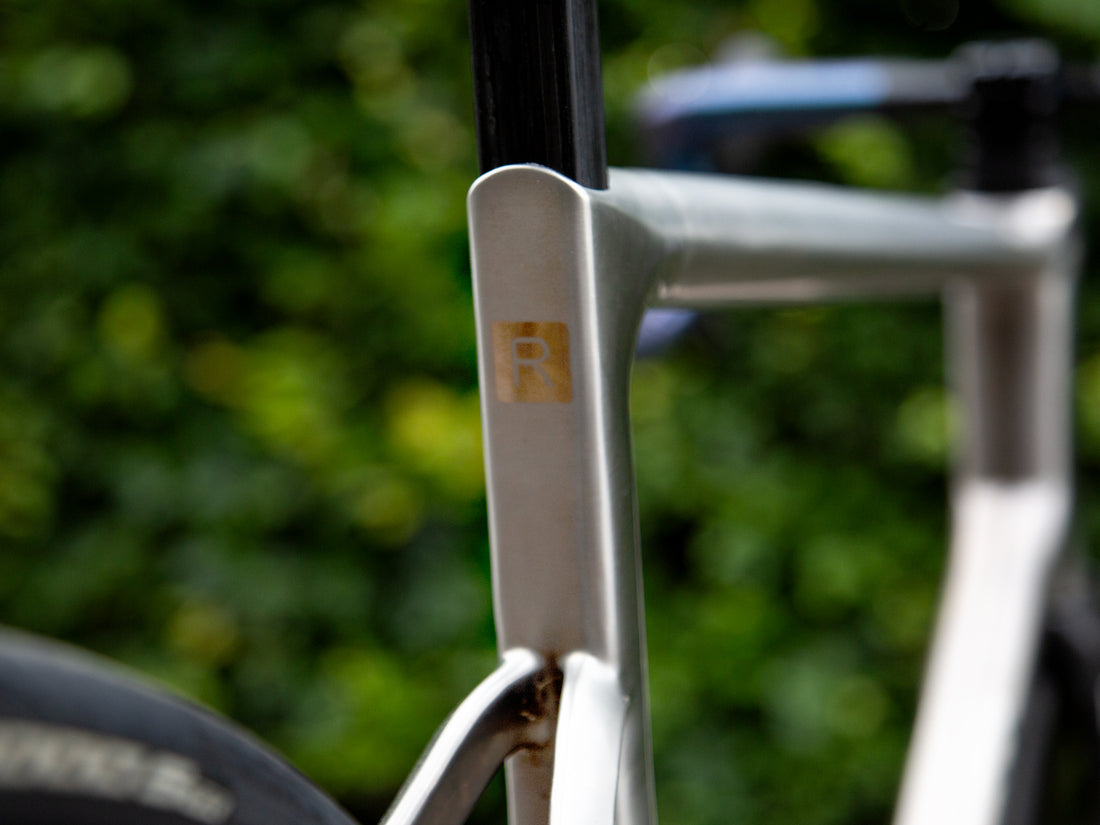

  • Close-up of a bicycle frame with a matte silver finish and a small gold square logo featuring a stylized letter 'R', set against a blurred green outdoor background.

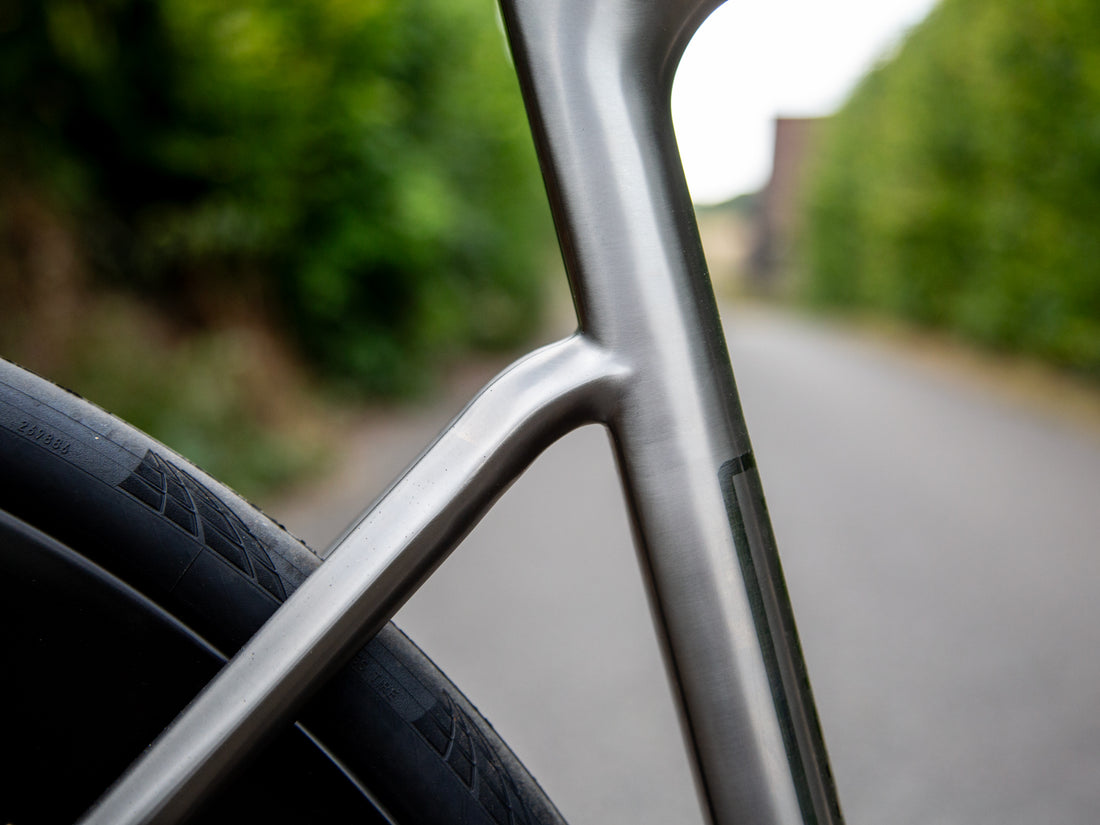

  • Close-up of a bicycle frame and front wheel with a black tire, photographed outdoors on a blurred road and greenery background.

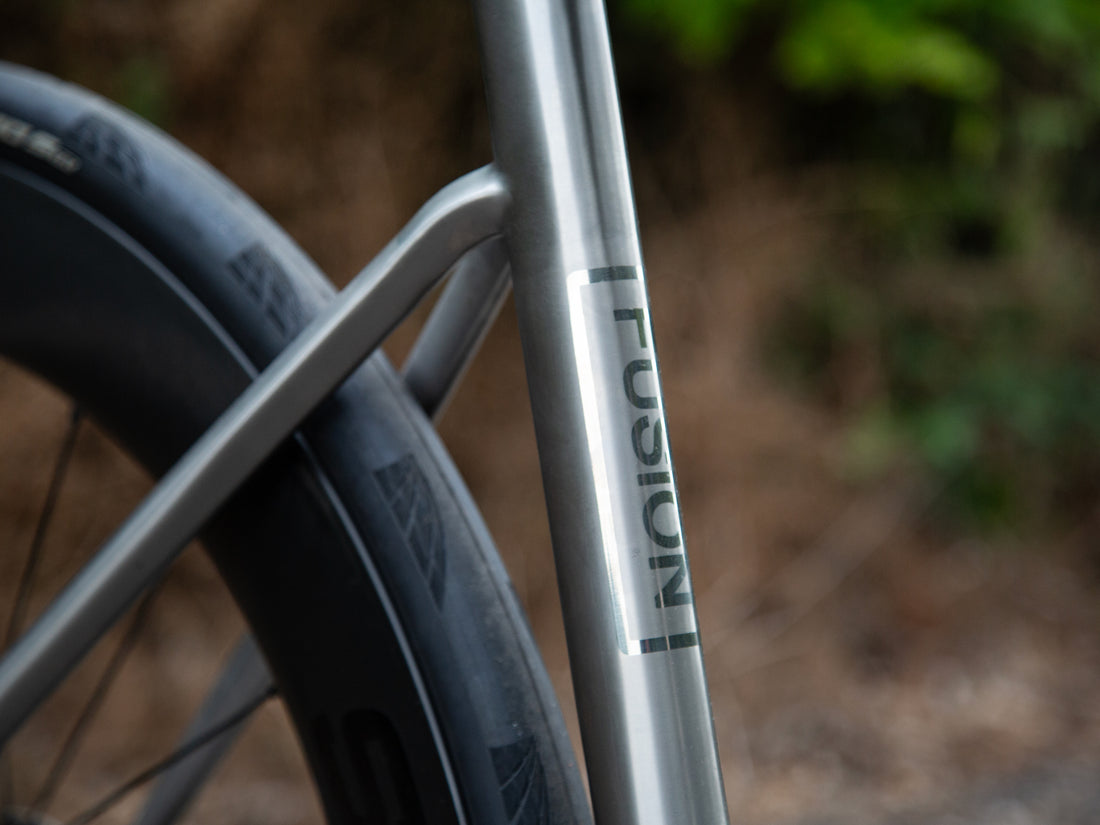

  • Close-up of a bicycle frame with the word 'FUSION' printed vertically on a metallic silver tube, with part of a black tire visible against a blurred outdoor background.

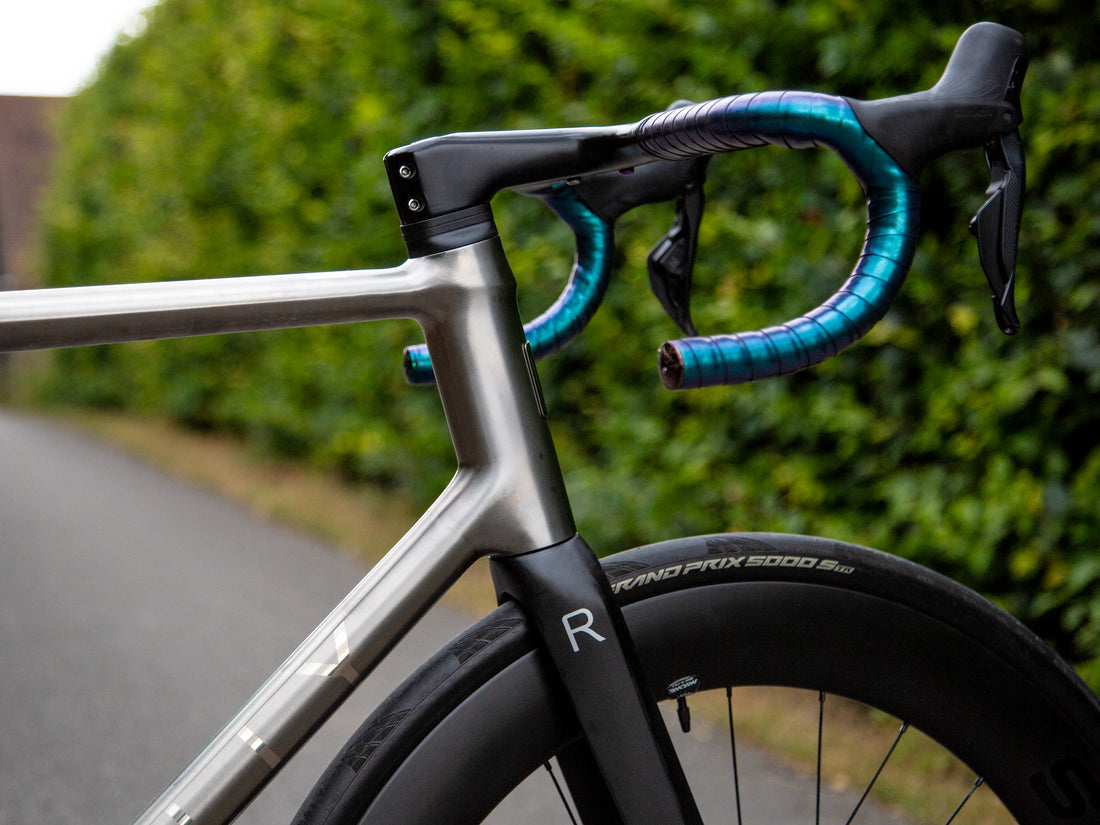

  • Close-up of a road bicycle frame and drop handlebars with bright blue and black tape wrapping, set against a blurred green hedge and paved path background.

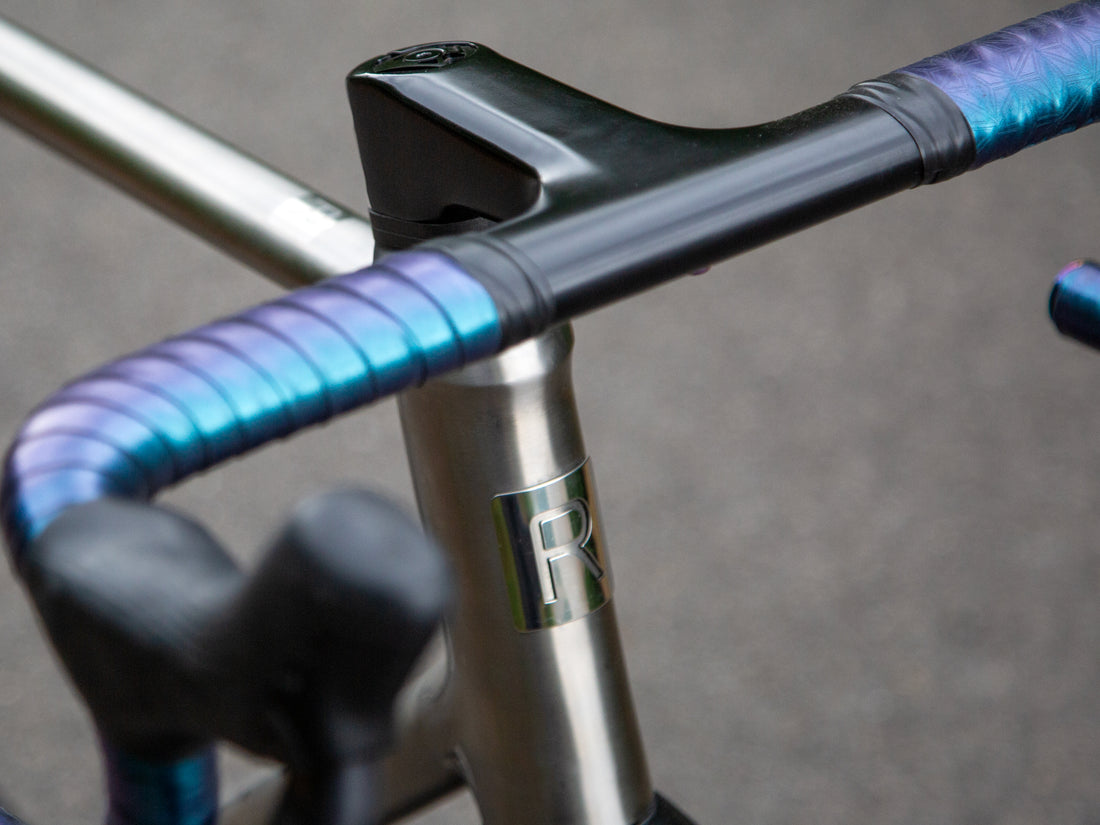

  • Close-up of a bicycle handlebar area showing a black stem, silver frame tube with a metallic 'R' emblem, and drop handlebars wrapped in iridescent blue-purple tape against a blurred gray background.

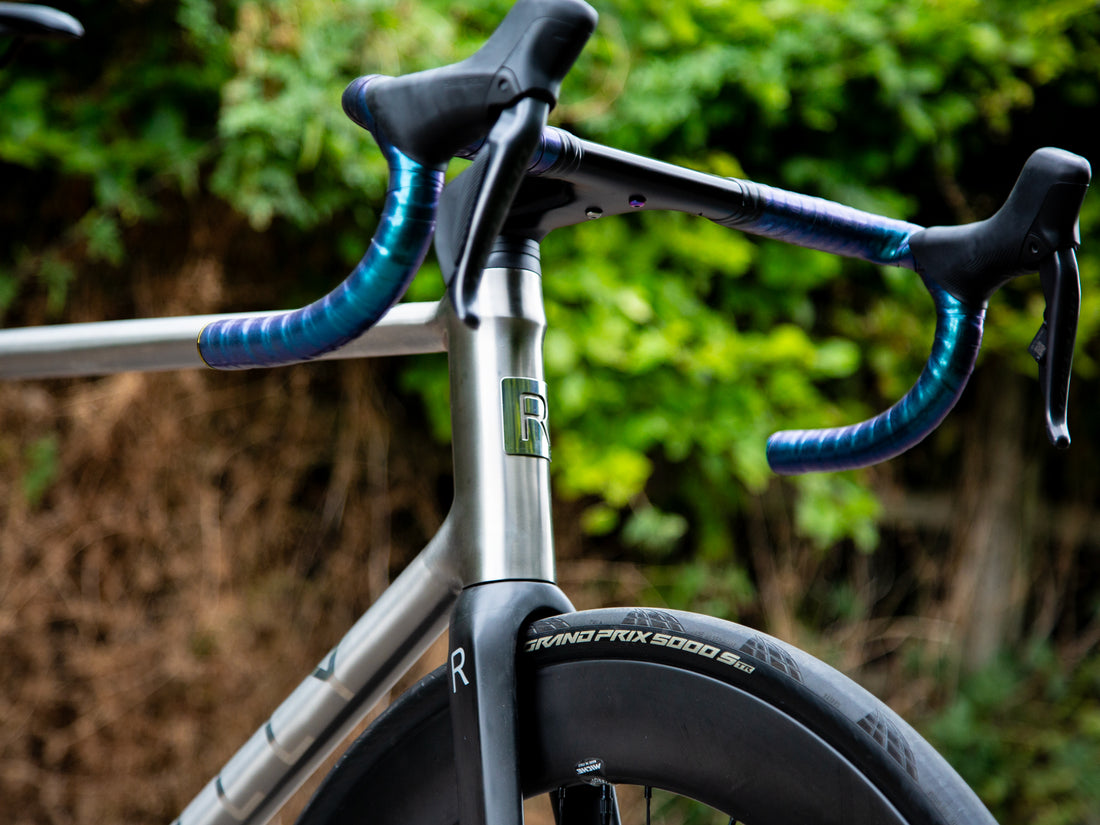

  • Close-up of a road bicycle handlebar area with black drop handlebars, blue tape wrapping, a silver frame tube, and a black tire against a blurred green outdoor background.
  • Close-up of a bicycle frame showing a black label that reads 'TITANIUM 3AL-250' and 'SILVER BIFERRO', with part of a black crankset and tire visible against a blurred gray pavement background.

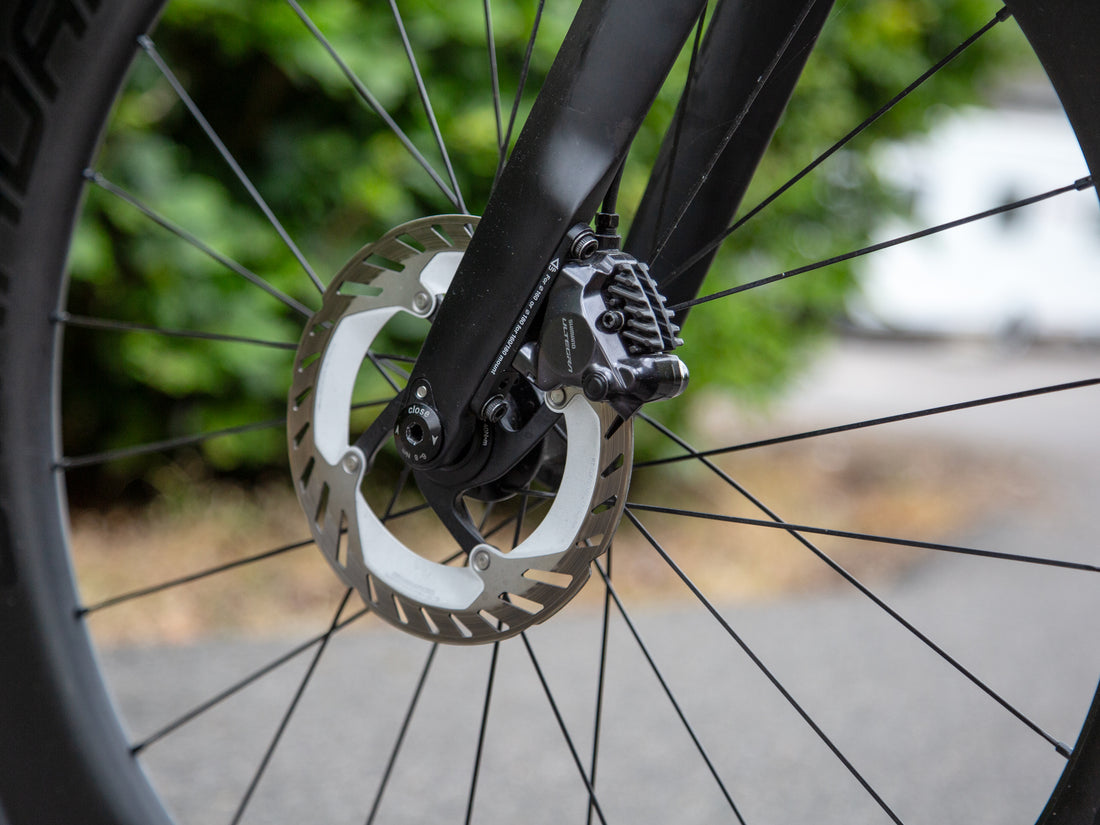

  • Close-up of a bicycle's front wheel hub, showing a black frame, silver disc brake rotor, and brake caliper, with a blurred outdoor background of green foliage and pavement.
