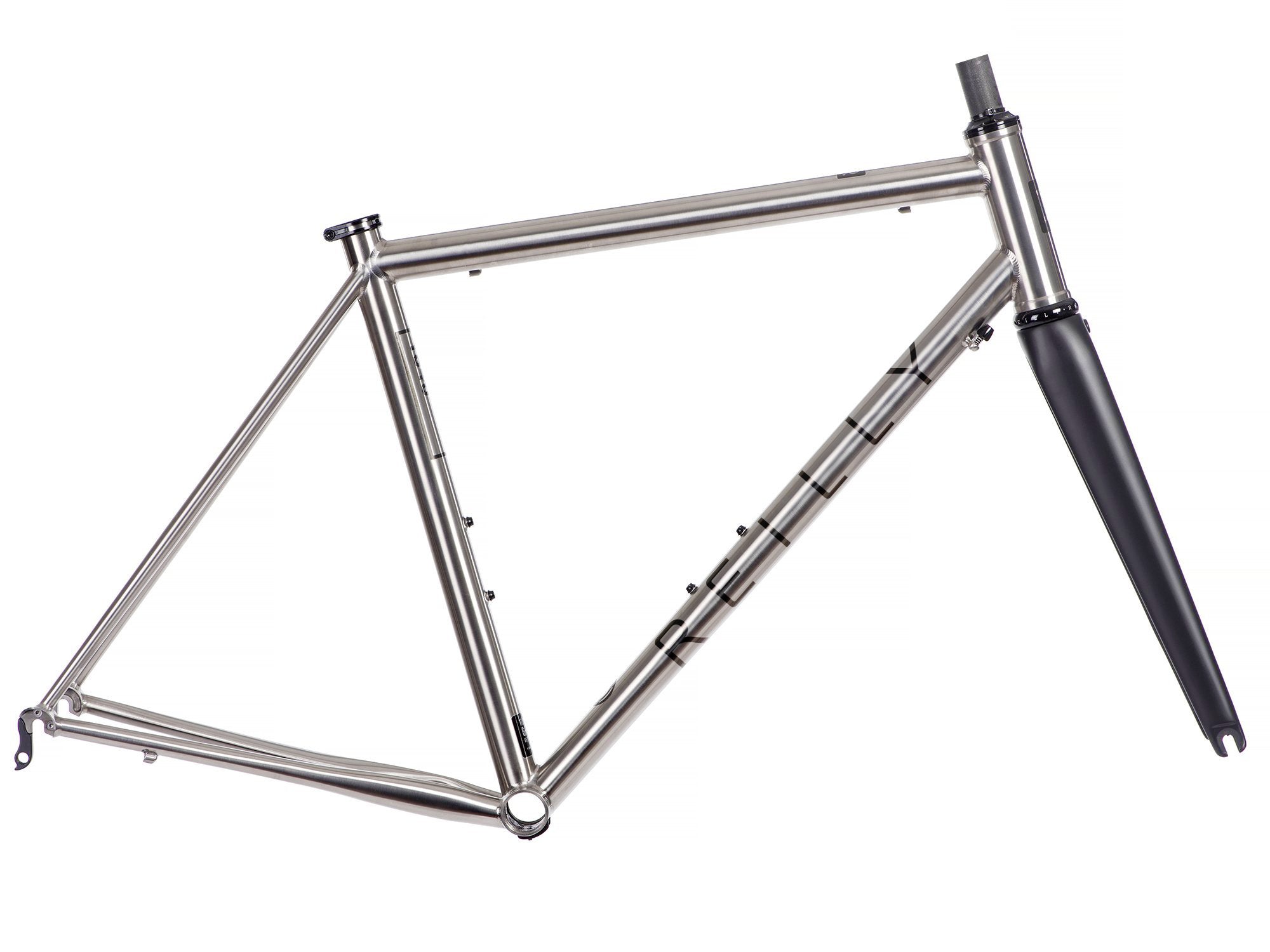

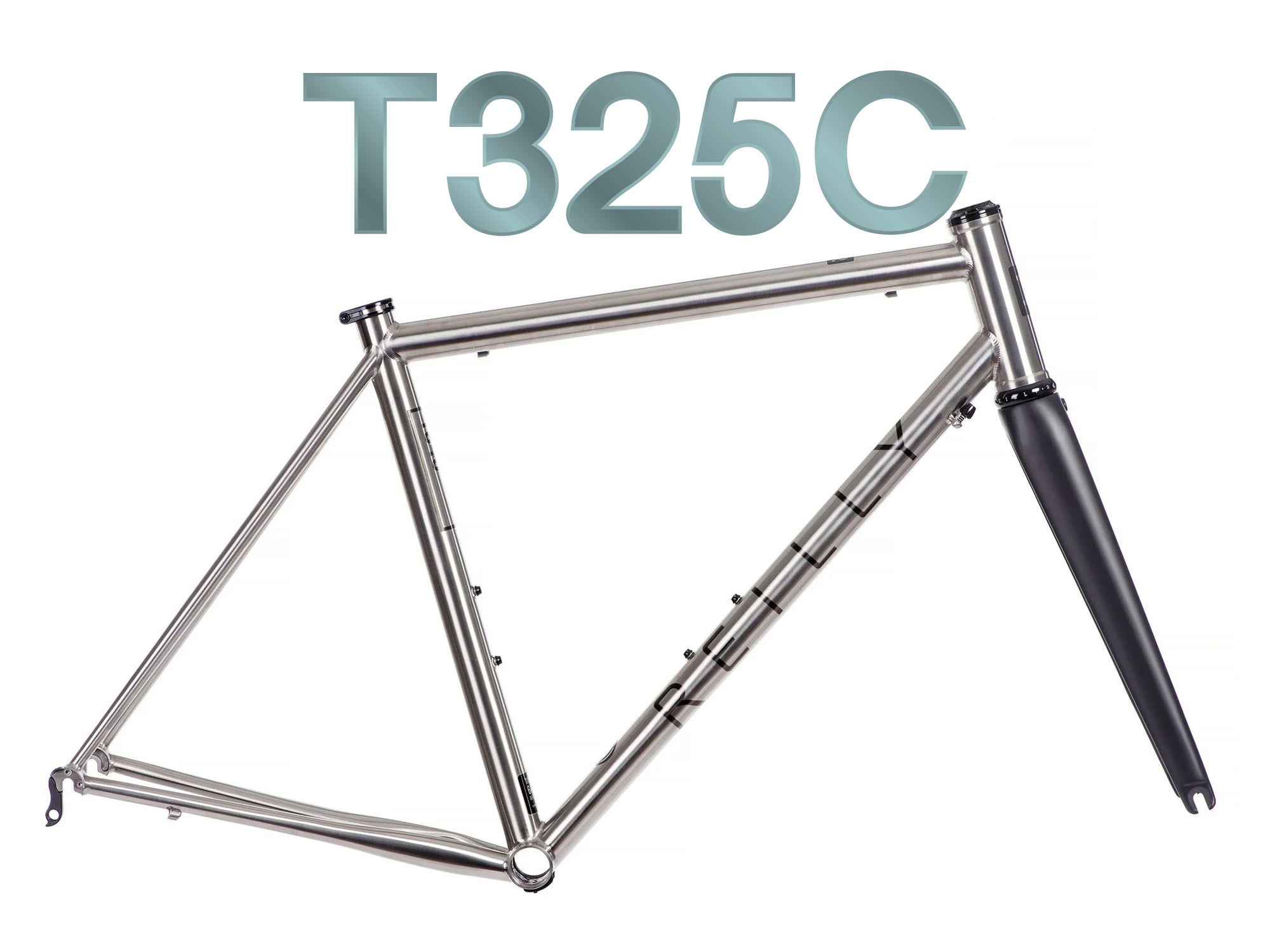

T325C // ROAD CALIPER FRAMESET
THE CALIPER VERSION OF T325 PERFECT FOR ROAD RACING SPORTIVE RIDING AND ENDURANCE CHALLENGES
FAST, RESPONSIVE AND LIGHTWEIGHT DUE TO 3AL 2.5V AEROSPACE-GRADE TITANIUM
'FLEX AND FLOW' TITANIUM DELIVERING COMFORT AND DURABILITY FOR LONG-DISTANCE RIDING.
Regular price
£2,299.00
For international orders, UK VAT has been removed.
BOOK A DEMO RIDE
FOR INTERNATIONAL ORDERS - UK VAT HAS ALREADY BEEN REMOVED.
FOR INTERNATIONAL ORDERS - VIEW CART FOR TAX AND DUTIESCALCULATOR
Couldn't load pickup availability
The following spec applies to a base build. All of the options can be customised to suit your requirements.
| Specification | Details |
|---|---|
| Titanium Grade | 3AL - 2.5V |
| Bottom Bracket Shell | Threaded T47 |
| Bottom Bracket Shell Updated | BSA Bottom Bracket |
| Cable Routing | External gear cable routing; internal downtube brake hose routing |
| Headset | Reilly Aluminium Headset (Black / Red / Blue as chosen) |
| Fork | UDM Carbon Fork |
| Frame Features | 2 Bottle Cage Mounts |
| Finish | Vinyl decal in black, blue or red as standard |
| Warranty | Lifetime Frame Warranty (Original Owner Only, Non-Transferable). Terms and Conditions Apply |
All measurements are in milimeters. For mobile users, please use the horizontal scroll bar to view all sizes.
Frame Geometry
| SIZE |
EXTRA SMALL |
SMALL | MEDIUM | LARGE | EXTRA LARGE |
| SEAT TUBE C/TOP | 470mm | 490mm | 510mm | 530mm | 540mm |
| TOP TUBE EFFECTIVE | 510mm | 530mm | 550mm | 570mm | 590mm |
| BB DROP | 72mm | 72mm | 72mm | 72mm | 72mm |
| CHAINSTAY LENGTH | 405mm | 407mm | 408mm | 410mm | 410mm |
| FORK RAKE | 45mm | 45mm | 45mm | 45mm | 45mm |
| TRAIL | 66mm | 63mm | 56mm | 56mm | 56mm |
| FRONT CENTRE | 576mm | 578mm | 584mm | 599mm | 619mm |
| WHEELBASE | 970mm | 974mm | 981mm | 996mm | 1016mm |
| STANDOVER | 736mm | 753mm | 774mm | 792mm | 804mm |
| HEAD TUBE | 110mm | 130mm | 150mm | 170mm | 185mm |
| STACK | 524mm | 541mm | 564mm | 583mm | 597mm |
| REACH | 372mm | 374mm | 382mm | 392mm | 407mm |

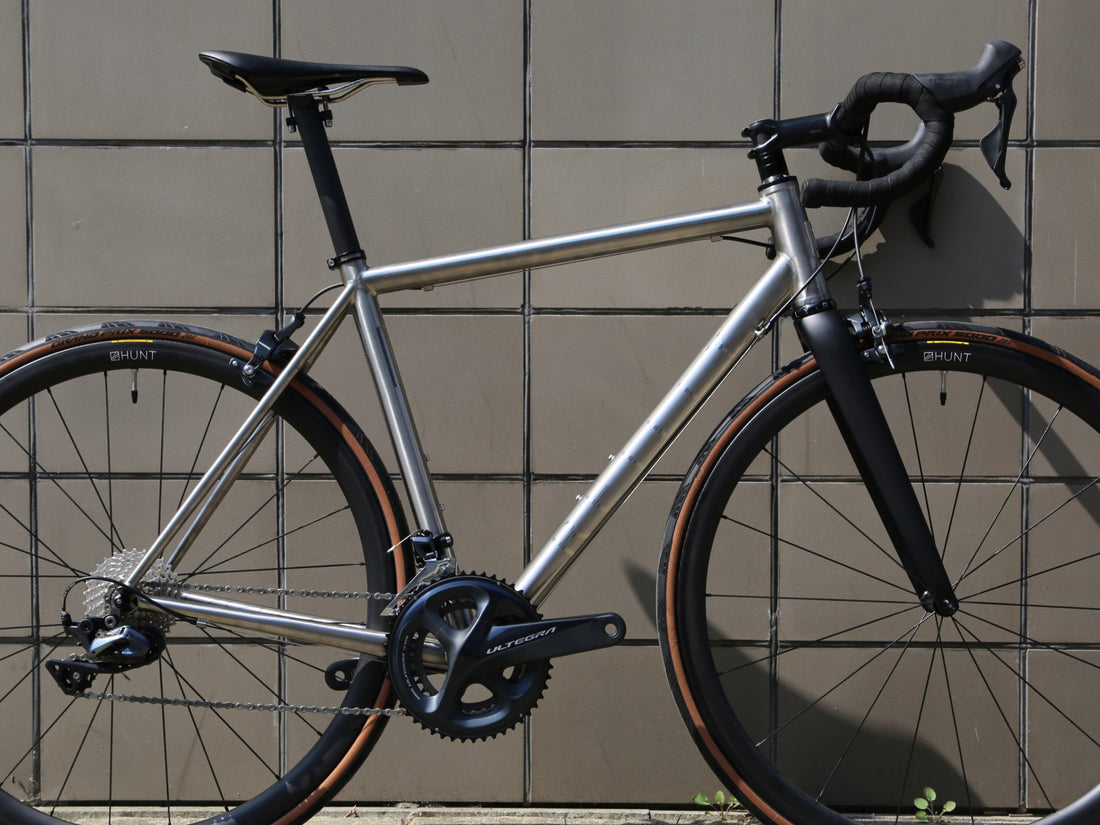

The Reilly T325C is the rim brake version of the acclaimed T325. Designed for road racing, sportive riding and endurance challenges, the T325C embodies years of titanium framebuilding expertise. With the timeless style of rim brakes on a classic round-tubed frame, the T325C provides maximum comfort and performance for cyclists who demand a high quality titanium road bike.
