T325C

The following spec applies to a base build. All of the options can be customised to suit your requirements.

Specification	Details
Titanium Grade	3AL - 2.5V
Bottom Bracket Shell	Threaded T47
Bottom Bracket Shell Updated	BSA Bottom Bracket
Bottom Bracket	As per groupset manufacturer
Groupset	Campagnolo Chorus 12sp 2x
Cable Routing	External gear cable routing; internal downtube brake hose routing
Fork	UDM Carbon Fork
Brakes	Rim brakes as per groupset manufacturer

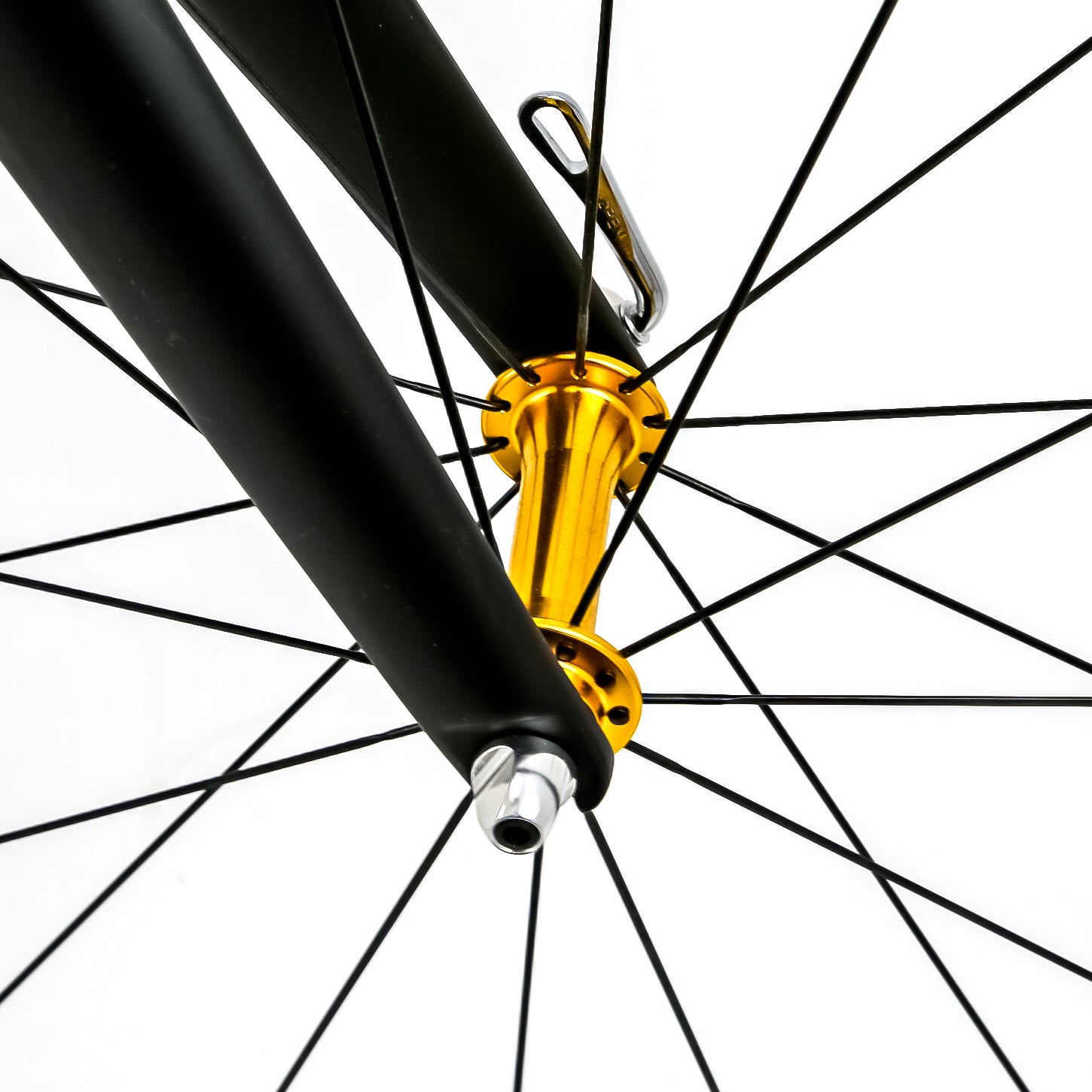

Wheels	Alloy rim brake, tubeless ready
Tyres	Panaracer Agilest
Max Clearance	700c: 28mm

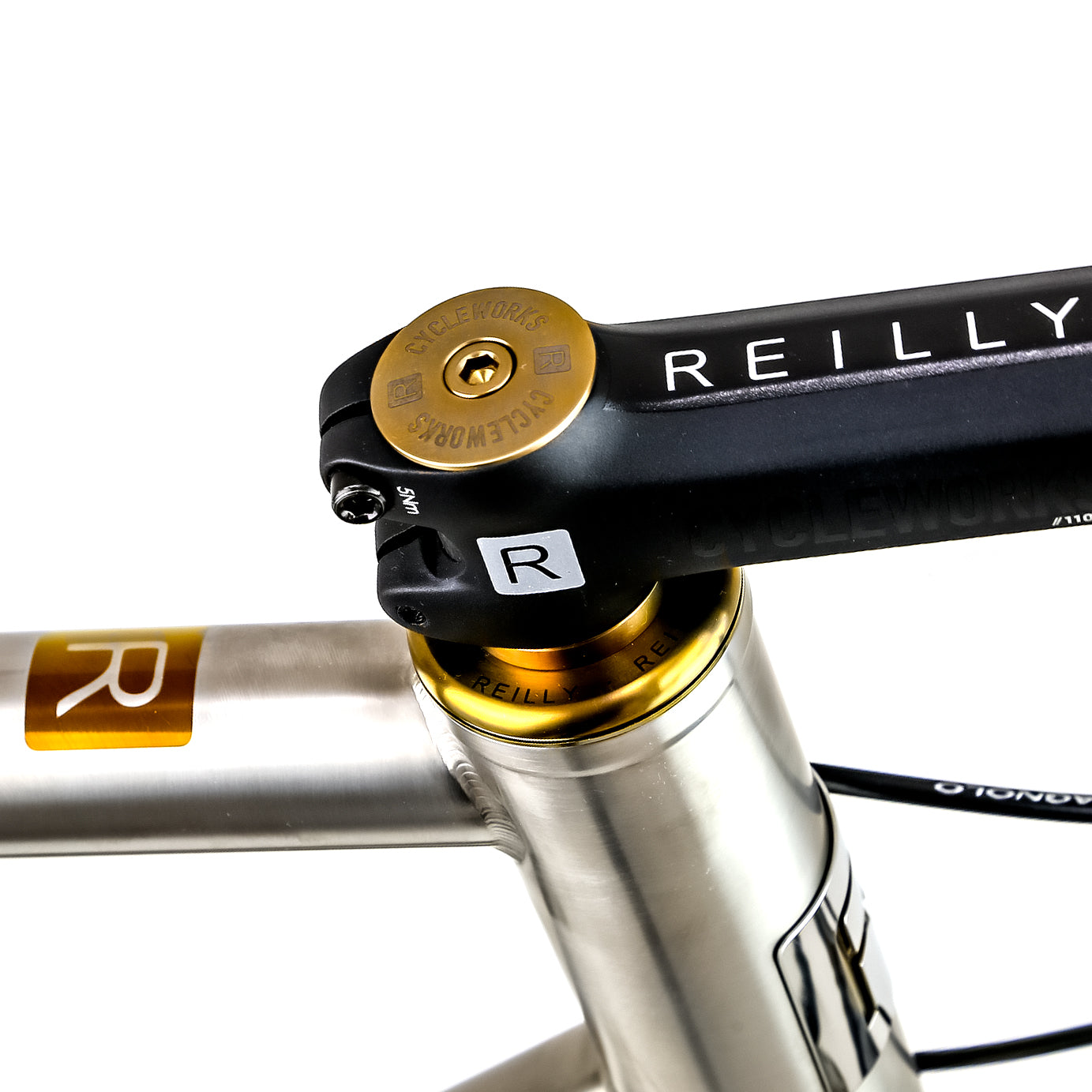

Headset	Reilly Aluminium Headset (Black / Red / Blue as chosen)
Bars / Width	Reilly Aluminium Compact Bars (Drop 125mm; Reach 75mm; Flare 4°) or as chosen
Stem / Length	Reilly Aluminium Stem 80mm / 90mm / 100mm / 110mm (Angle: 84° / -6°) or suitable alternative
Bar Tape	Reilly EVA Bar Tape – Black
Seatpost	Reilly UD Carbon Seatpost 27.2mm x 350mm, with 2x 6AL-4V titanium retaining bolts
Seat Clamp	Hope seat clamp available in red, blue, black, smoke, orange or purple
Saddle	Reilly Titanium Alloy ‘Airform’ Saddle
Frame Features	2 Bottle Cage Mounts
Set-Up	British Standard (right lever = front brake, left lever = rear brake)

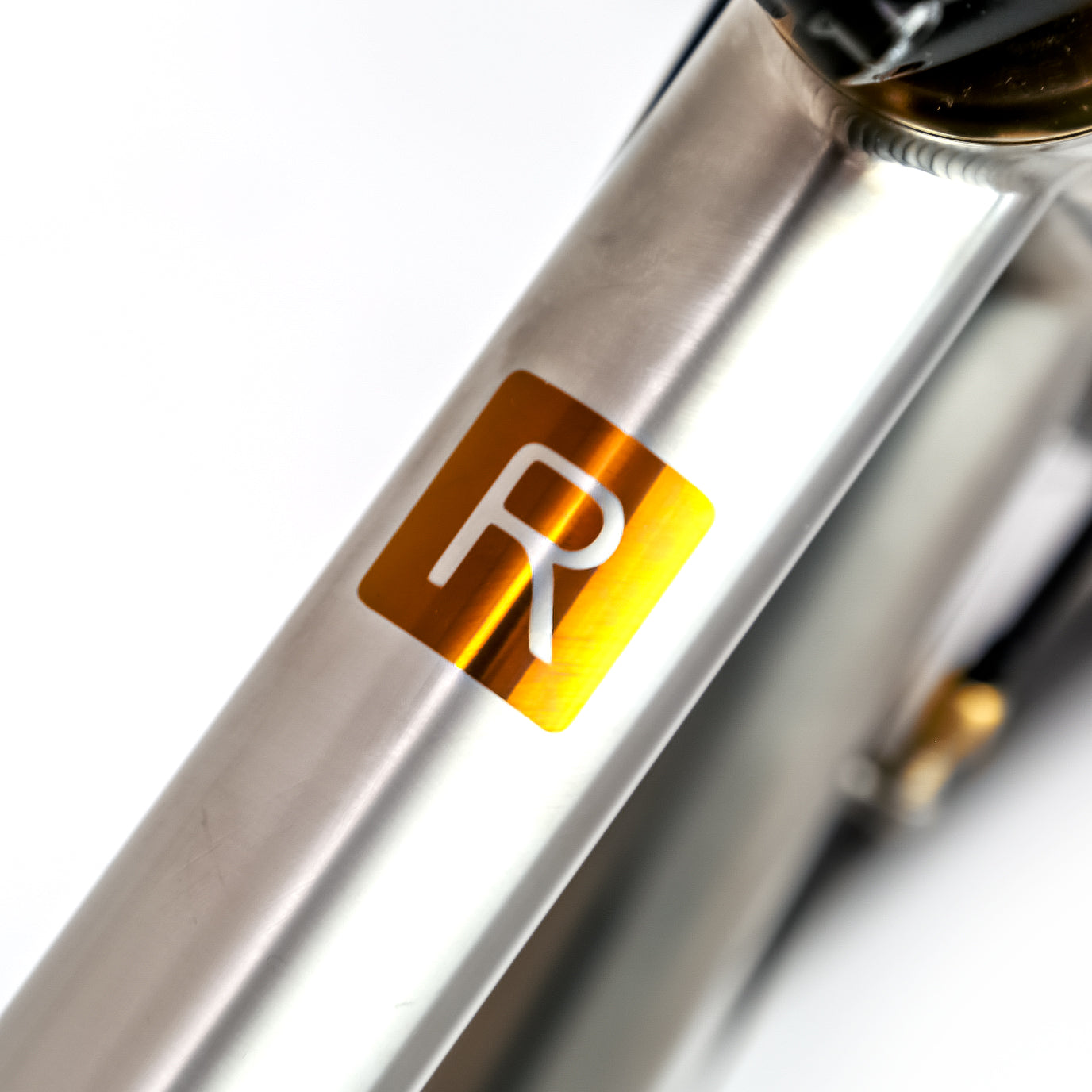

Finish	Vinyl decal in black, blue or red as standard
Warranty	Lifetime Frame Warranty (Original Owner Only, Non-Transferable). Terms and Conditions Apply

All measurements are in milimeters. For mobile users, please use the horizontal scroll bar to view all sizes.

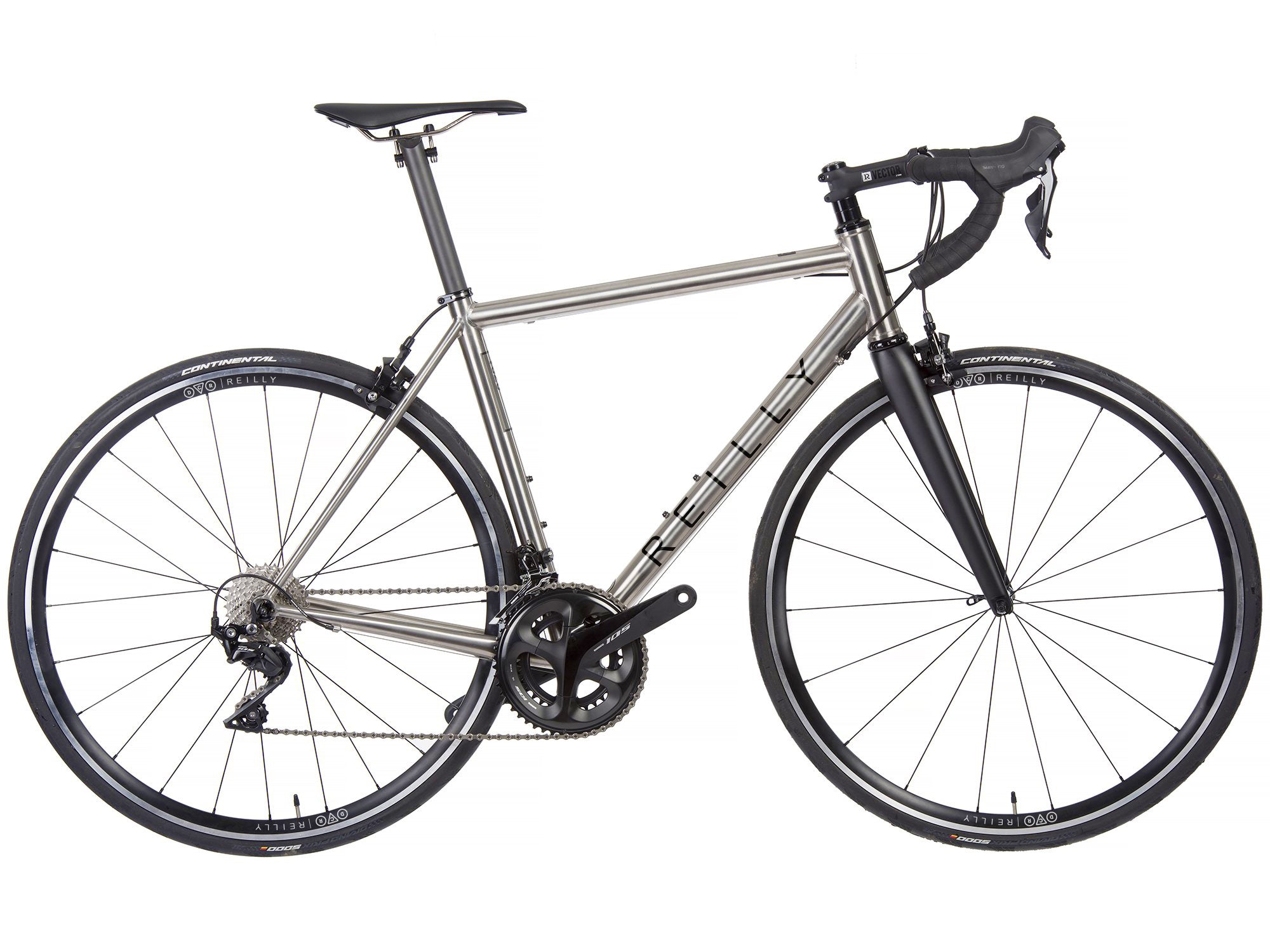

T325C // TITANIUM RIM BRAKE ROAD BIKE
