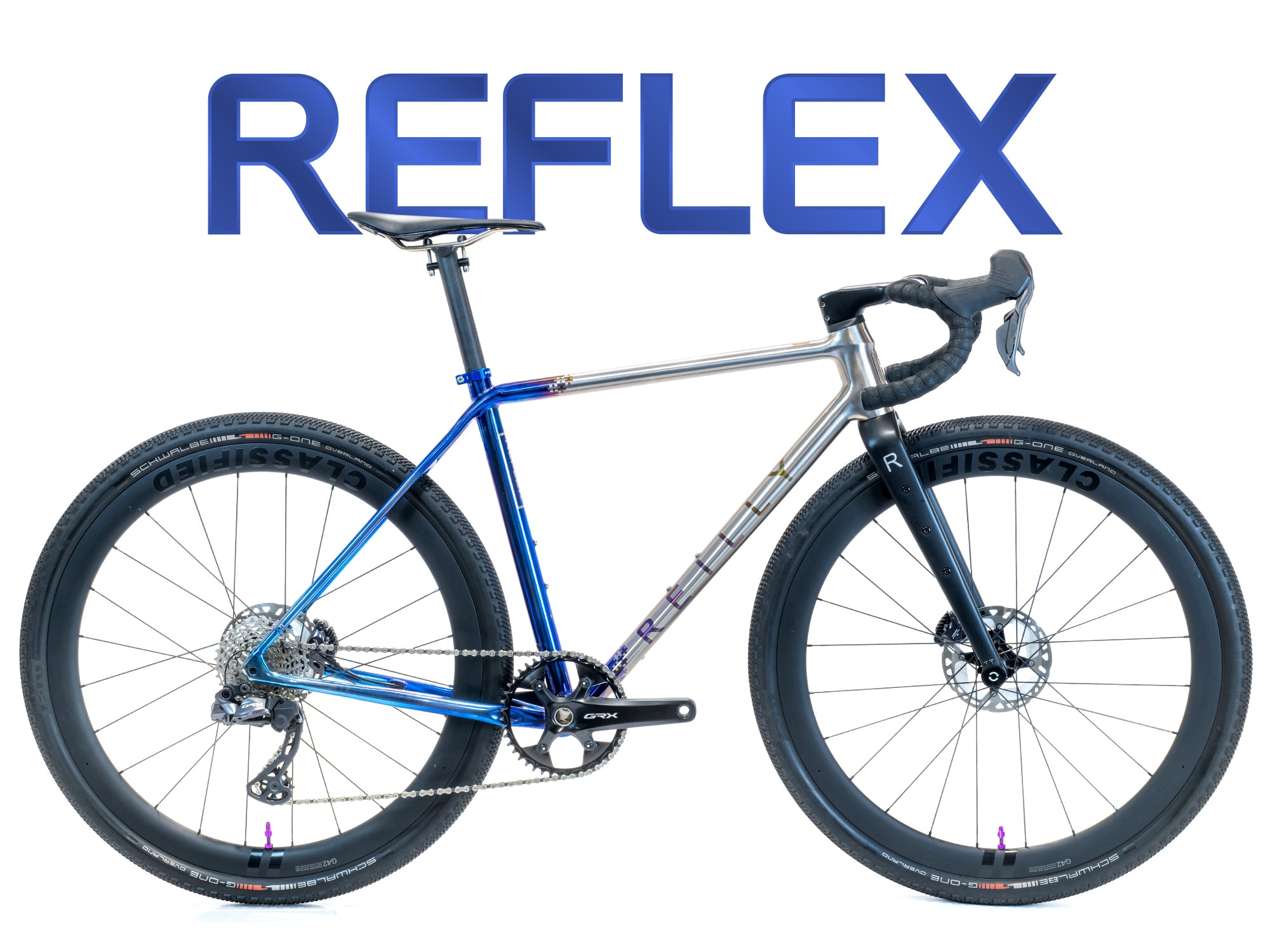

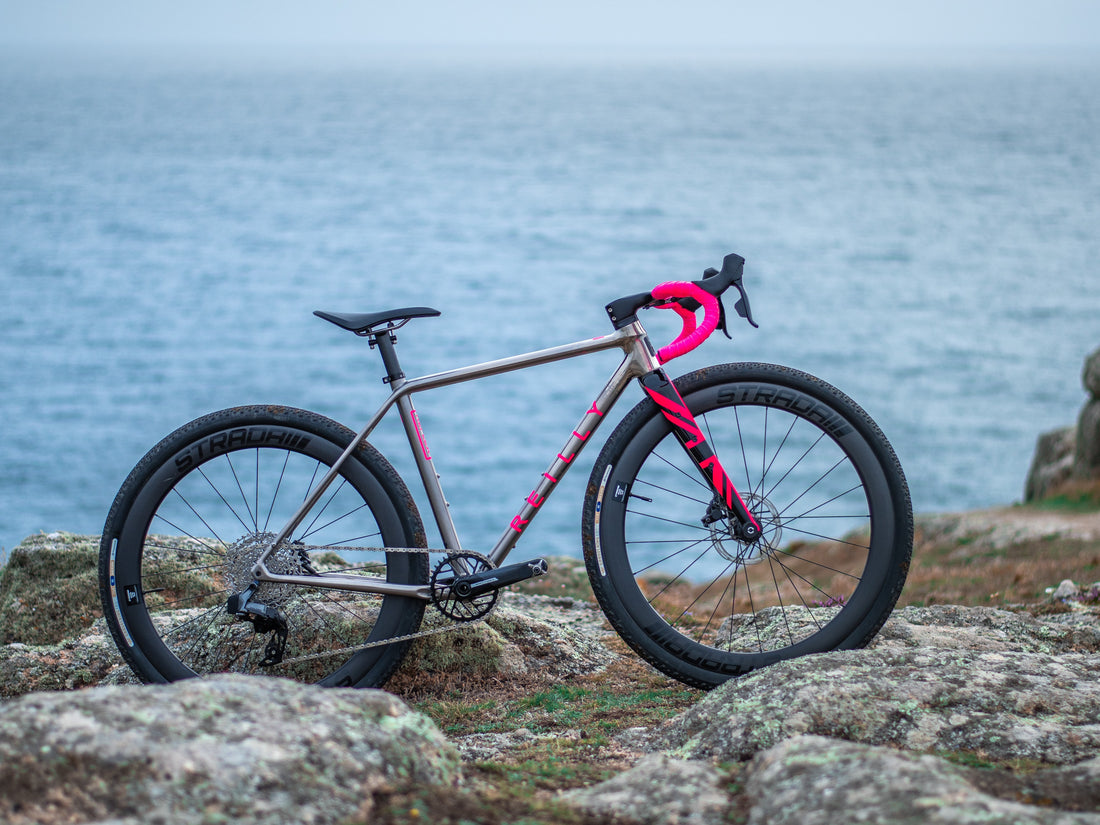

Reilly reflex titanium gravel bike with blue fade anodized finish

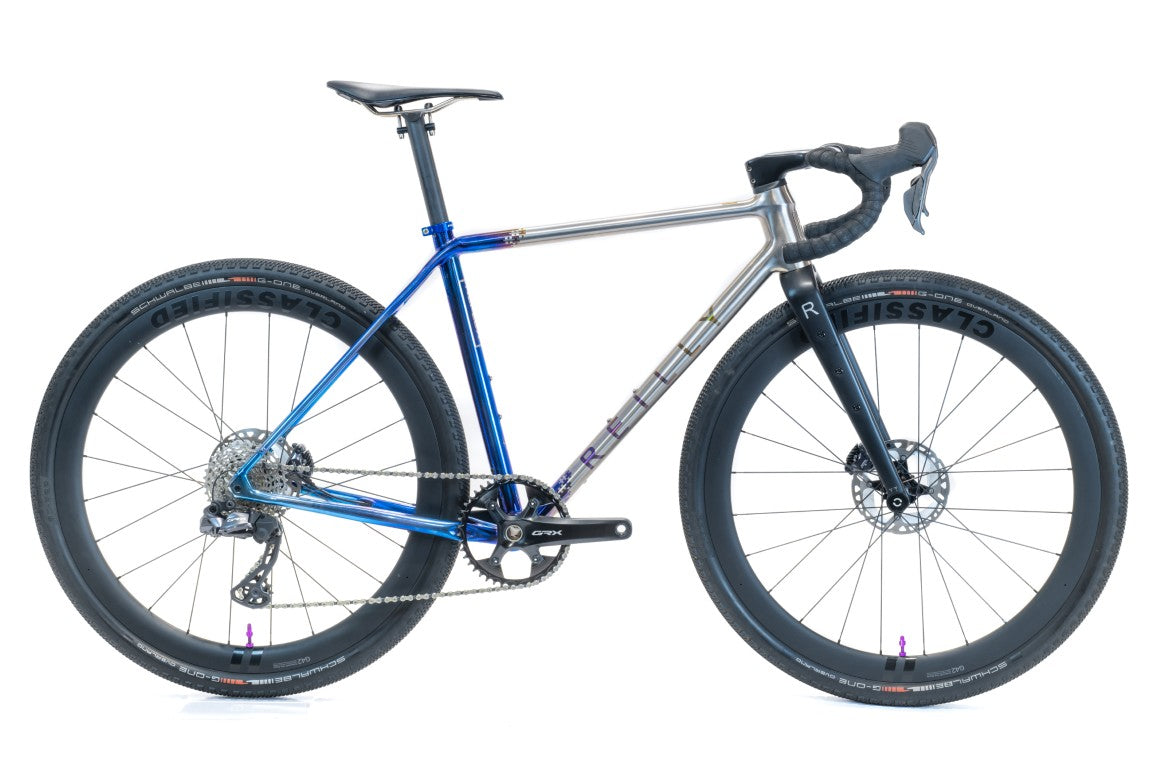

Reilly reflex titanium gravel bike with blue anodized finish

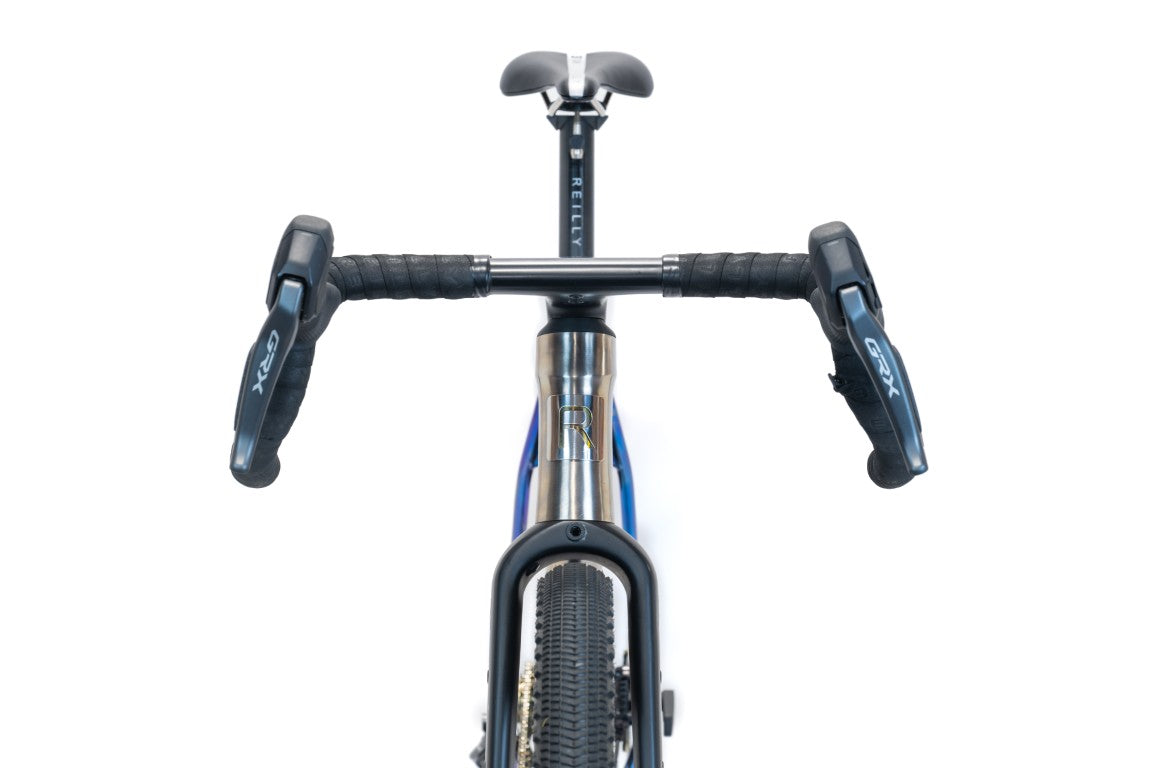

Reilly reflex titanium gravel bike head on view

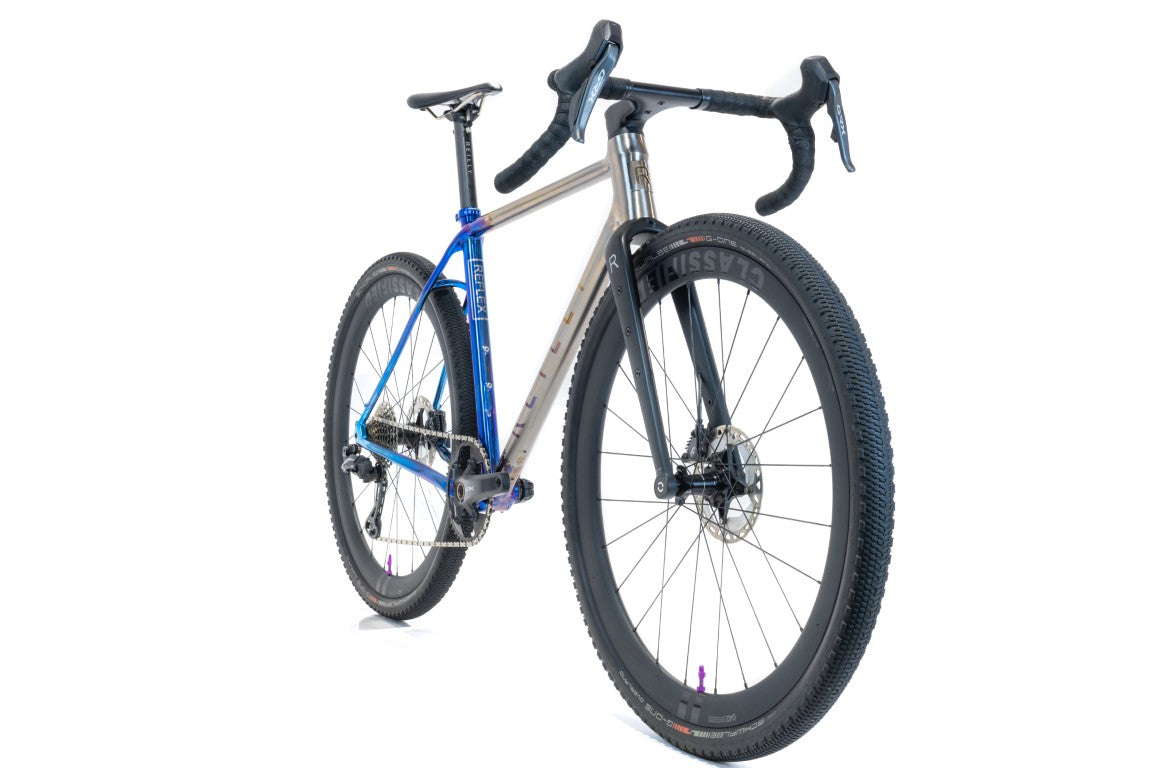

Reilly reflex titanium gravel bike with blue anodized rear triangle

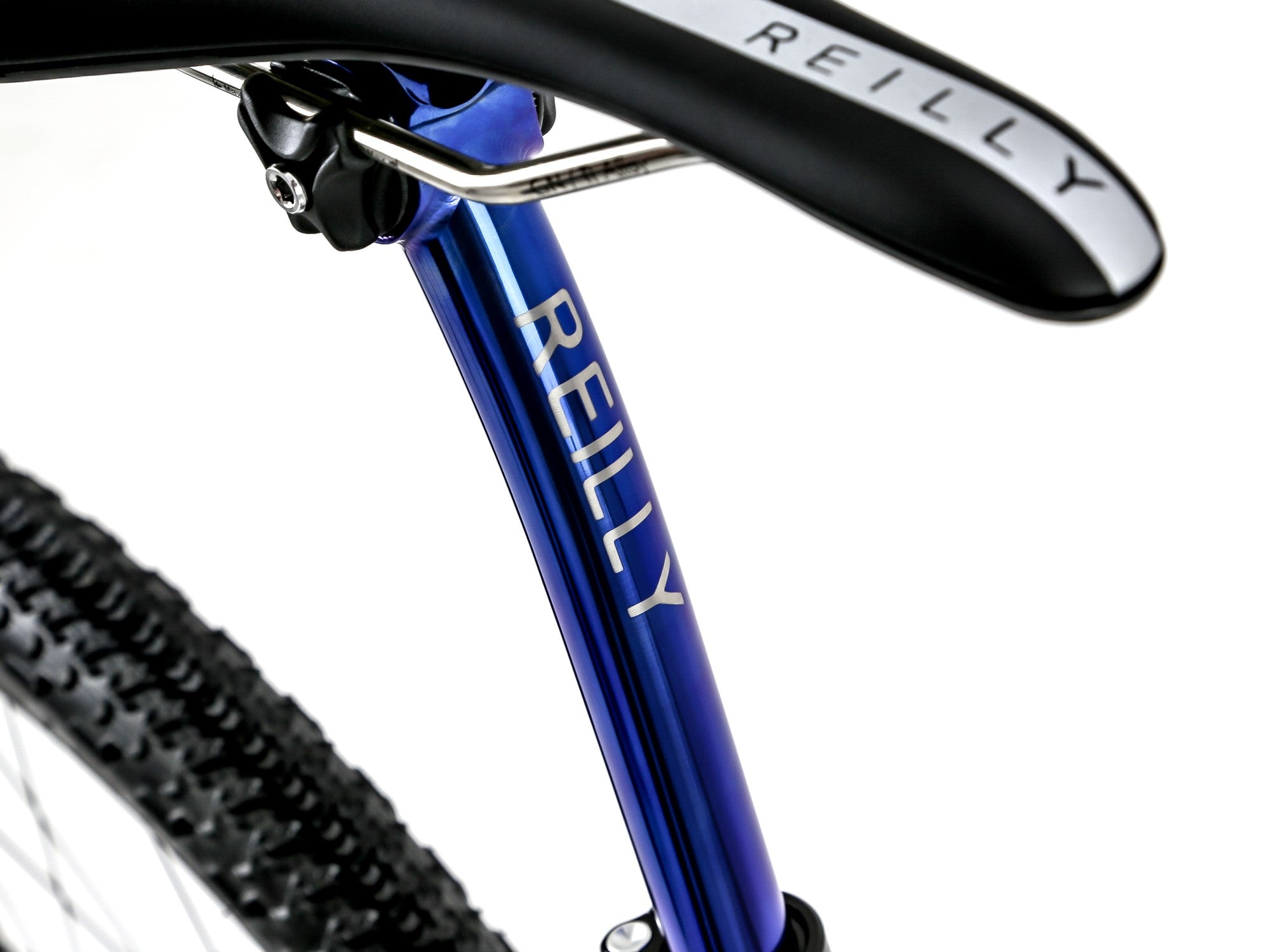

Reilly Reflex seat tube titanium gravel bike offroad tyres

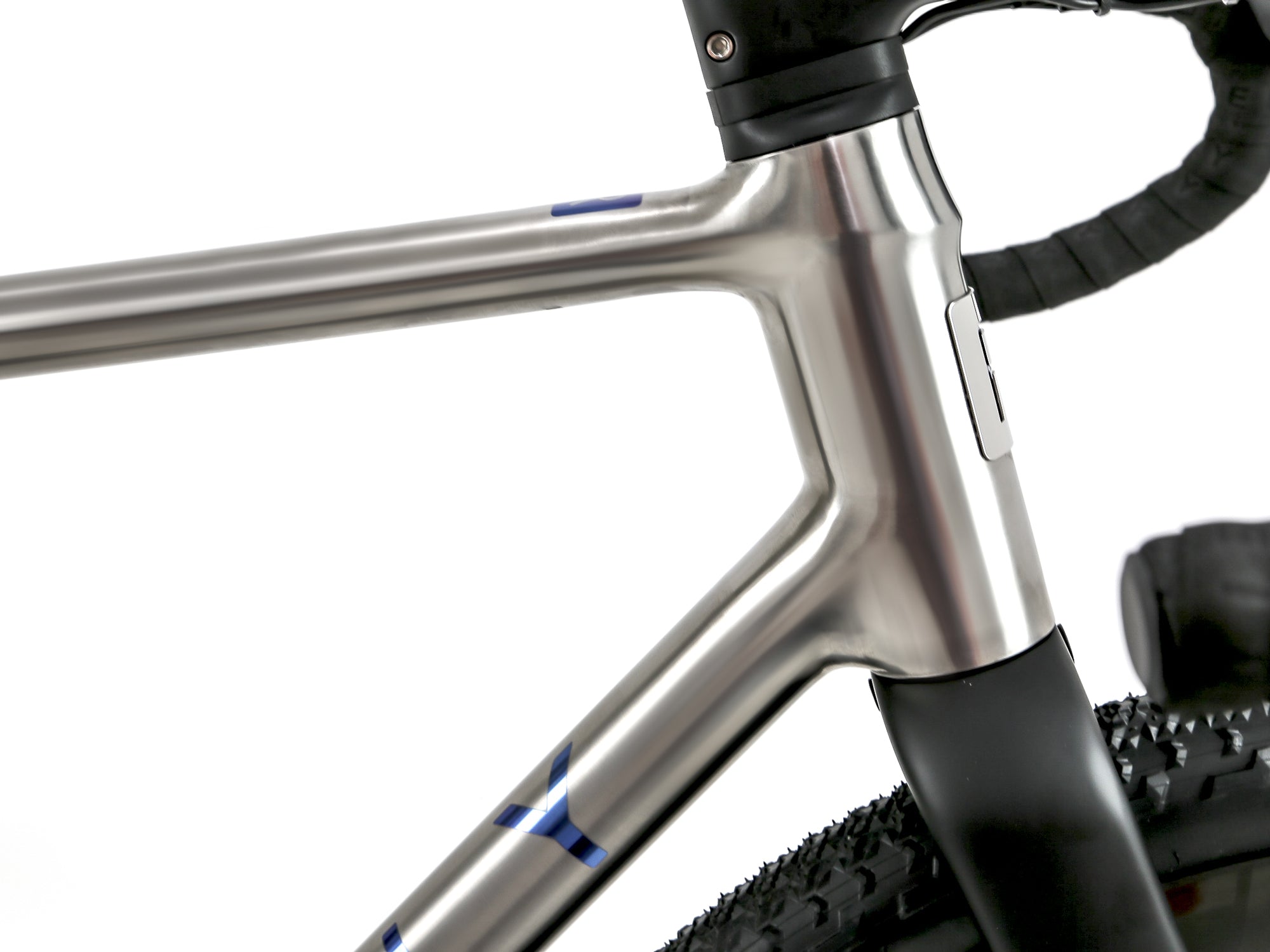

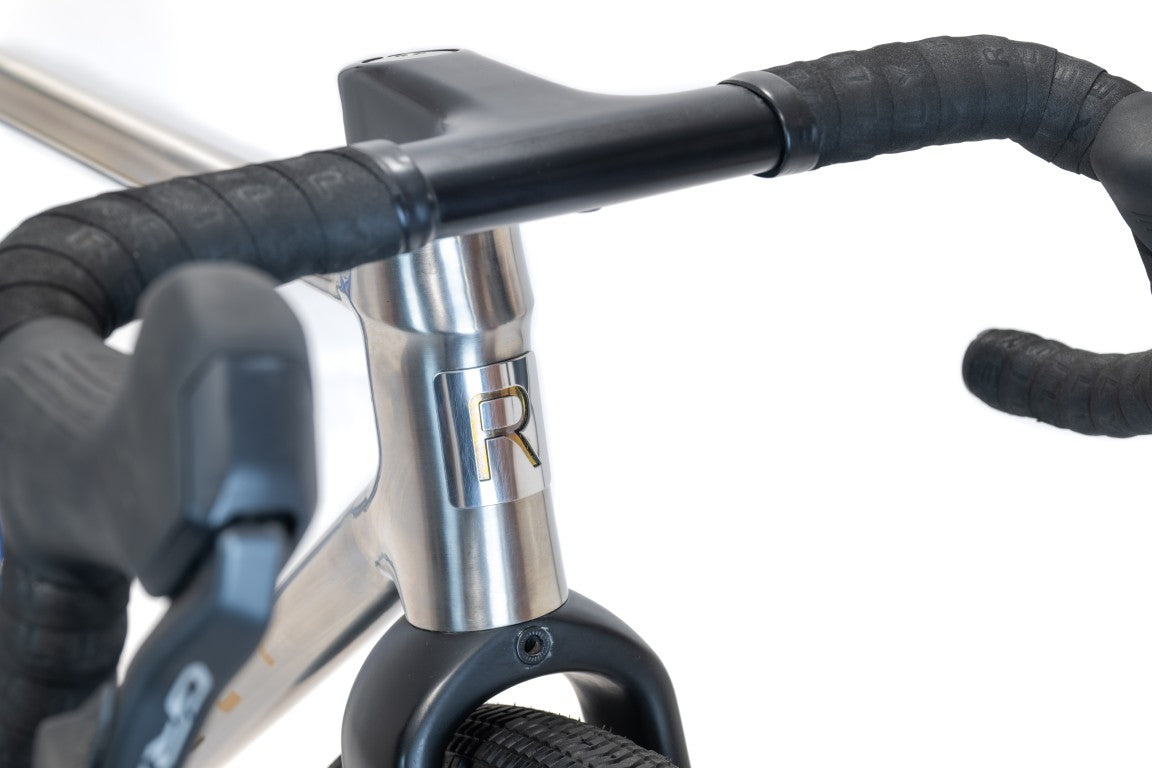

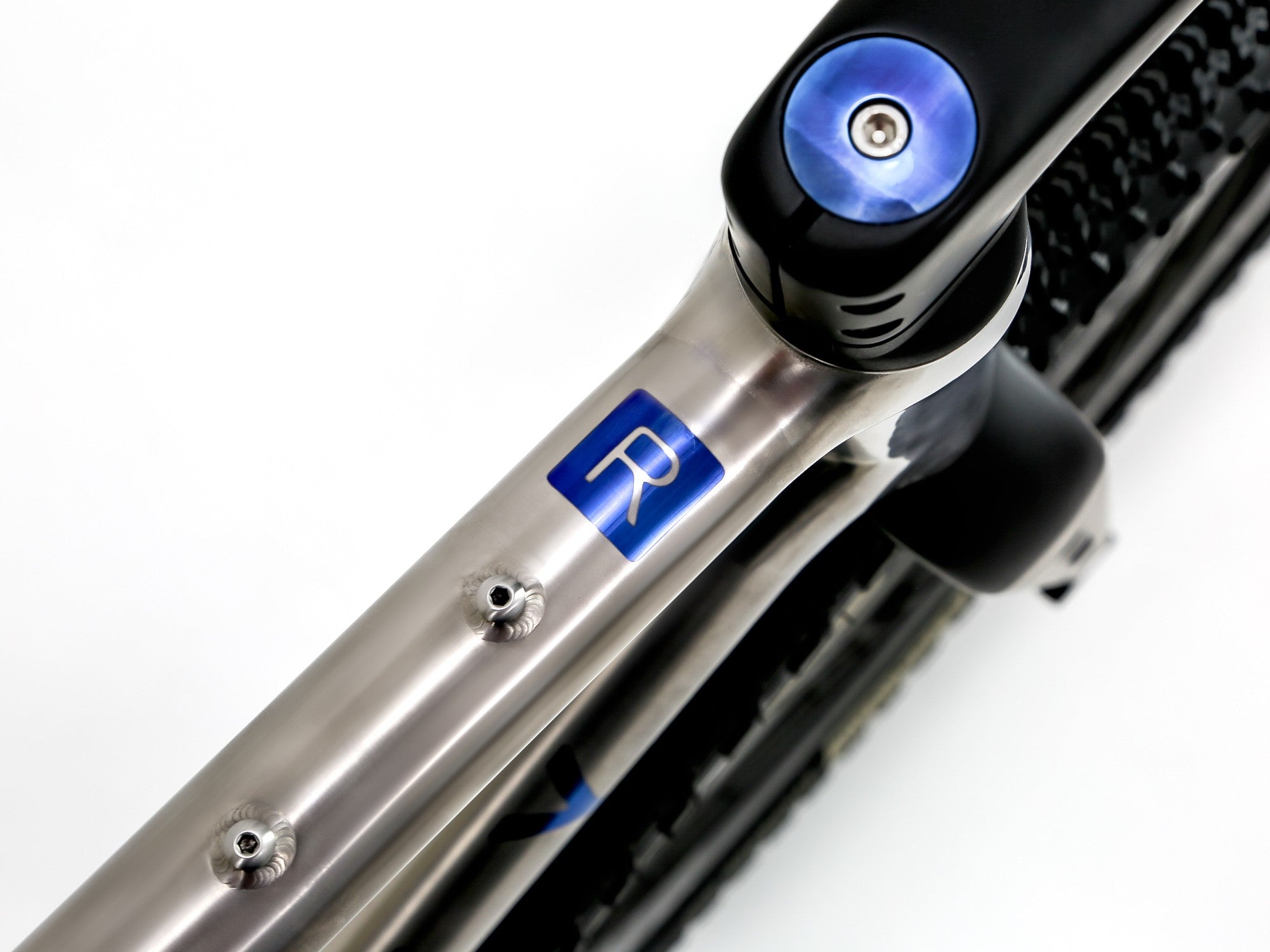

Reilly Reflex headtube close up view in detail of brushed titanium

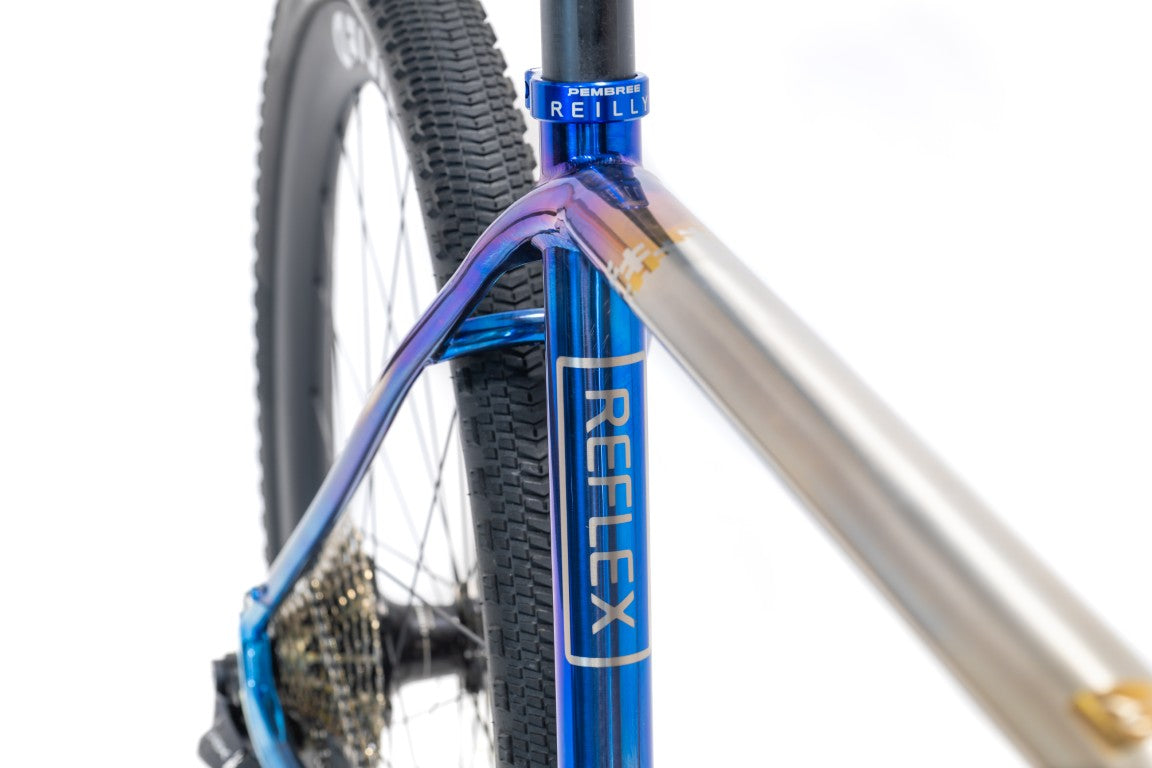

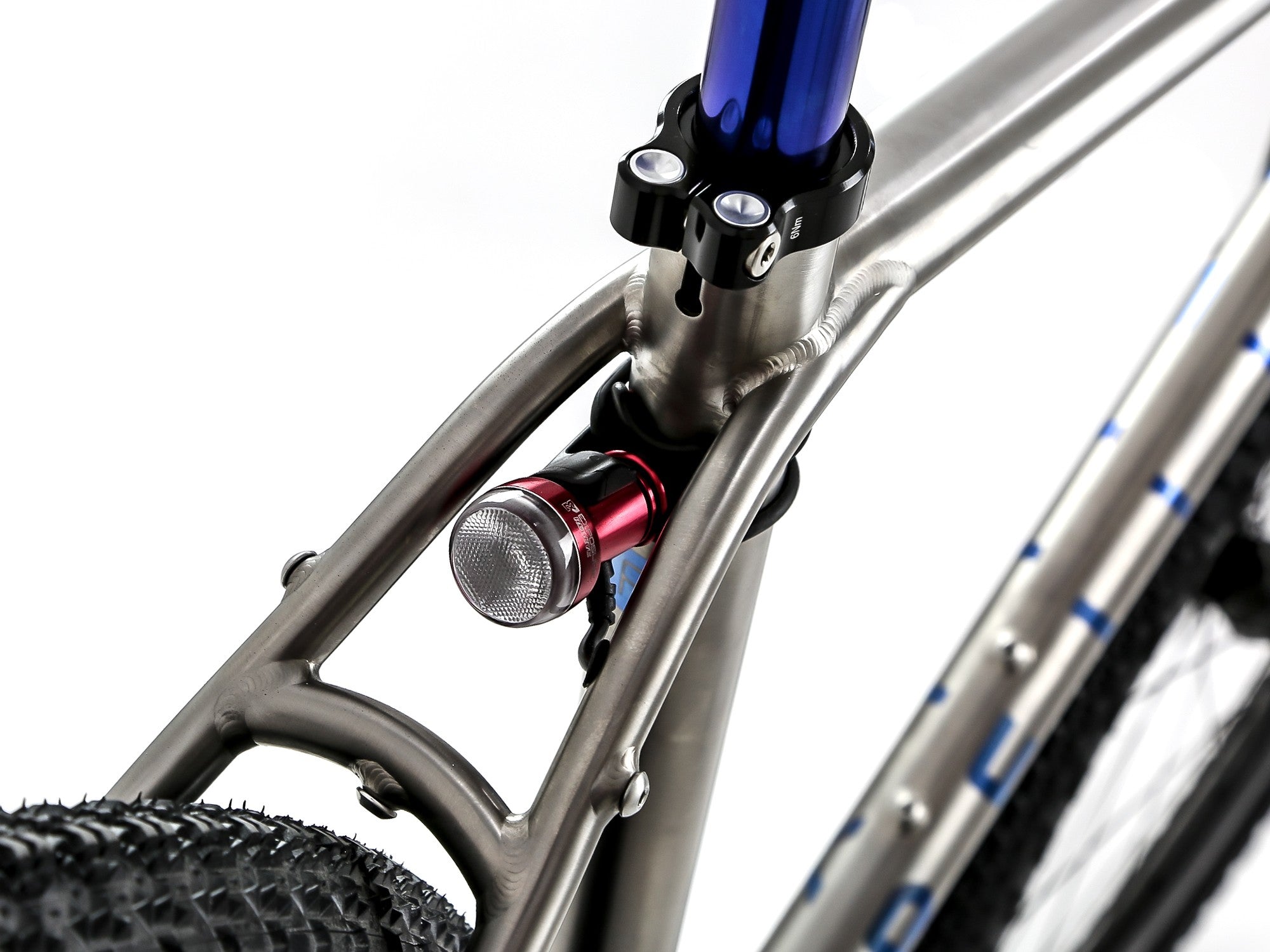

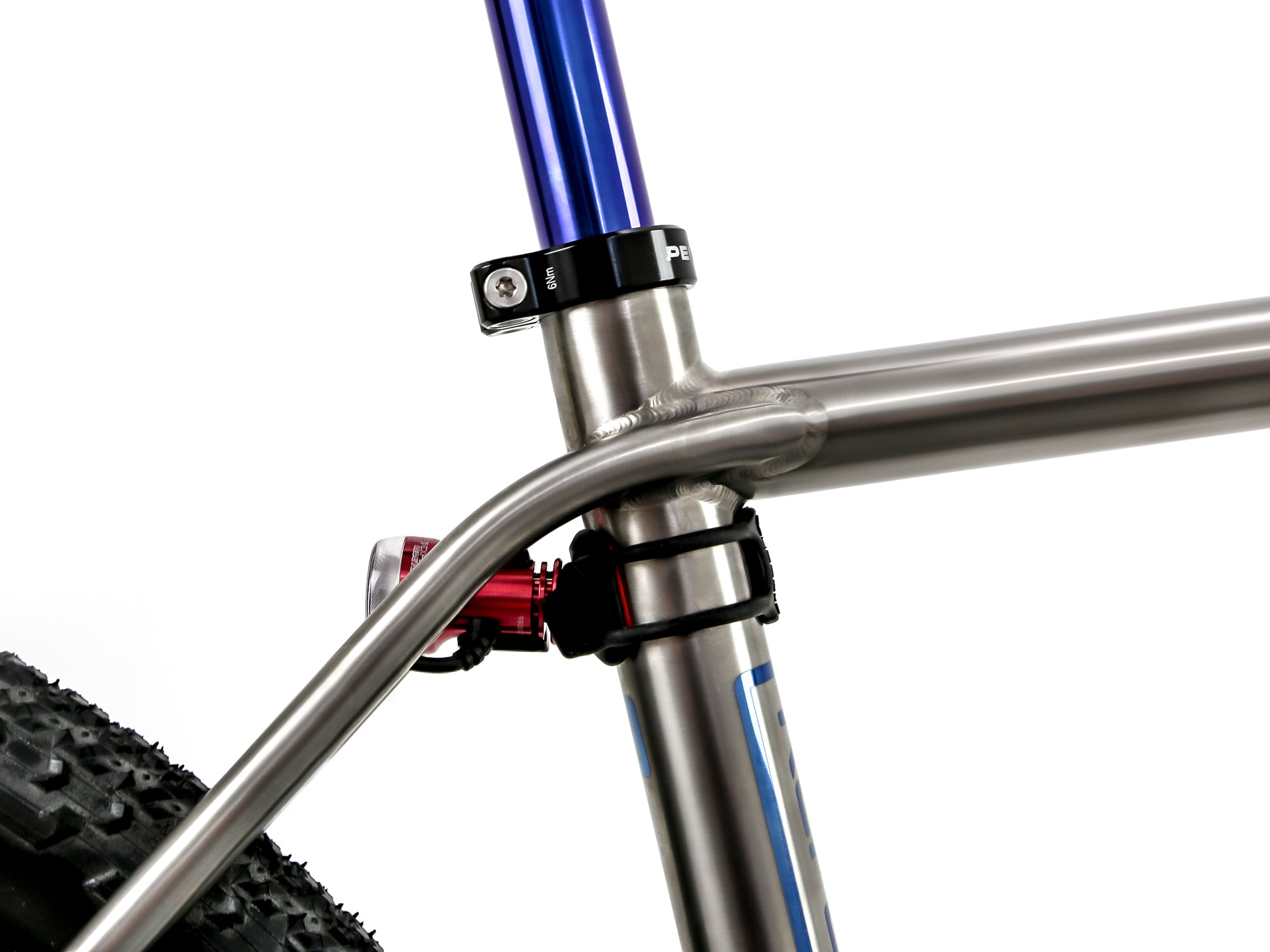

Reilly Reflex seat tube clamp and rear light

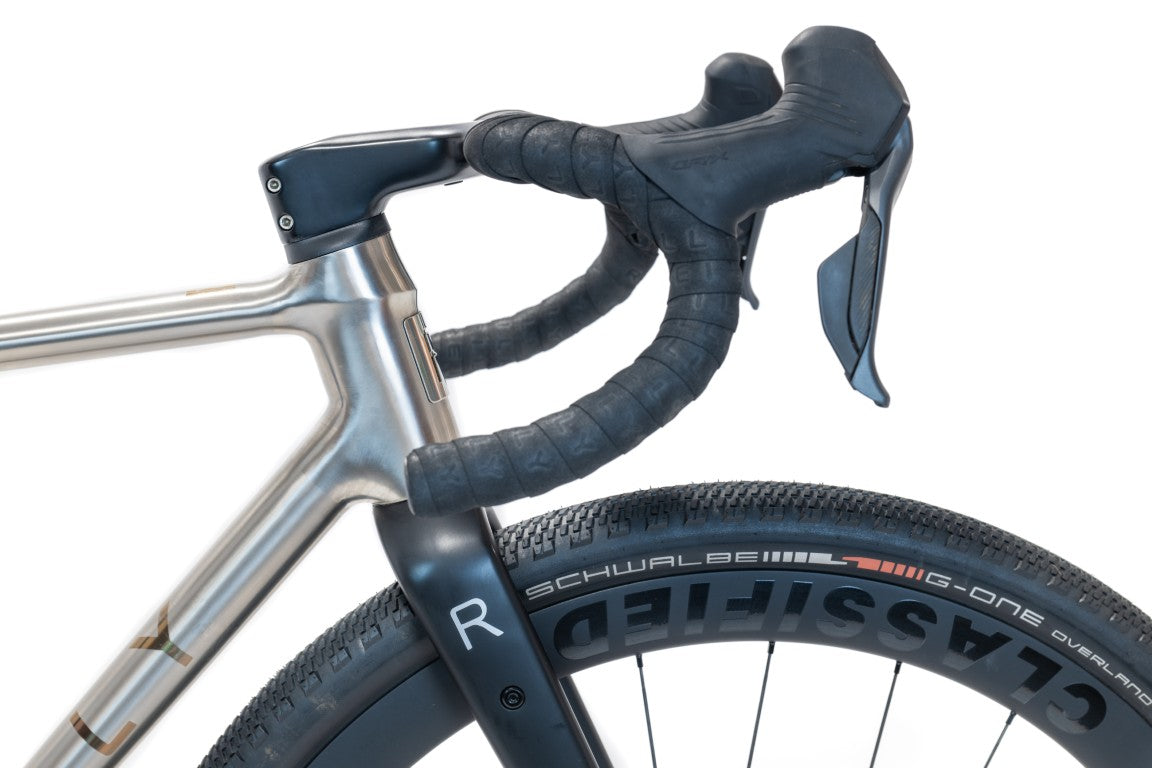

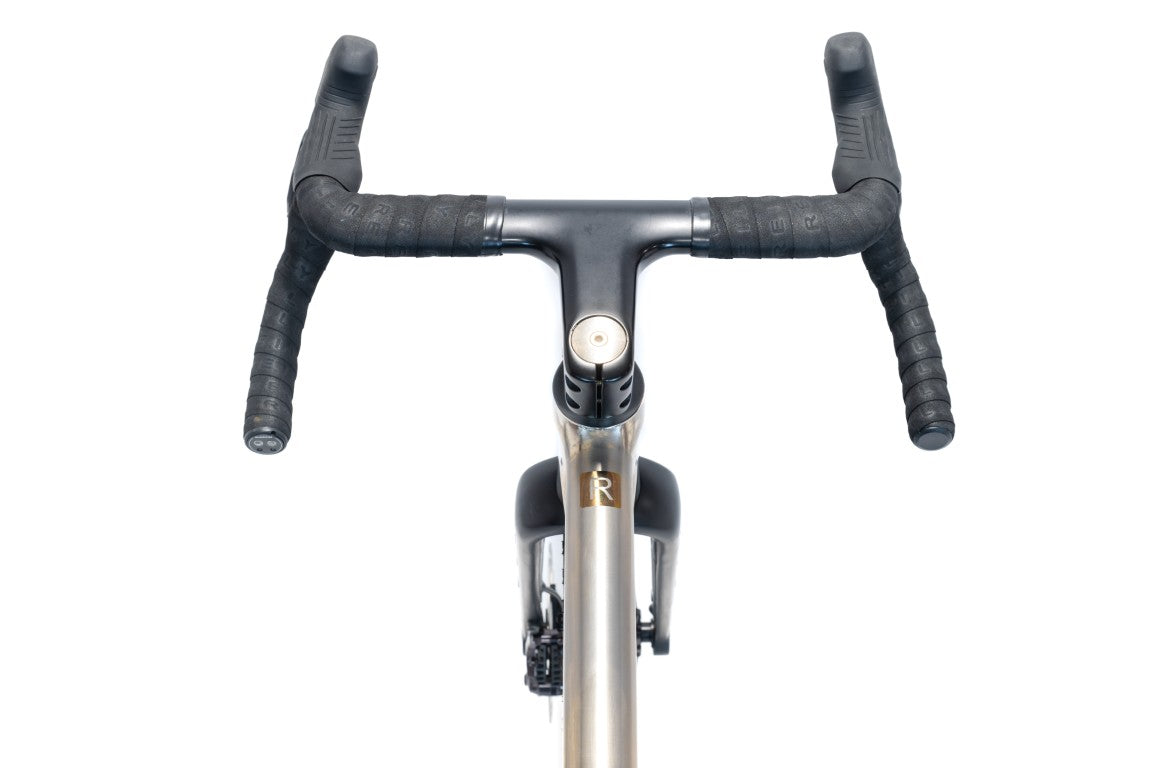

Reilly Reflex front end with garmin head unit and front light

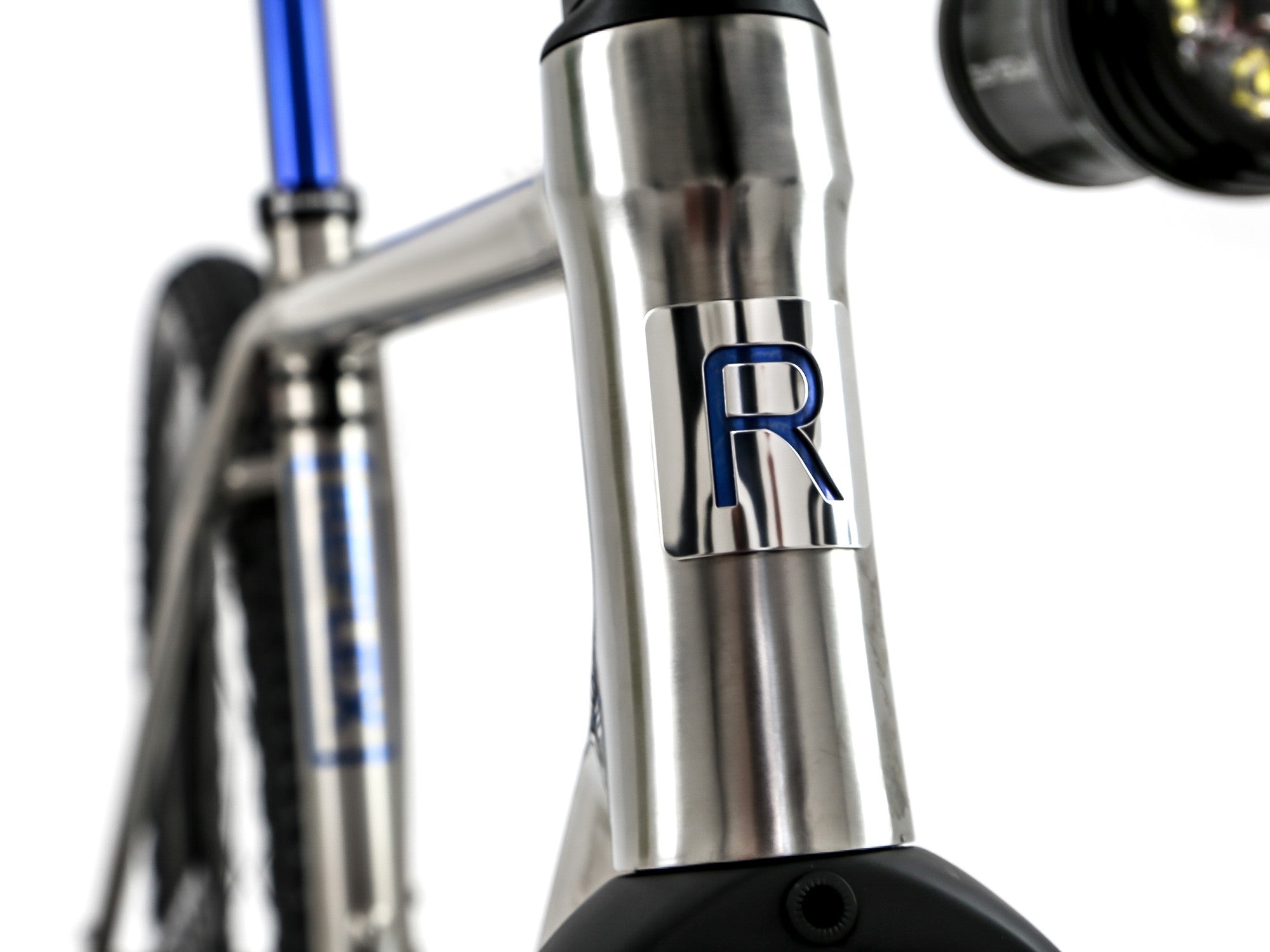

Reilly Headtube badge with blue accent on a Reflex gravel bike

REFLEX // GRAVEL RACE DISC

The stunning Reflex takes gravel riding to a new level.

Combining the sleek investment cast aero shaping of the Fusion with the progressive geometry of the Gradient, the Reflex is the ultimate titanium gravel race bike. The fully integrated, clutter-free cockpit not only gives the bike it’s signature streamline design but also maximum hanging space for bikepacking kit.

With ultra-wide tyre clearance up to 700c x 55mm (29” x2.2”), the Reflex combines the characteristic ‘flex and flow’ of a Reilly titanium gravel bike with the agility of a race thoroughbred, making it the perfect beast for hitting the tech trails or clocking up ultra distance miles.

Shop the full range - Ti Gravel Bikes | Titanium Gravel Bikes

CONTACT THE SALES TEAM TO DISCUSS YOUR BUILD OR BOOK A DEMO RIDE

Chat Email 01959 528 253

£5,999.00 For international orders, UK VAT has been removed.

FOR INTERNATIONAL ORDERS - UK VAT HAS ALREADY BEEN REMOVED.

Size

XXS XS S M L XL XXL

To reserve your bike and secure a place in the build queue, a fully-refundable deposit equivalent to 25% of the build cost or frameset is required.

Instructions: Add items to cart → Proceed to checkout → Enter your contact information.

Enter your shipping details → Once on the payment section, select "Bank Deposit".

After clicking "Complete Order", you will be presented with an Order Confirmation page which displays our bank details. Please use your surname as a payment reference.

Share the Reflex with your friends.

All measurements are in milimeters. For mobile users, please use the horiztonal scroll bar to view all sizes.

SIZE	XXS	XS	S	M	L	XL	XXL
SEAT TUBE C/TOP	460mm	470mm	490mm	510mm	530mm	550mm	570mm
TOP TUBE VIRTUAL	500mm	520mm	540mm	550mm	570mm	590mm	605mm
BB HEIGHT	275mm	275mm	275mm	275mm	275mm	275mm	275mm
CHAINSTAY LENGTH	430mm	430mm	430mm	430mm	430mm	430mm	430mm
SEAT TUBE ANGLE	76°	76°	75°	74°	73.5°	73°	73°
HEAD TUBE ANGLE	69.5°	70.5°	71°	71.5°	72°	72°	72°
FORK RAKE	47mm	47mm	47mm	47mm	47mm	47mm	47mm
HEAD TUBE	100mm	100mm	120mm	135mm	155mm	175mm	195mm
AXLE TO CROWN	400mm	400mm	400mm	400mm	400mm	400mm	400mm
STACK	527mm	531mm	552mm	568mm	589mm	608mm	626mm
REACH	369mm	388mm	392mm	387mm	396mm	404mm	413mm
WHEELBASE	1014mm	1025mm	1032mm	1028mm	1038mm	1053mm	1068mm
FRONT CENTRE	594mm	605mm	612mm	607mm	618mm	632mm	647mm

Titanium, Perfected.

Two decades of titanium expertise refined into one all-road machine.

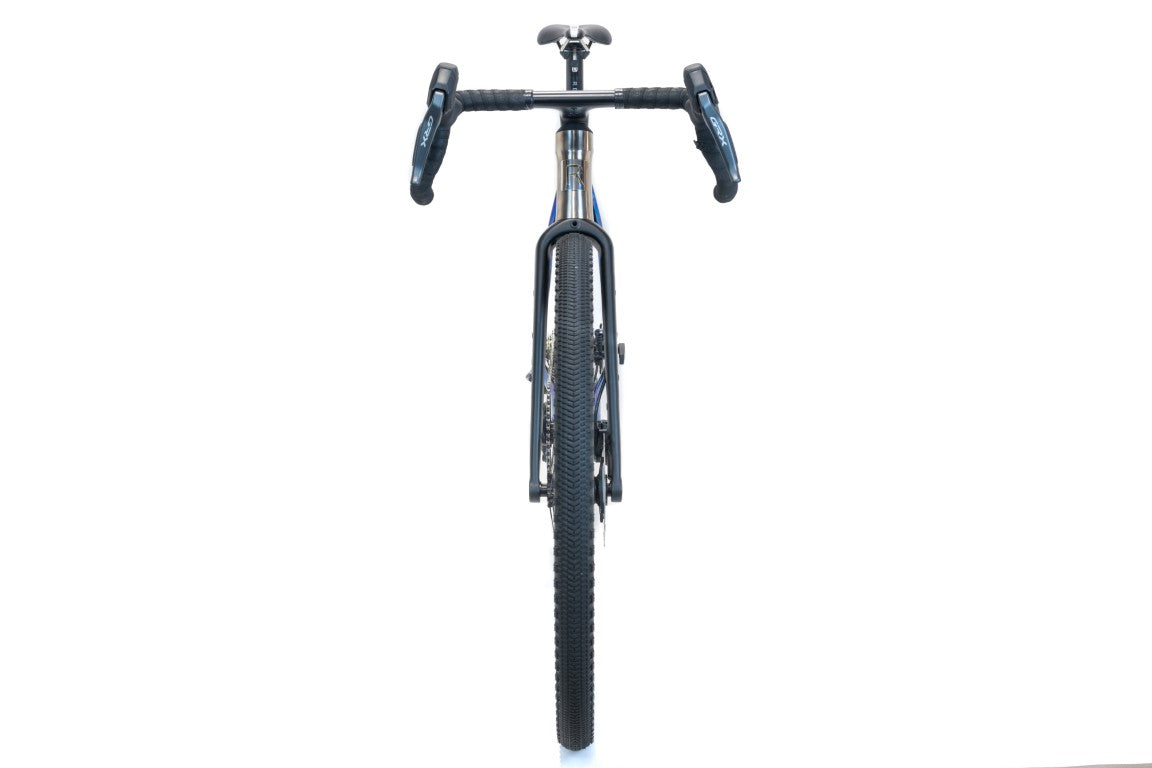

Front View

Front Angle

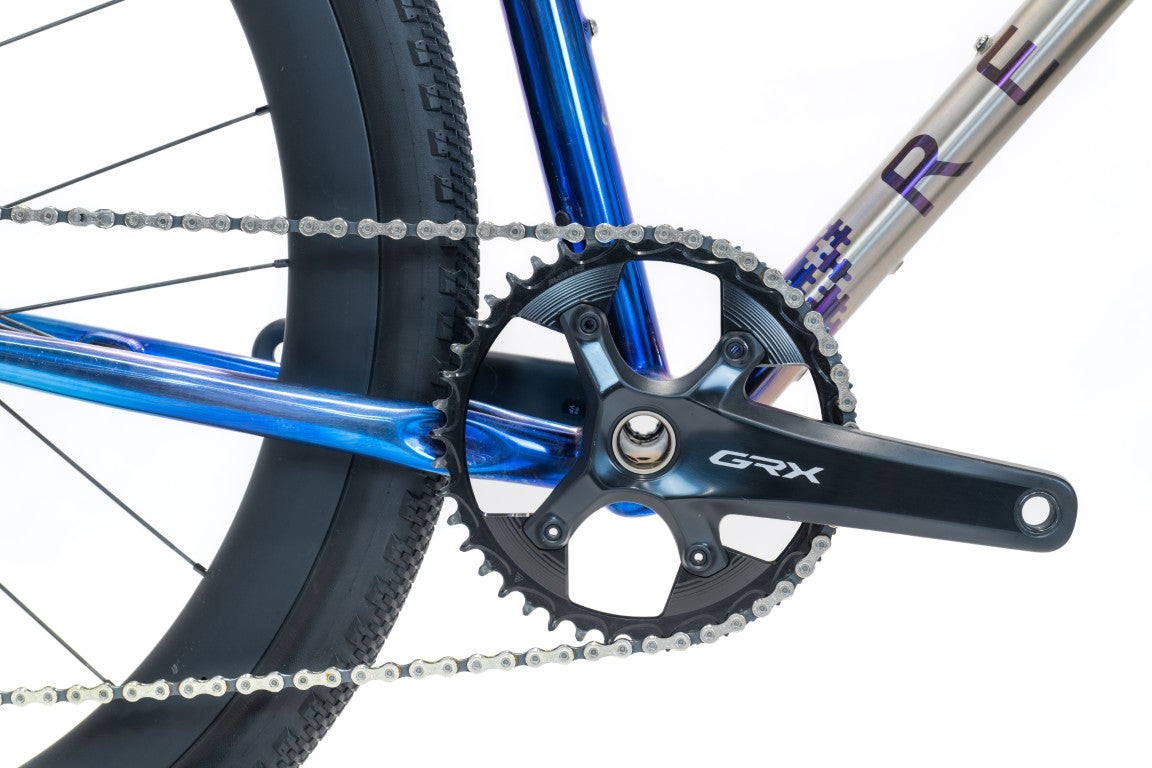

Crank

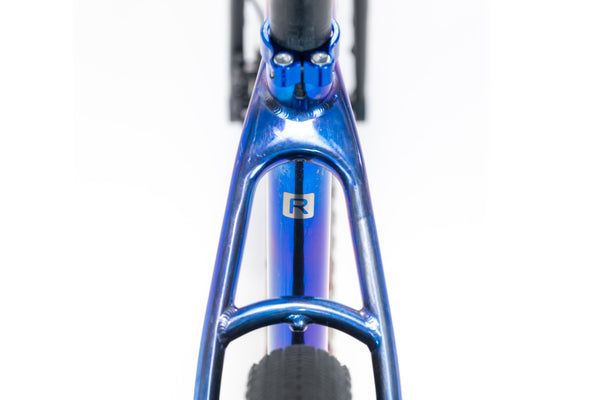

Rear View

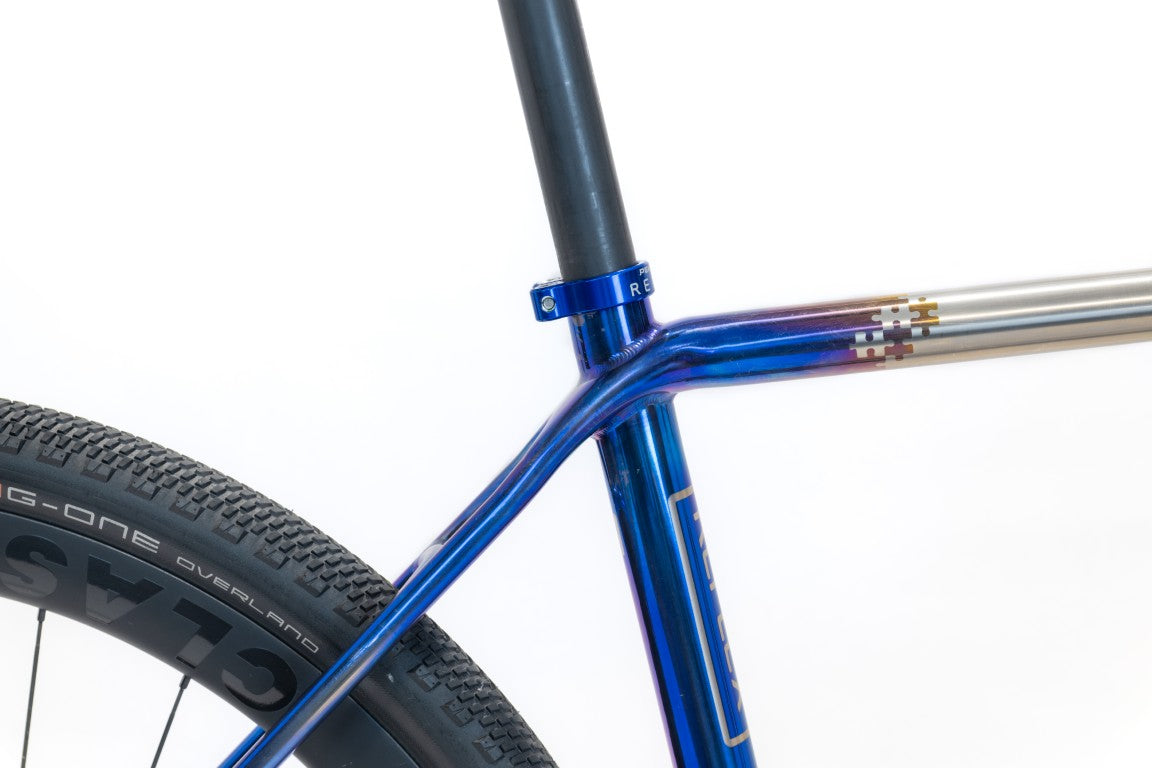

Seat Tube

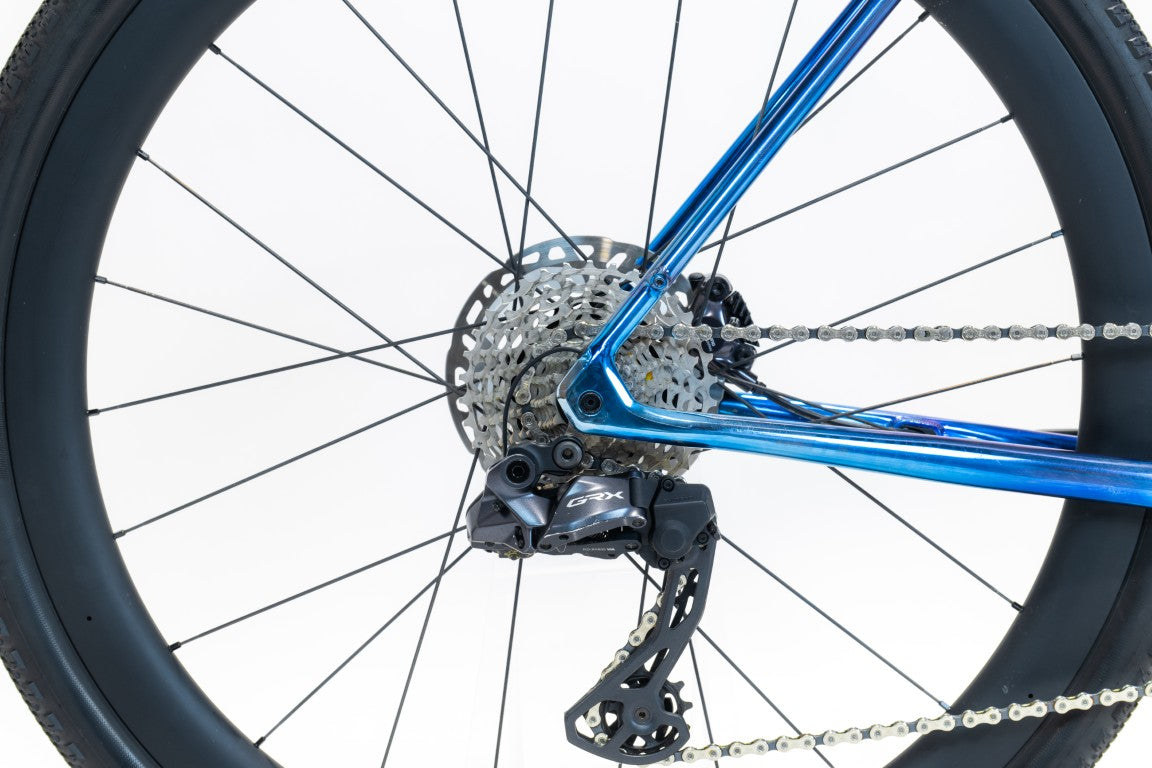

Shimano GRX rear derailleur on the Reilly reflex titanium gravel bike

Titanium Grade	6AL-4V with 3AL-2.5V
Groupset	Shimano GRX 600
Front Derailleur Clamp	34.9mm Band Adapter
Bottom Bracket Shell	Threaded T47
Bottom Bracket	SN-Vitae T47/68
Cable Routing	Fully Integrated
Fork	Integrated Carbon Adventure Fork
Brakes	Hydraulic Disc with Flat-Mount Calipers
Rotors	160F/160R
Thru Axles	100mm x 12mm (Front); 142mm x 12mm (Rear)
Wheels	Alloy All-road
Tyres	Panaracer X1
Max Clearance	55mm on 700c
Headset / Bars / Stem	Semi Integrated / Reilly alloy bars / Reilly alloy stem
Bar Tape	Reilly Black EVA Bar Tape
Seatpost	Reilly UD Carbon Seatpost, 31.6mm x 350mm, with x2 6AL-4V titanium retaining bolts
Seat Clamp	Pembree black
Saddle	Reilly Titanium Alloy ‘Airform’ Saddle
Frame Features	x3 Bottle cage mounts
Set-Up	British Standard, whereby the right-hand lever operates the front brake and the left-hand lever operates the rear brake
Warranty	Lifetime Frame Warranty (Original Owner Only, Non-Transferable). T&Cs apply
