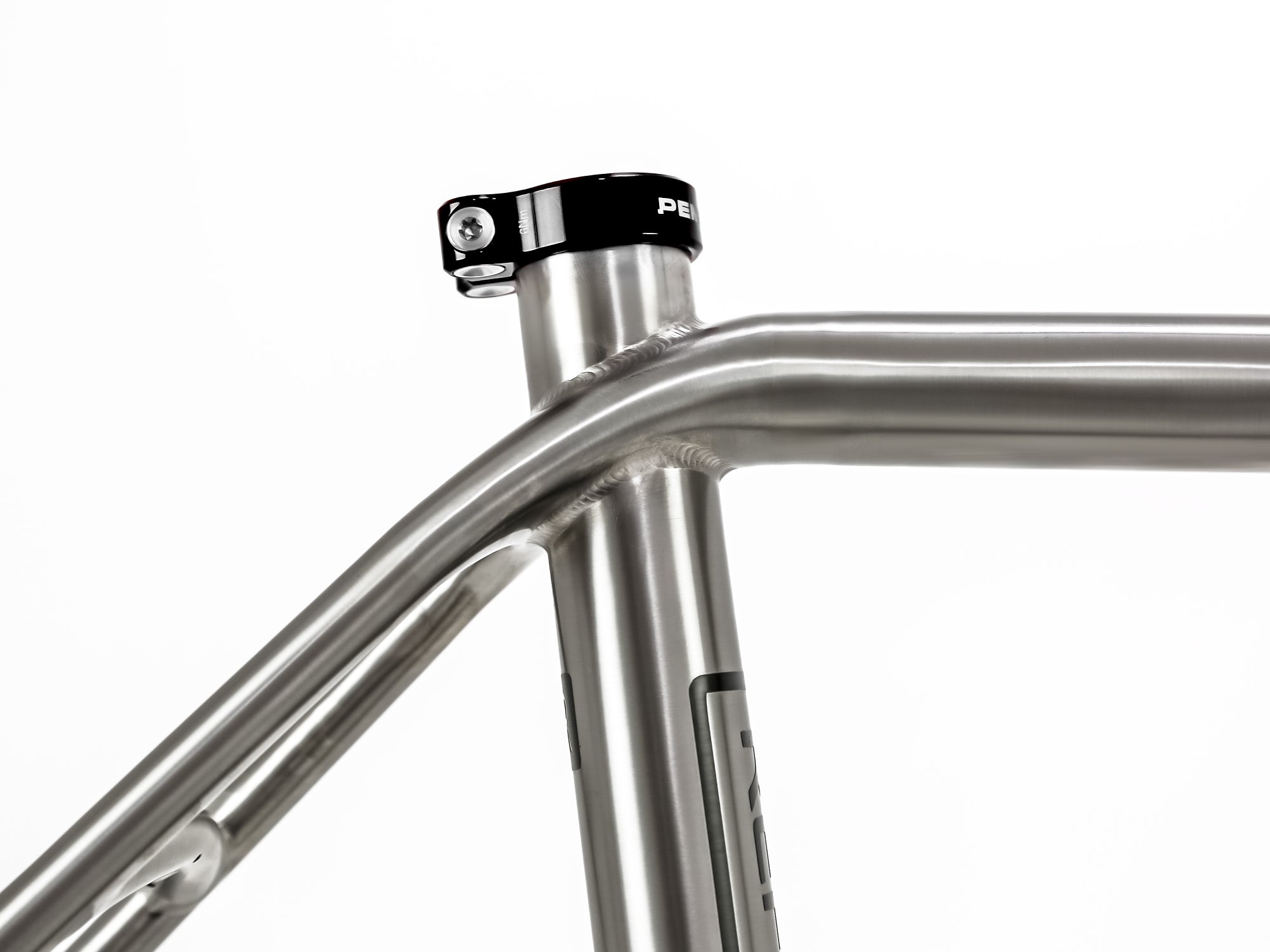

Reilly Reflex titanium bike frame seat post

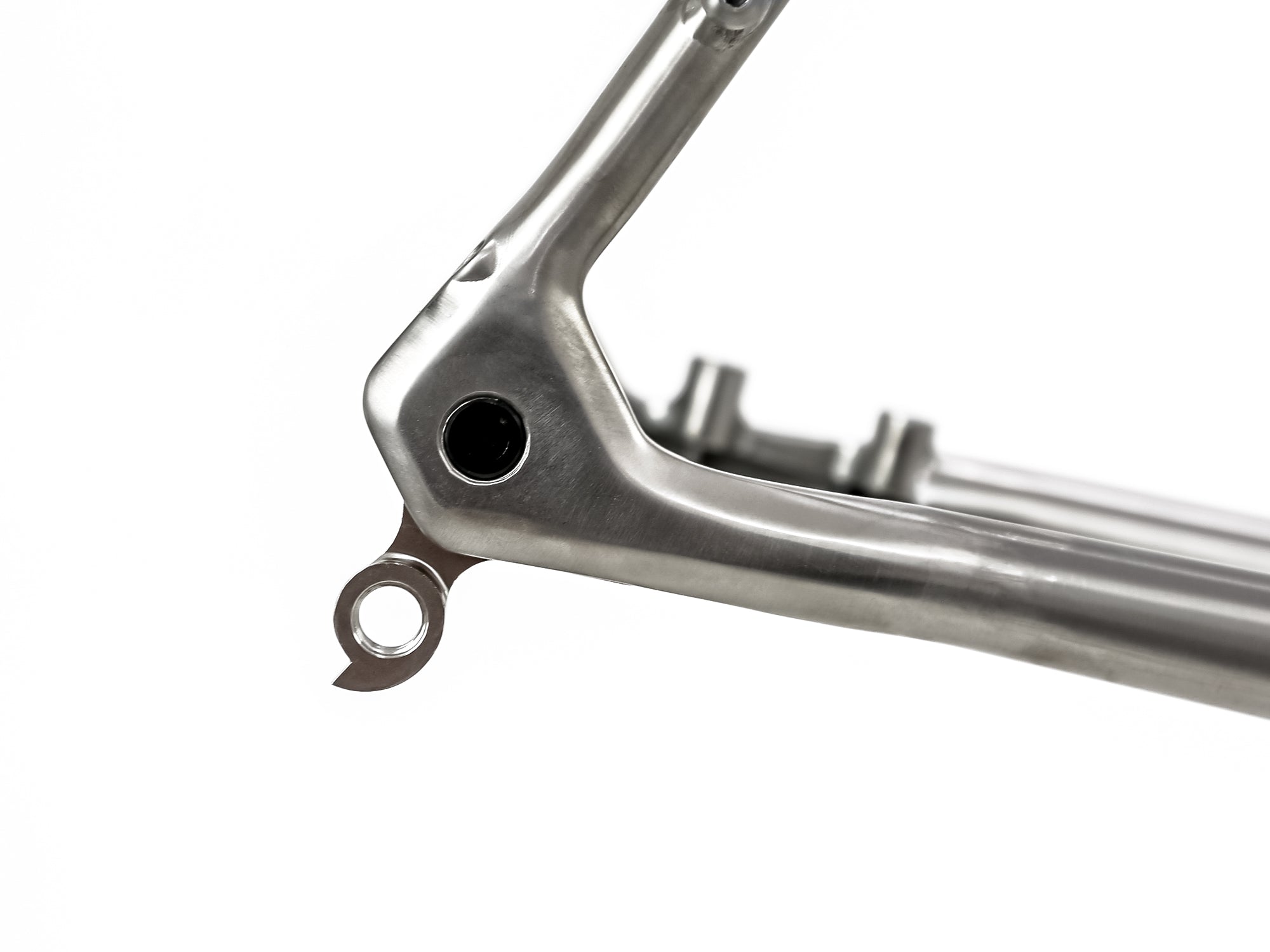

Rear derailleur mech hanger of the Reilly Reflex titanium bike

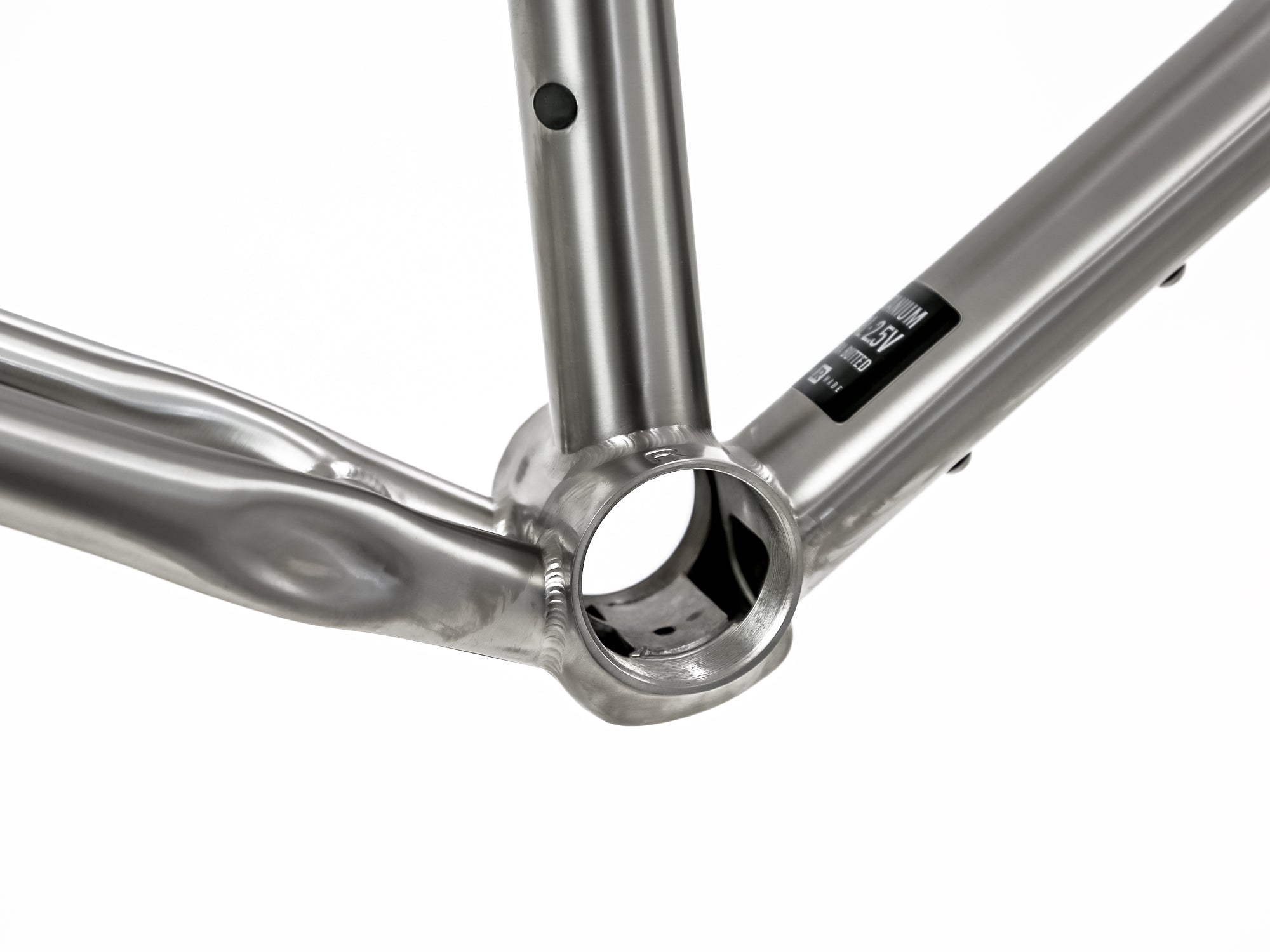

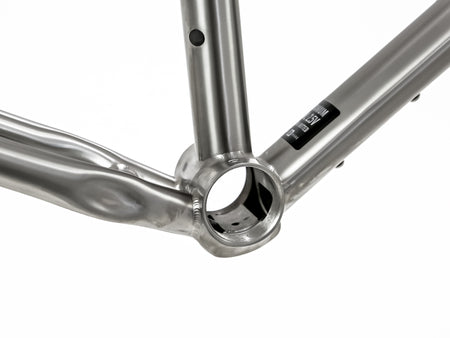

Bottom bracket shell of the Reilly Reflex frame

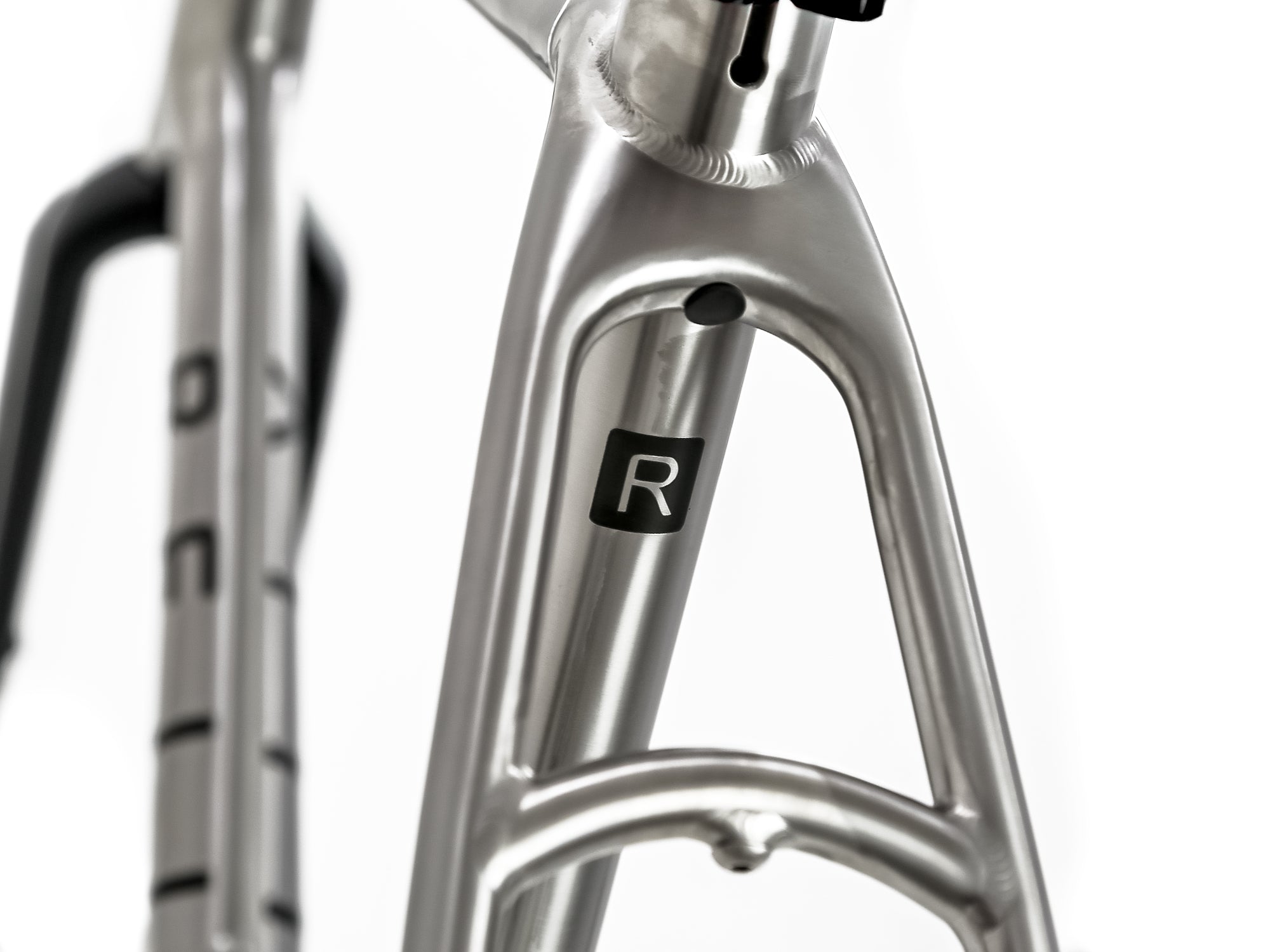

polished titanium bike frame with "R" Reilly logo

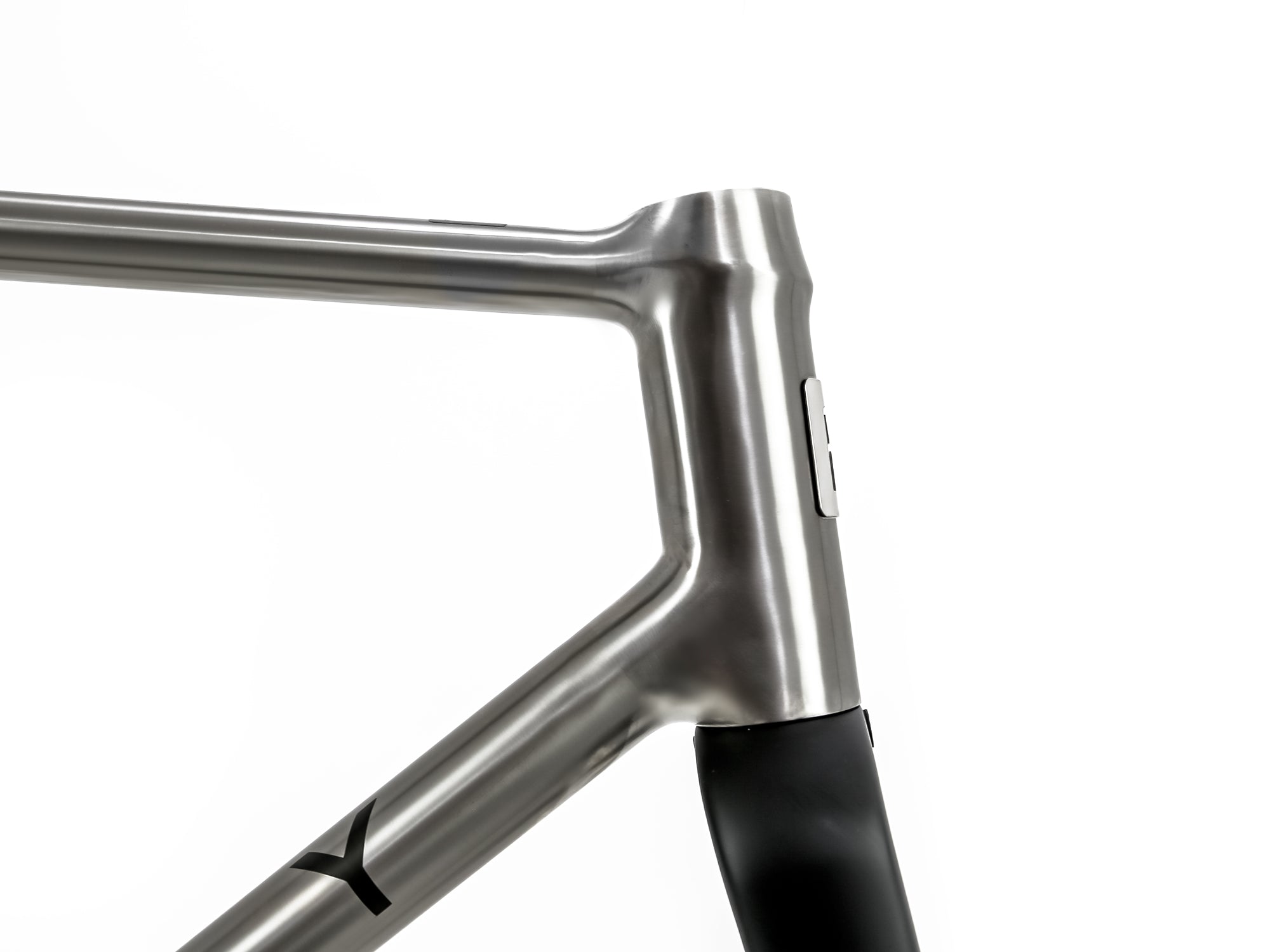

Reilly Headtube badge with blue accent on a Reflex gravel bike
Reilly reflex titanium gravel bike with blue anodized finish

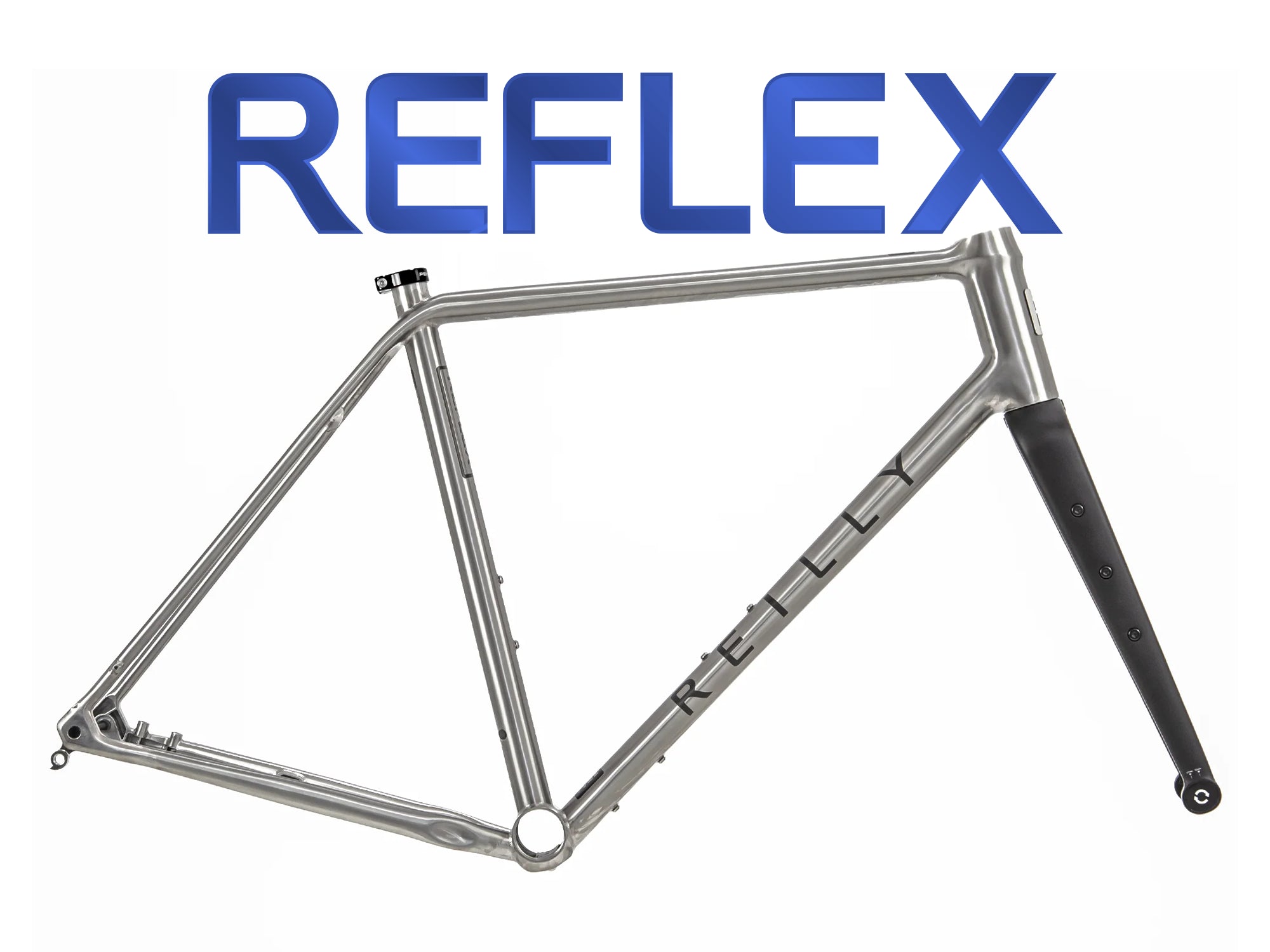

A titanium gravel race frame set with integrated fork and cable routing, displayed on a white background.
Close-up of a metallic silver bicycle frame with black handlebar tape and a black tire, shown against a white background.
Reilly Reflex titanium bike frame seat post
Rear derailleur mech hanger of the Reilly Reflex titanium bike
Bottom bracket shell of the Reilly Reflex frame
polished titanium bike frame with "R" Reilly logo
Reilly Headtube badge with blue accent on a Reflex gravel bike
Reilly reflex titanium gravel bike with blue anodized finish

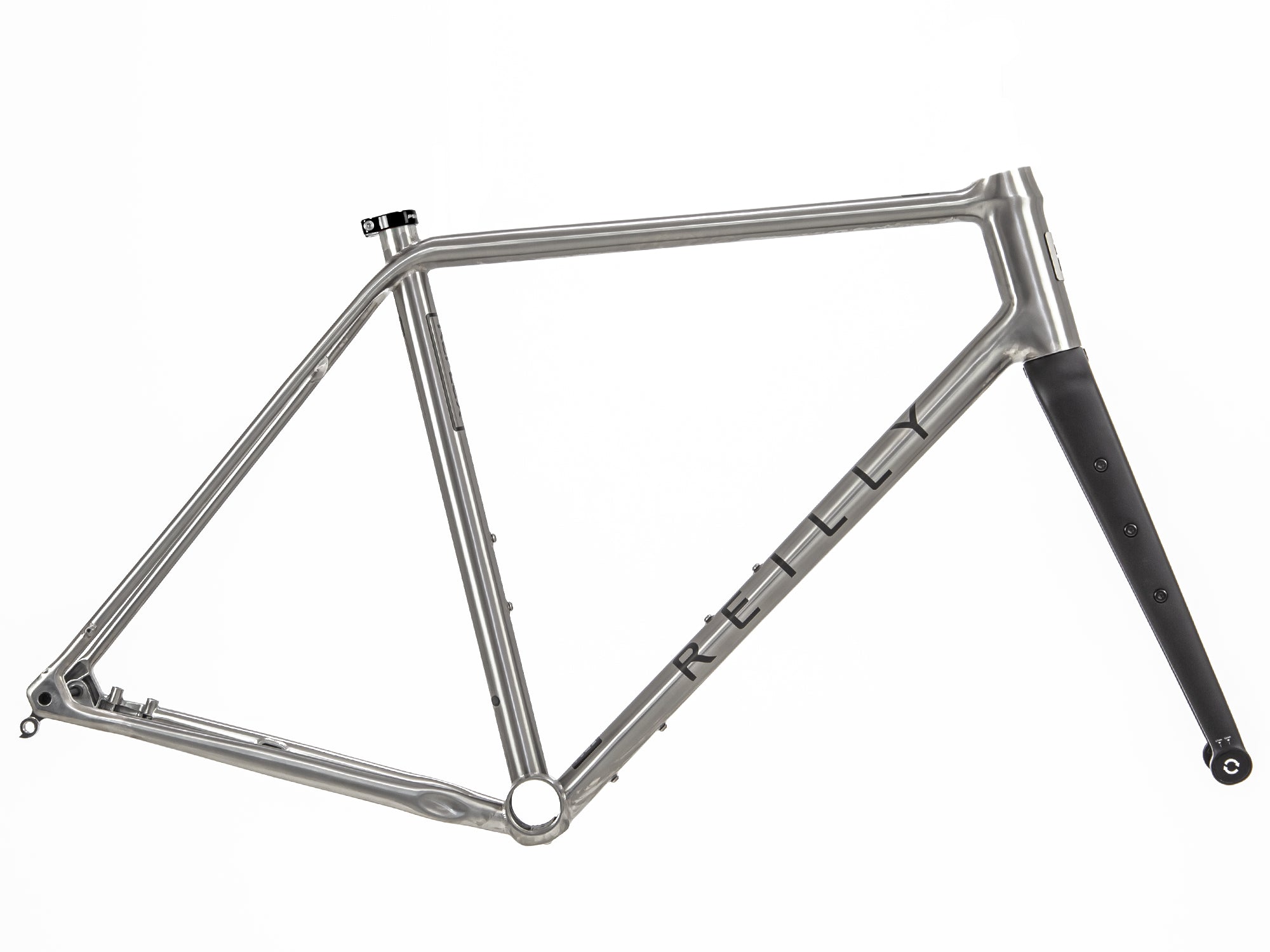

REFLEX // GRAVEL RACE FRAMESET

A TITANIUM THOROUGHBRED. PRECISION ENGINEERED GRAVEL RACE BIKE
INVESTMENT CAST AERO SHAPE WITH FULL INTEGRATED COCKPIT AND ULTRA WIDE TYRE CLEARANCE
'FLEX AND FLOW' TITANIUM ALLOWING ULTRA DISTANCES IN COMFORT
£3,999.00 For international orders, UK VAT has been removed.
Size
A promotional banner featuring a black custom-painted finish sample bottle with blue and white text, alongside the text 'CONTACT US FOR A QUOTE ON A BESOPO FINISH' on a dark blue background.

BOOK A DEMO RIDE

Chat Email 01959 528 253
FOR INTERNATIONAL ORDERS - UK VAT HAS ALREADY BEEN REMOVED
FOR INTERNATIONAL ORDERS - VIEW CART FOR TAX AND DUTIES CALCULATOR
The following spec applies to a base build. All of the options can be customised to suit your requirements.
Specification Details
Titanium Grade 6AL-4V with 3AL-2.5V
Bottom Bracket Shell Threaded T47
Cable Routing Fully Integrated
Headset Semi Integrated / Reilly alloy bars or choice of FSA ACR, Deda SDCR, Deda DCR, other available on request

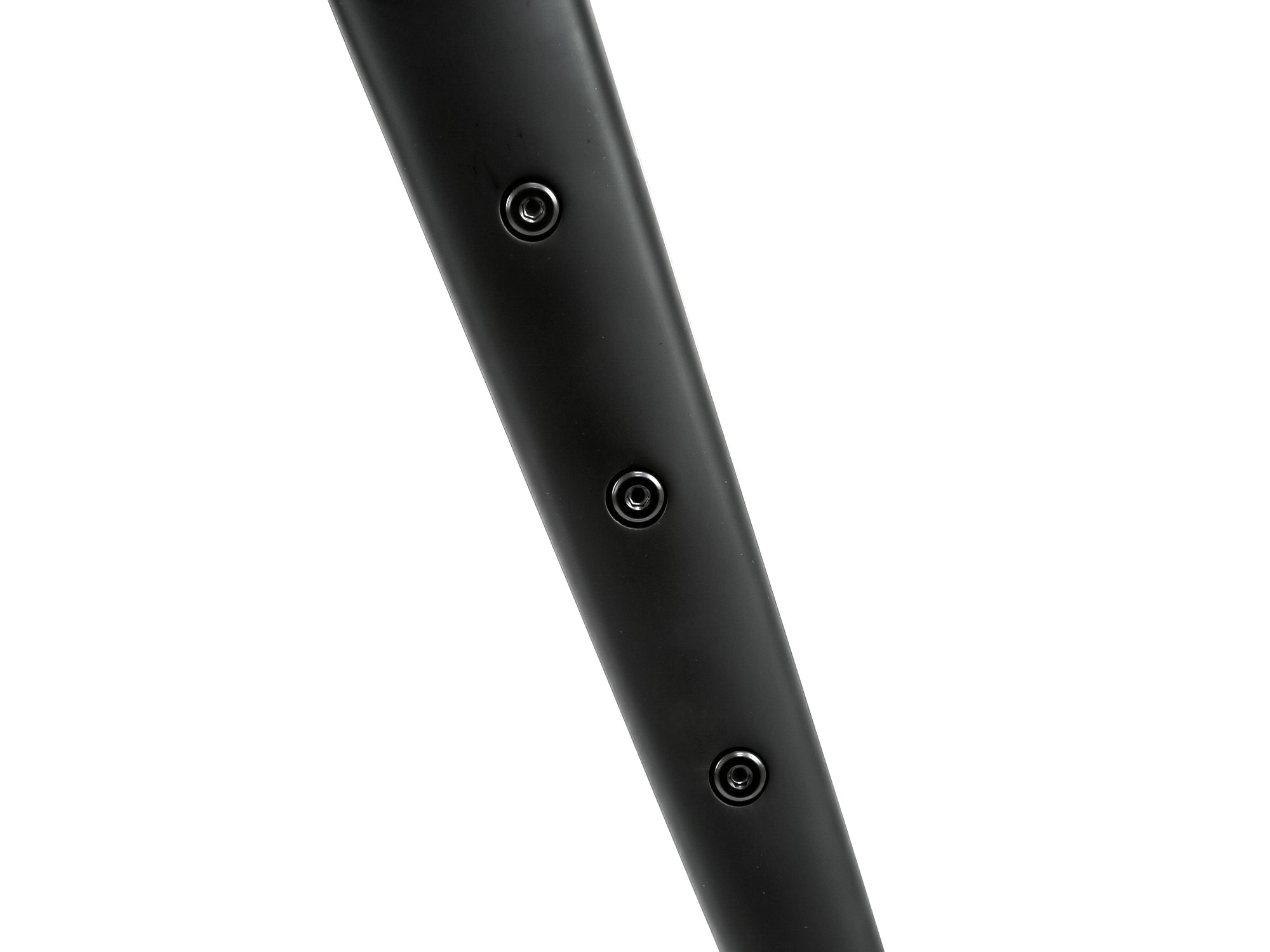

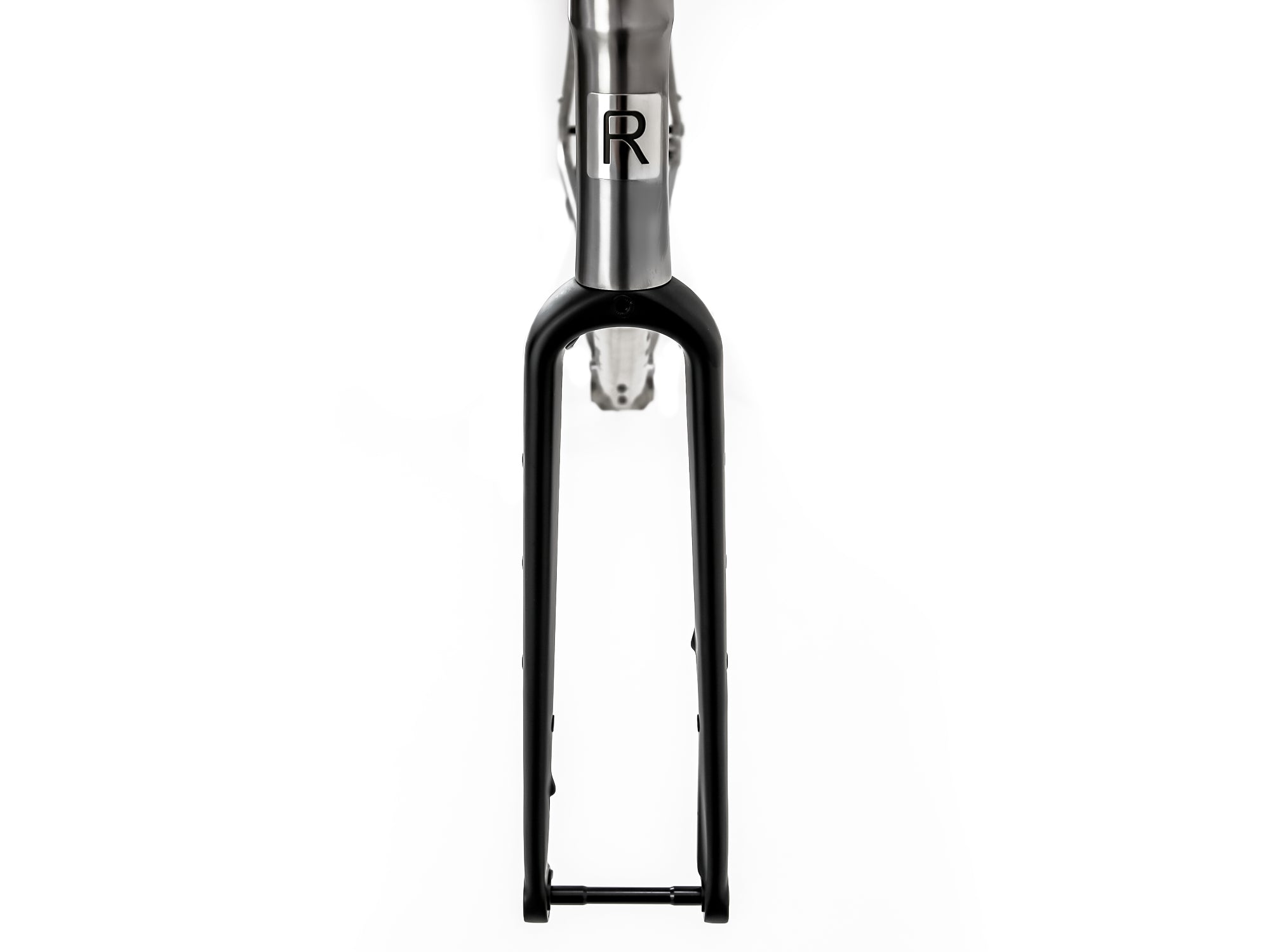

Fork Integrated Carbon Adventure Fork
Frame Features 3 Bottle cage mounts
Finish Vinyl decal in black, blue or red as standard
Warranty Lifetime Frame Warranty (Original Owner Only, Non-Transferable) T&Cs Apply
All measurements are in milimeters. For mobile users, please use the horizontal scroll bar to view all sizes.


Reilly Reflex - Frame Geometry Sizing

SIZE XXS XS SMALL MEDIUM LARGE
 XL
 XXL
SEAT TUBE C/TOP 460MM 470MM 490MM 510MM 530MM 550MM 570MM
TOP TUBE VIRTUAL 500MM 520MM 540MM 550MM 570MM 590MM 605MM
BB HEIGHT 275MM 275MM 275MM 275MM 275MM 275MM 275MM
CHAINSTAY LENGTH 430MM 430MM 430MM 430MM 430MM 430MM 430MM
SEAT TUBE ANGLE 76 76 75 74 73.5 73 73
HEAD TUBE ANGLE 69.5 70.5 71 71.5 72 72 72
FORK RAKE 47MM 47MM 47MM 47MM 47MM 47MM 47MM
HEAD TUBE 100MM 100MM 120MM 135MM 155MM 175MM 195MM
AXLE TO CROWN 400MM 400MM 400MM 400MM 400MM 400MM 400MM
STACK 527MM 531MM 552MM 568MM 589MM 608MM 626MM
REACH 369MM 388MM 392MM 387MM 396MM 404MM 413MM
WHEELBASE 1014MM 1025MM 1032MM 1028MM 1038MM 1053MM 1068MM
FRONT CENTRE 594MM 605MM 612MM 607MM 618MM 632MM 647MM

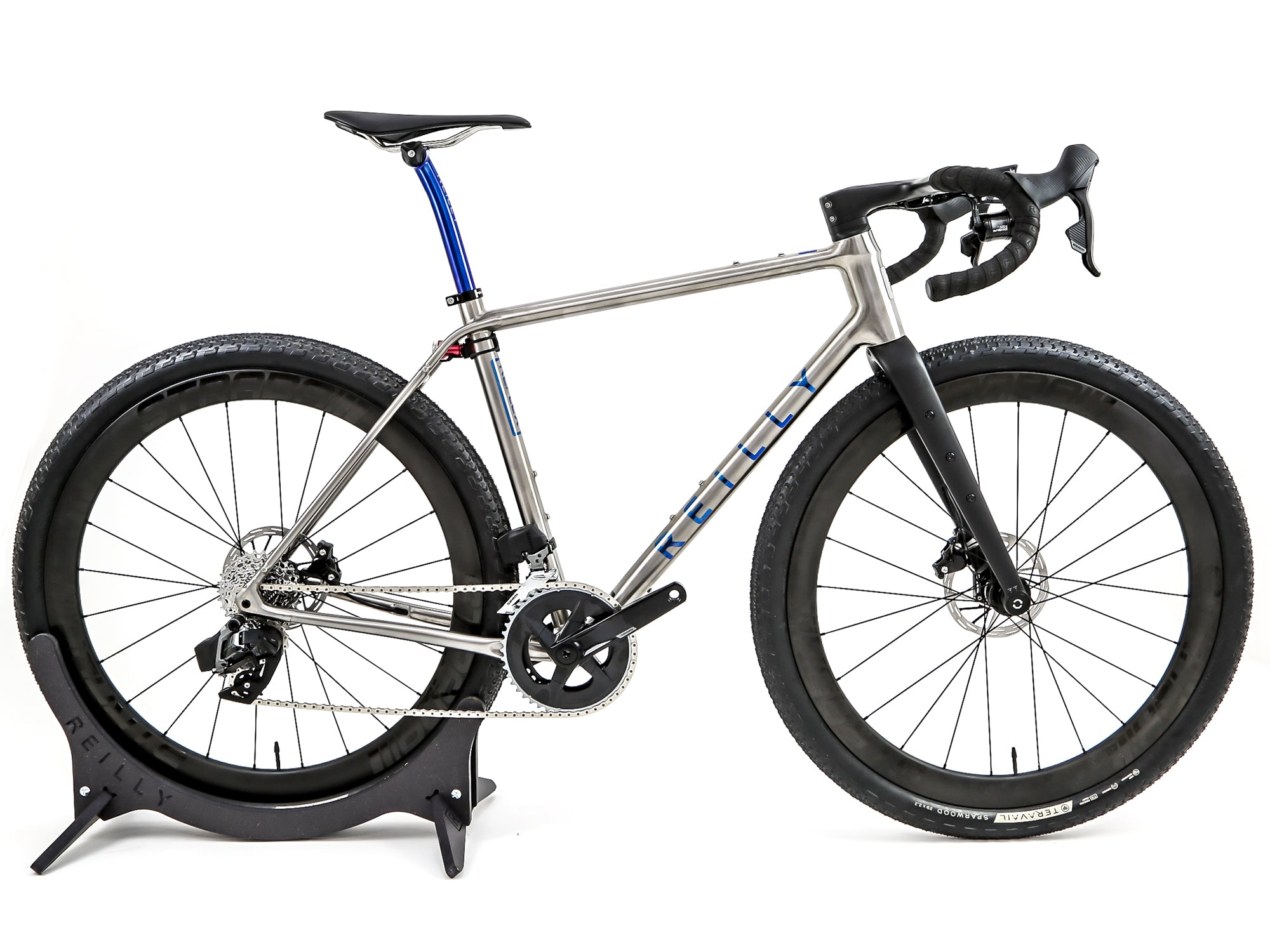

The Reilly Reflex is a precisely engineered titanium gravel bike designed for all-road adventure or gravel racing. Featuring a UDM carbon fork, hydraulic disc brakes and super generous tyre clearance up to 55mm, the Reilly Reflex is the ultimate "do it all" bike for any type of terrain.
55 MM

TYRE WIDTH

3

BOTTLE CAGE MOUNTS

1.8 KG

FRAME WEIGHT (M)

6 4 AL

TITANIUM GRADE

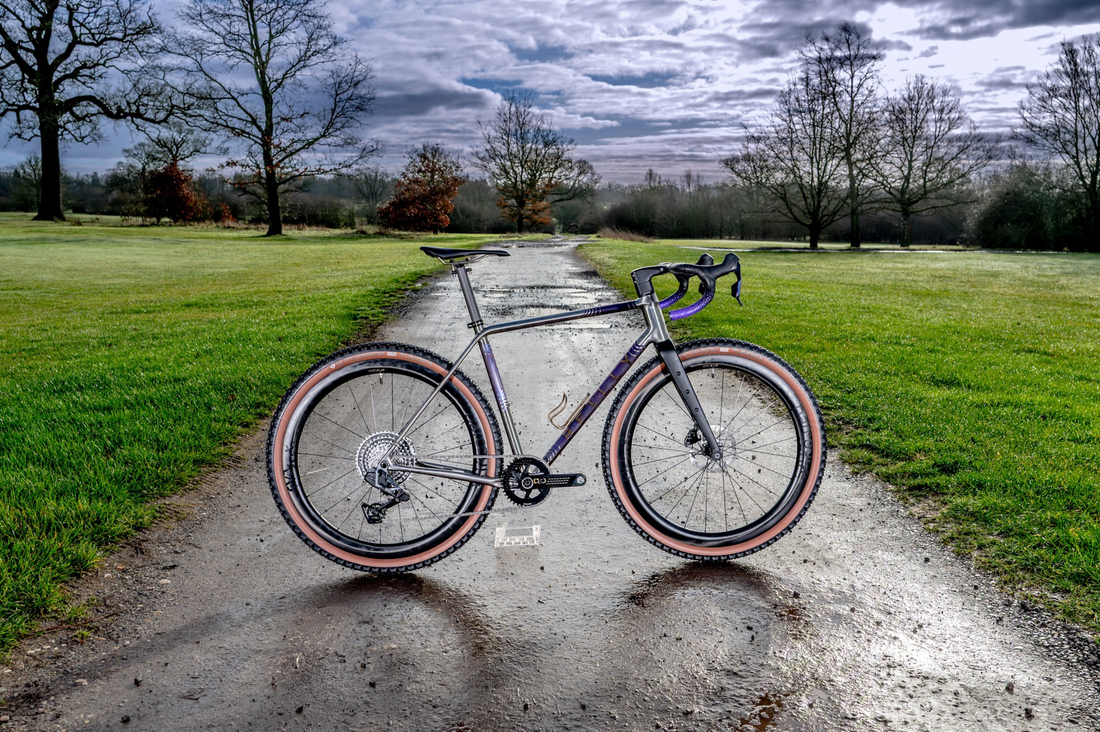

  • A gravel bicycle with a dark metallic frame and knobby tires stands on a wet dirt path in a grassy park under a cloudy sky.

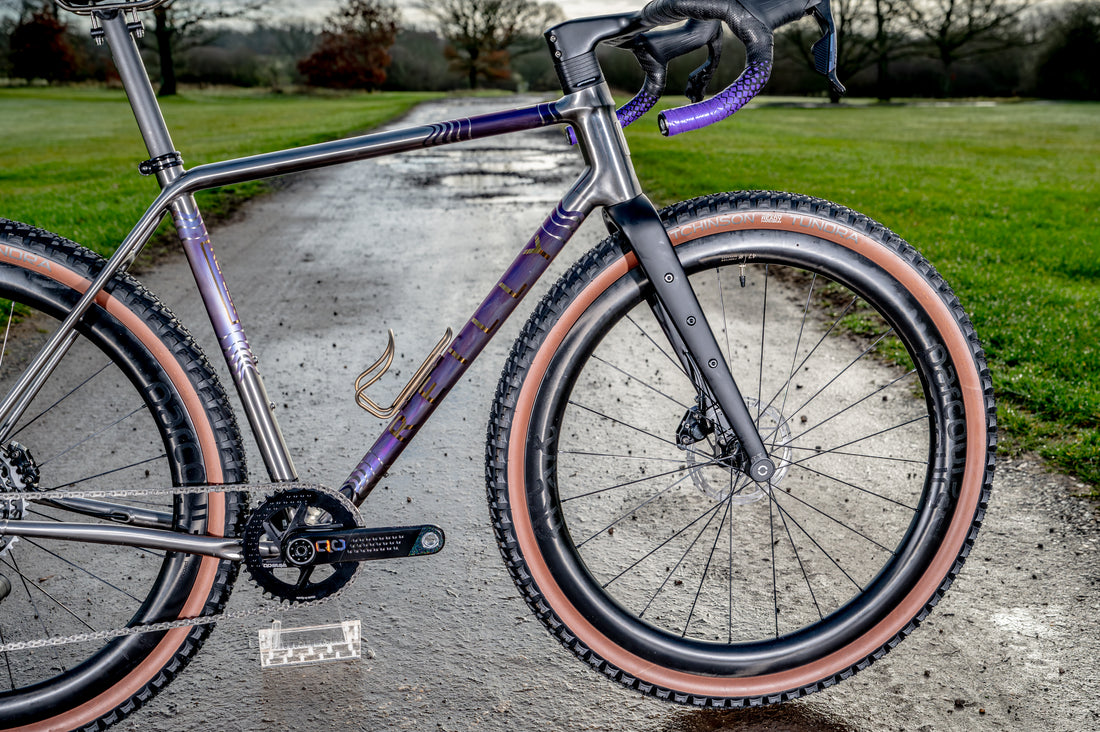

  • A close-up of a gravel bicycle with a metallic purple and gray frame, black handlebars, and tan sidewall tires, positioned on a wet paved path with a grassy park in the background.

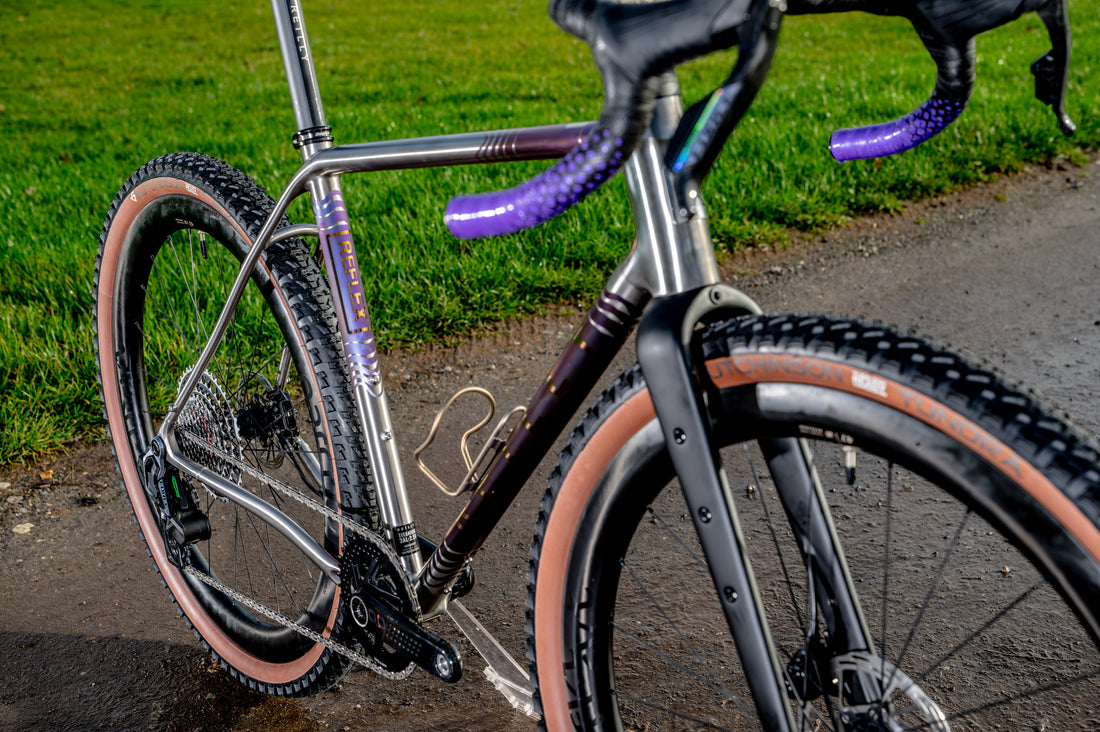

  • Close-up of a gravel bicycle with a metallic silver frame, black components, and purple handlebar tape, parked on a wet paved path with grass in the background.

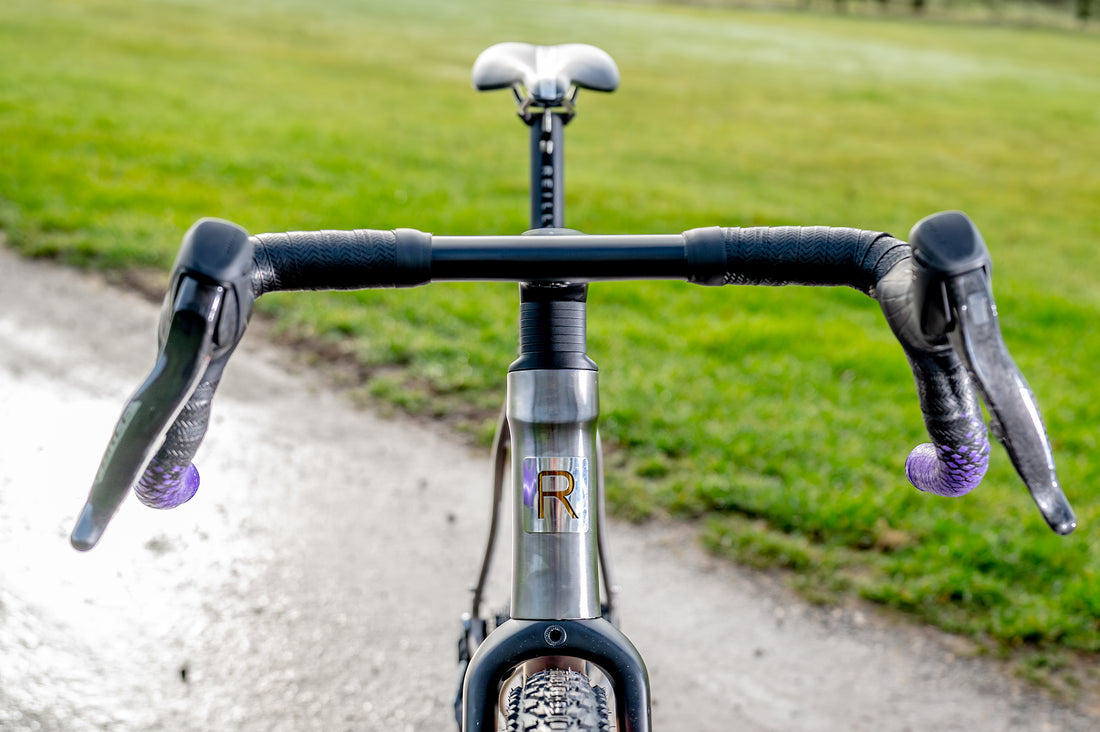

  • Close-up of a bicycle drop handlebar setup on a gravel path with a blurred green grass background. The handlebar tape and brake levers show a distinctive purple and black pattern, and a silver frame with a gold 'R' logo is visible.

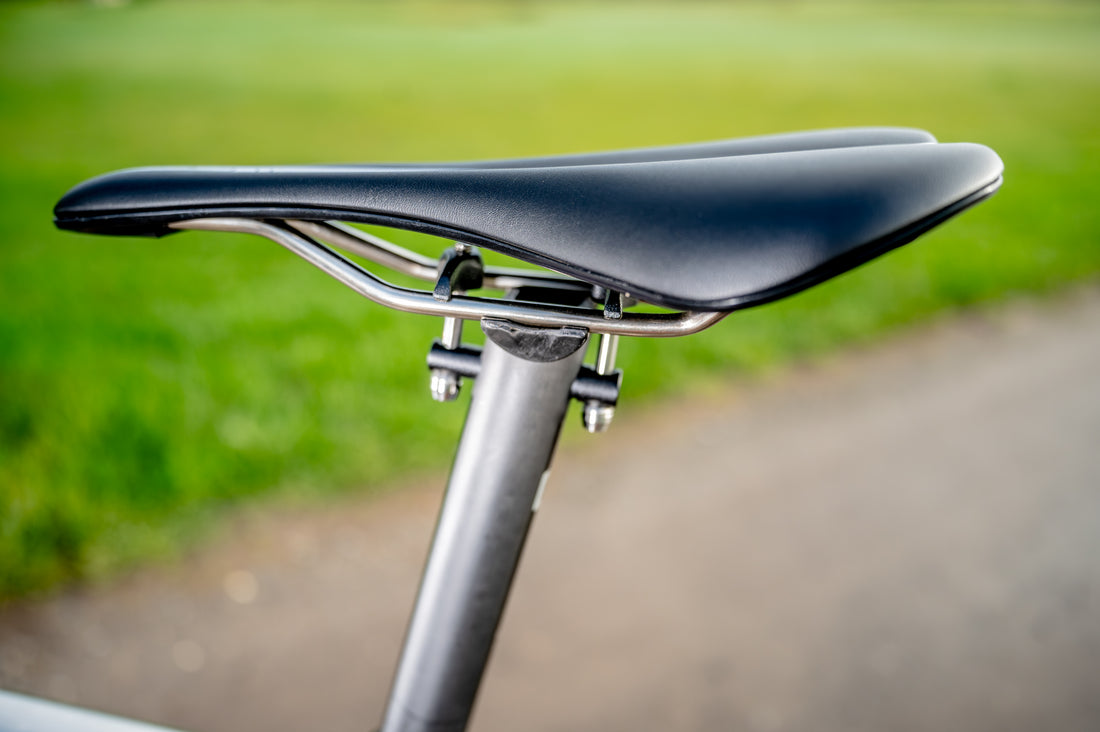

  • Close-up of a black bicycle saddle mounted on a silver seat post, photographed outdoors with a blurred green grassy background and paved path.

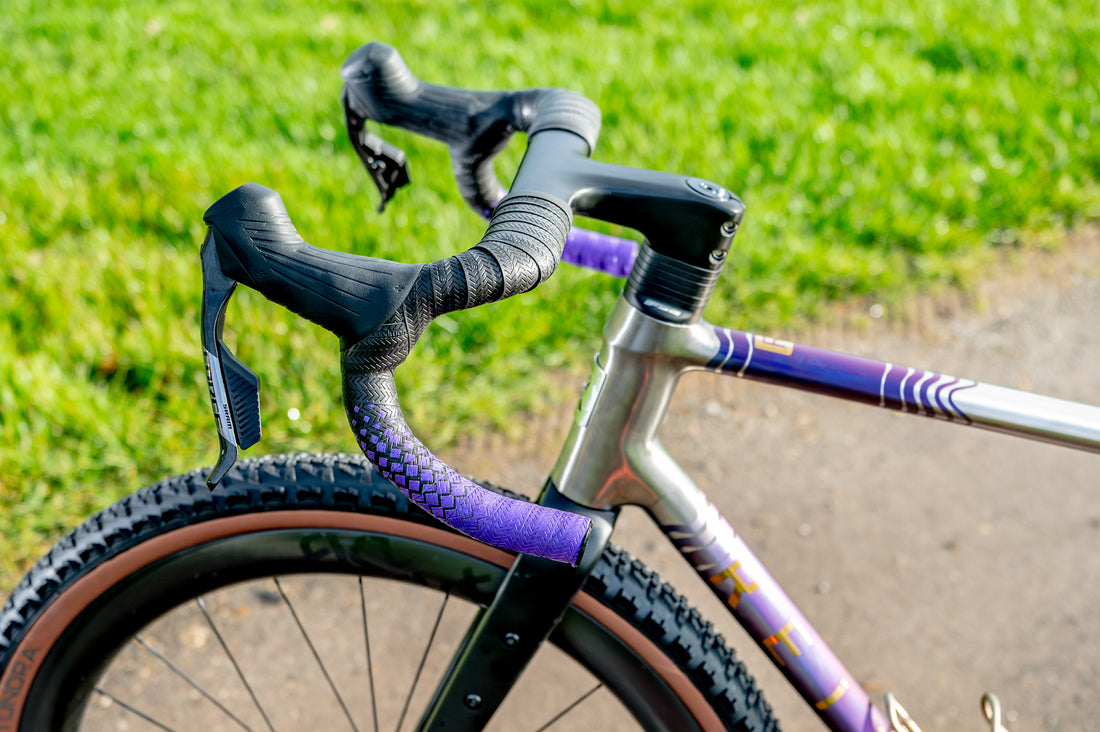

  • Close-up of a gravel bicycle handlebar area with black drop handlebars, purple tape wrapping, a silver and purple frame, and a blurred green grass background.

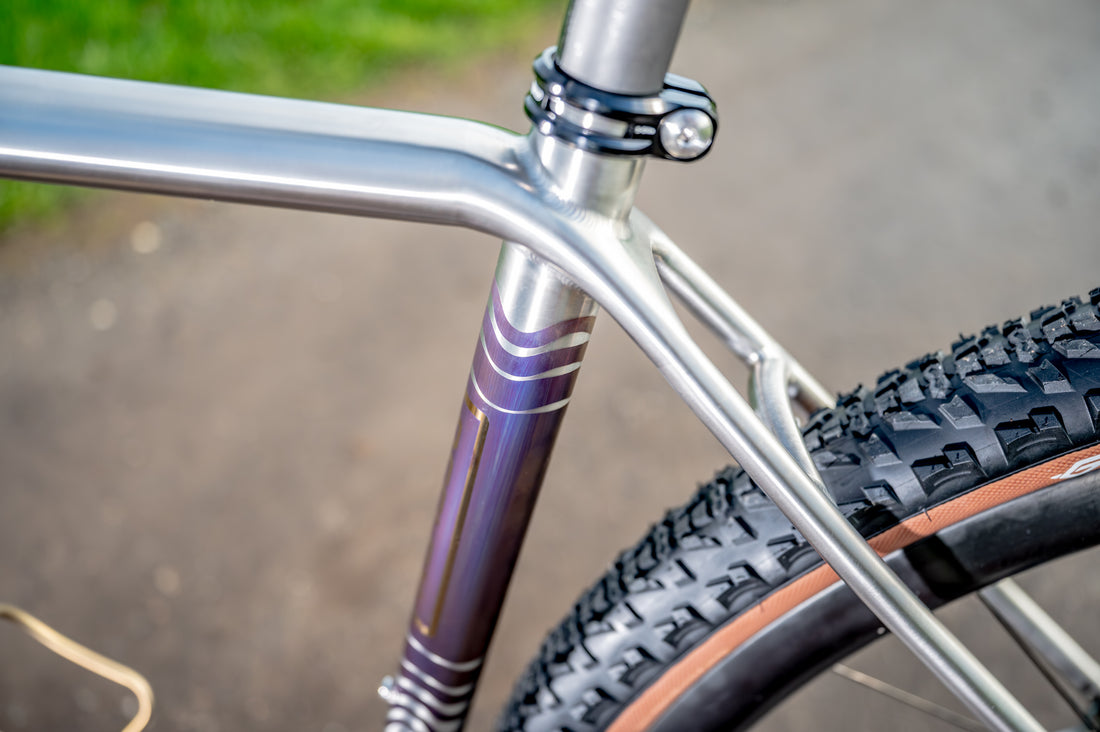

  • Close-up detail of a bicycle frame with a metallic silver tubular structure and a purple down tube featuring white stripes, with part of a black knobby tire visible.

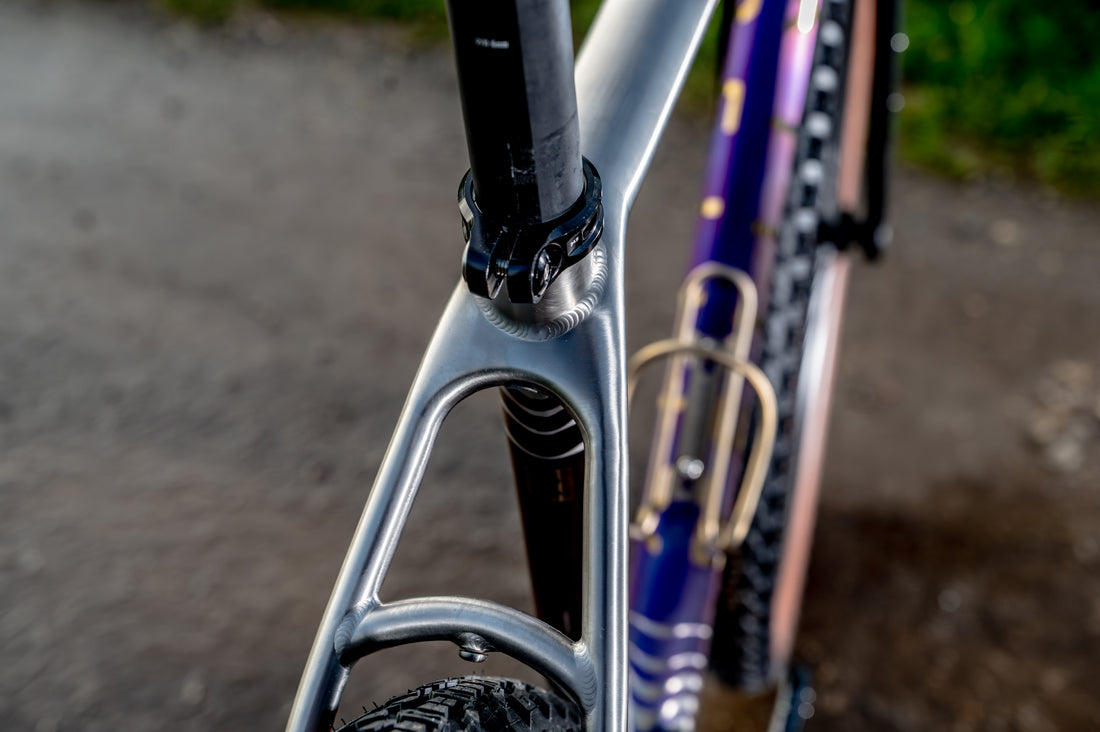

  • Close-up of a bicycle frame showing a silver metallic down tube and seat tube junction, with a purple and black rear wheel visible in the background on an outdoor path.

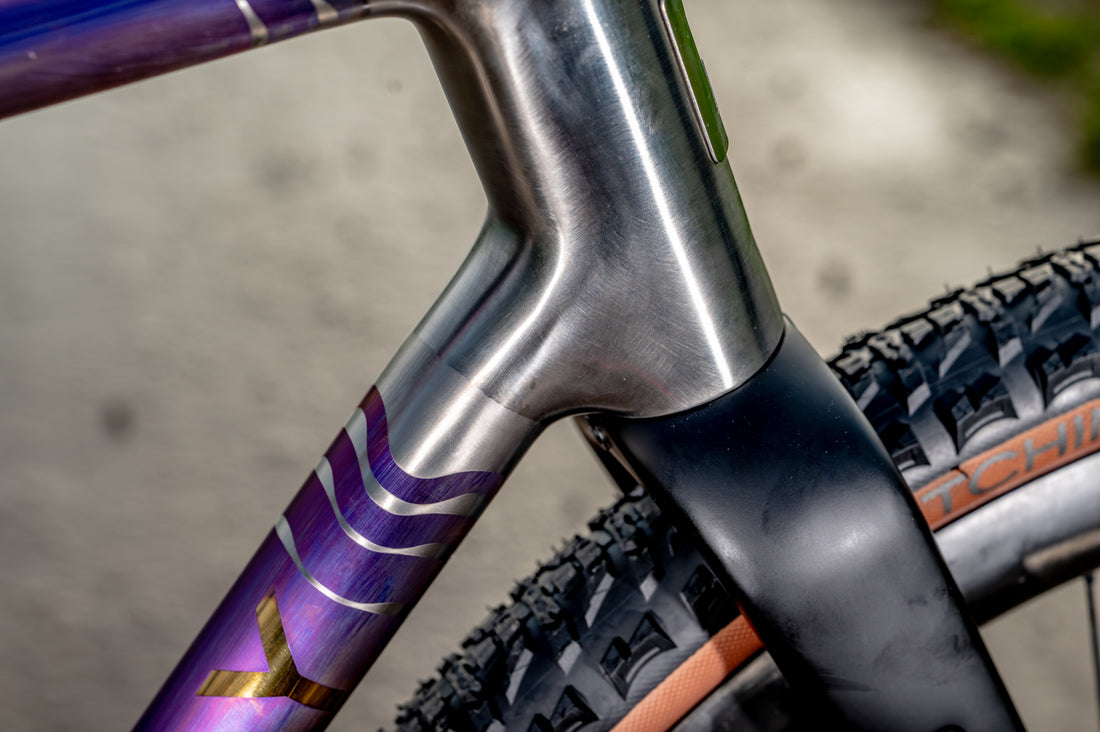

  • Close-up of a bicycle frame with a metallic silver seat tube, purple and gold graphics on the down tube, and part of a black tire visible against a blurred outdoor background.

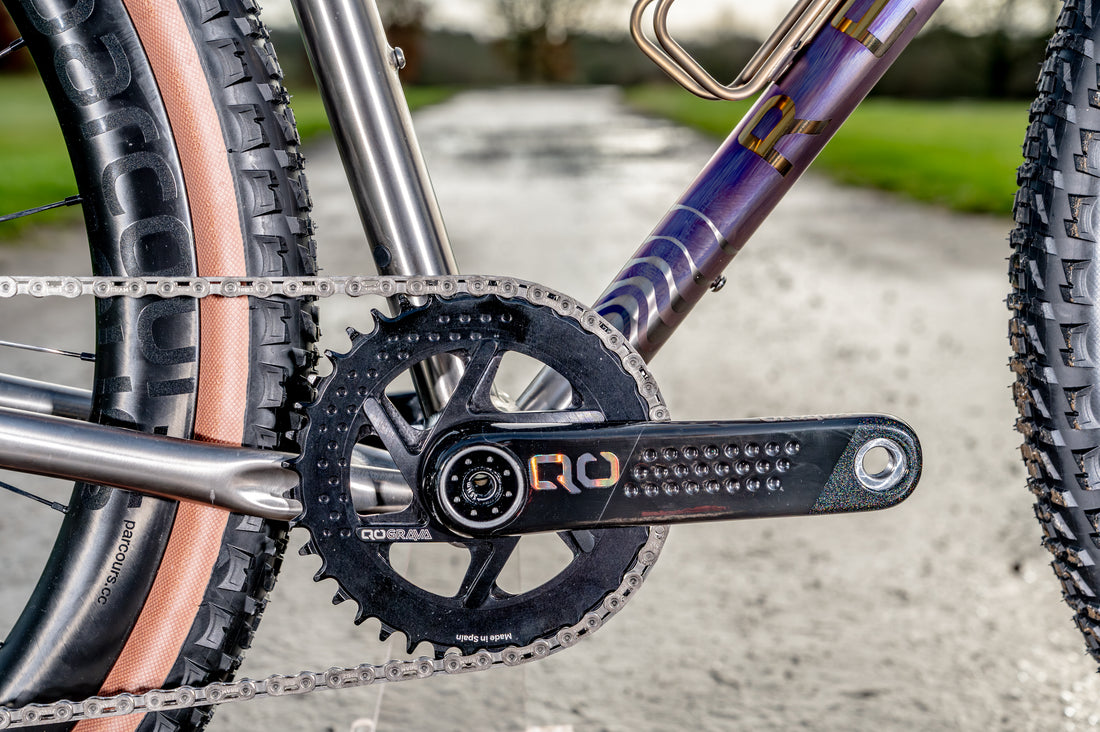

  • Close-up of a bicycle crankset with a black chainring and black crank arm featuring gold 'RQ' branding, attached to a purple and gold frame. The bike is outdoors on a paved path with tires visible on both sides.

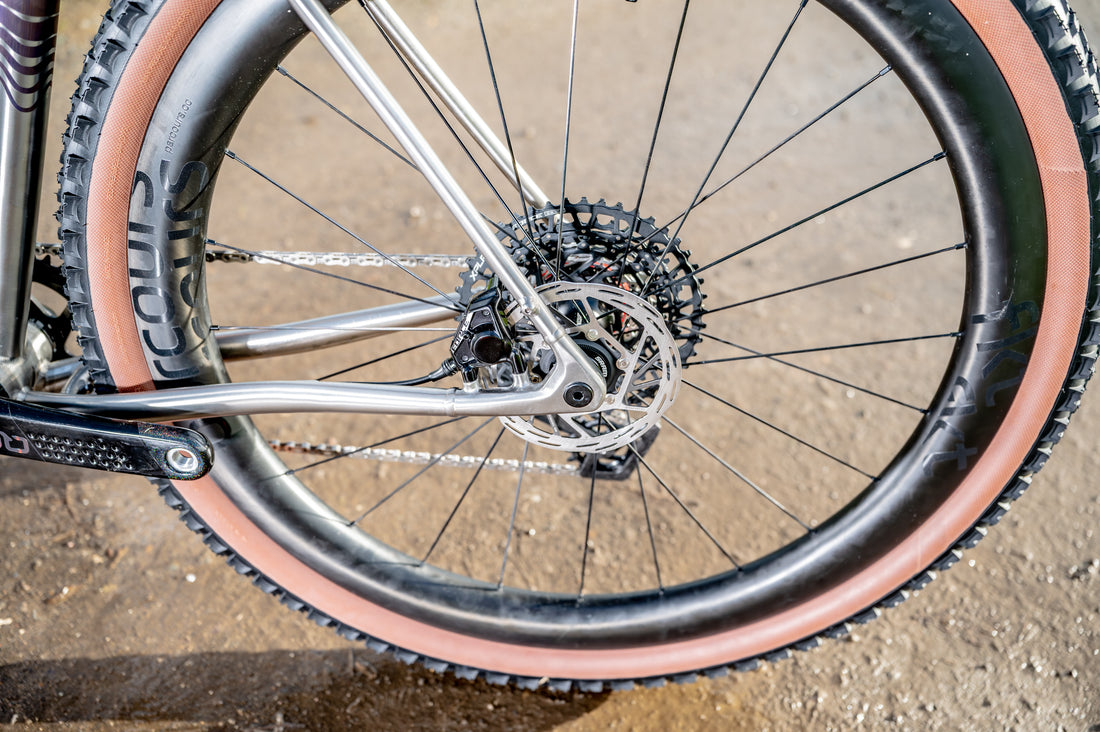

  • Close-up of a bicycle rear wheel with a black rim, tan sidewall tire, silver chainstay, and a black cassette on a dirt ground background.

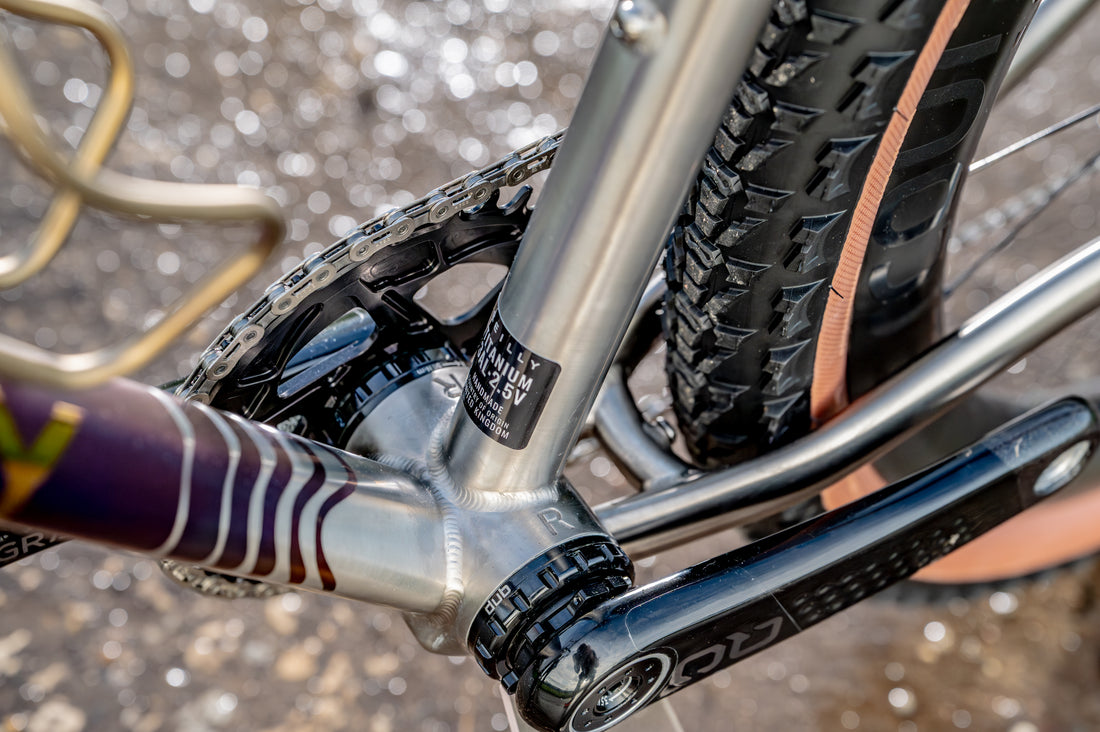

  • Close-up detail of a bicycle crankset and frame, showing a black chainring, black crank arm, silver fork tube, and part of a purple-and-white handlebar against a blurred outdoor ground background.

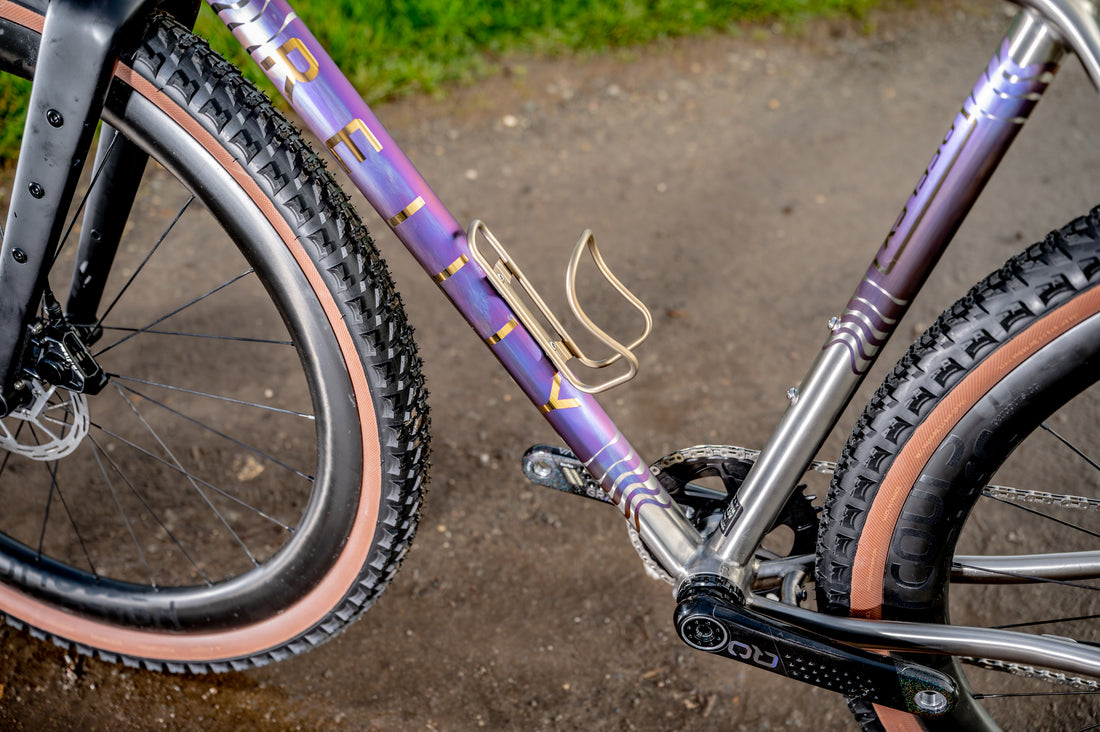

  • Close-up of a bicycle frame and wheels on a dirt path. The frame has a purple and gold gradient finish with stylized lettering, and the tires have pink sidewalls.
