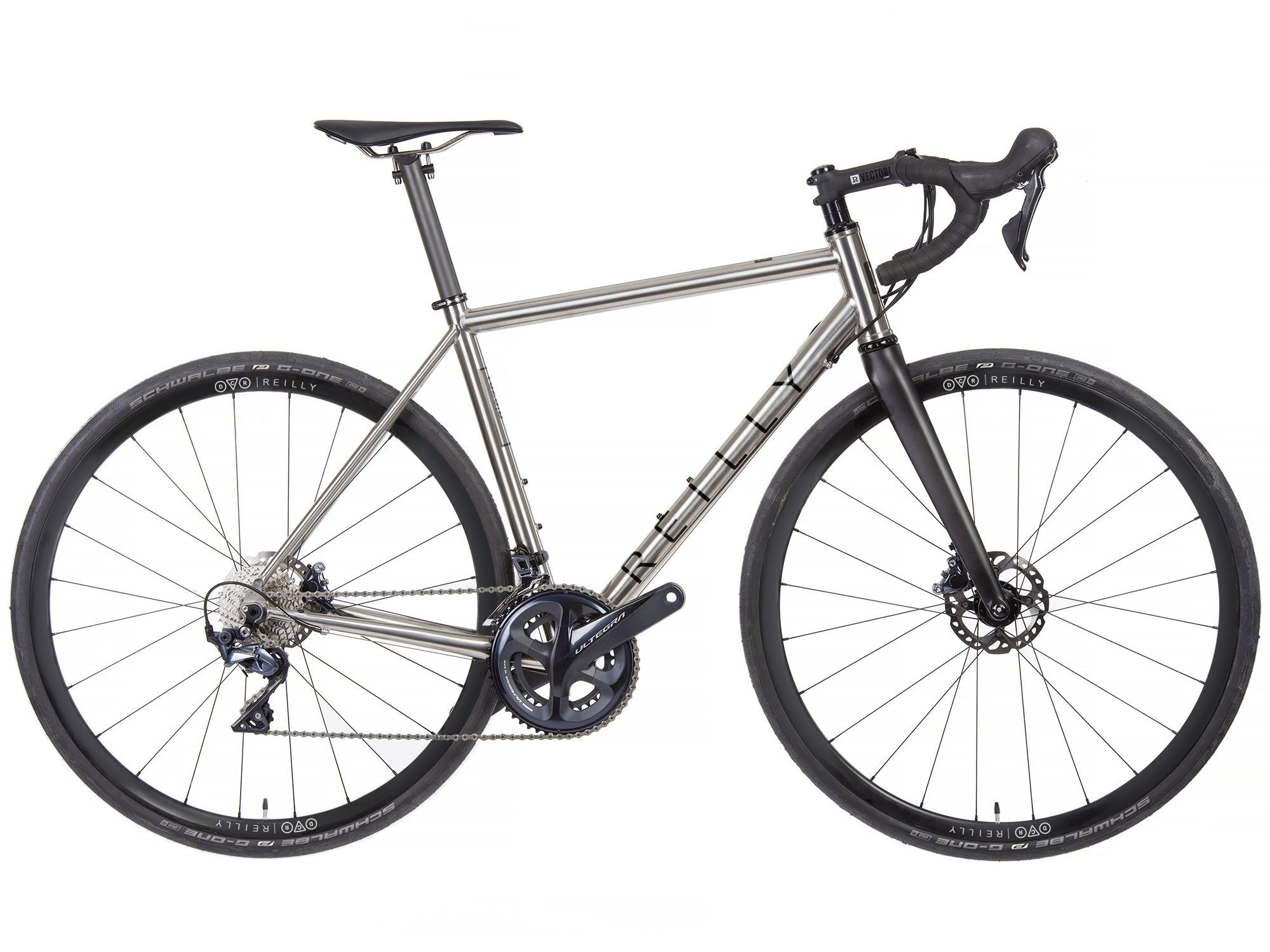

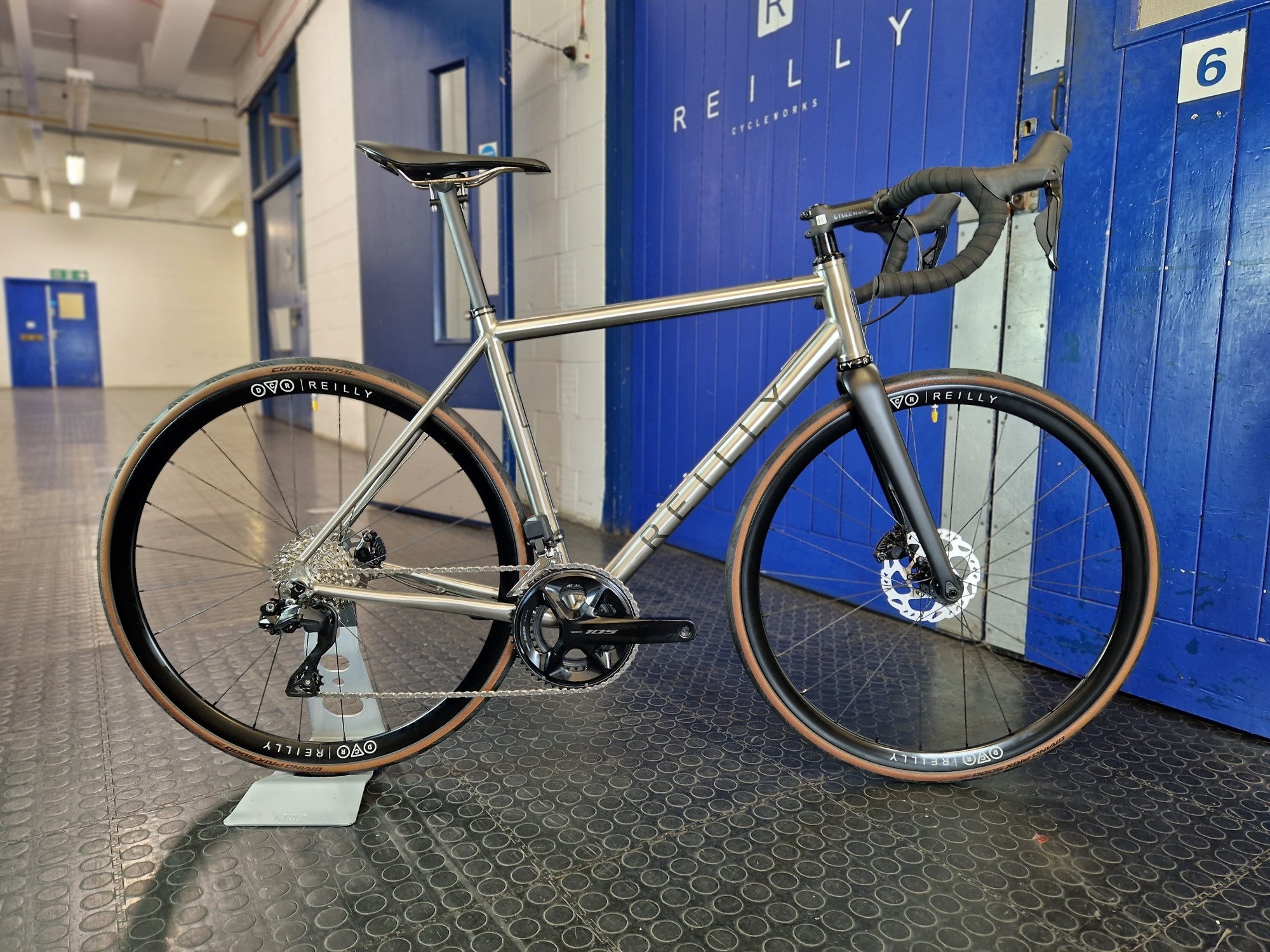

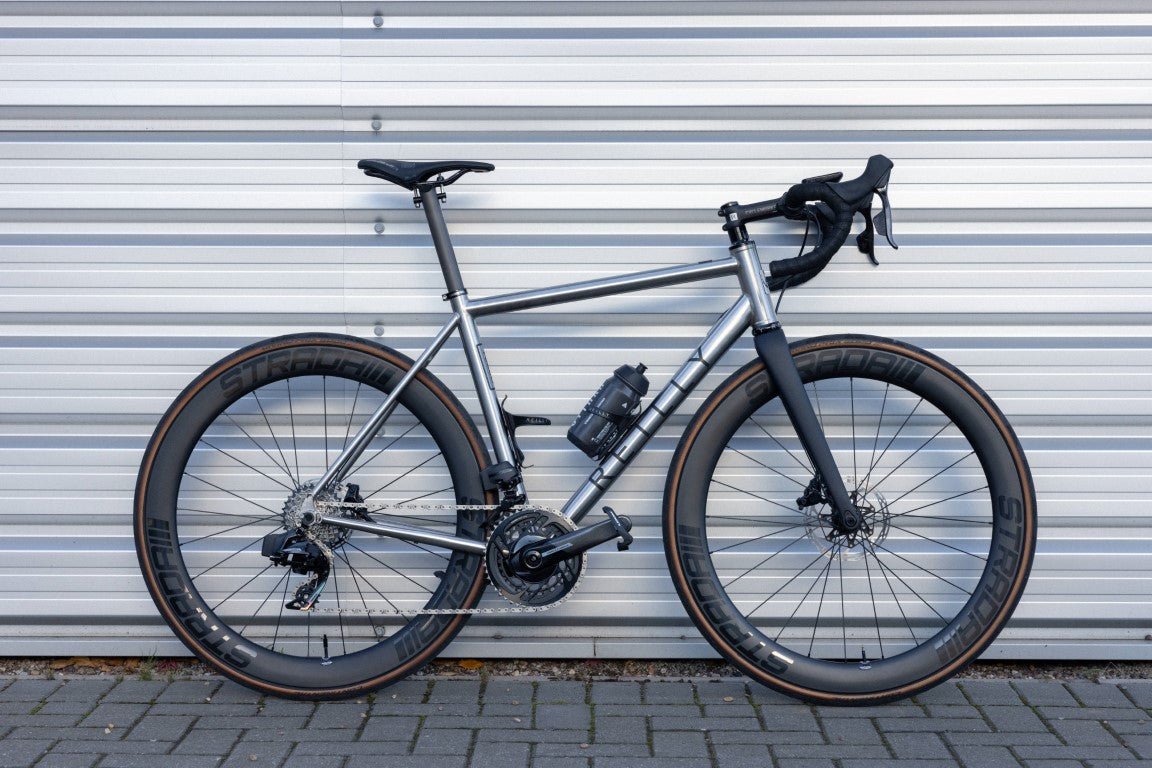

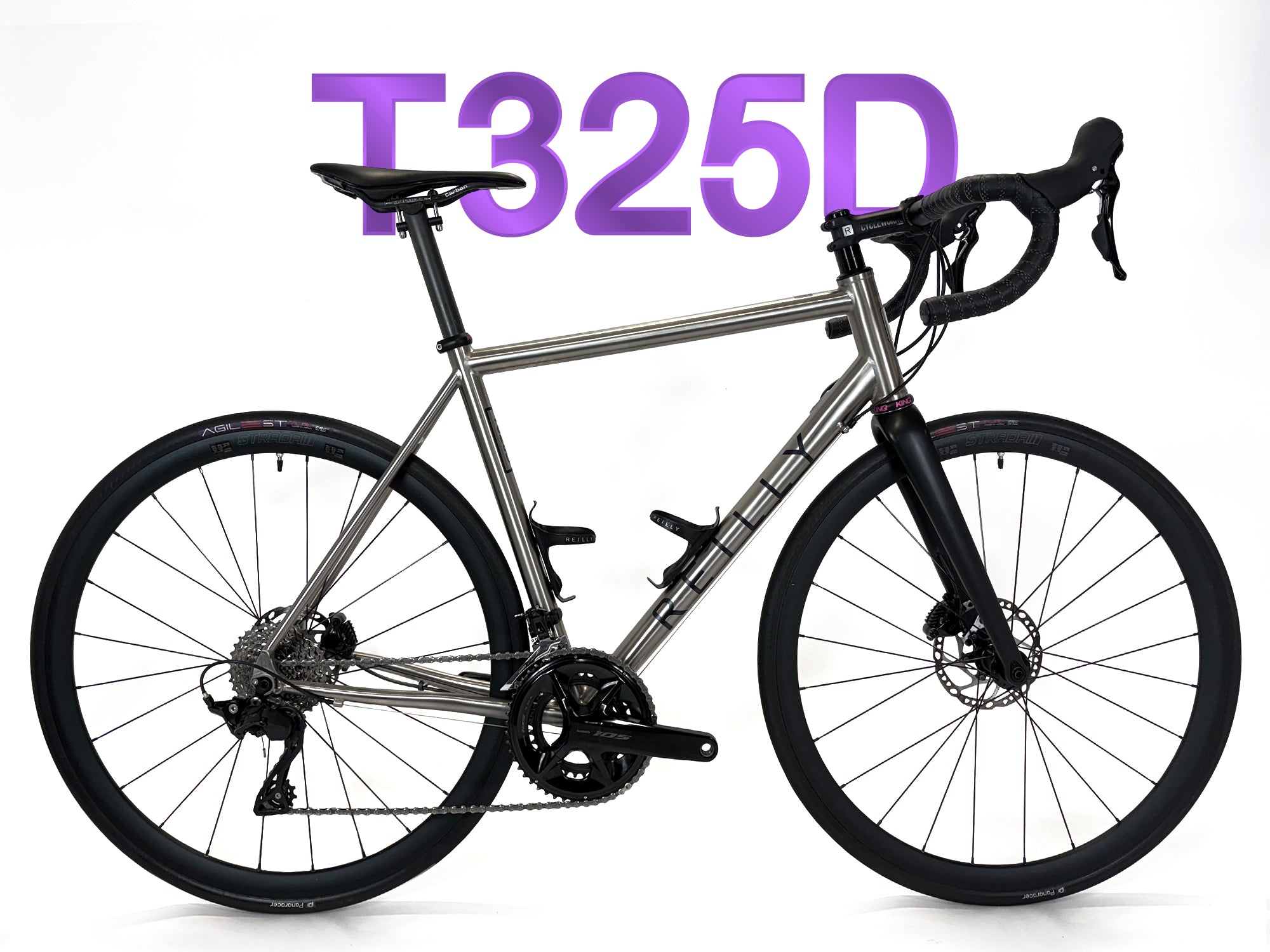

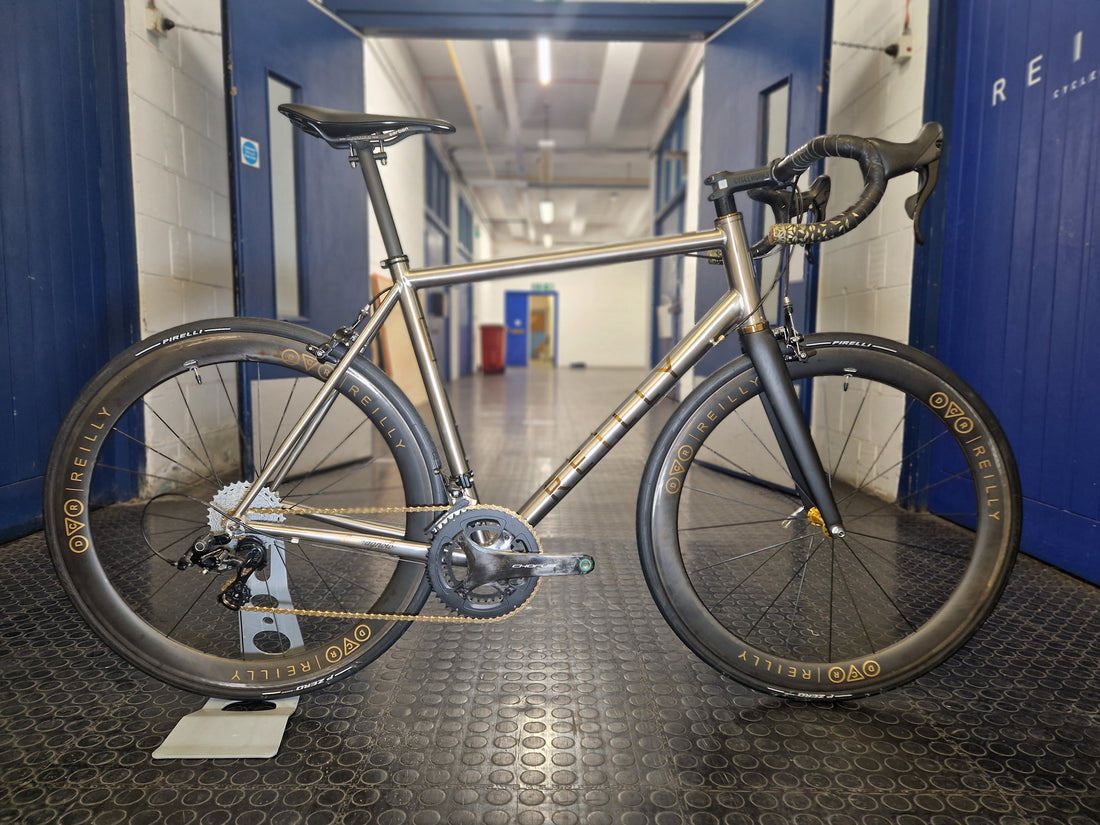

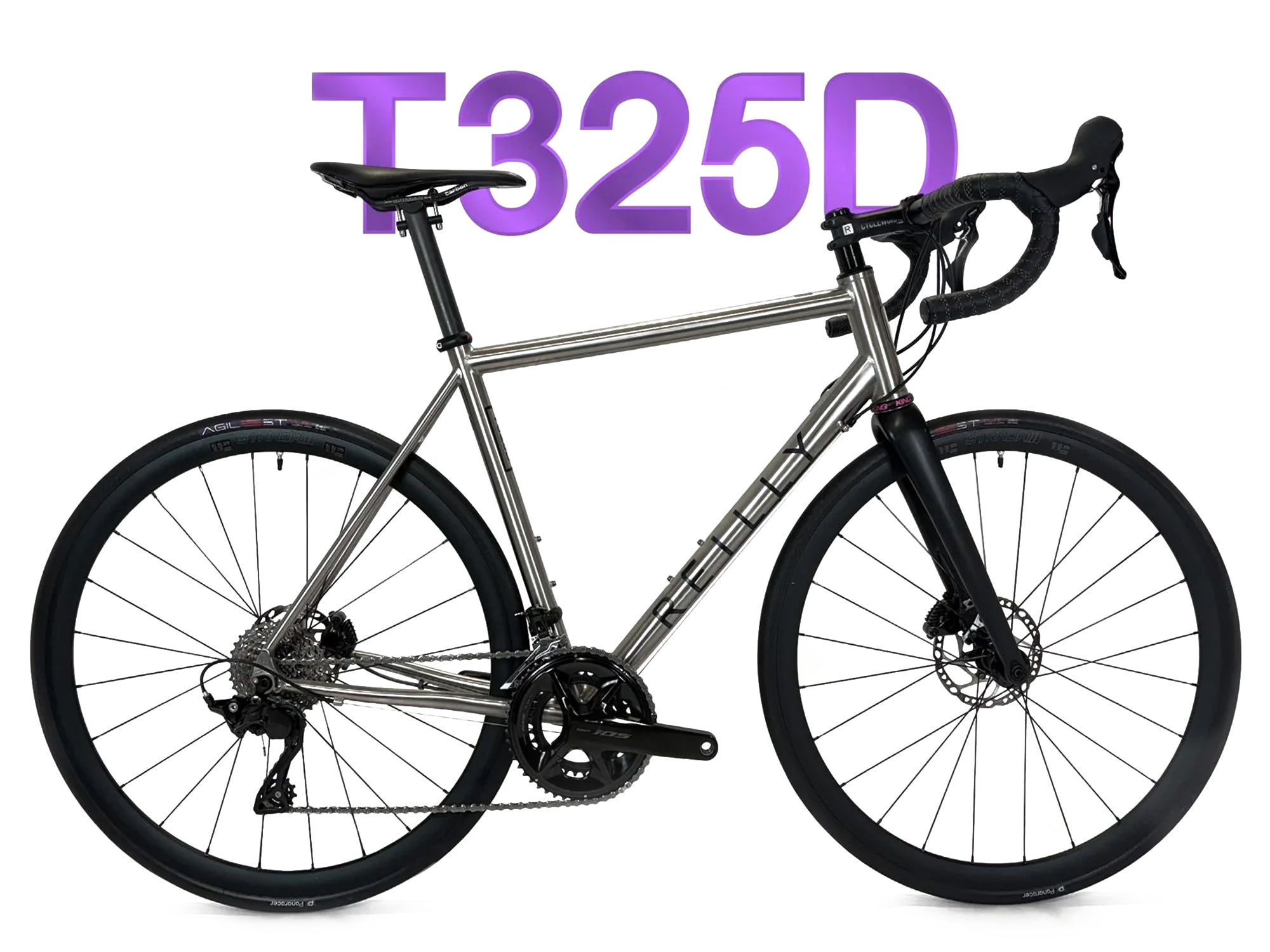

T325D//ROAD DISC

The disc version of Reilly’s much-lauded T325. A road race / sportive favourite, equally suited to the Sunday club run or crushing the miles on your next endurance challenge.
Fast, responsive and surprisingly lightweight, the T325D is the outcome of years of expertise in producing titanium bike frames. It perfectly balances the best qualities of titanium (stiffness, weight, comfort and durability) to produce an exceptionally direct, but velvety smooth road experience. Its ultra-butted 3AL-2.5V tubeset sets it apart as an out-and-out performer, with the timeless style of a classic round-tubed road bike and the all-day comfort synonymous with titanium.

CONTACT THE SALE TEAM TO DISCUSS YOUR BUILD OR BOOK A DEMO RIDE

Chat Email 01959 528 253
£4,199.00 incl VAT for UK customers ONLY
Size
To reserve your bike and secure a place in the build queue, a fully-refundable deposit equivalent to 25% of the build cost or frameset is required. Instructions: add to cart > proceed to checkout > enter your contact information > continue to shipping/payment > on the payment page, select 'Bank Deposit.' After clicking 'Complete Order', you will be presented with an Order Confirmation page which displays our bank details. Please use your surname as reference.

Share the T325D with your friends!

BOOK A DEMO RIDE HERE

The following applies to the base bike build -

Titanium Grade  3AL -2.5V

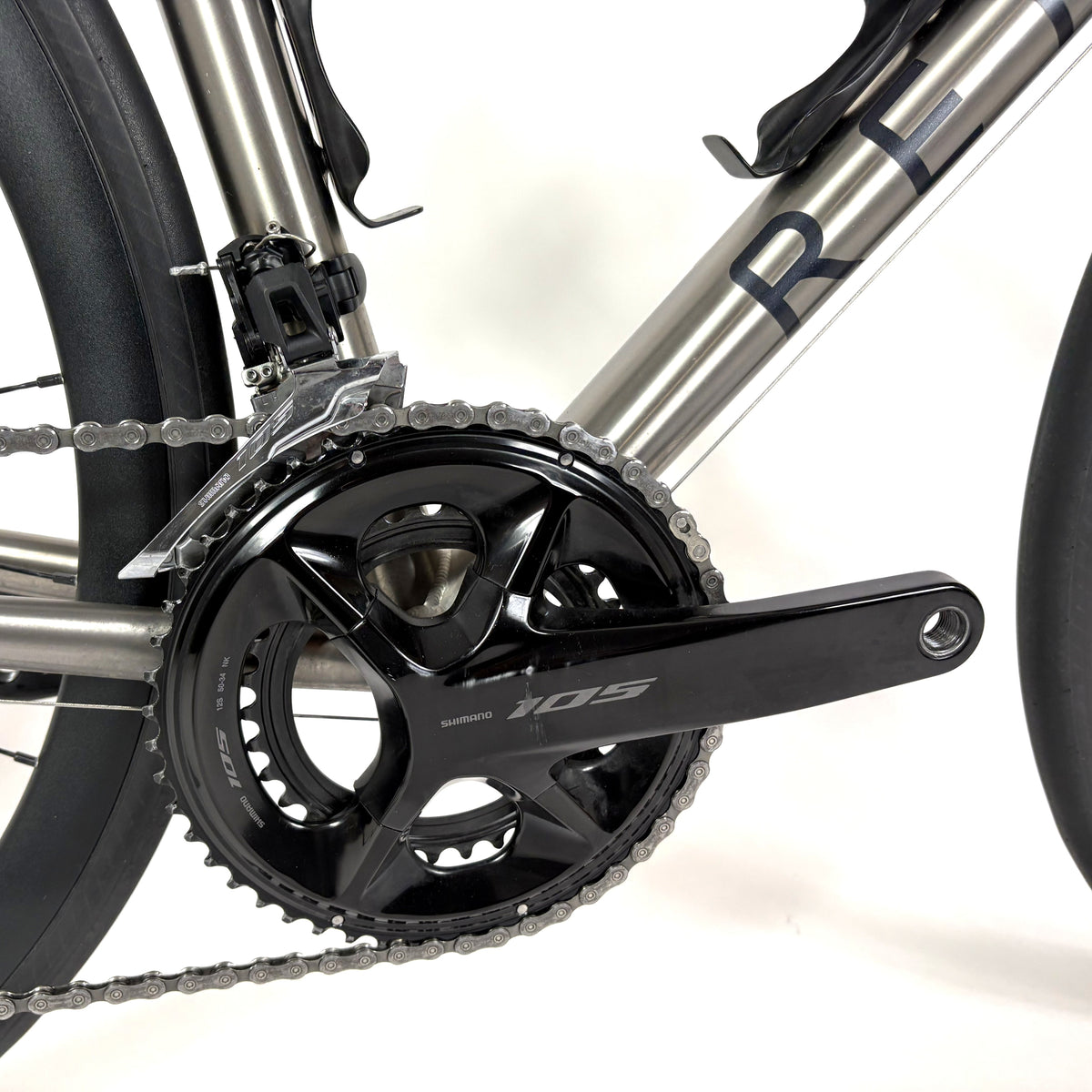

Front Derailleur Clamp 34.9mm Band Adapter

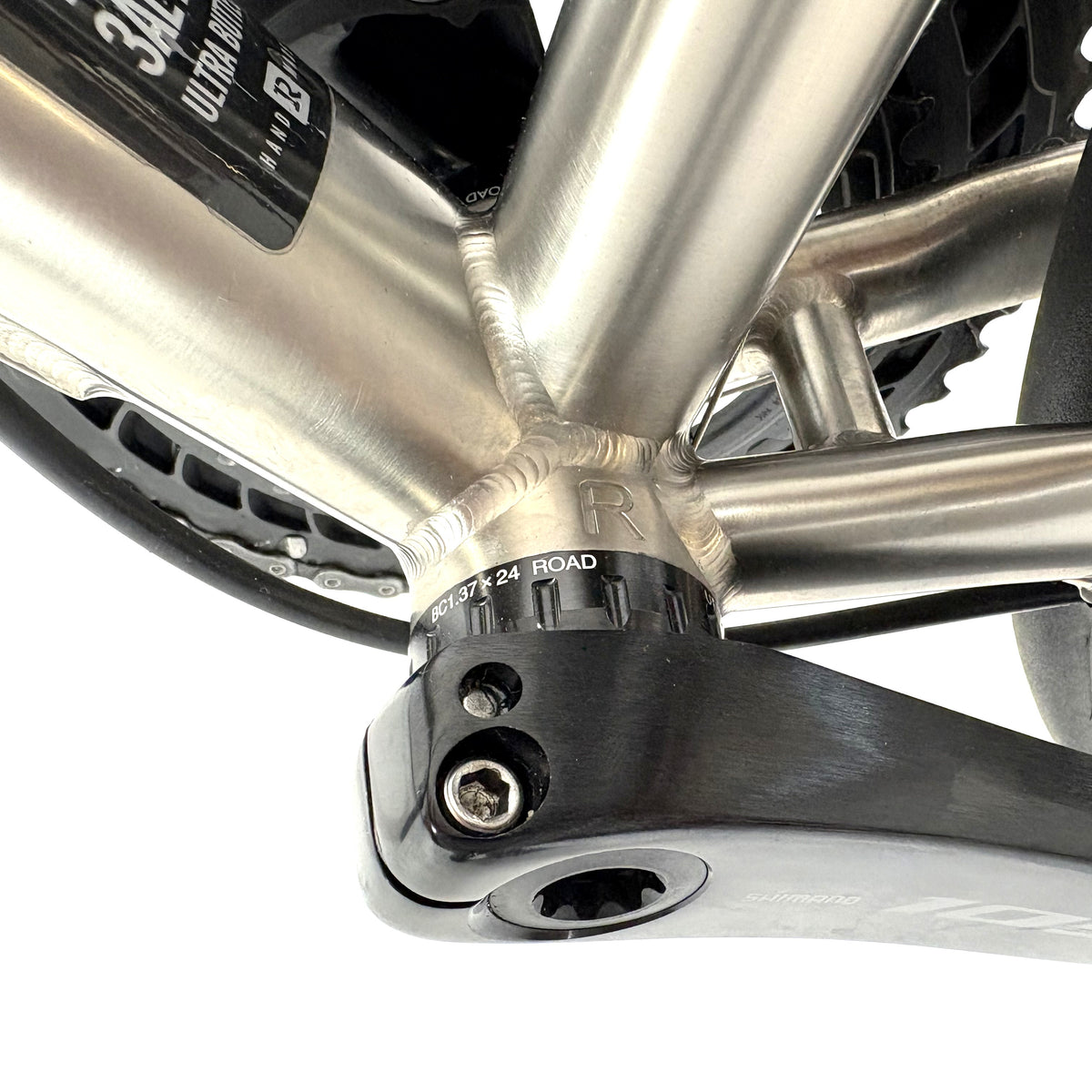

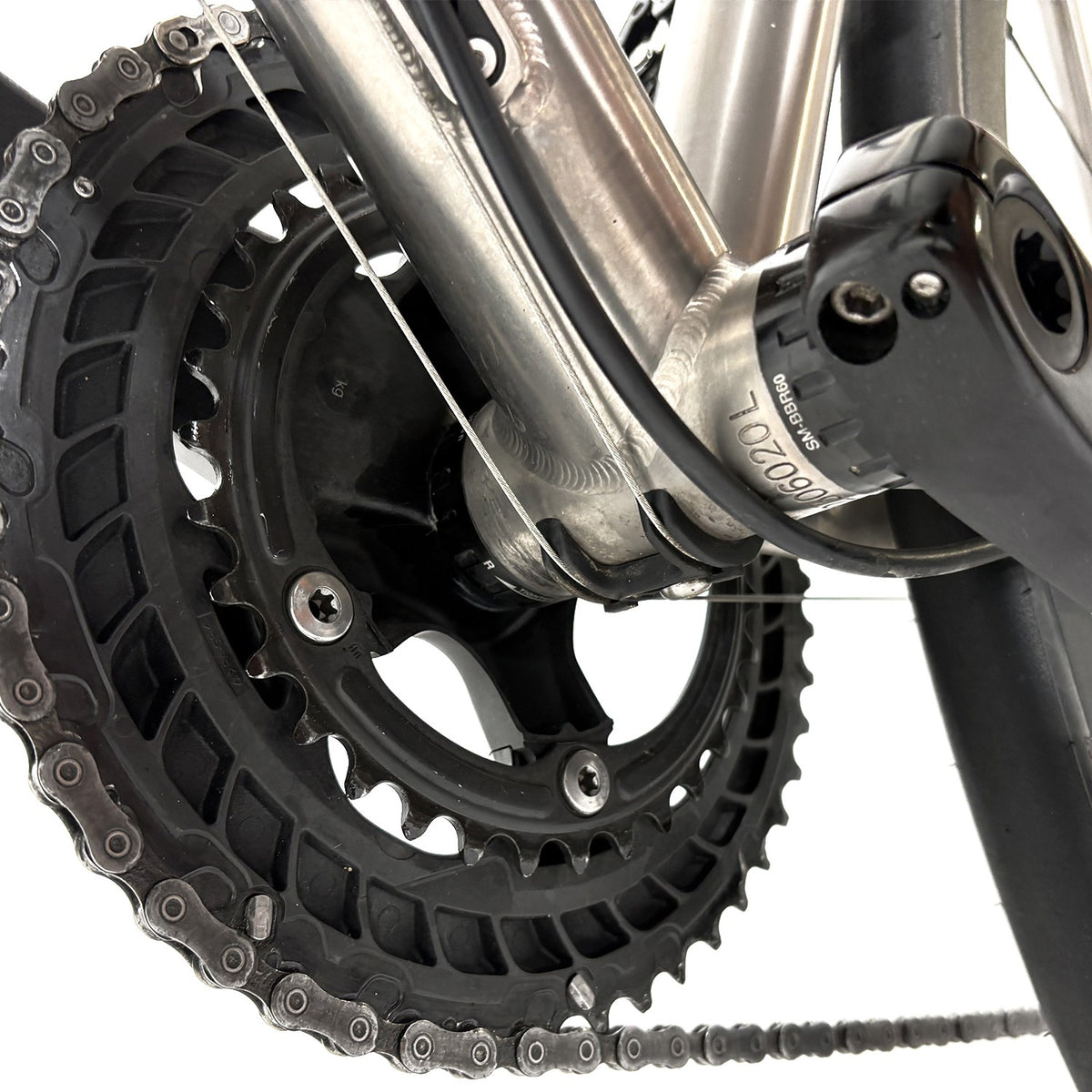

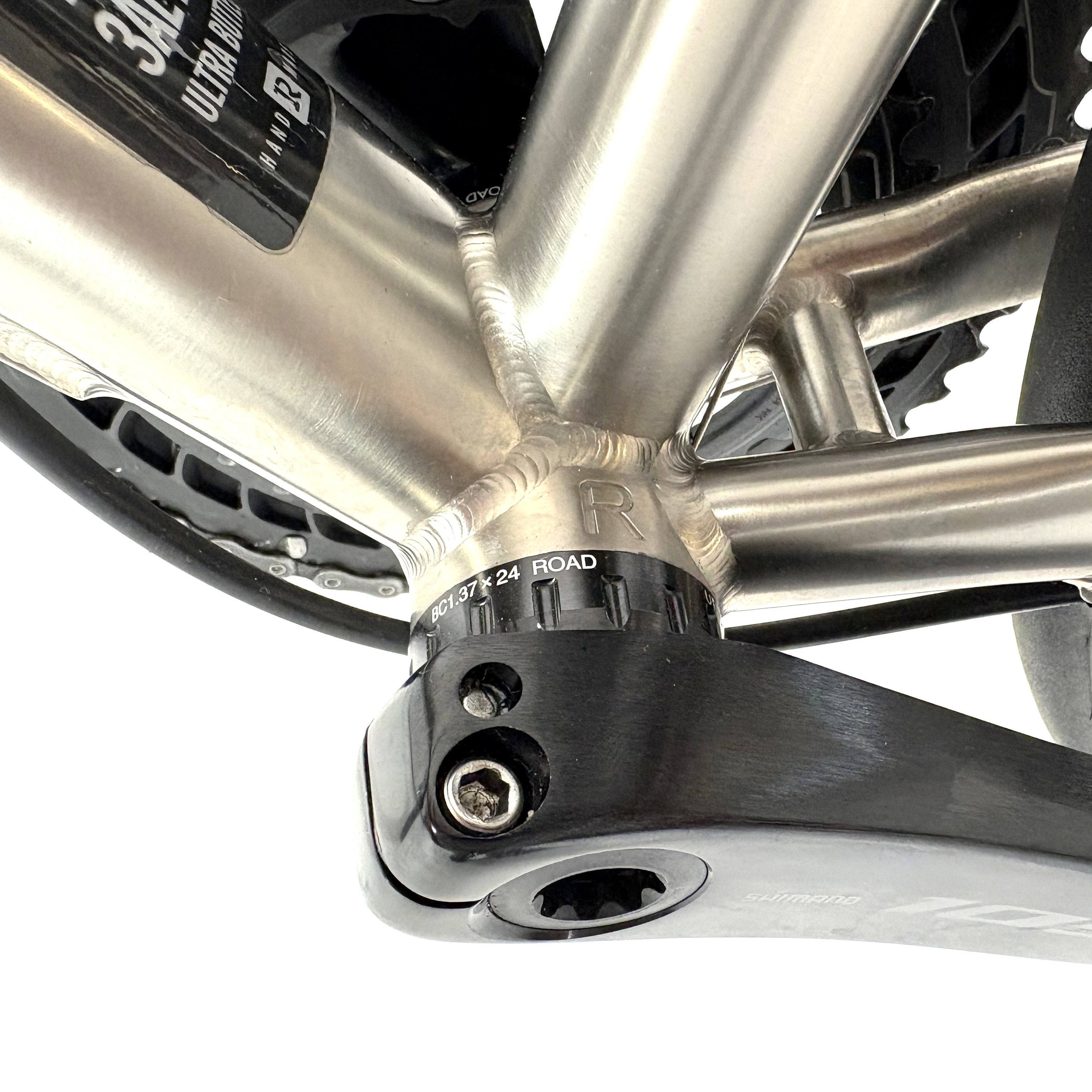

Bottom Bracket Shell BSA English Threaded
Bottom Bracket As per groupset manufacturer
Cable Routing External Gear Cable Routing; Internal Downtube Brake Hose Routing

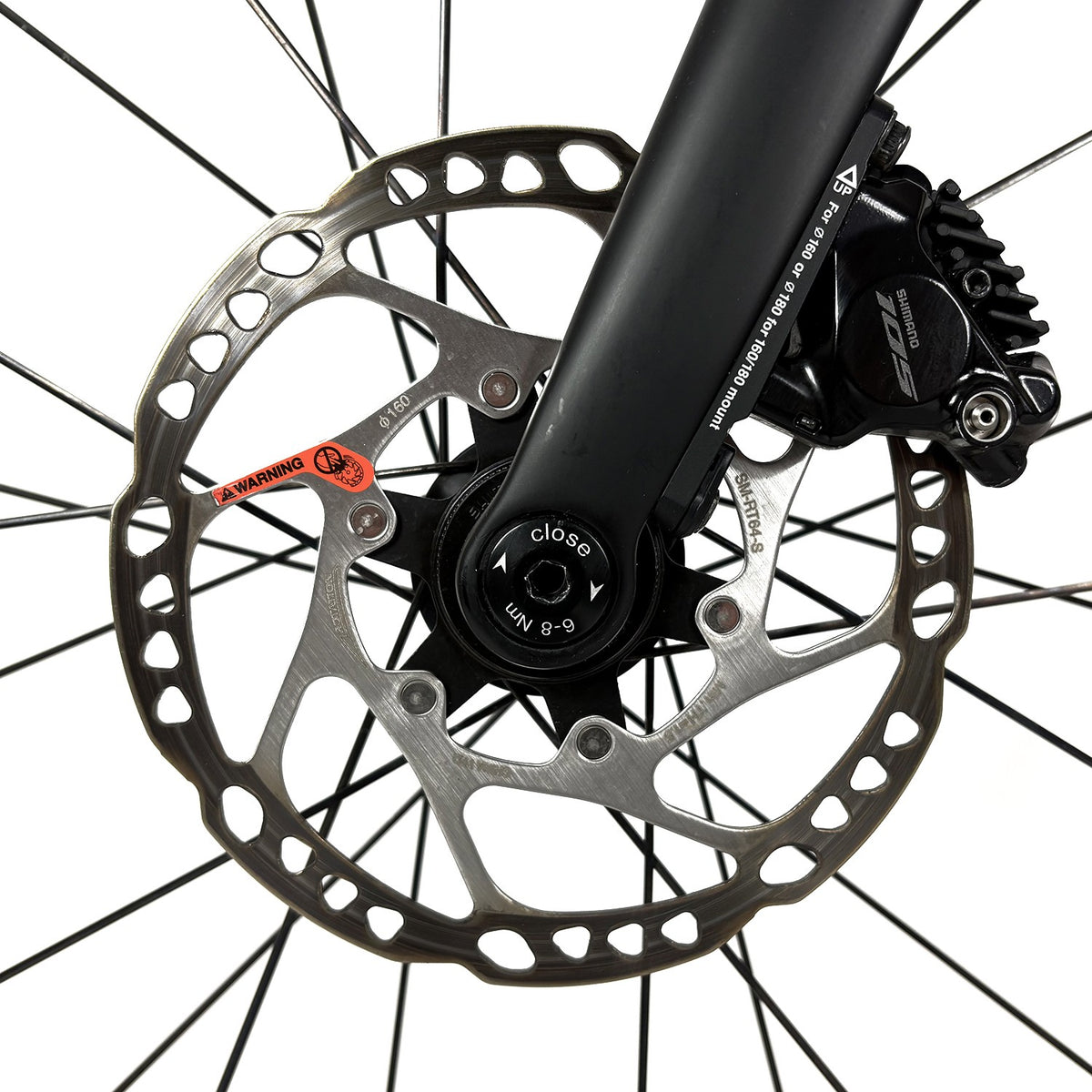

Fork UDM Carbon Fork

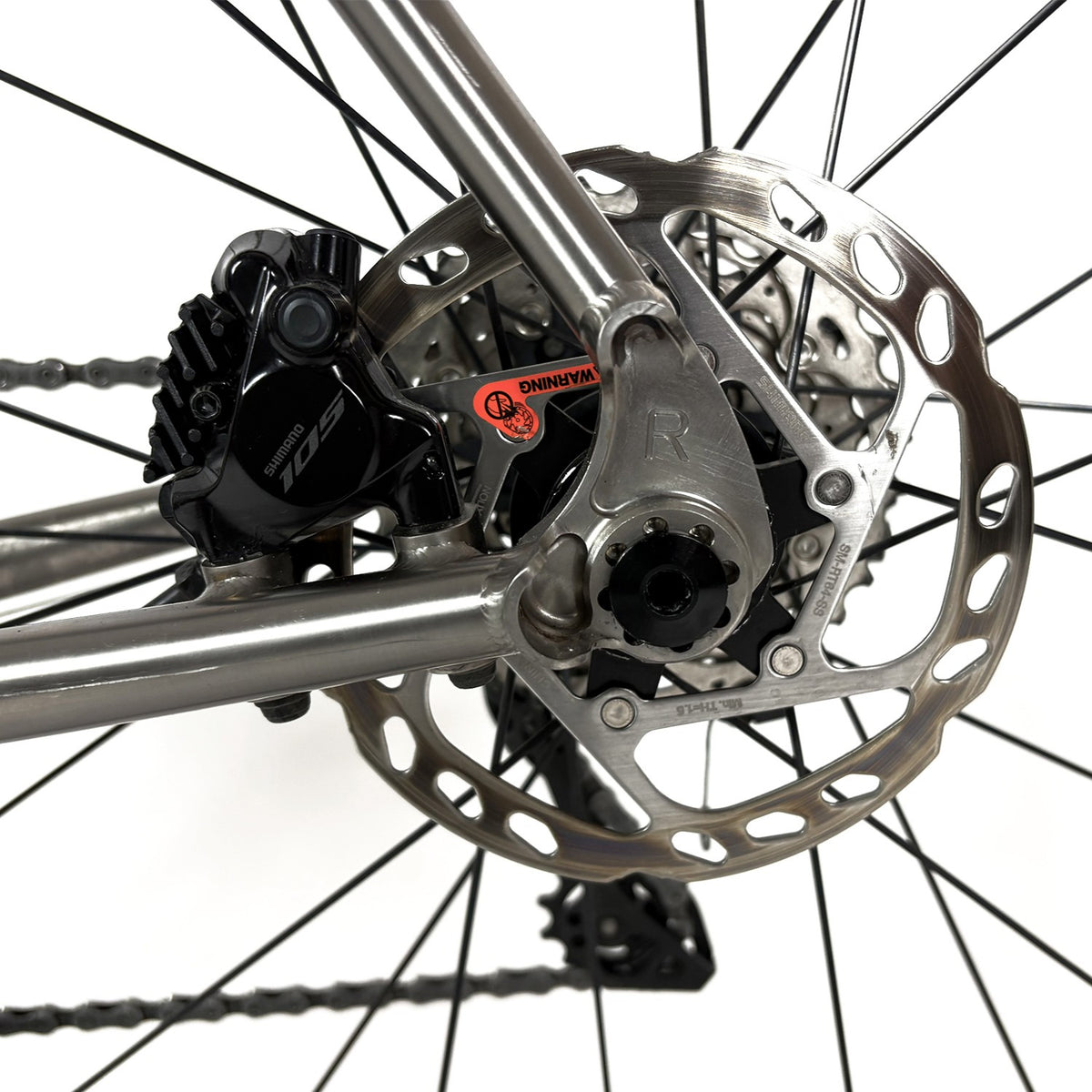

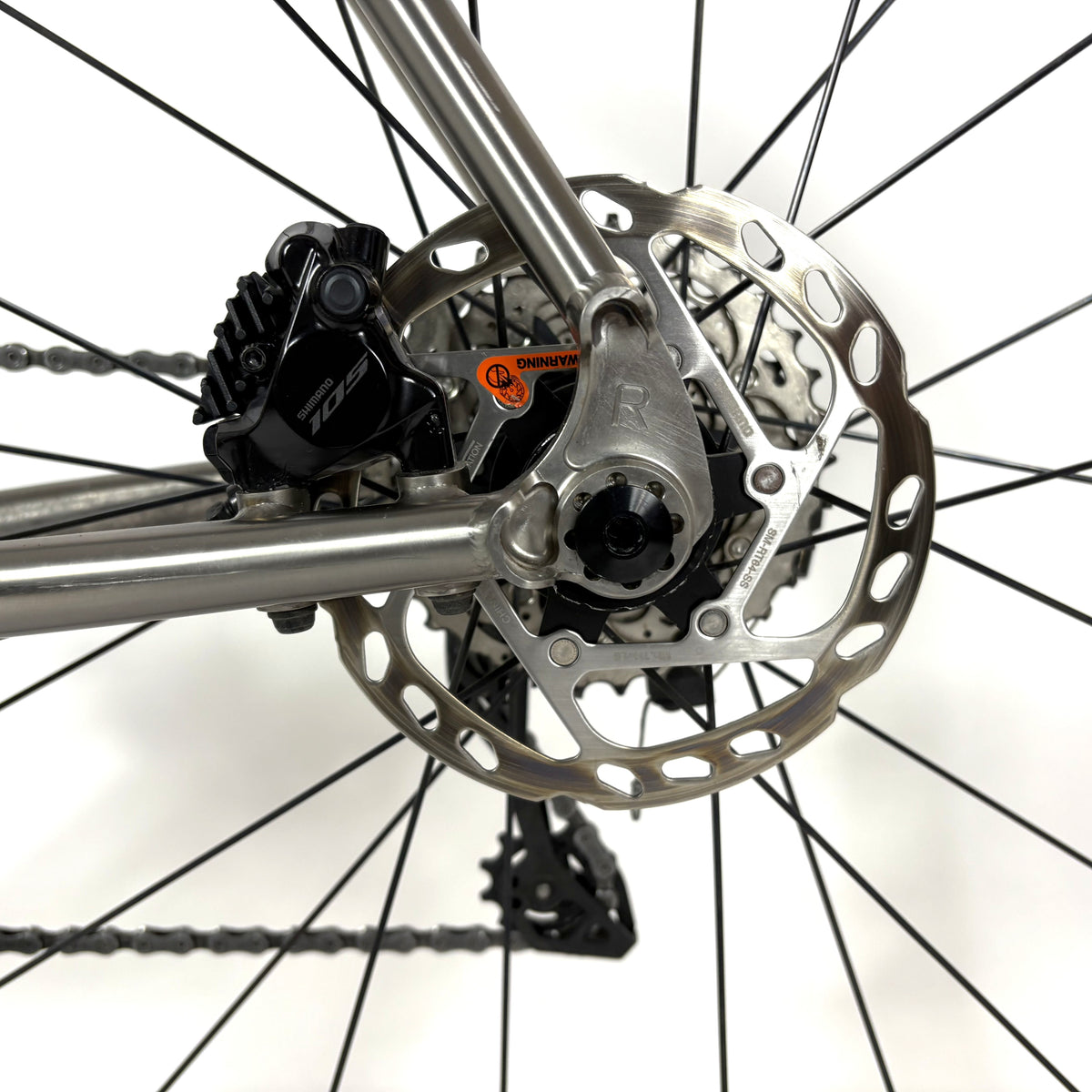

Brakes Hydraulic Disc with Flat-Mount Calipers
Rotors 160F/140R
Thru Axles 100mmx12mmF; 142mmx12mmR
Wheels Road, alloy, Tubeless ready
Tyres Panaracer Agilest,
Max Clearance 700c 32mm

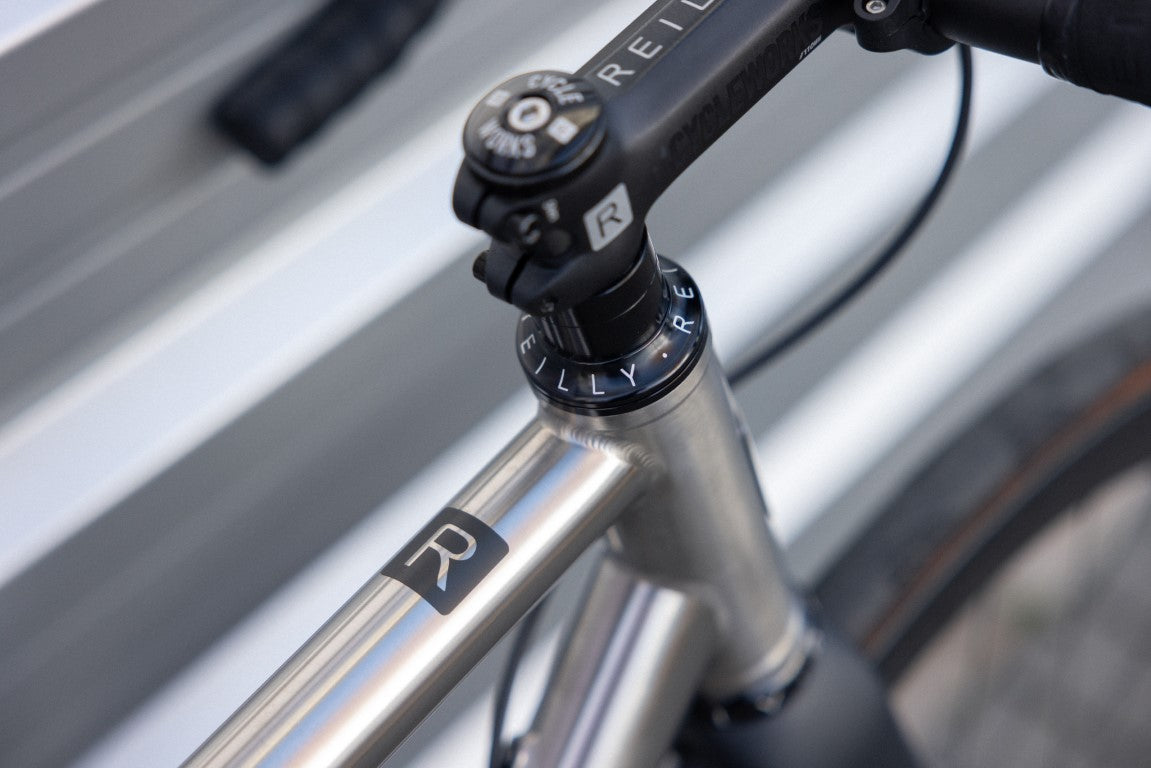

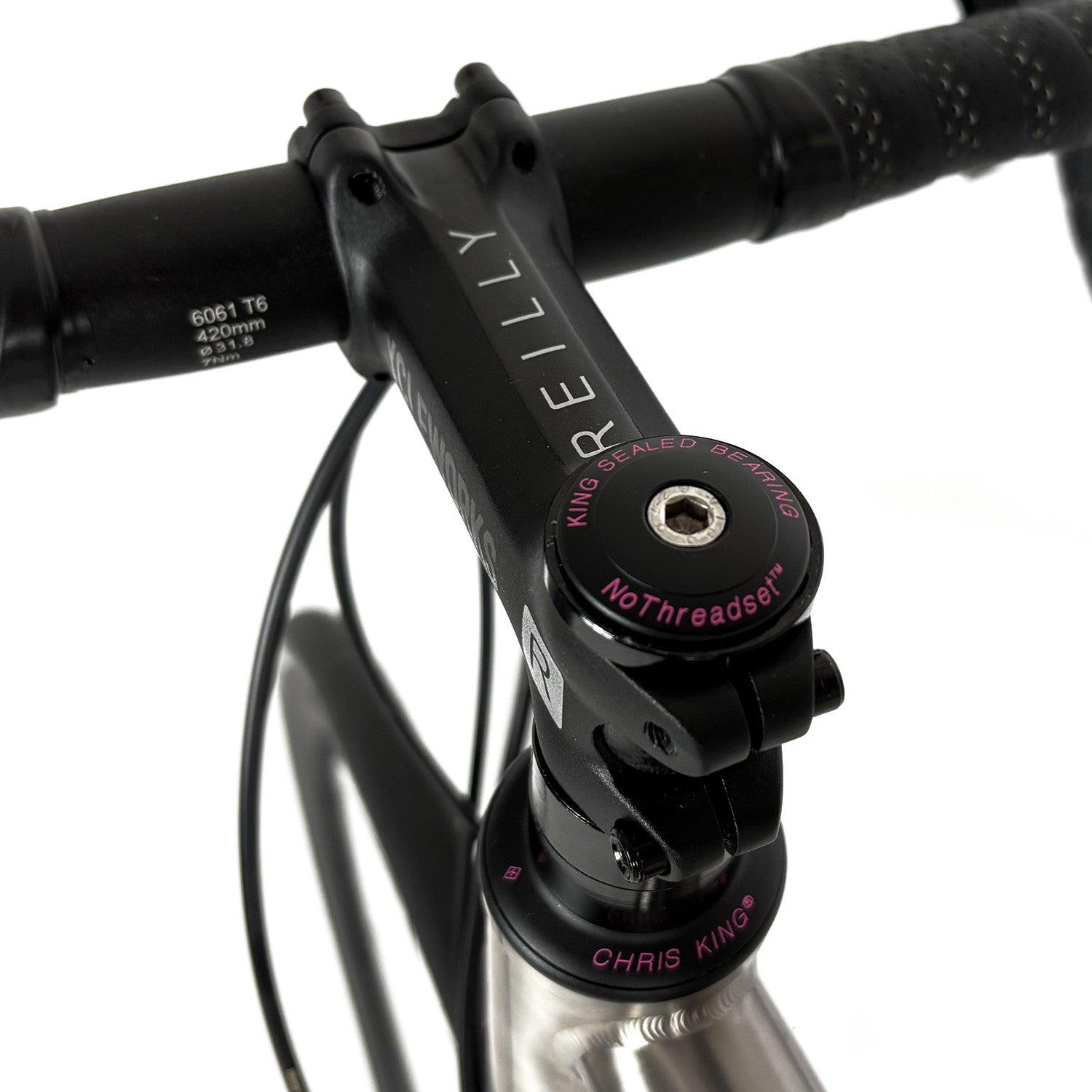

Headset Reilly Aluminium Headset, Black, Red, Blue (for 44mm head tubes, 1.1/8"-1.5" steerers)  as chosen
Bars / Width Reilly Aluminium Compact Bars,  C to C (Drop 125mm; Reach 75mm, Flare: 4°) as chosen
Stem / Length Reilly Aluminium Stem,  (Angle: 84°/-6°) as chosen
Bar Tape Black EVA Bar Tape

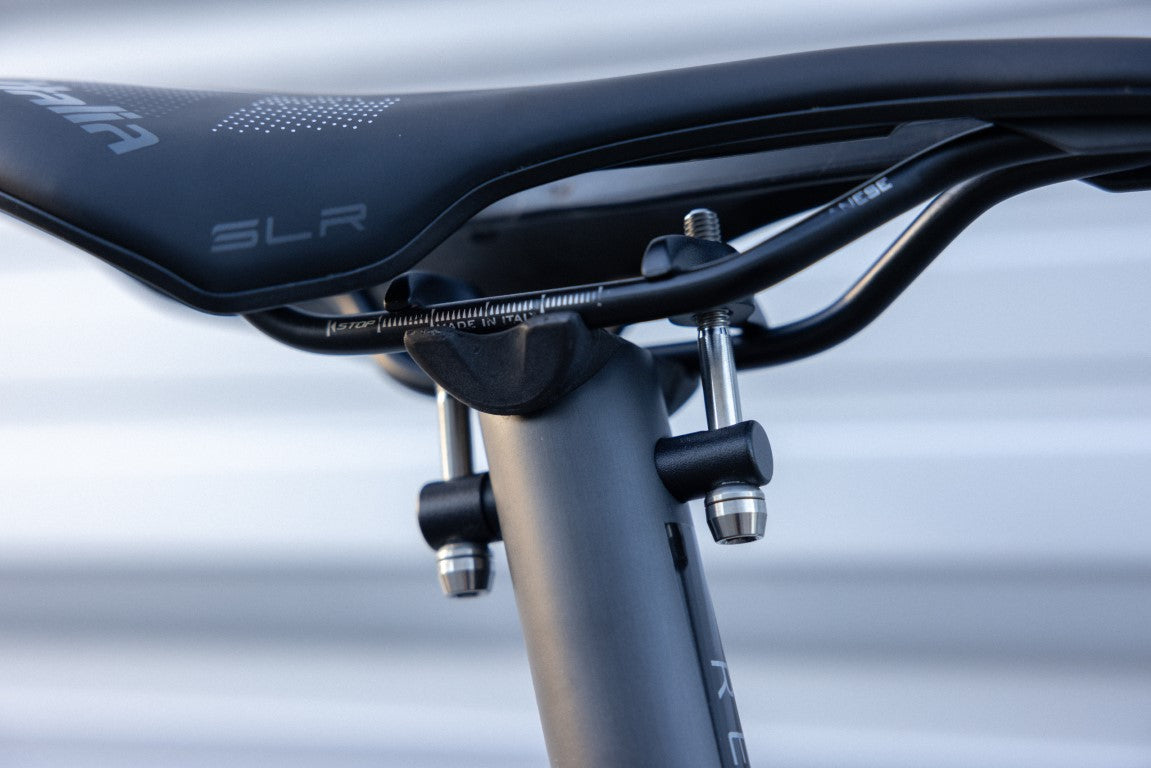

Seatpost Reilly UD Carbon Seatpost, 27.2mm (with shim) x 350mm, with x2 6AL-4V titanium retaining bolts

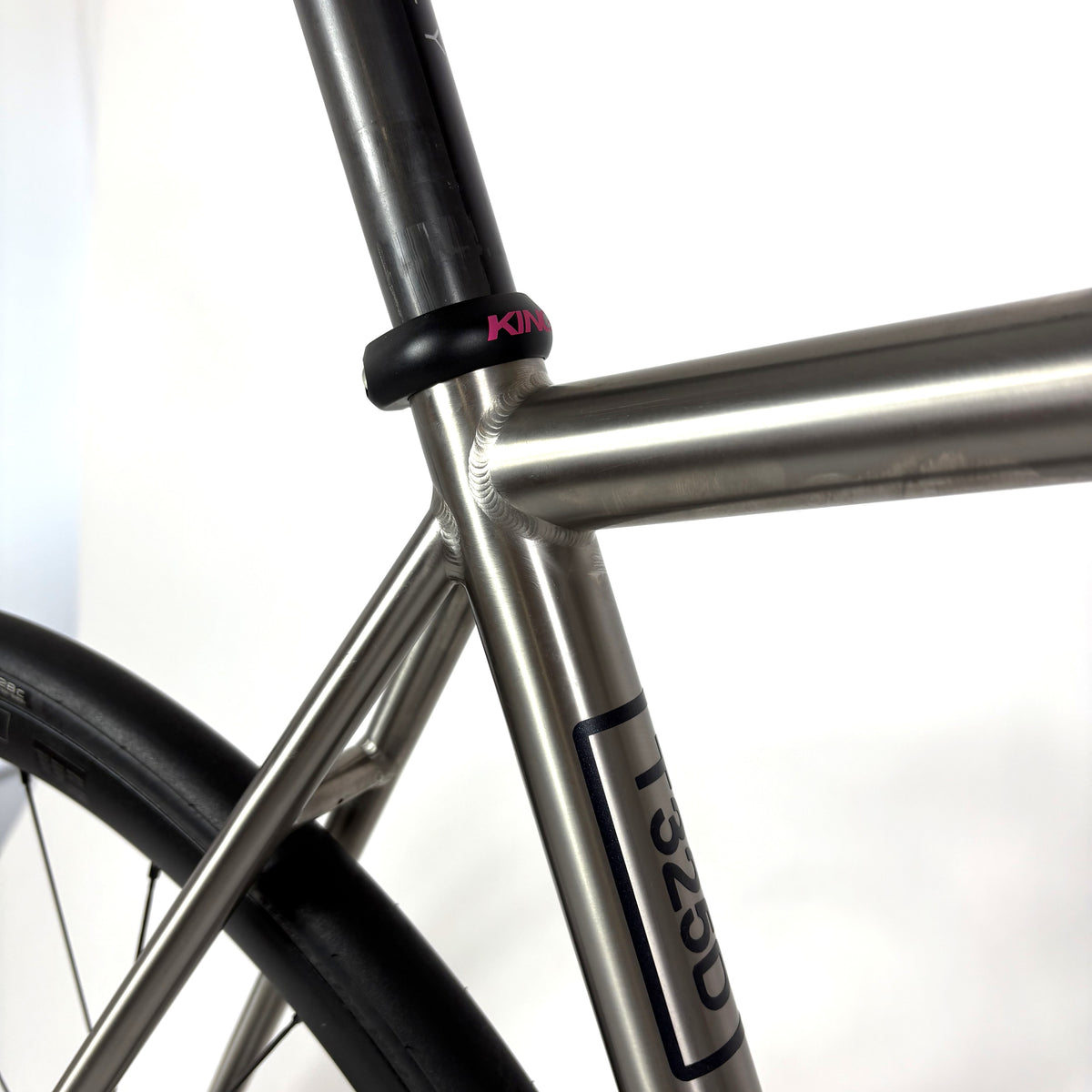

Seat Clamp Reilly Super Lite Alloy Seat Clamp, Black, 34.9mm
Saddle Reilly Titanium Alloy ‘Airform’ Saddle
Frame Features x2 Bottle Cage Mounts
Set-Up British Standard, whereby the right-hand lever operates the front brake and the left-hand lever operates the rear brake.
Warranty   Lifetime Frame Warranty (Original Owner Only, Non-Transferable) T&Cs Apply



Frame Geometry

SIZE XXS XS SMALL MEDIUM LARGE XL XXL
SEAT TUBE C/TOP 460mm 470mm 490mm 510mm 530mm 540mm 550mm
TOP TUBE EFFECTIVE 500mm 510mm 530mm 550mm 570mm 590mm 600mm
BB DROP 72mm 72mm 72mm 72mm 72mm 72mm 72mm
CHAINSTAY LENGTH 405mm 405mm 411mm 414mm 414mm 414mm 414mm
SEAT TUBE ANGLE 75.5° 75.5° 74° 73.5° 73° 73° 73°
HEAD TUBE ANGLE 71.5° 71.5° 72° 73° 73° 73° 72.5°
FORK RAKE 43mm 43mm 43mm 43mm 43mm 43mm 43mm
FRONT CENTRE 566mm 576mm 577mm 583mm 597mm 617mm 632mm
WHEELBASE 960mm 970mm 977mm 986mm 1001mm 1021mm 1036mm
HEAD TUBE 110mm 110mm 130mm 150mm 170mm 185mm 185mm
STACK 524mm 524mm 545mm 567mm 586mm 601mm 599mm
REACH 365mm 375mm 374mm 382mm 391mm 406mm 417mm
