| Specification | Details |
|---|---|
| Titanium Grade | 3AL-2.35V |
| Groupset | 105 12 sp mechanical |

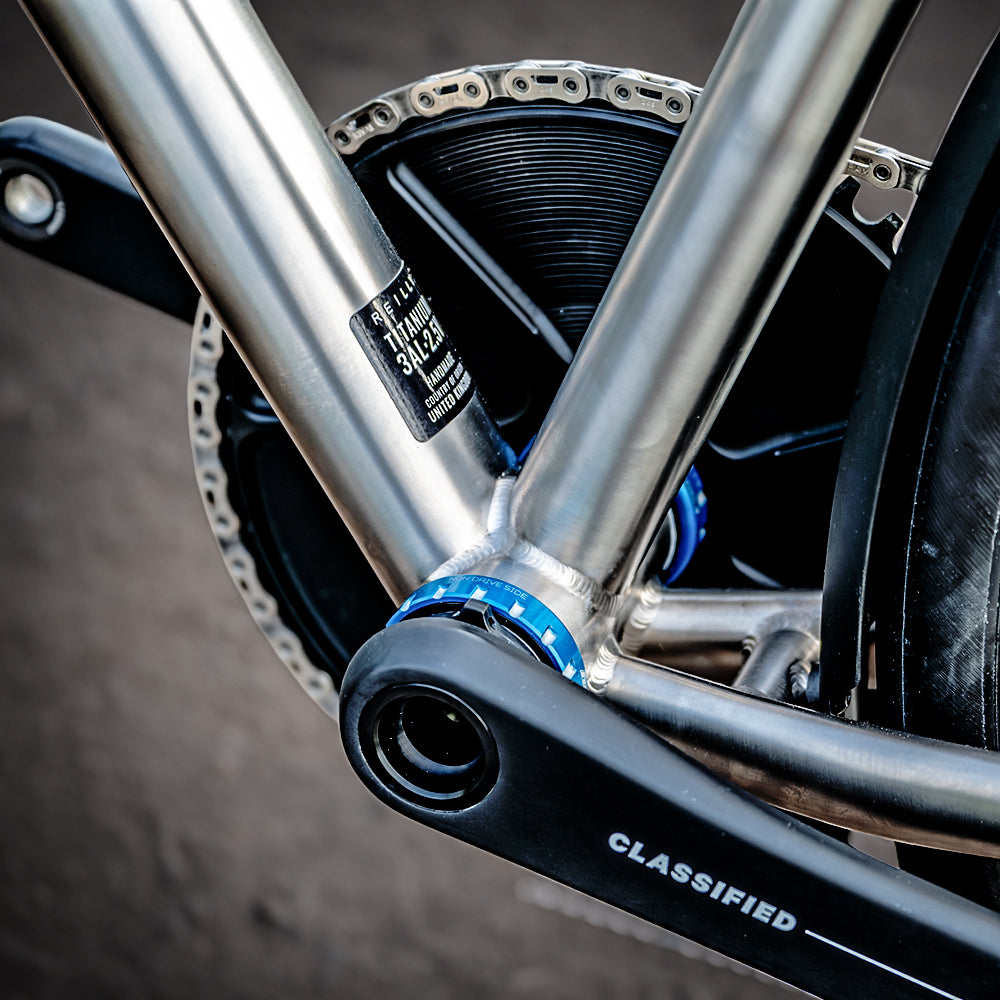

| Bottom Bracket Shell | BSA English Threaded |
| Bottom Bracket | As per groupset manufacturer | Rear Derailleur Mount | Standard |
| Rear Derailleur Mount (Updated) | UDH |
| Cable Routing | External Gear Cable Routing; Internal Downtube Brake Hose Routing |
| Cable Routing (Updated Model) | Internal Gear Cable Routing; Internal Brake Hose Routing |
| Fork | All-road carbon fork with mudguard mounts |

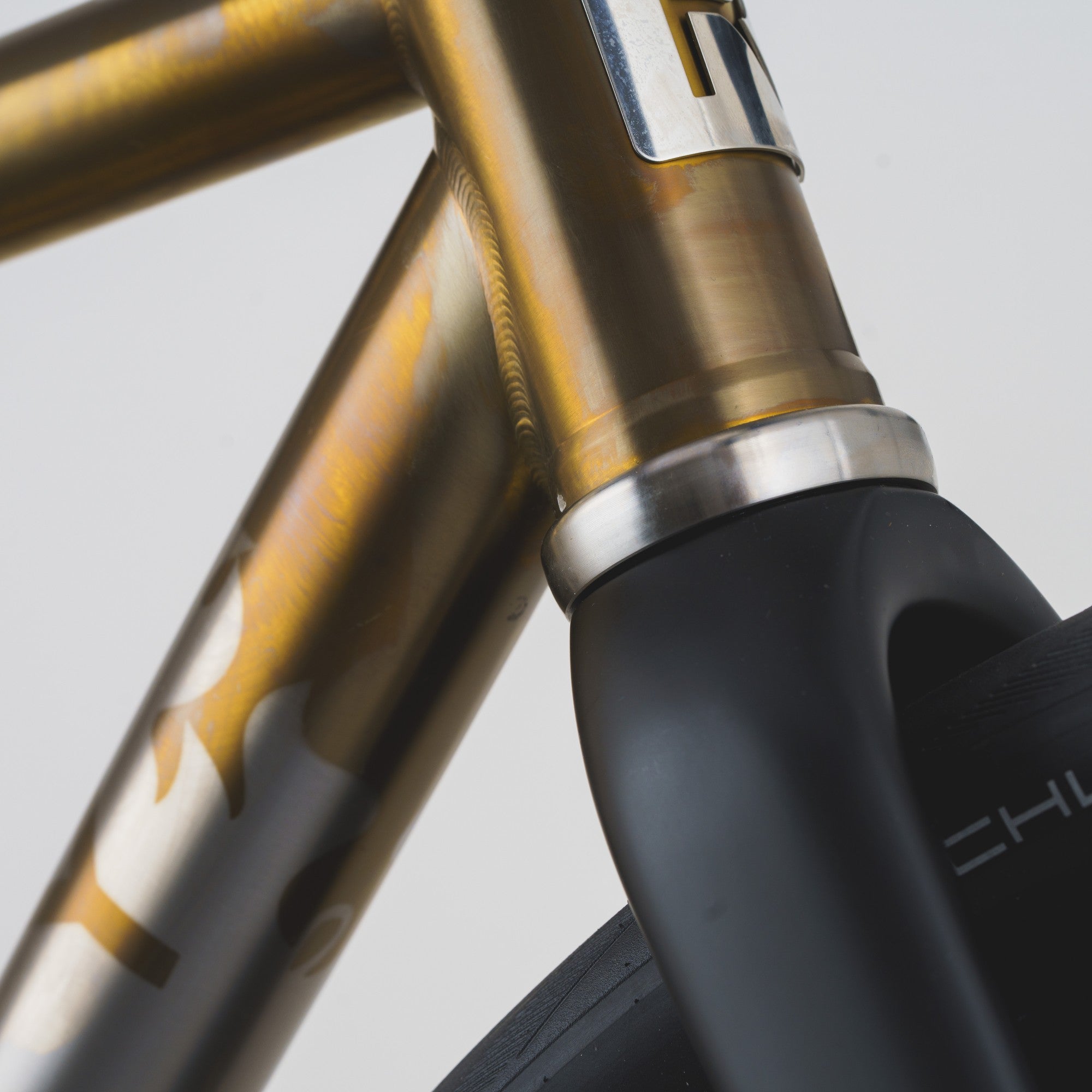

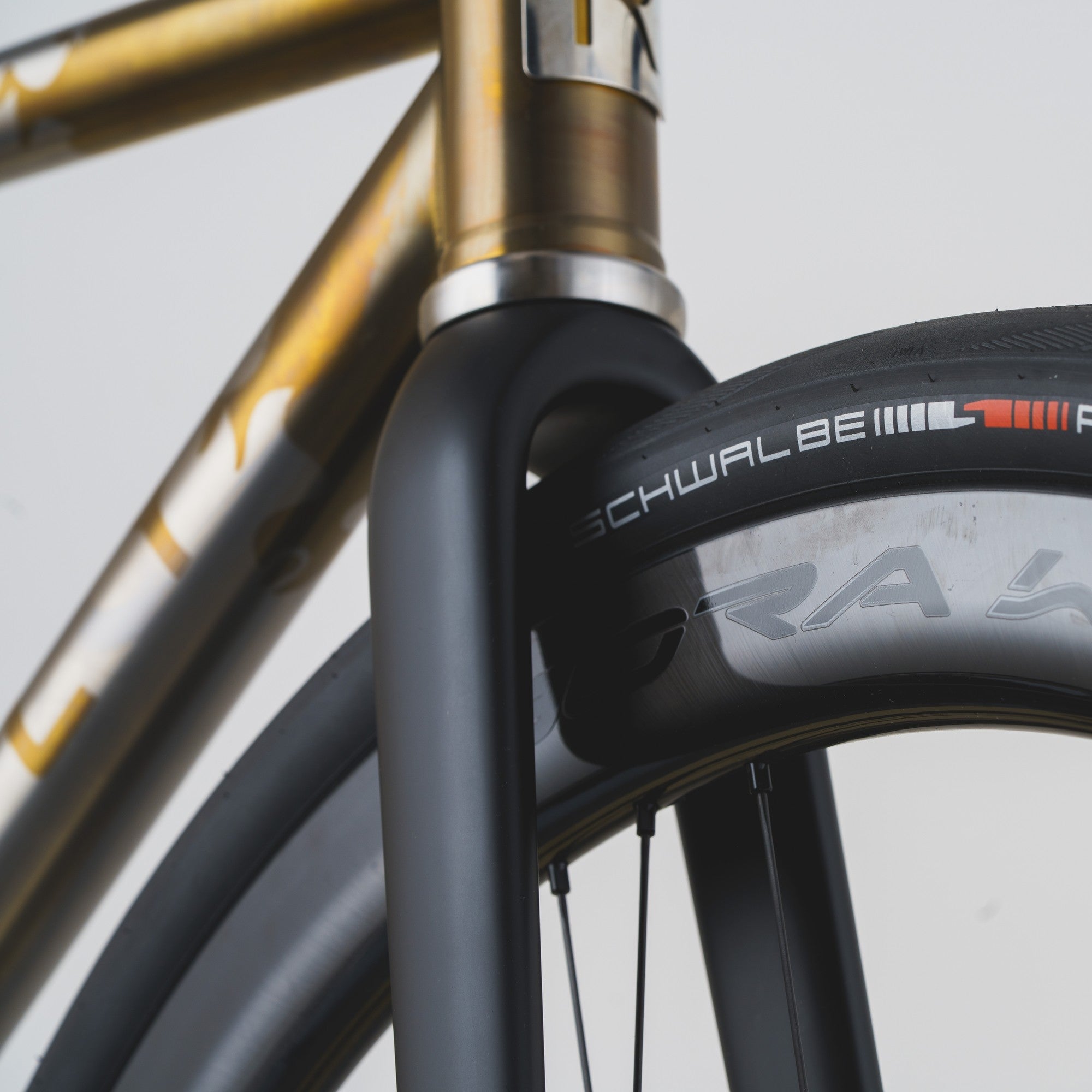

| Fork (Updated Model) | Integrated all-road carbon fork with mudguard mounts |
| Brakes | Hydraulic Disc with Flat-Mount Calipers |
| Rotors | 160F/140R |
| Thru Axles | 100mm x 12mm F; 142mm x 12mm R |
| Wheels | All-road, alloy, tubeless ready |
| Tyres | Panaracer Agilest / Panaracer SK |
| Max Clearance | 38mm |

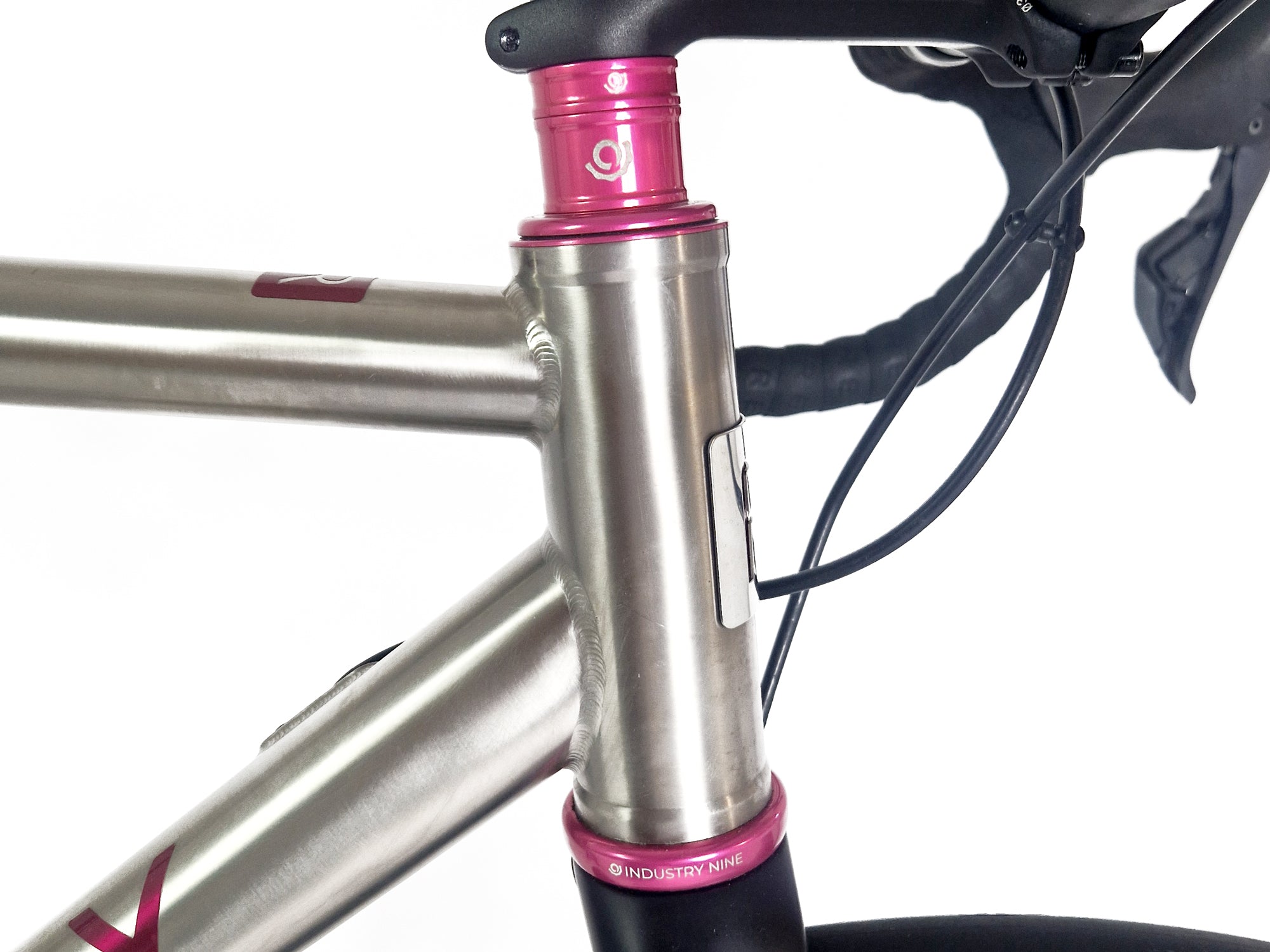

| Headset | Reilly Aluminium Headset (Black, Blue or Red) |

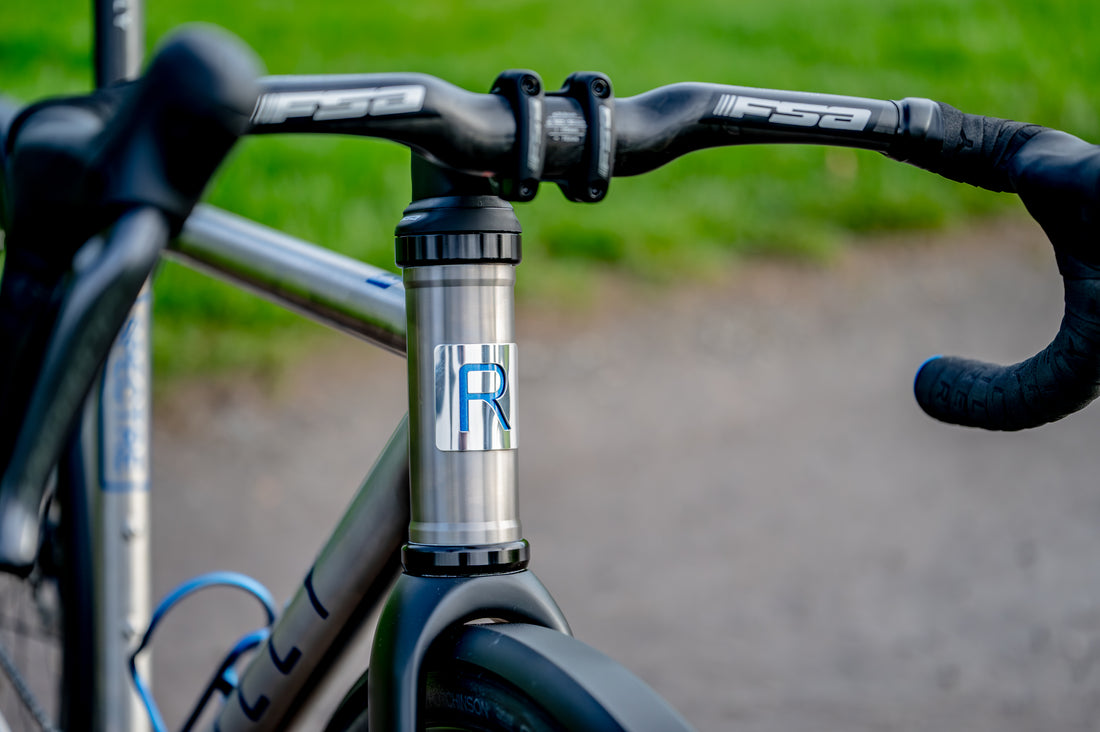

| Headset (Updated Model) | Black FSA External Cup Integrated Headset |
| Bars / Width | Reilly Aluminium Compact Bars (Drop 125mm; Reach 75mm; Flare 4°) or as chosen |
| Stem / Length | Reilly Aluminium Stem 80mm / 90mm / 100 mm / 110mm (Angle: 84° / -6°) or suitable alternative |
| Bar Tape | Black EVA Bar Tape |
| Seatpost | Reilly UD Carbon Seatpost 31.6mm x 350mm, with x2 6AL-4V titanium bolts |

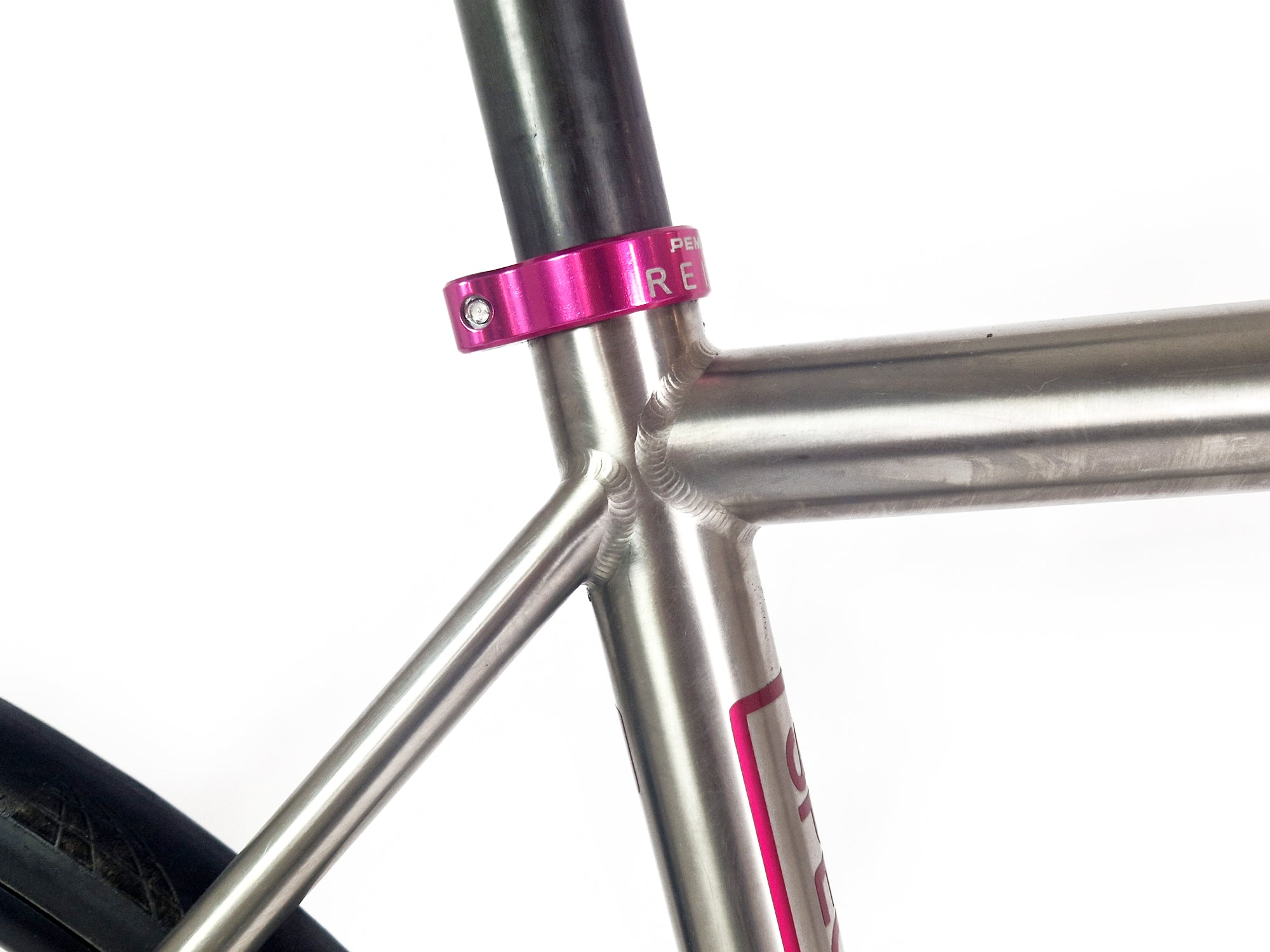

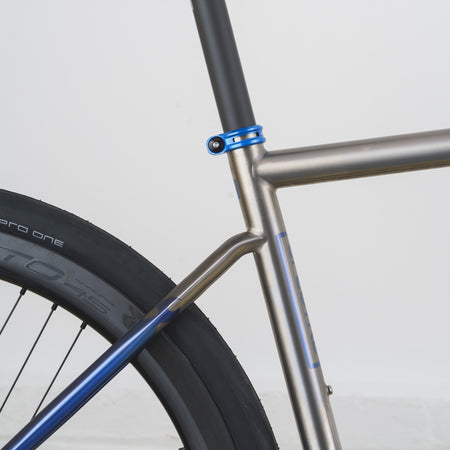

| Seat Clamp | Hope Alloy Seat Clamp available in Red, Blue, Black, Smoke, Orange or Purple |
| Saddle | Reilly Titanium Alloy ‘Airform’ Saddle |

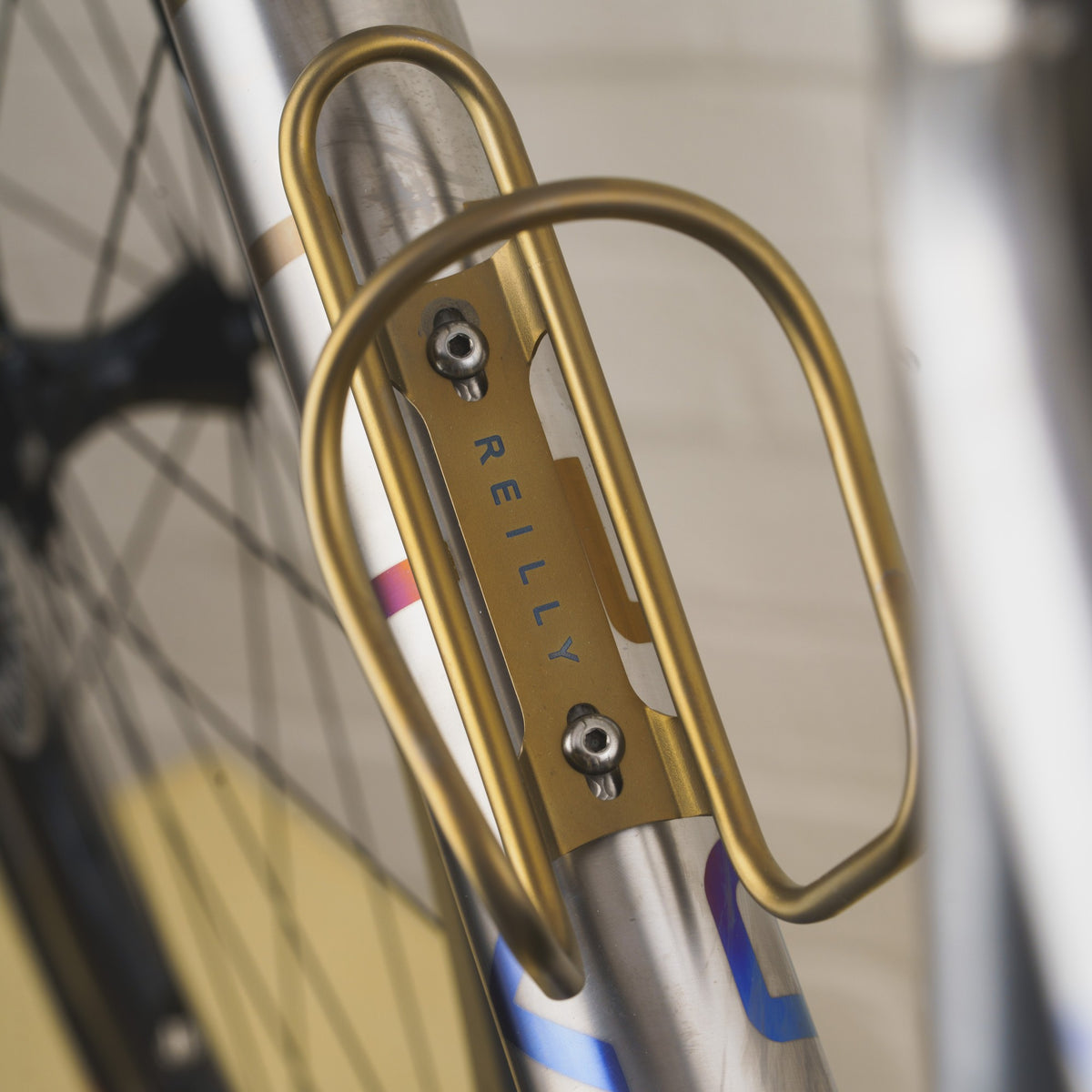

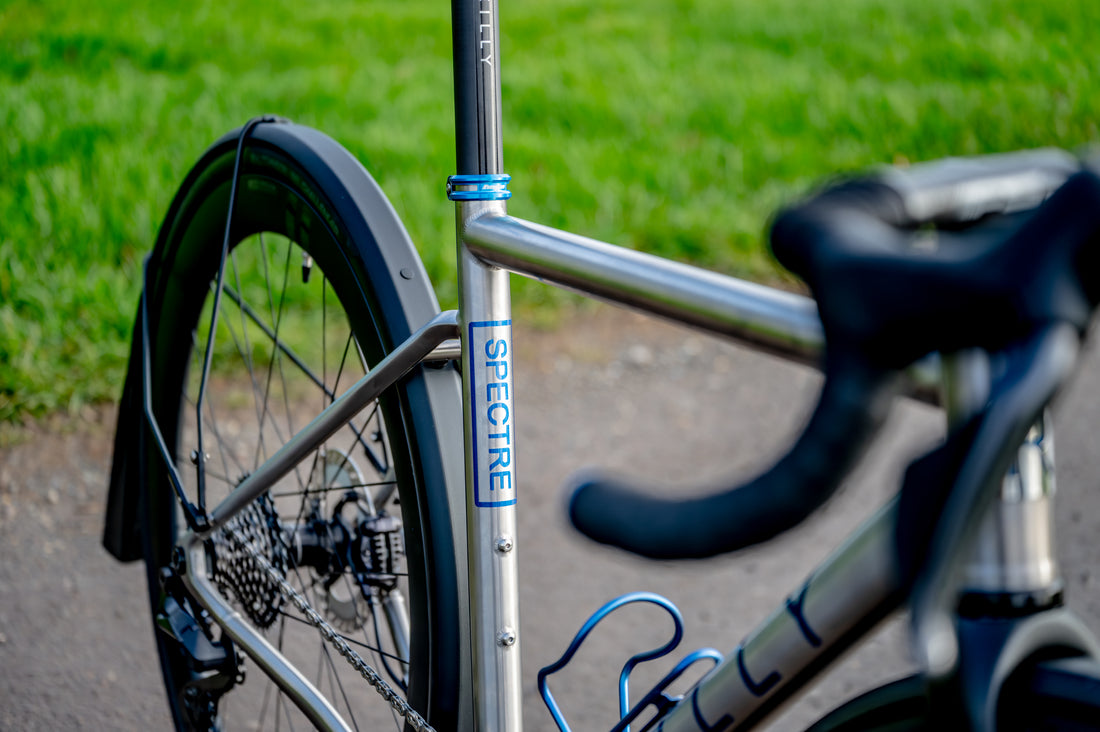

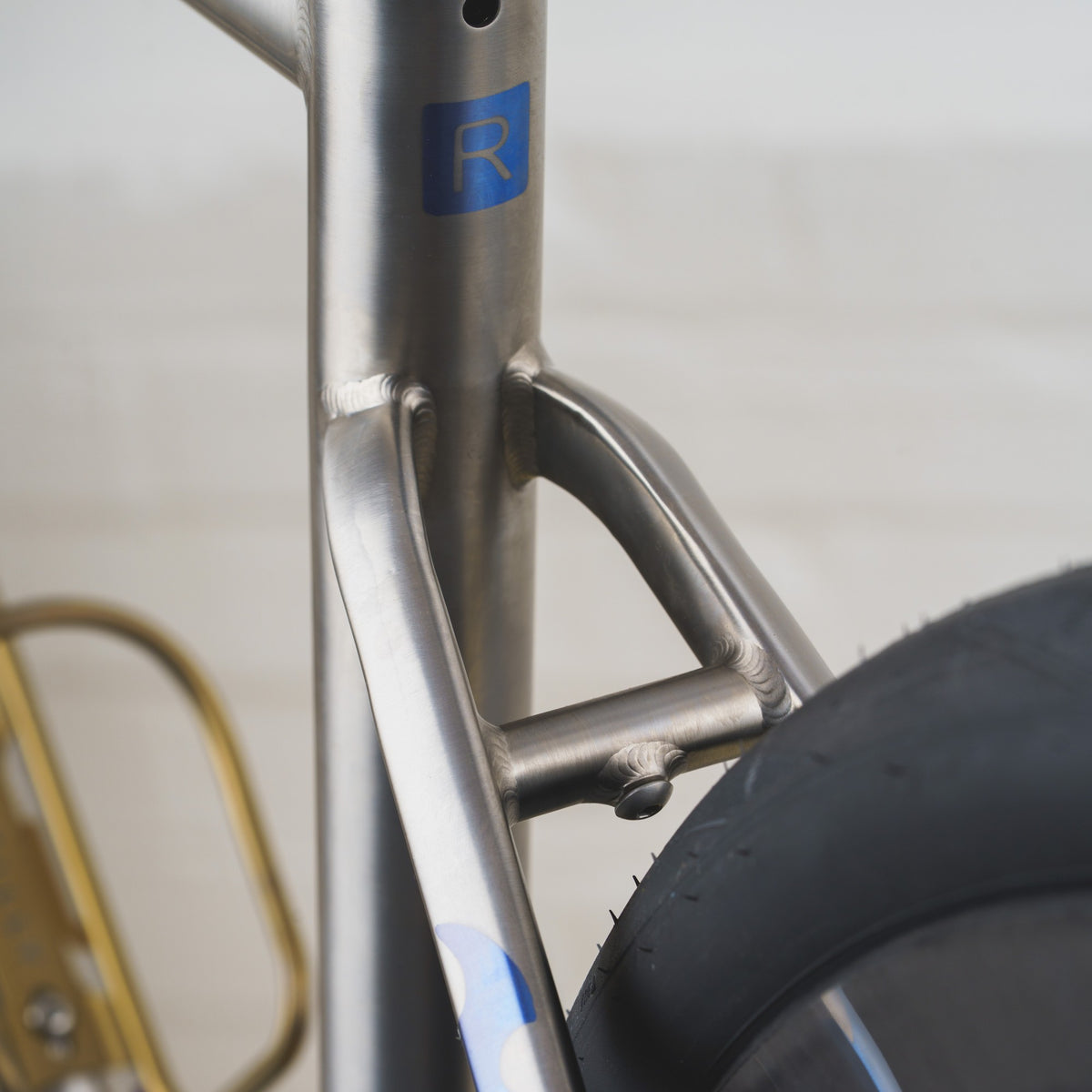

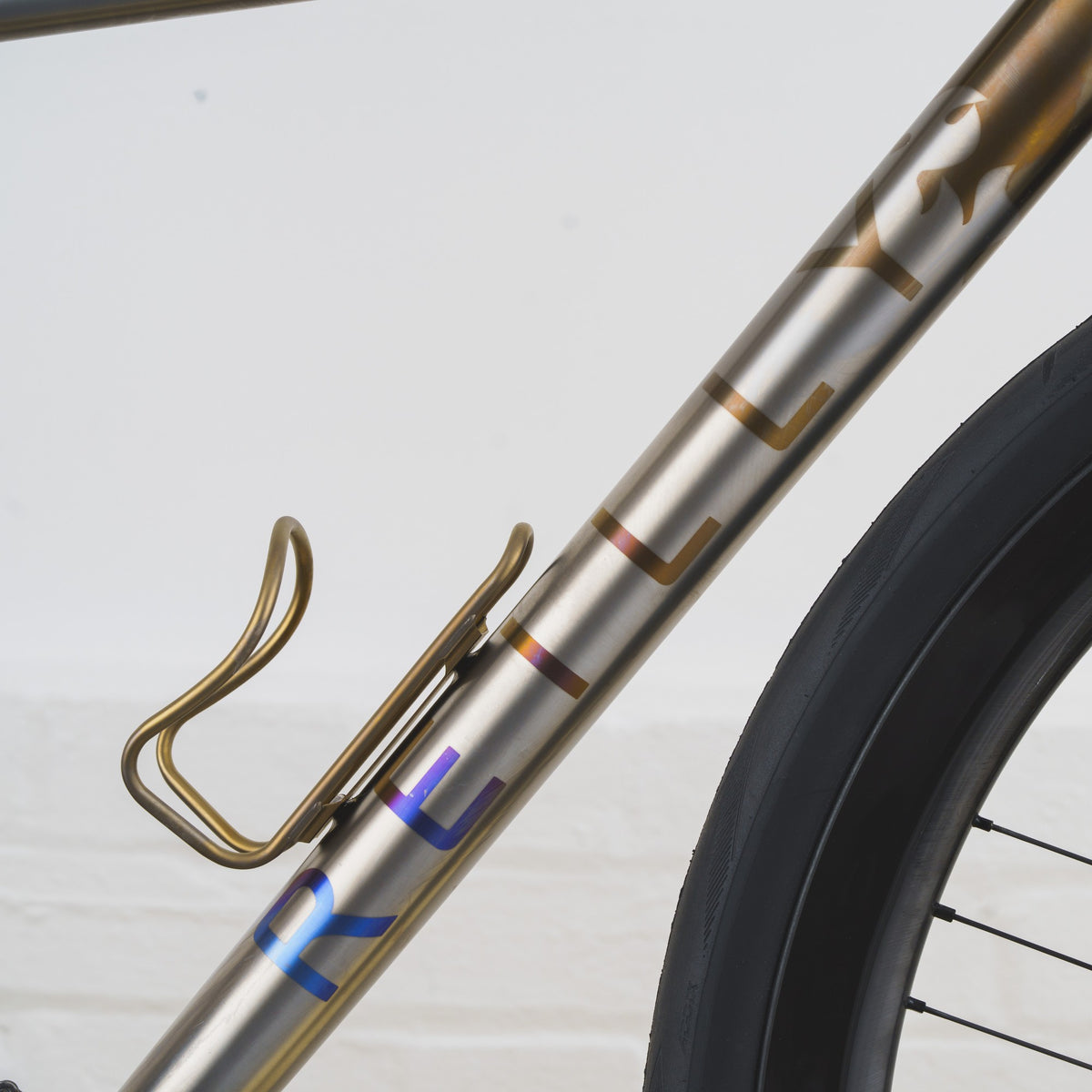

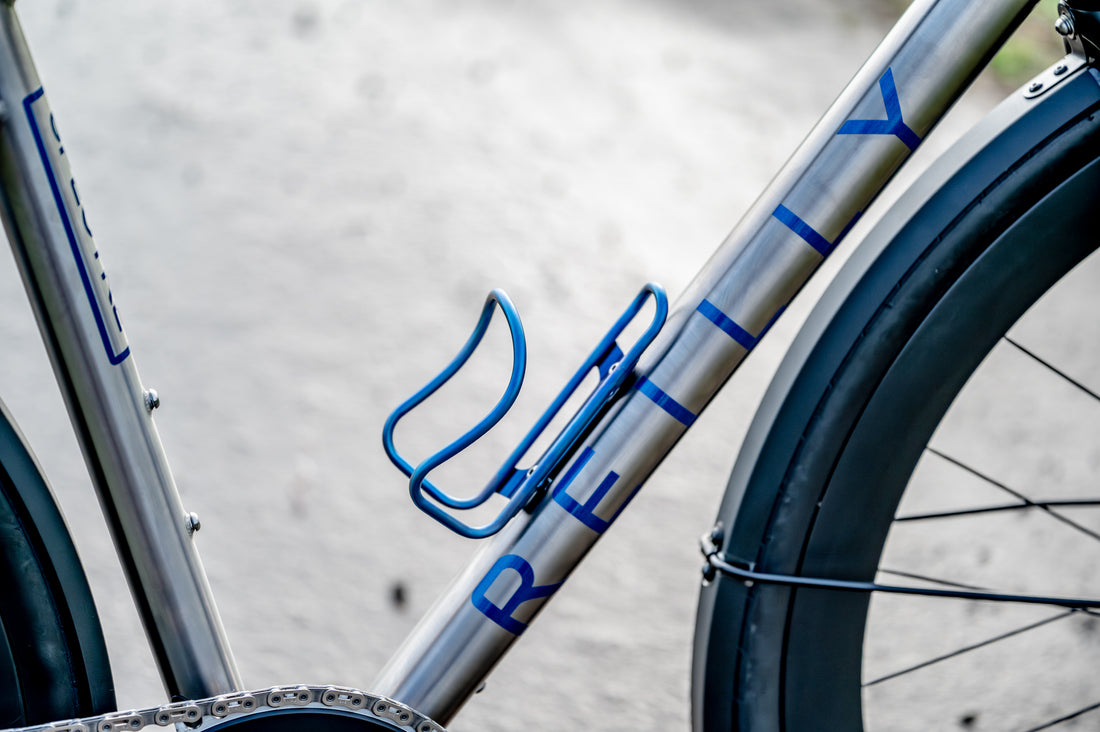

| Frame Features | 3 Bottle Cage Mounts; Mudguard mount points on rear |
| Set-Up | British Standard (right lever = front brake, left lever = rear brake) |

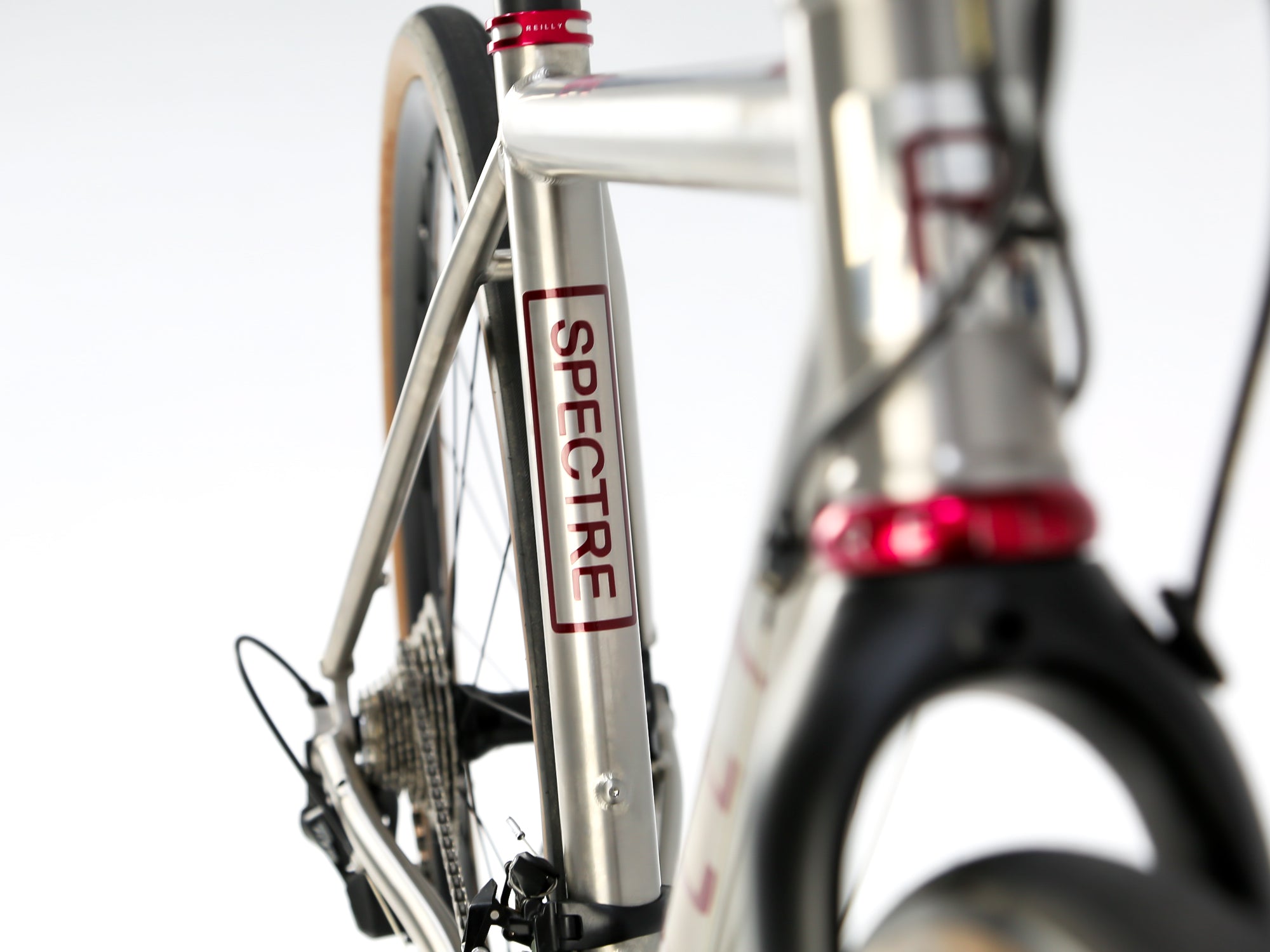

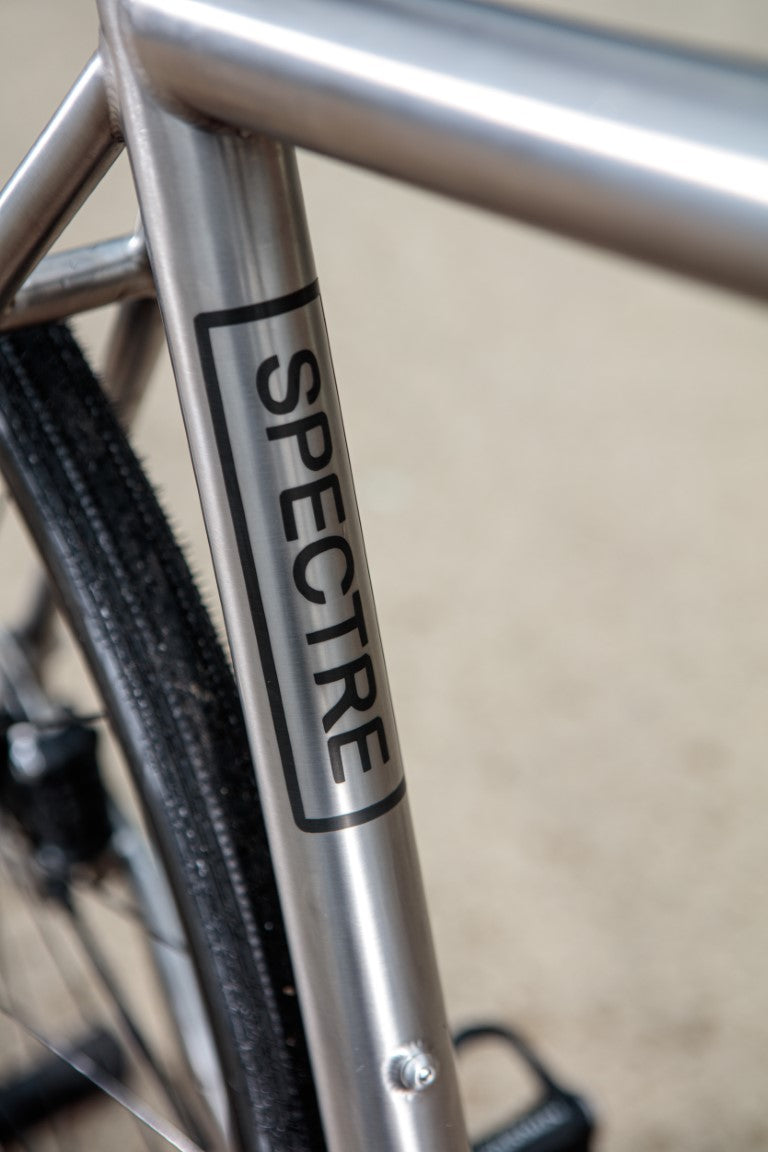

| Finish | Vinyl Decal Blue, Black or Red as standard |
| Warranty | Lifetime Frame Warranty (original owner only, non-transferable; T&Cs apply) |
| SIZE | XS | S | M | L | XL |
| SEAT TUBE C/TOP | 470mm | 490mm | 510mm | 530mm | 540mm |
| TOP TUBE EFFECTIVE | 515mm | 530mm | 550mm | 570mm | 590mm |
| BB DROP | 72mm | 72mm | 72mm | 72mm | 72mm |
| CHAINSTAY LENGTH | 414mm | 417mm | 420mm | 420mm | 422mm |
| SEAT TUBE ANGLE | 75.5° | 74.5° | 73.5° | 72.5° | 72.5° |
| HEAD TUBE ANGLE | 70.5° | 71° | 72° | 73.5° | 73° |
| FORK RAKE | 47mm | 47mm | 47mm | 47mm | 47mm |
| TRAIL | 72mm | 69mm | 63mm | 59mm | 59mm |
| FRONT CENTRE | 594mm | 594mm | 596mm | 612mm | 626mm |
| WHEELBASE | 997mm | 1000mm | 1005mm | 1021mm | 1038mm |
| STANDOVER | 744mm | 756mm | 780mm | 800mm | 812mm |
| HEAD TUBE | 105mm | 120mm | 140mm | 160mm | 175mm |
| STACK | 526mm | 542mm | 564mm | 585mm | 600mm |
| REACH | 376mm | 378mm | 382mm | 396mm | 406mm |

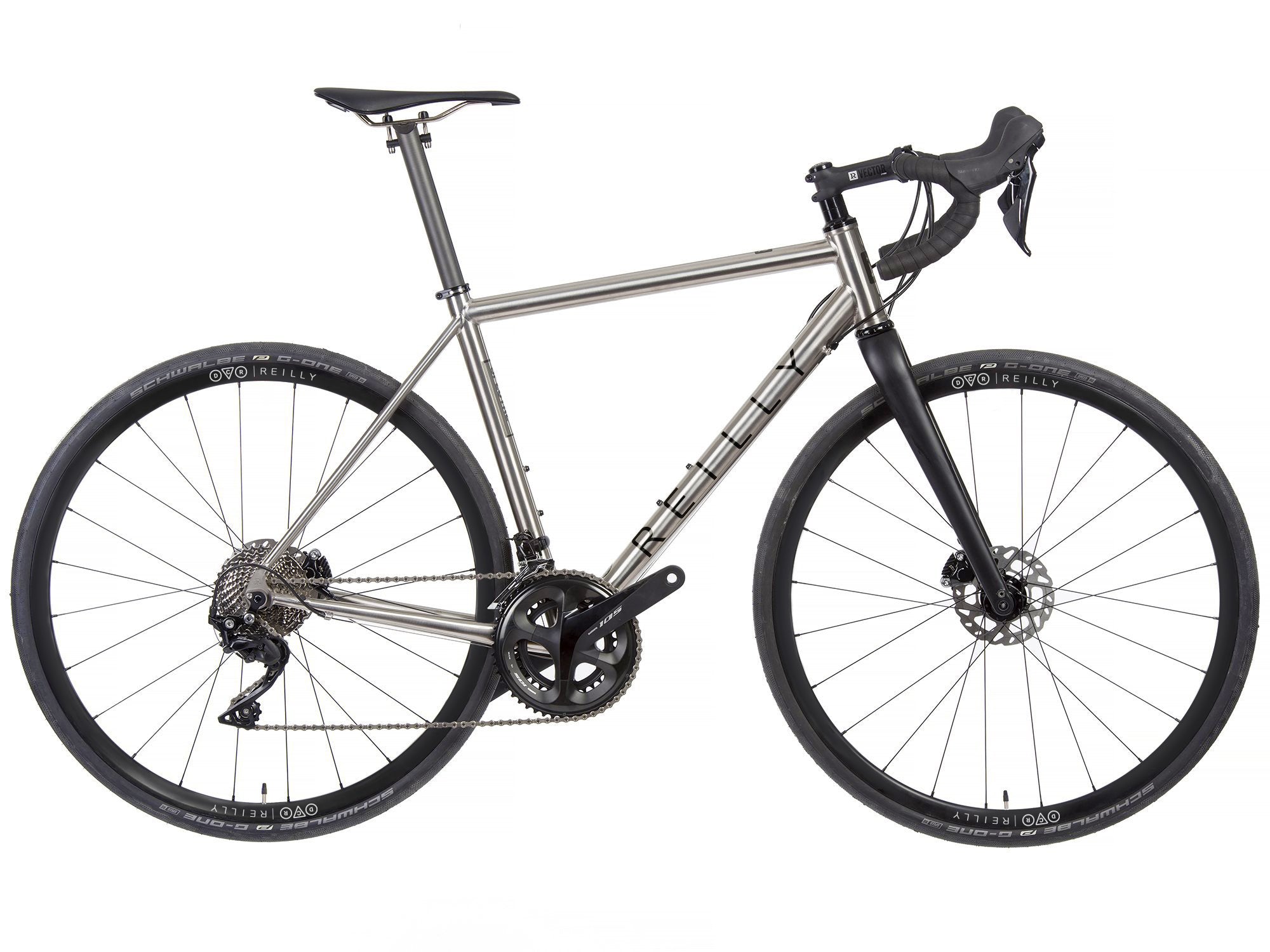

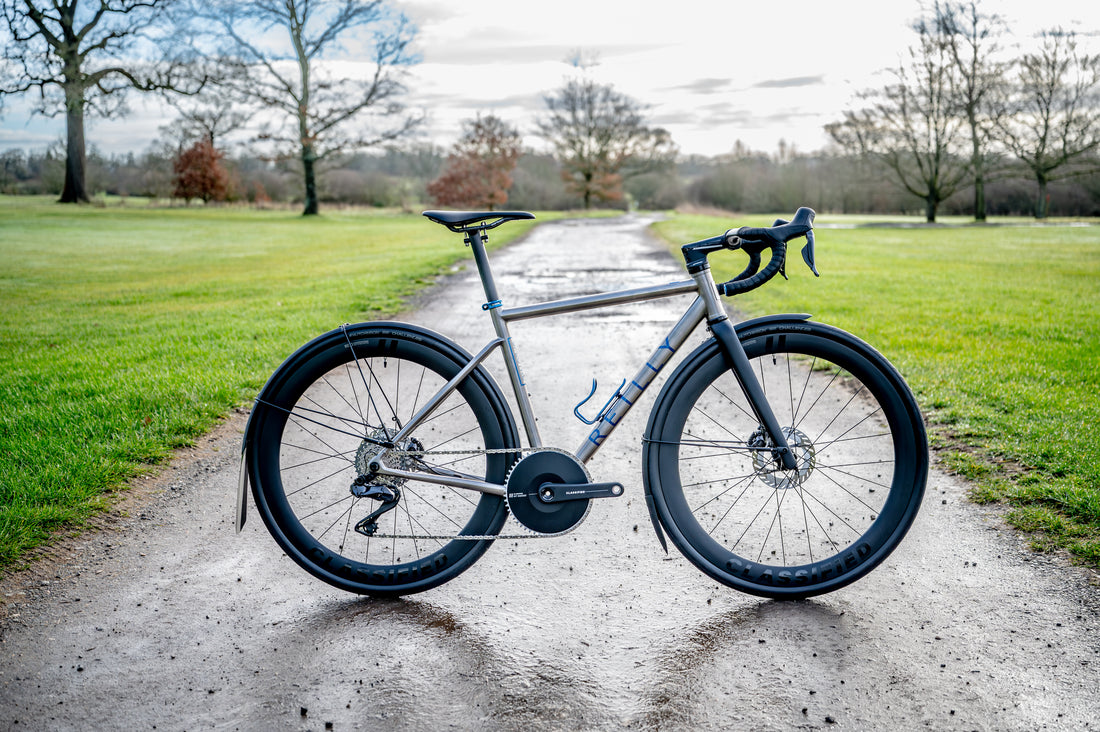

The Reilly Spectre is an all-weather, all-road titanium bike built for speed, comfort and versatility. Designed to perform on tarmac and rough roads, it features up to 38mm tyre clearance and mudguard mounts for year-round riding. The Spectre is both responsive yet comfortable thanks to roots as a winter road bike and fast endurance and sportive machine, making it a truly versatile titanium gravel bike.

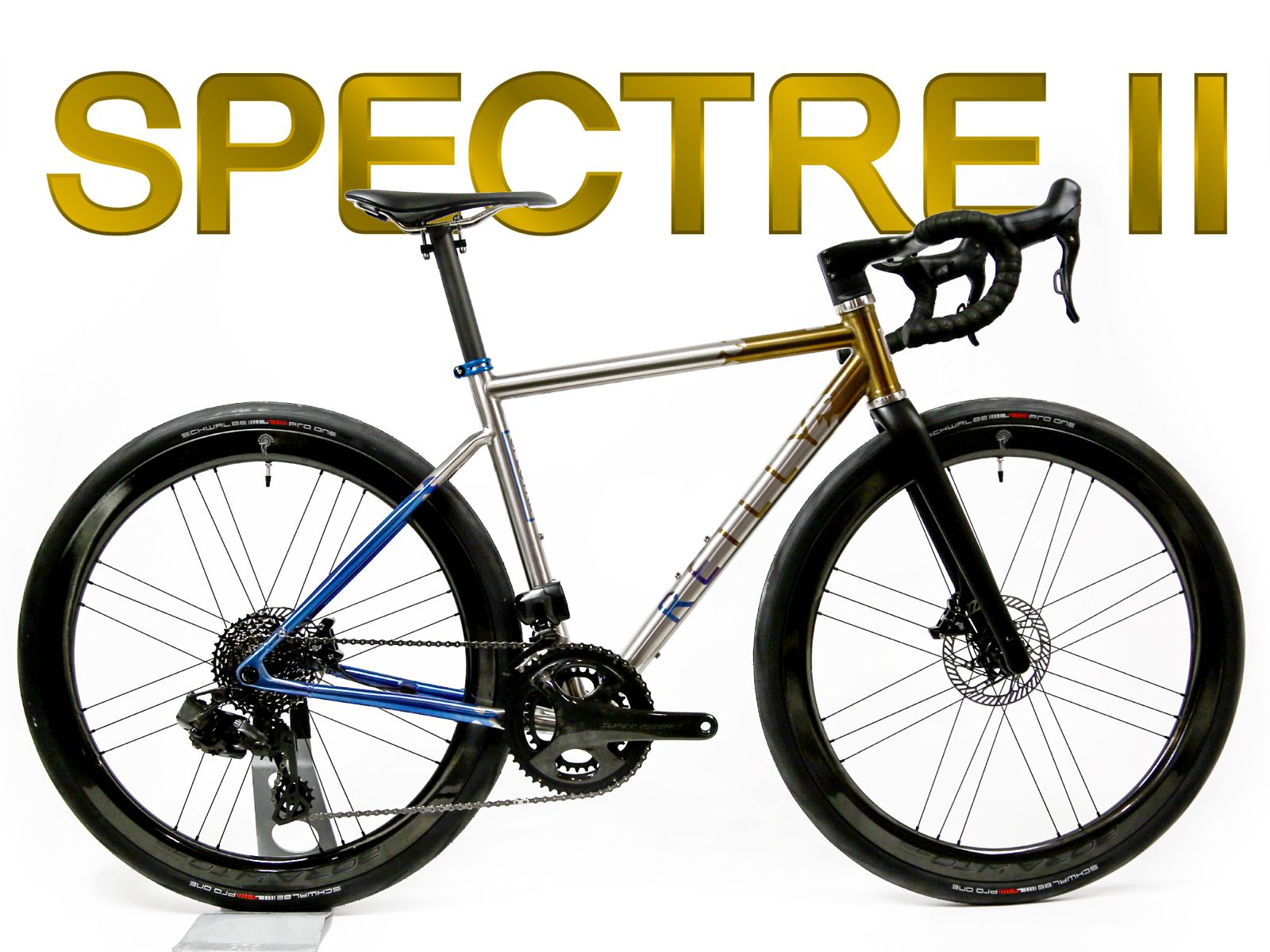

THE UPDATED SPECTRE boasts -

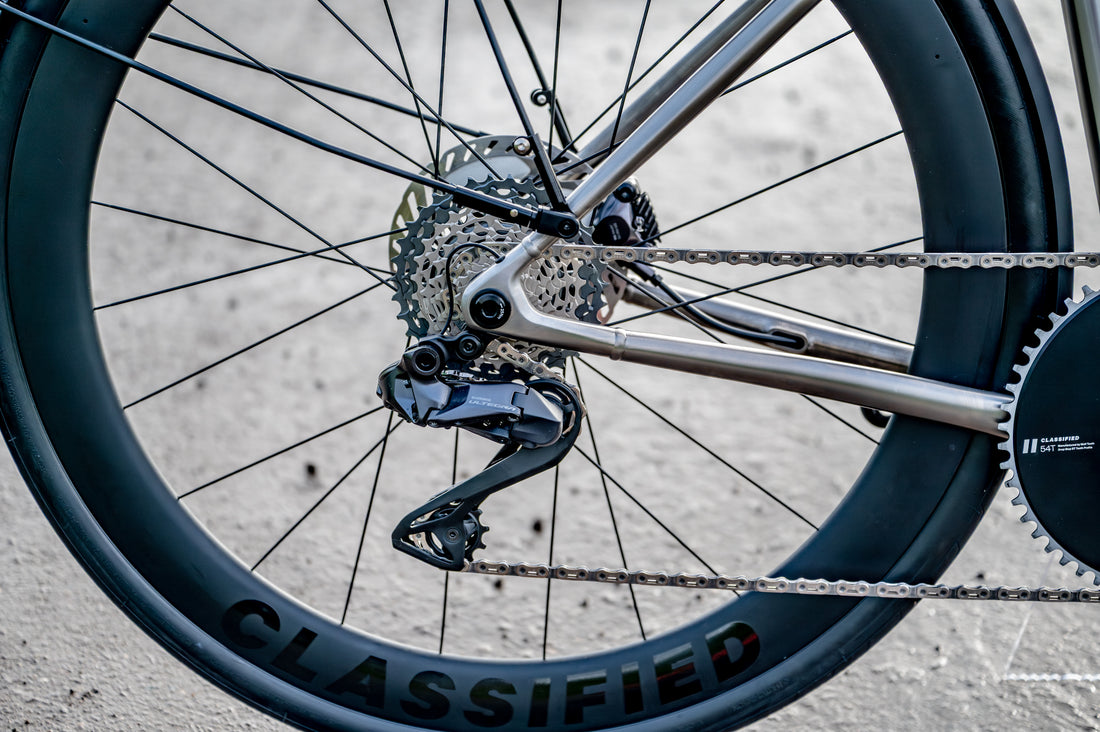

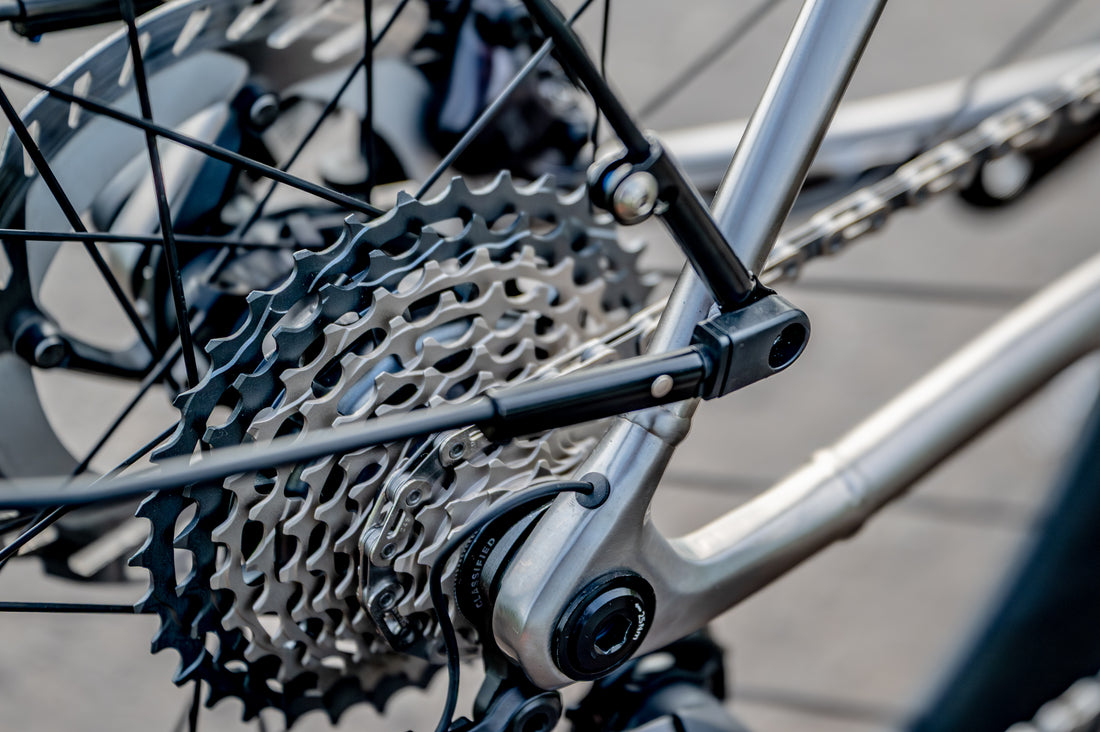

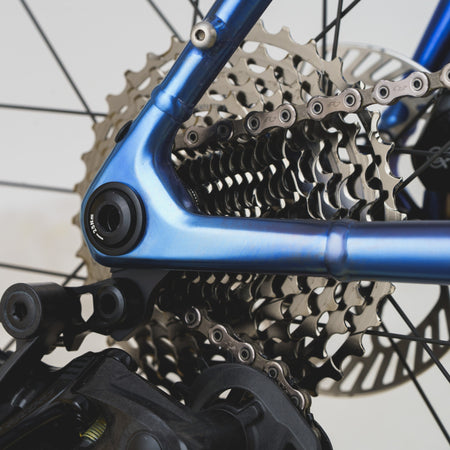

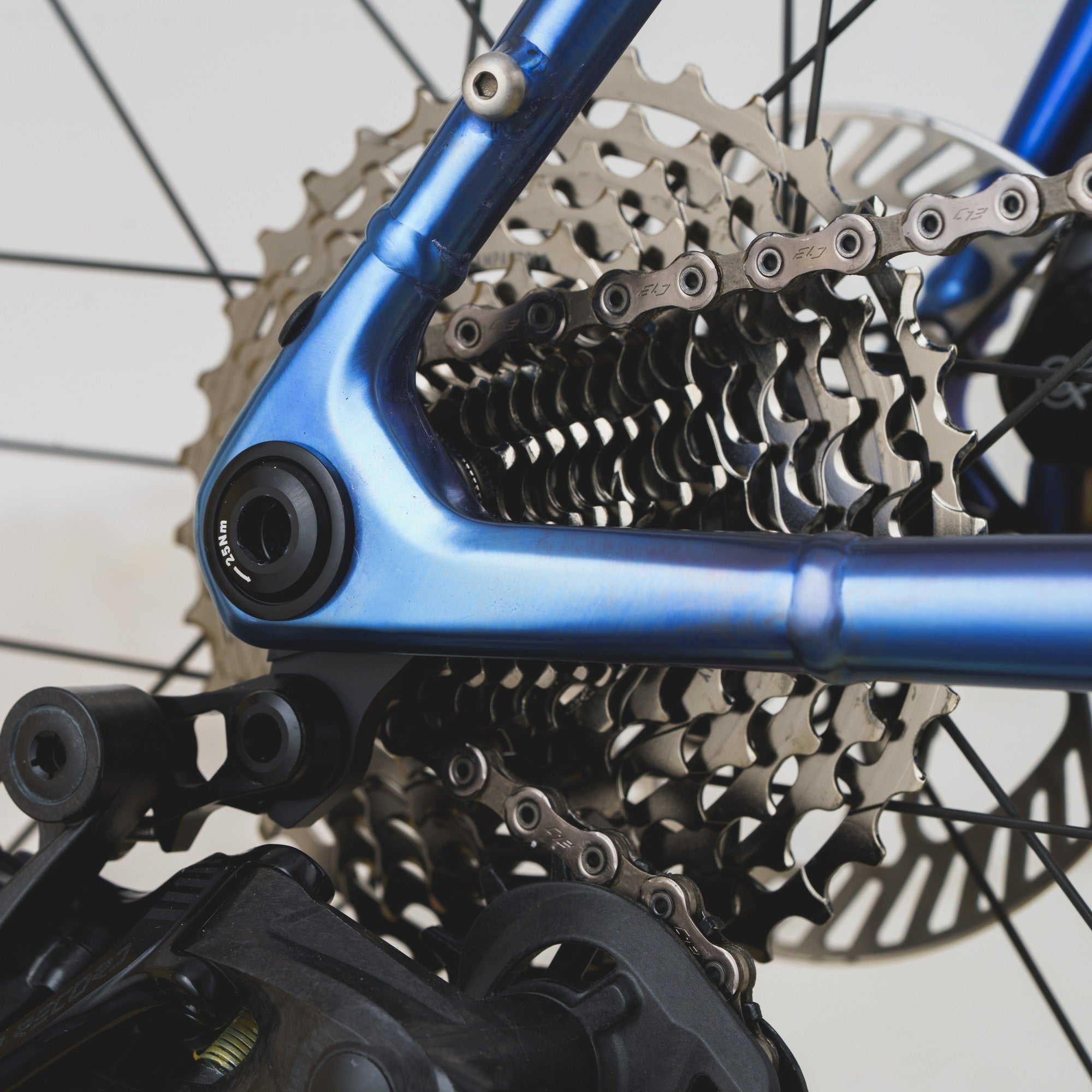

UDH compatitble.

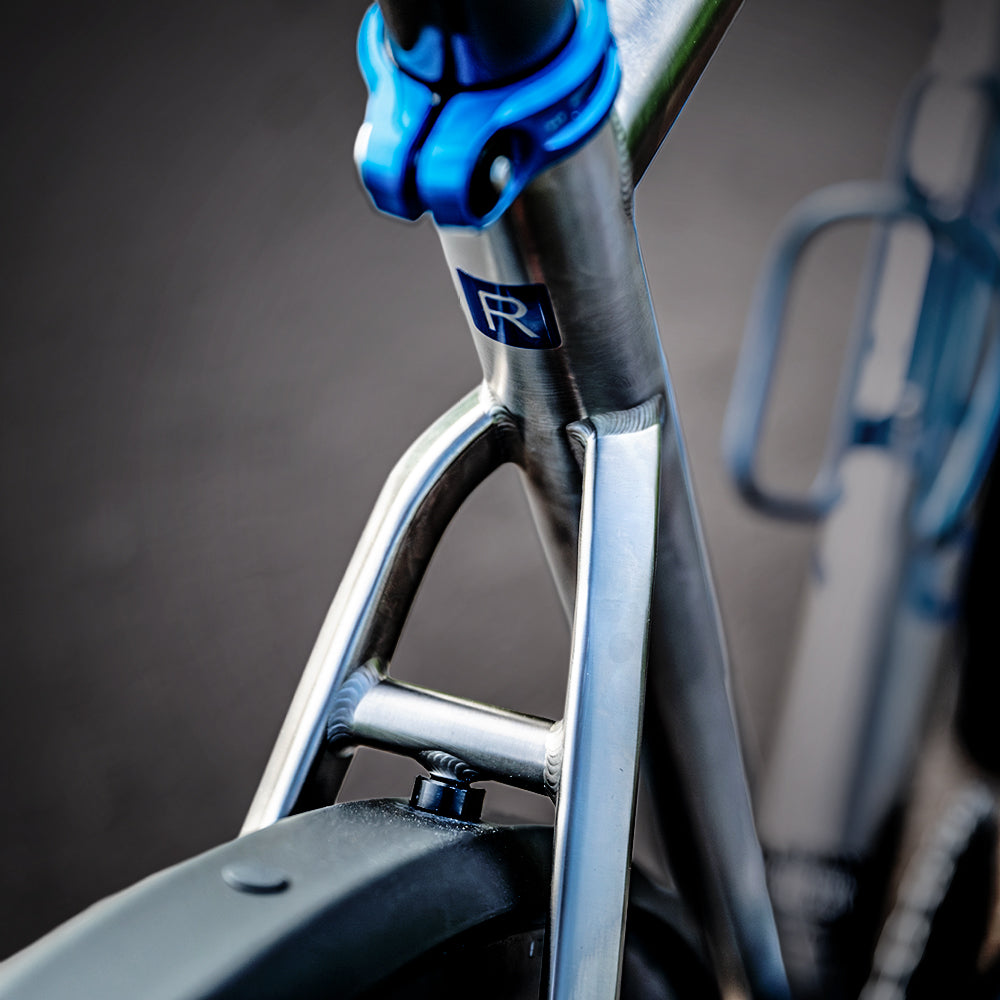

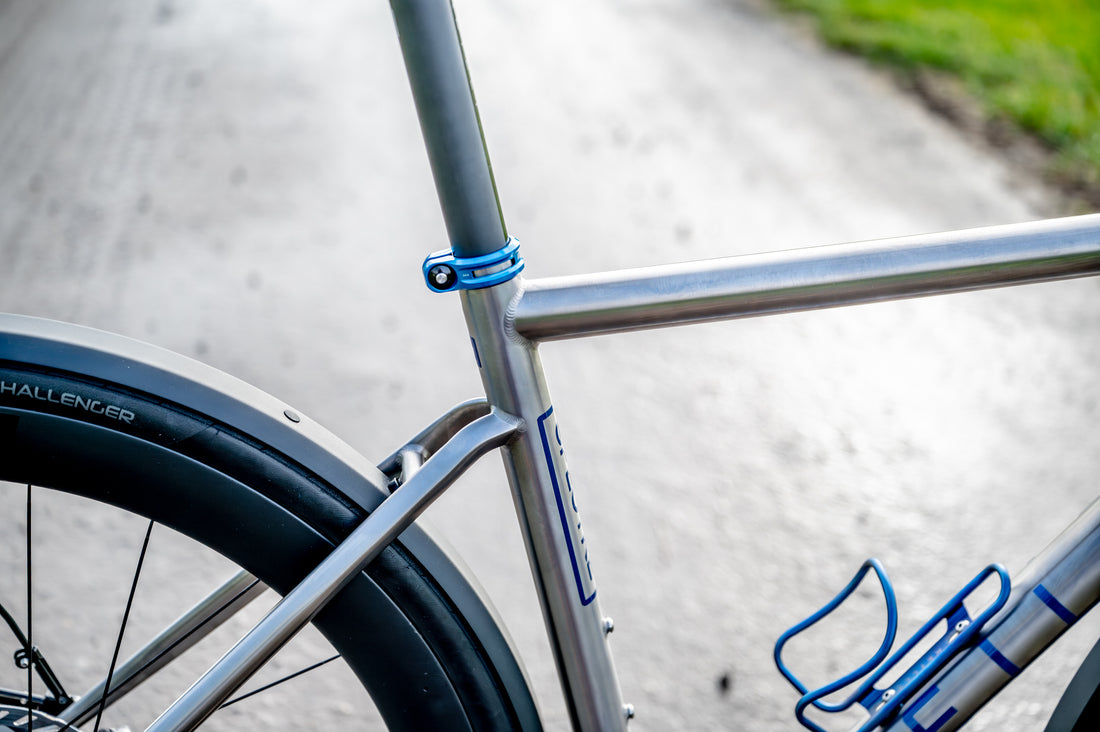

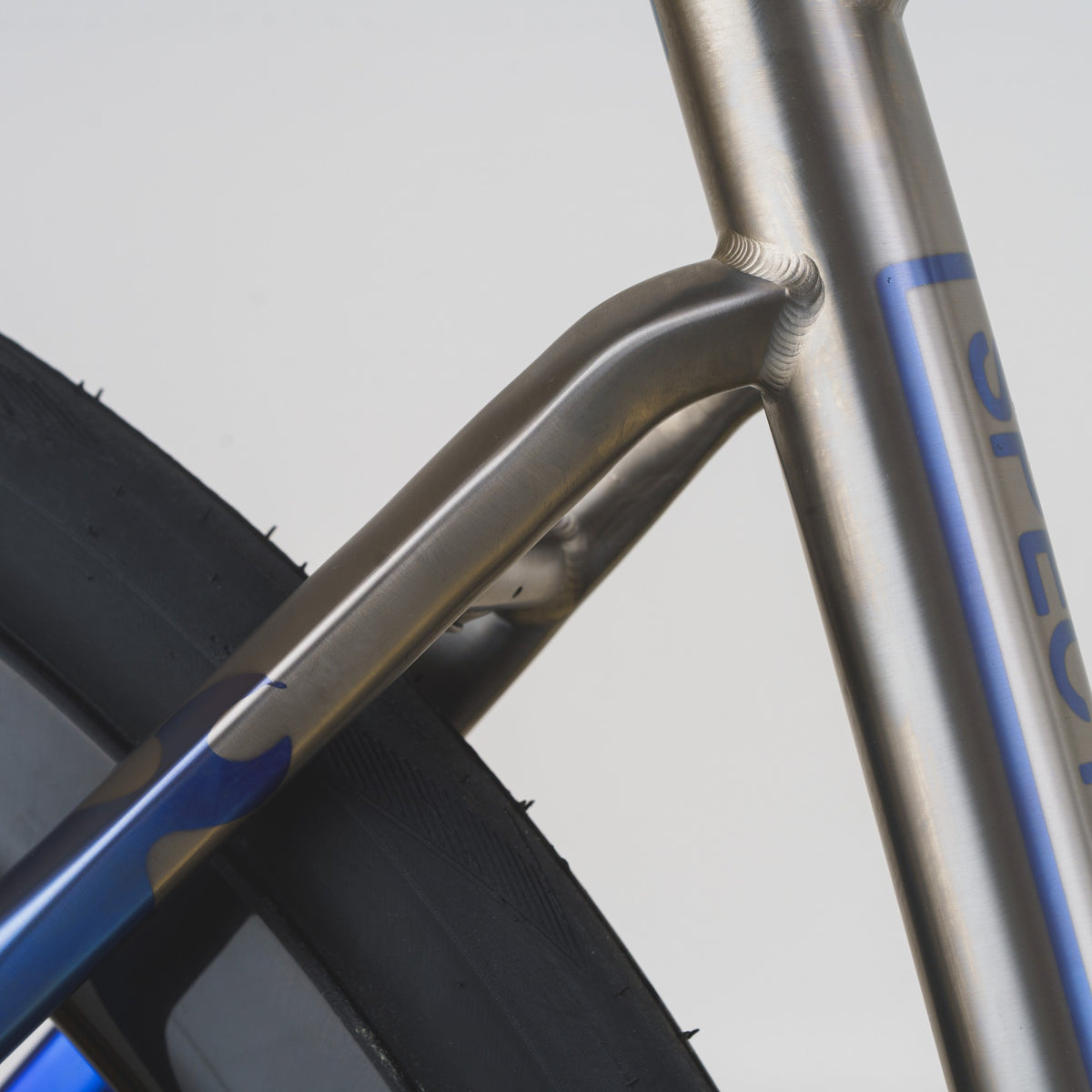

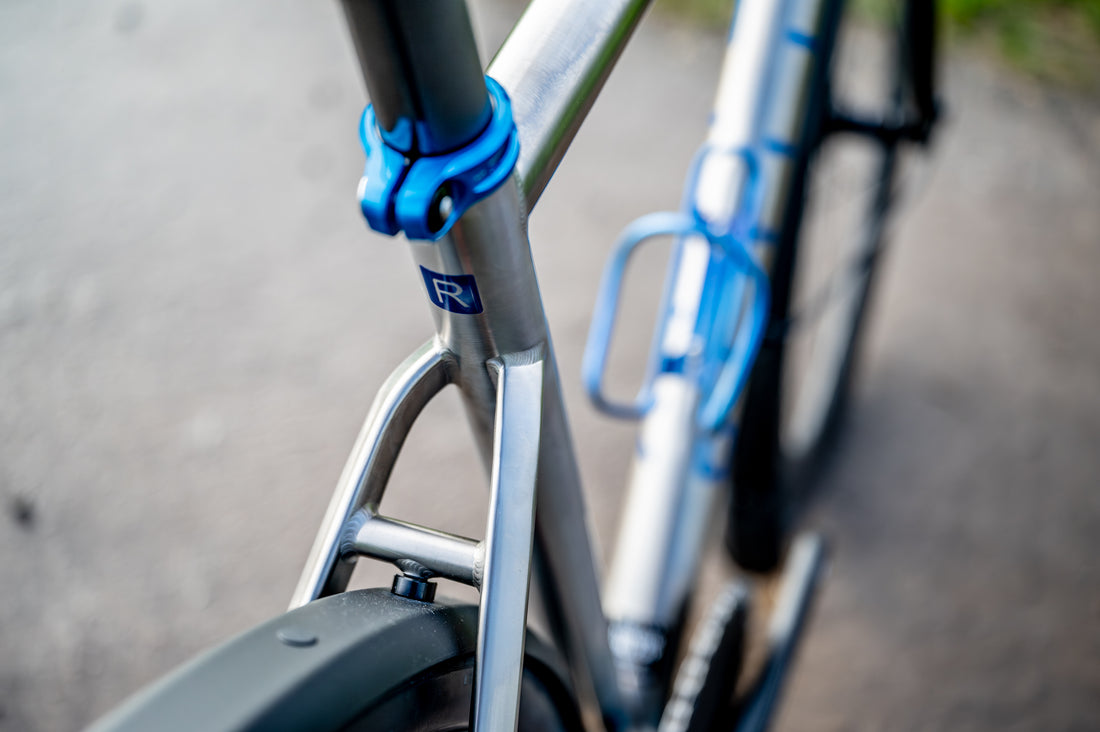

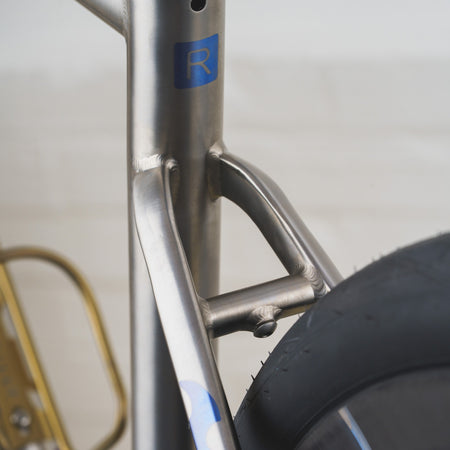

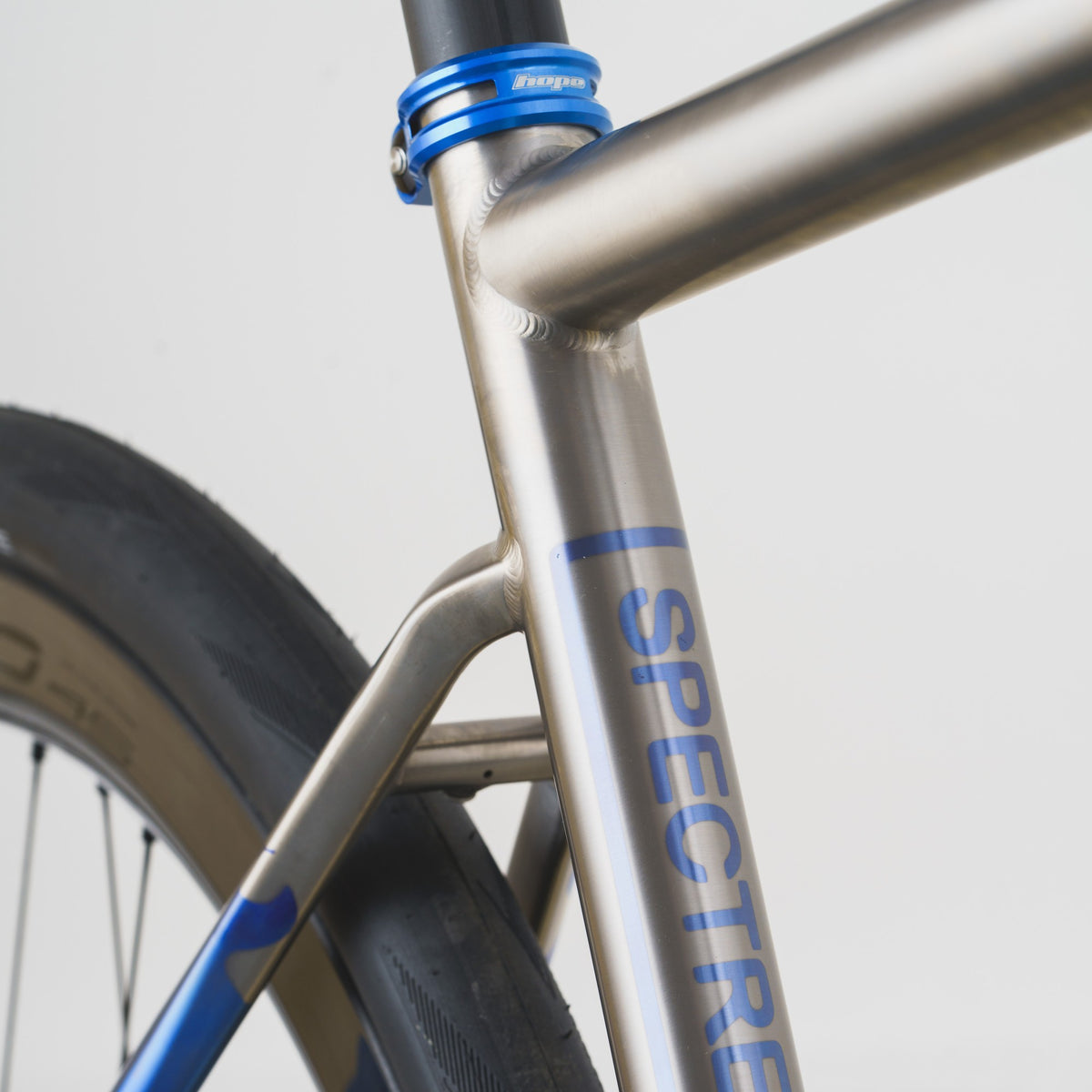

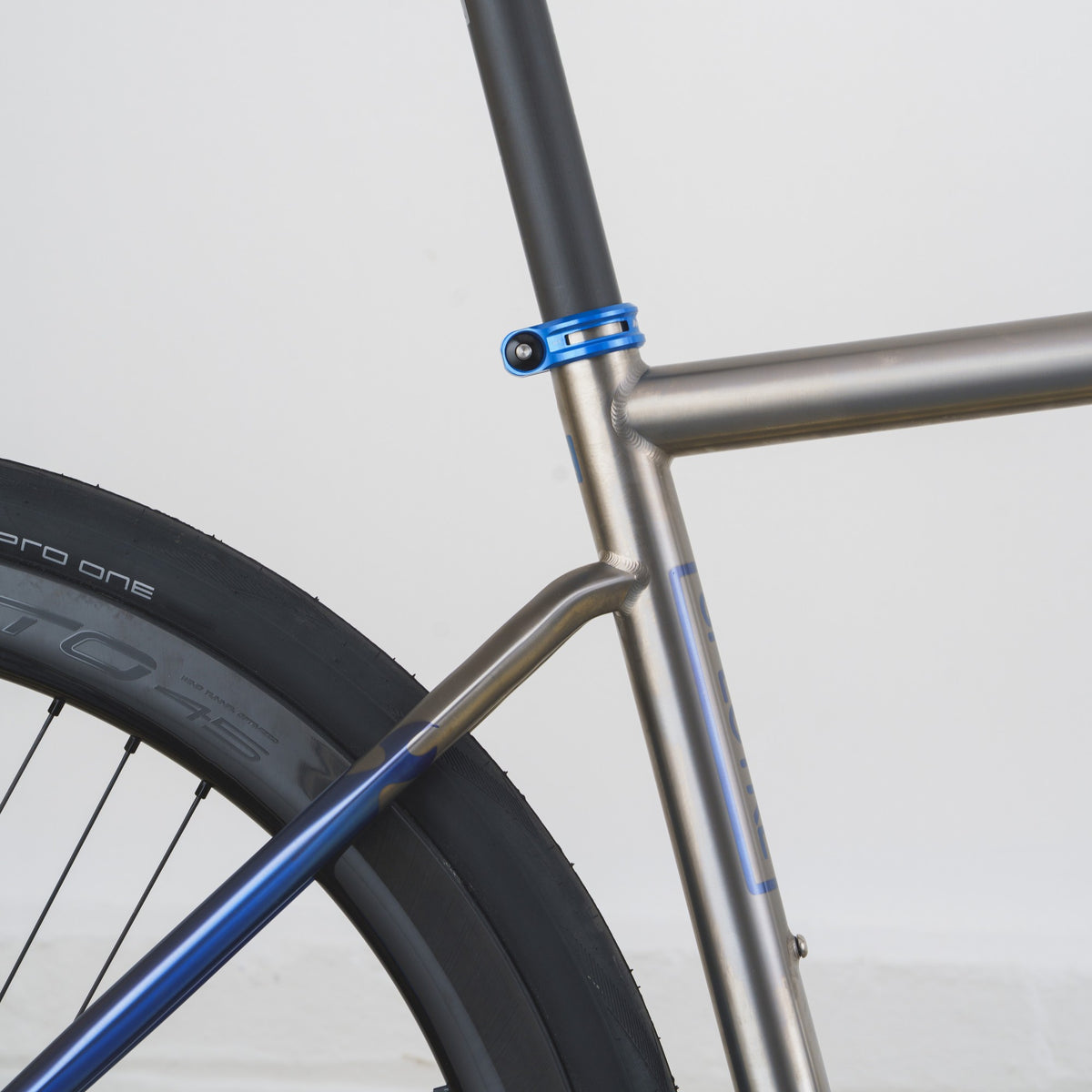

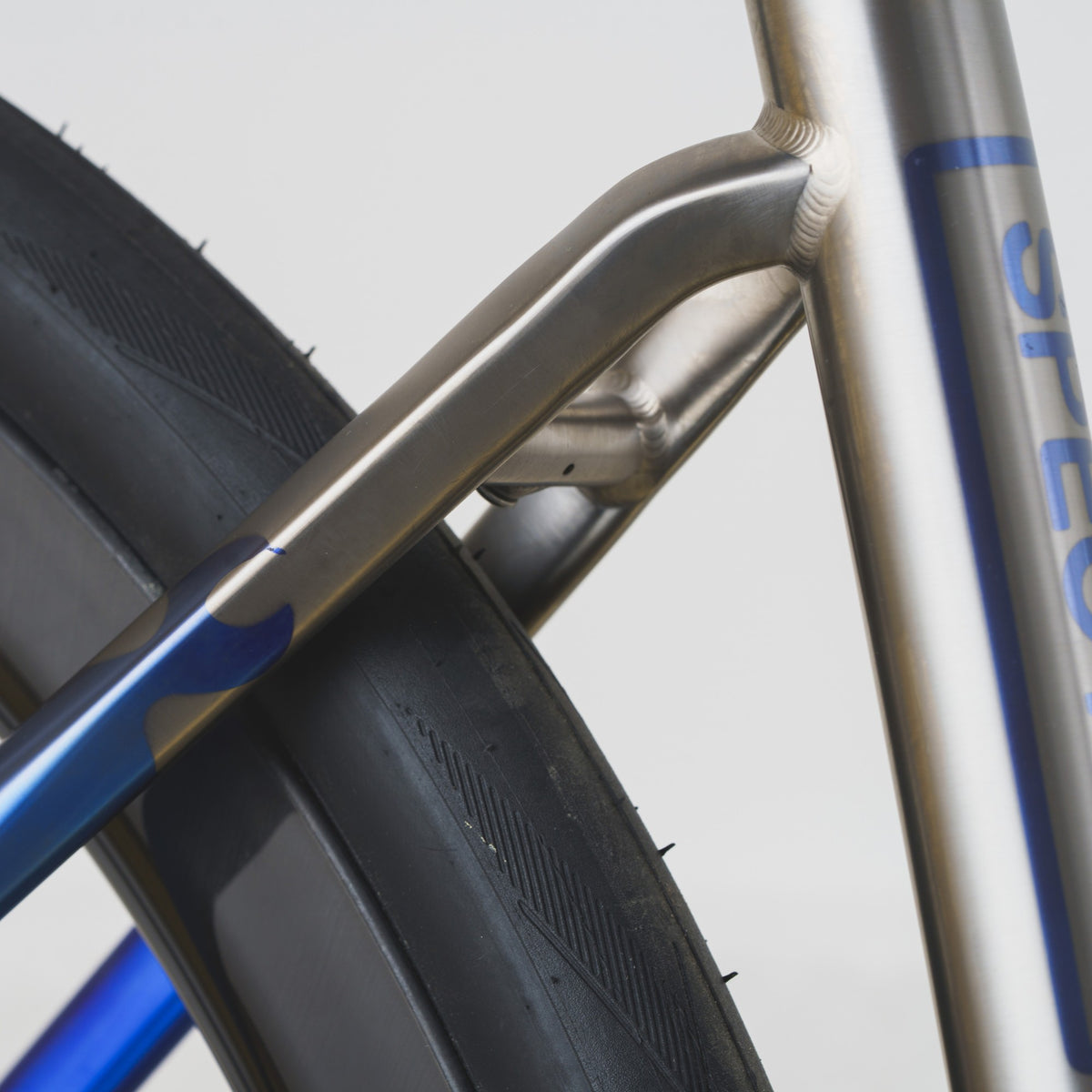

Drop stays give it a modern edge.
Full cable integration.

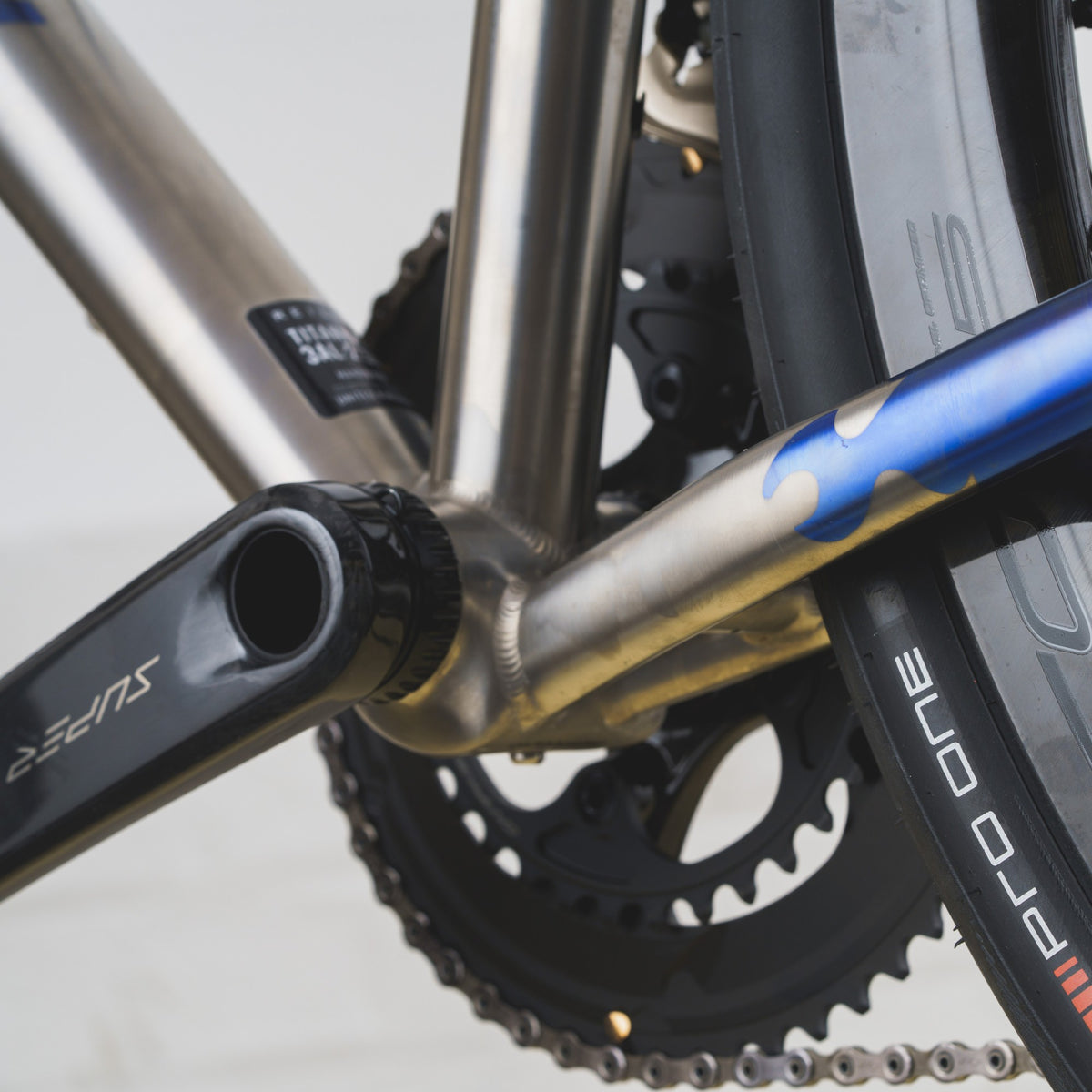

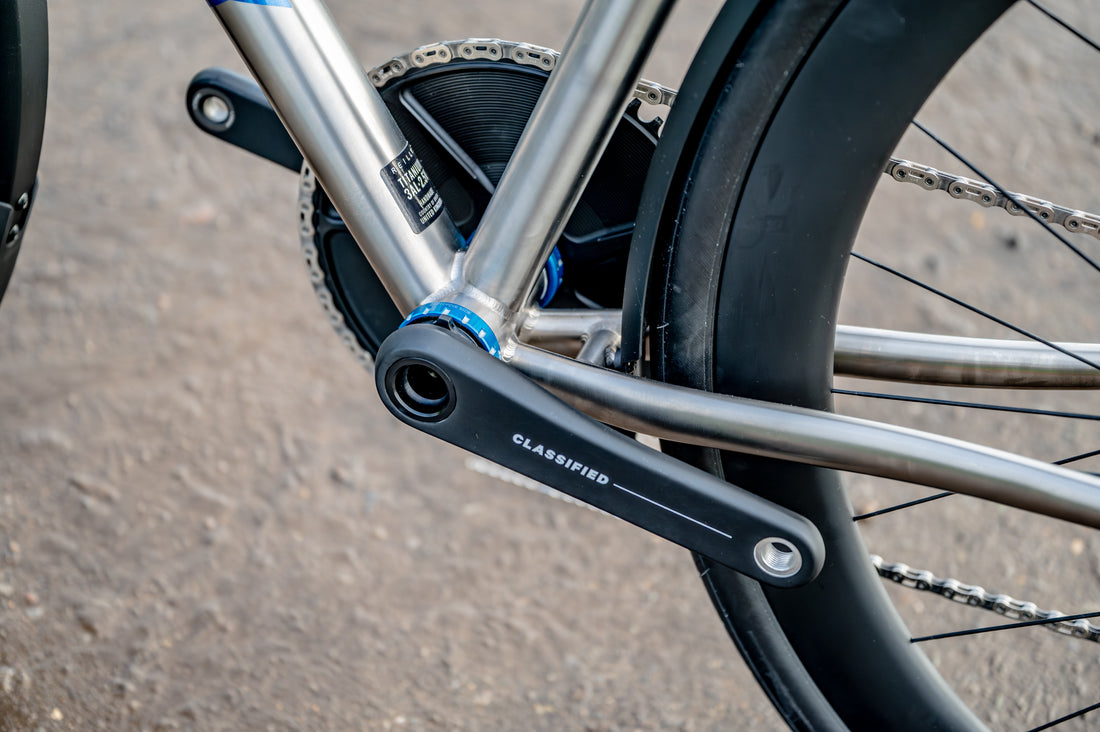

BSA bottom bracket with access hatch.
Increased tyre capacity to 40mm while maintain mudguarde mounts.
